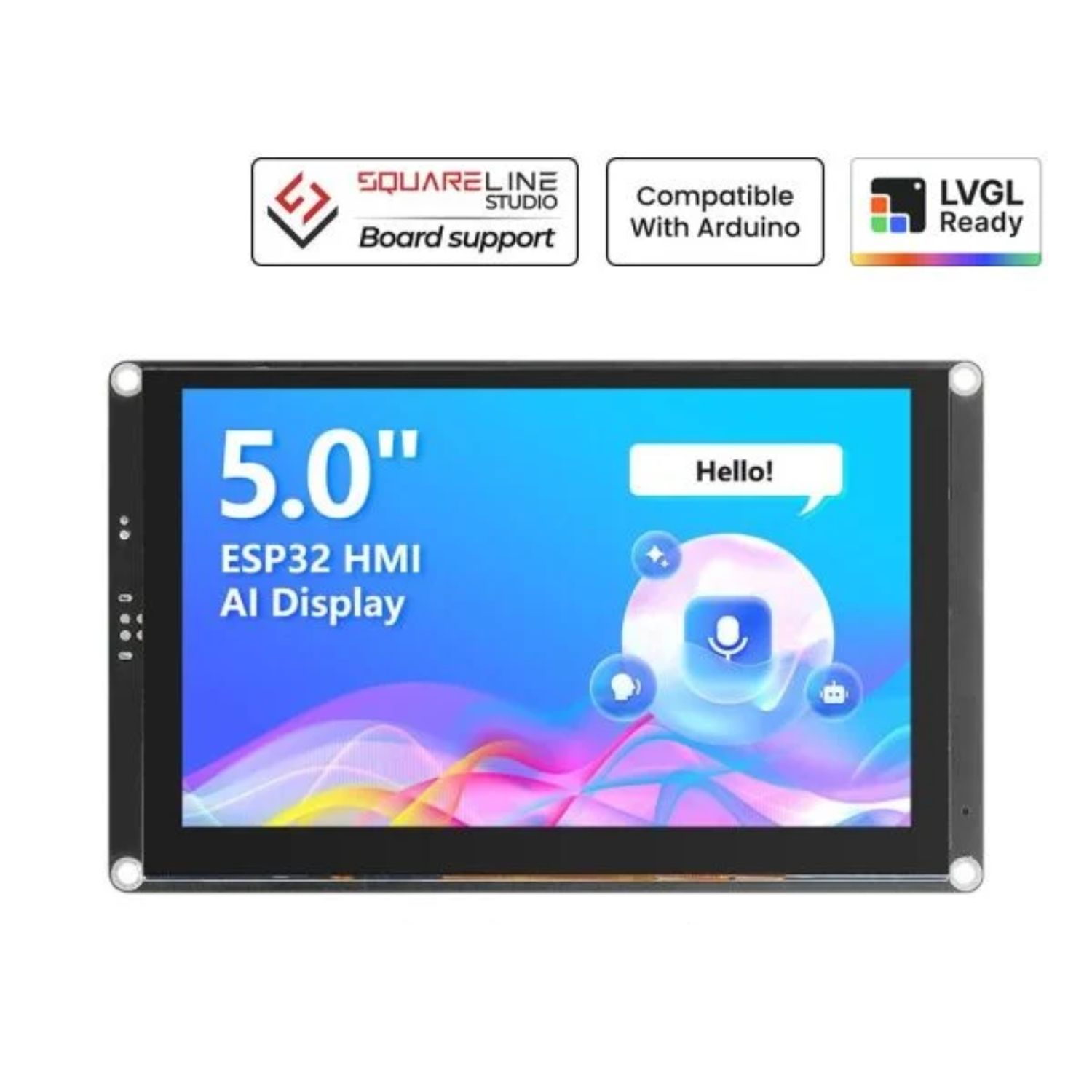

Elecrow CrowPanel Advance 5 Inch HMI Display ESP32-S3 AI-Powered 800×480 IPS Touch Screen Arduino & LVGL Compatible
Elecrow CrowPanel Advance 5 Inch HMI Display ESP32-S3 AI-Powered 800×480 IPS Touch Screen Arduino & LVGL Compatible
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The Elecrow CrowPanel Advance 5" is a powerful AI-enabled HMI display featuring an 800×480 IPS capacitive touch screen and the high-performance ESP32-S3 dual-core processor. Designed for IoT, automation, smart home, and industrial applications, it delivers smooth graphics, wireless connectivity, and advanced AI voice interaction capabilities.
With Wi-Fi and Bluetooth LE support, generous 16MB Flash and 8MB PSRAM, and compatibility with Arduino IDE, ESP-IDF, PlatformIO, and LVGL, developers can rapidly build intuitive touchscreen interfaces and connected devices. The vibrant IPS display offers a 178° viewing angle for excellent visibility, while the capacitive touch panel ensures responsive user interaction.
A standout feature is its AI voice capability, supporting microphone and speaker integration for voice recognition, speech synthesis, and smart assistant applications. Its modular expansion design also supports multiple wireless technologies, including LoRa, Zigbee, Matter, Thread, nRF24L01, Wi-Fi 6, and Wi-Fi HaLow, making it adaptable for a wide range of modern IoT and Industry 4.0 projects.
Specifications:
|
Main Chip-ESP32-S3-WROOM-1-N16R8 |
|
|
CPU/SoC |
high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz |
|
System Memory |
512KB SRAM, 8M PSRAM |
|
Memory |
16M Flash, 384KB ROM |
|
Development Language |
C/C++ |
|
Development Environment |
ESP-IDF, Arduino IDE, PlatformIO, LVGL |
|
Screen |
|
|
Size |
5.0 inch |
|
Diver IC |
ST7262 |
|
Resolution |
800*480 |
|
Display Panel |
IPS Panel |
|
Touch Panel |
Capacitive Single Touch |
|
Viewing Angle |
178° |
|
Brightness |
400 cd/m² (Typ.) |
|
Color Depth |
16-bit |
|
Wireless Communication - Onboard Antenna |
|
|
WiFi |
Support 2.4GHz, 802.11a/b/g/n |
|
Bluetooth |
Support Bluetooth 5.0 and BLE |
|
Other |
Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi HaLow, and Wi-Fi 6 (Optional) |
|
Interface/Function |
|
|
Interface |
USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. (MIC and SD Card Simultaneous use is not possible.) |
|
Function |
RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc. |
|
Button/LED Indicator |
|
|
Reset Button |
Yes, press to reset device |
|
Boot Button |
Yes, press and hold the power button to burn the program |
|
PWR |
Power indicator |
|
CHG |
Lithium battery charging status, completion indication |
|
Other |
|
|
Installation method |
Back hanging, fixed hole |
|
Operating temperature |
-20~70 °C |
|
Storage temperature |
-30~80 °C |
|
Power Input |
5V/2A, USB or UART terminal |
|
Active Area |
108 mm * 65 mm |
|
Dimensions |
136.4*84.7*15.4mm |
Features:
- ESP32-S3-WROOM-1 Processor for high-performance AI and HMI applications
- 240MHz Dual-Core CPU with 512KB SRAM, 8MB PSRAM, and 16MB Flash
- 5.0-Inch IPS Display with 800×480 resolution and capacitive touch support
- 178° Wide Viewing Angle for clear visuals from any direction
- Built-in AI Voice Support with microphone and speaker interface for voice interaction
- LVGL & Arduino Ready with preloaded demos and example projects
- Modular Wireless Expansion supporting LoRa, Zigbee, Matter, Thread, nRF24L01, Wi-Fi HaLow, and Wi-Fi 6 modules
- Real-Time Clock (RTC) for accurate timekeeping during power interruptions
- Compact Embedded Design with vertical terminal interfaces for easier integration

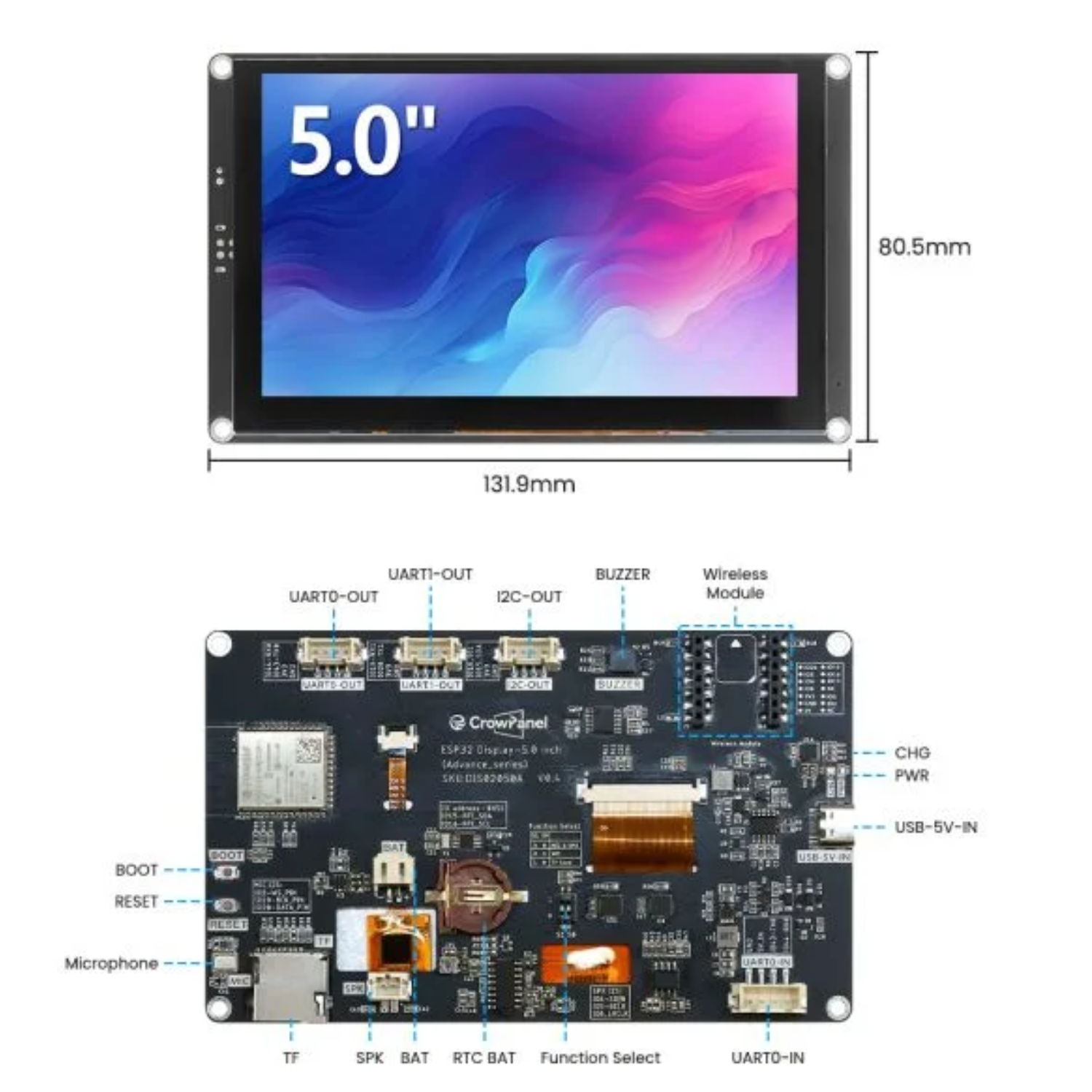

Product Interface:
Useful Link:
- Wiki of CrowPanel 5inch HMI Display
- User Manual of CrowPanel 5inch HMI Display
- CE Report
- RoHS Report
- ESP32-S3 Datasheet
- For Tactility
Package Included:
-
1 x CrowPanel Advance ESP32 Display – 5.0 inch
- 1 x USB-A to Type-C Cable
- 1 x Crowtail/Grove 4-pin DuPont cable
