Description:

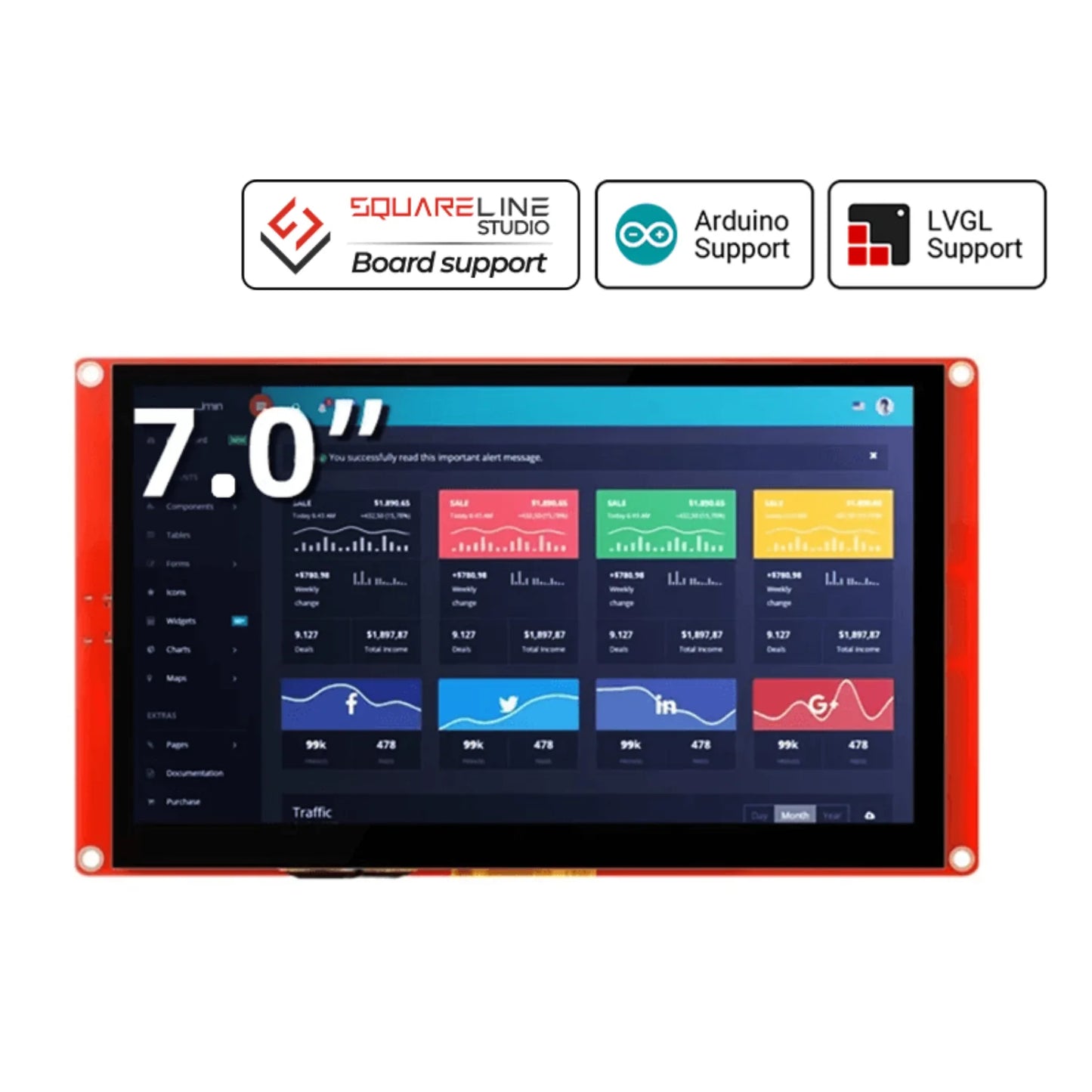

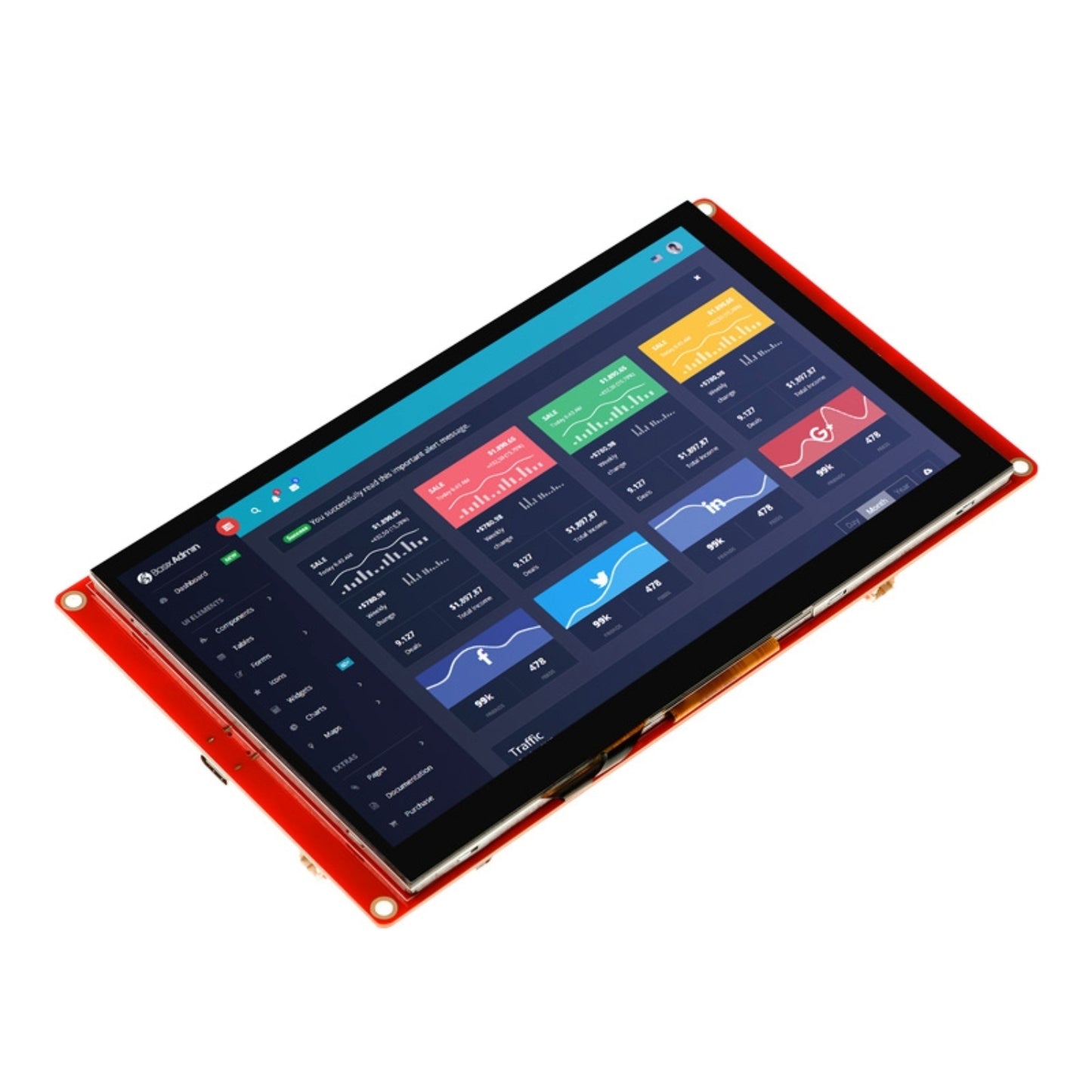

CrowPanel-7" ESP32 Display module is a powerful HMI touch screen with 800*480 resolution LCD display. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

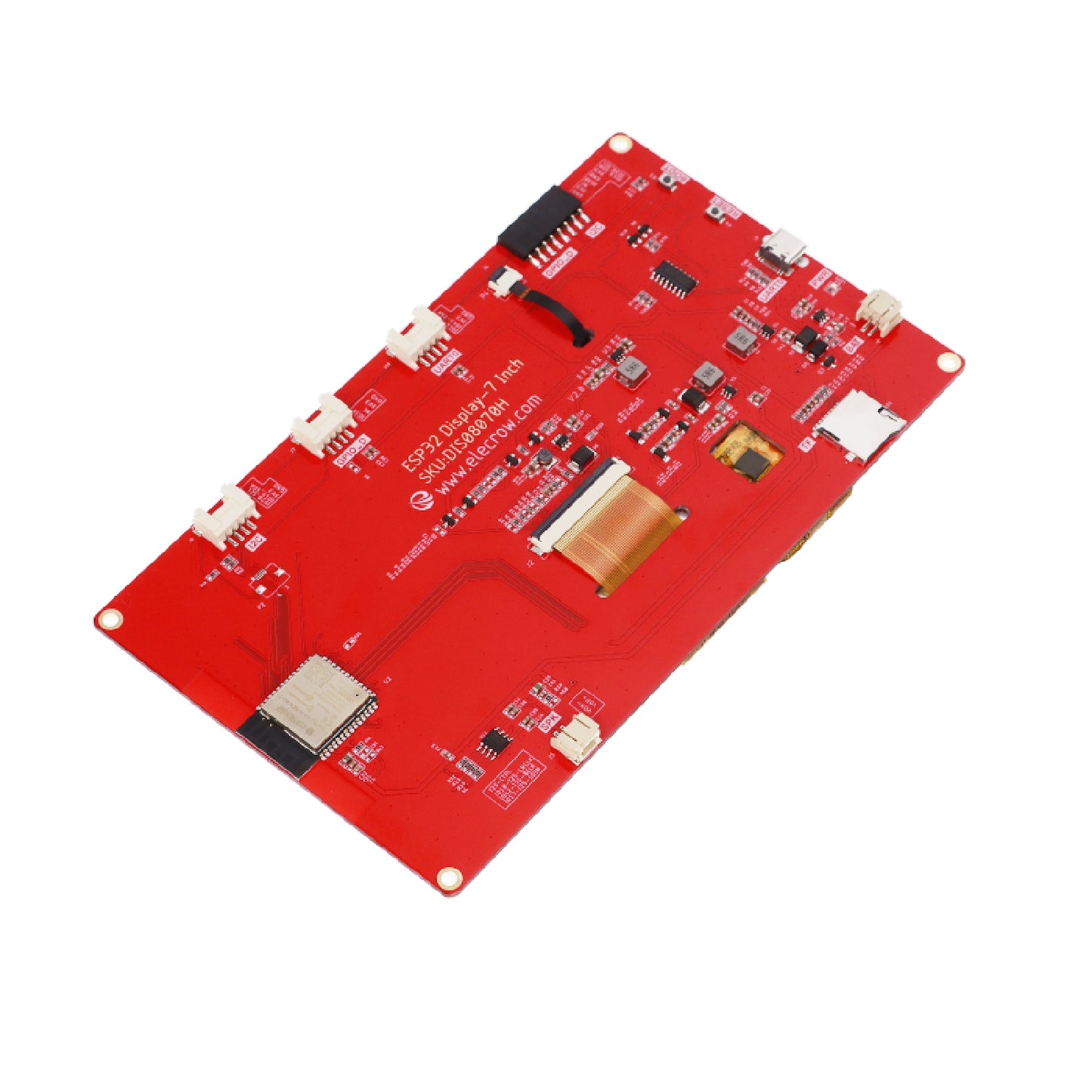

CrowPanel 7.0" HMI includes a 7.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with LVGL the graphics library, supports openHASP Additionally, it provides 16 learning tutorials and a wealth of open-source learning materials. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.
The ESP32 7" TFT LCD Terminal module is suitable for a wide range of scenes such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its various interfaces and expansion functions make it able to meet the needs of different fields, providing users with a more comprehensive solution.
Specifications:
- Model: 7.0 inch -CrowPanel ESP32 display
- Main Processor: ESP32-S3-WROOM-1-N4R8
- Resolution: 800*480
- Flash: 4MB
- PSRAM:8MB
- Touch Type: Capacitive Touch Screen
- Display Type: TN Panel
- Screen: TFT-LCD Screen
- Display driver: EK9716BD3 EK73002ACGB
- External power supply: DC5V-2A
- Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
- Button: BOOT Button and Reset Button
- Active Area: 153.84*85.63mm(W*H)
Features:
- Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0;
- Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library;
- Built-in LVGL demo interface and Arduino example, plug and play;
- LCD 800*480 7.0 inches TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;
- Support multiple development environments.
- Support open-source Graphics Library-LVGL
- Design and Build UIs with ease with Square Line Studio.
- Connect with more than 150+ Crowtail Sensors.
- Application Scenairo
Useful Link:
- Wiki
-
User manual
- Specification of LCD
- ESP32-S3-Warm-1 Datasheet
- Outline Dimensions
- LVGL Reference
- openHASP Github
- CE Certificate

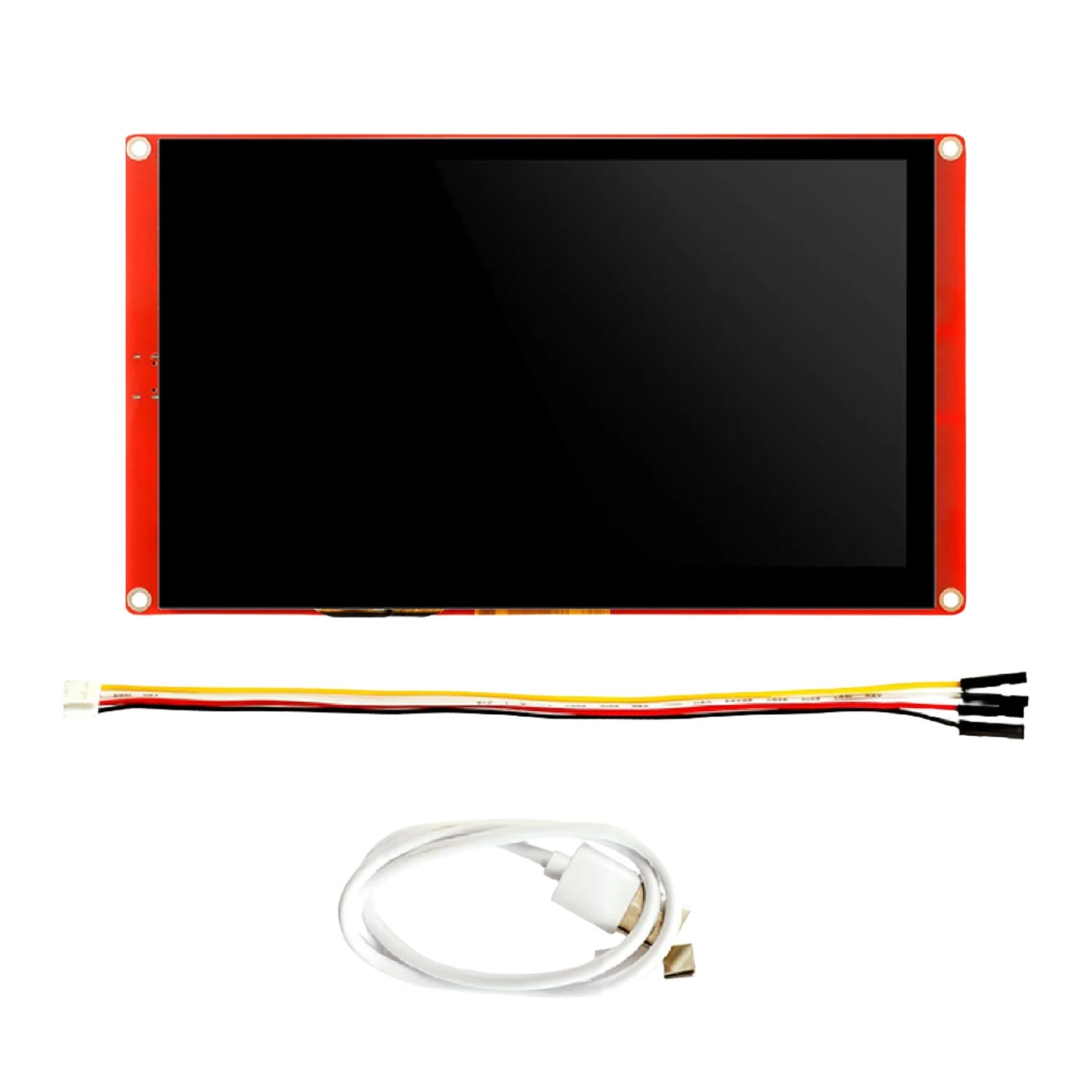

Package Included:
1 x ELECROW CrowPanel - 7.0" ESP32 Terminal HMI Display 800x480 RGB TFT LCD Compatible Display For Arduino/LVGL/PlatformIO/Micropython with Acrylic Case The Ultimate ESP32 Development Companion
