Description:
CrowPanel ESP32 Display 5.0-inch module is a powerful HMI capacitive touch screen with a 800*480 resolution LCD display. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.
CrowPanel 5.0" HMI includes a 5.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supports openHASP. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.
The CrowPanel 5.0" HMI ESP32 Display module is suitable for a wide range of scenes such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its various interfaces and expansion functions make it able to meet the needs of different fields, providing users with a more comprehensive solution.
Specifications:
- Model: 5.0-inch CrowPanel ESP32 display
- Main Processor: ESP32-S3-WROOM-1-N4R8
-
Resolution: 800*480
- Touch Type: CapacitiveTouch Screen
- Display Type: TN Panel
- Screen: TFT-LCD Screen
- Display driver: ILI6122 ILI5960
- External power supply: DC5V-2A
- Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
- Button: BOOT Button and Reset Button
- Application Scenario

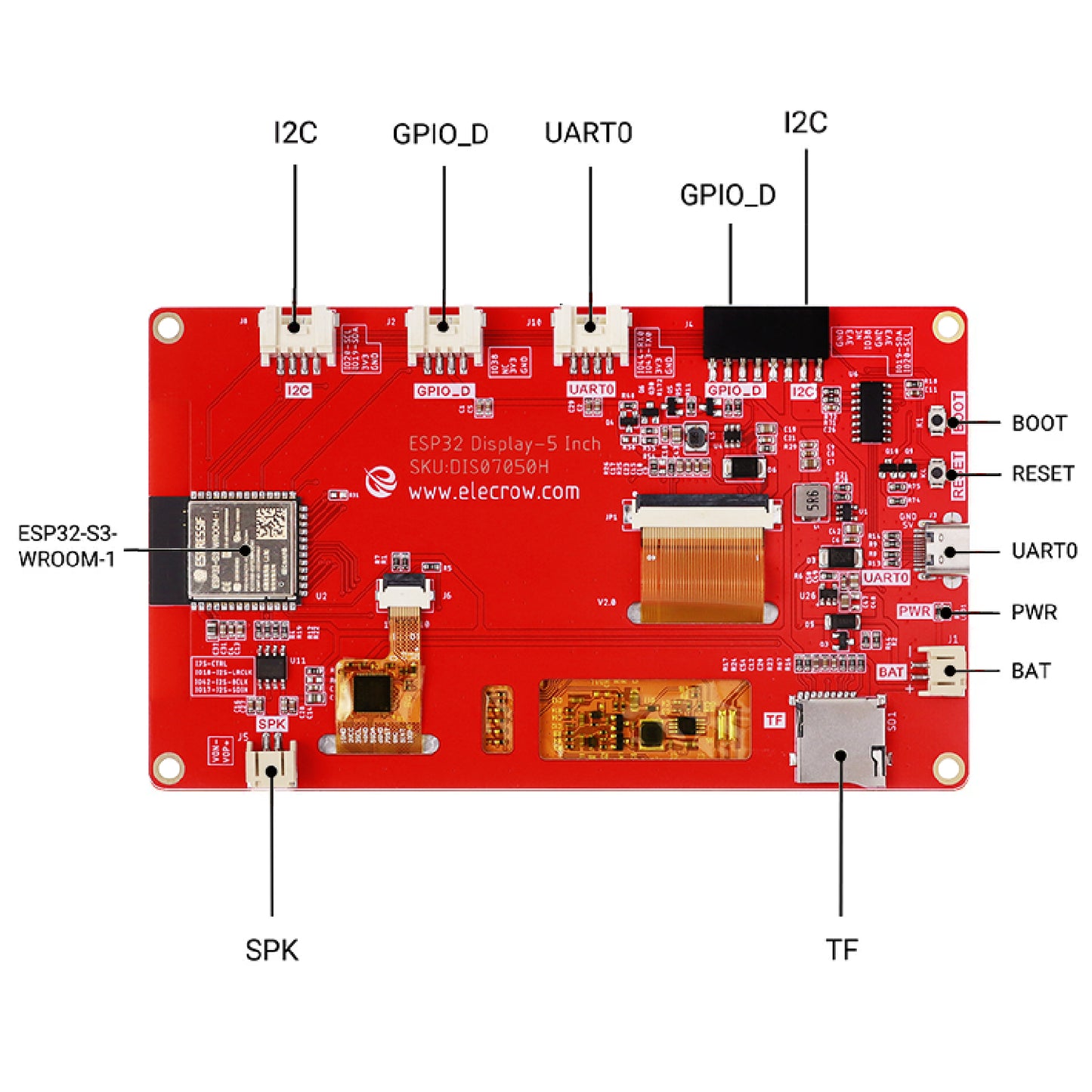

- Hardware Overview
Features:
- Integrated ESP32-S3-WROOM-1-N4R8 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0

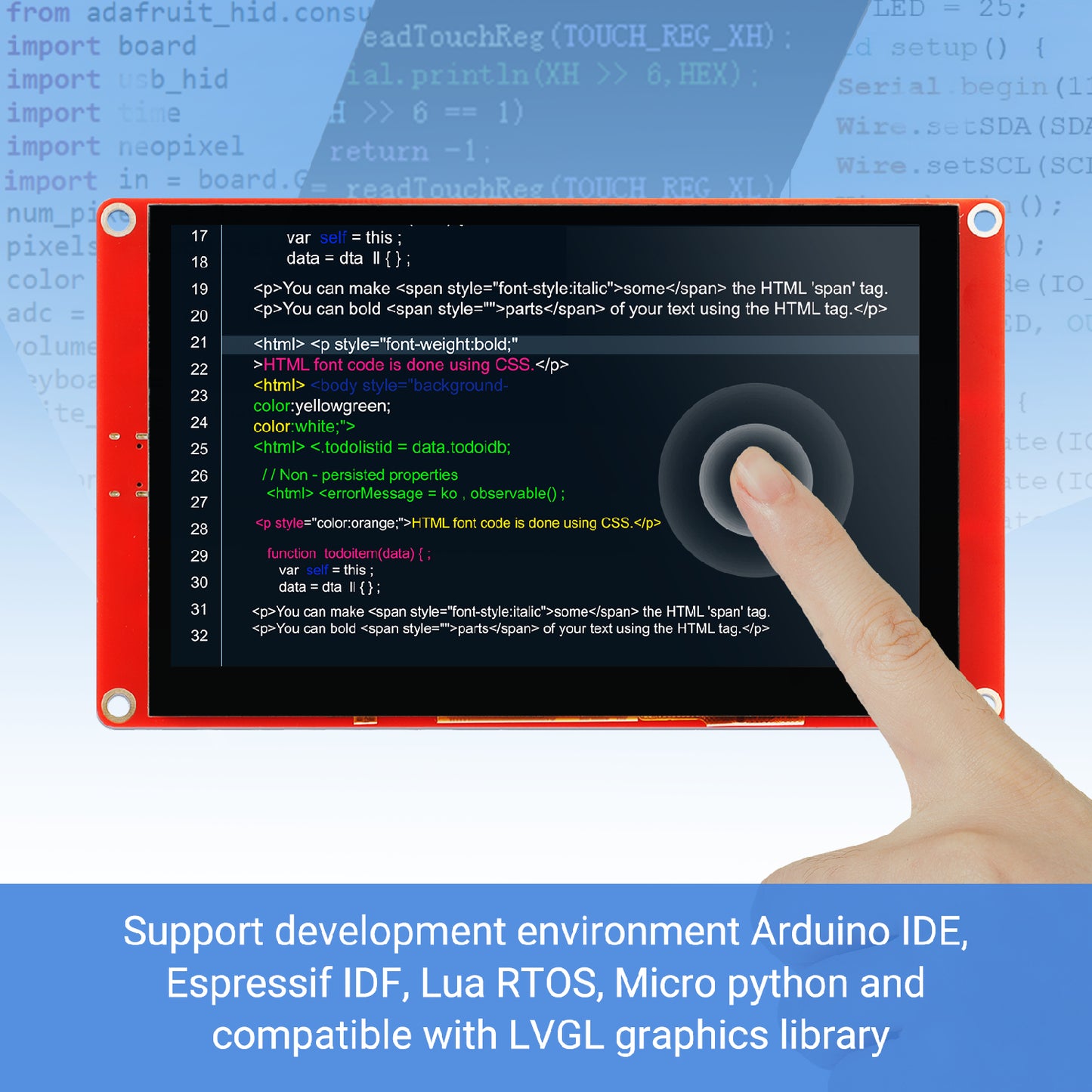

- Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library
- Built-in LVGL demo interface and Arduino example, plug-and-play
- LCD 800*480 5.0 inches TFT-LCD capacitive screen with driver IC ILI6122 + ILI5960
- Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.
- Support multiple development environments.
It supports a variety of development environments such as Arduino IDE, Espressif IDF, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.
- Support open-source Graphics Library-LVGL
It supports the LVGL graphics library. You can design a variety of UIs.

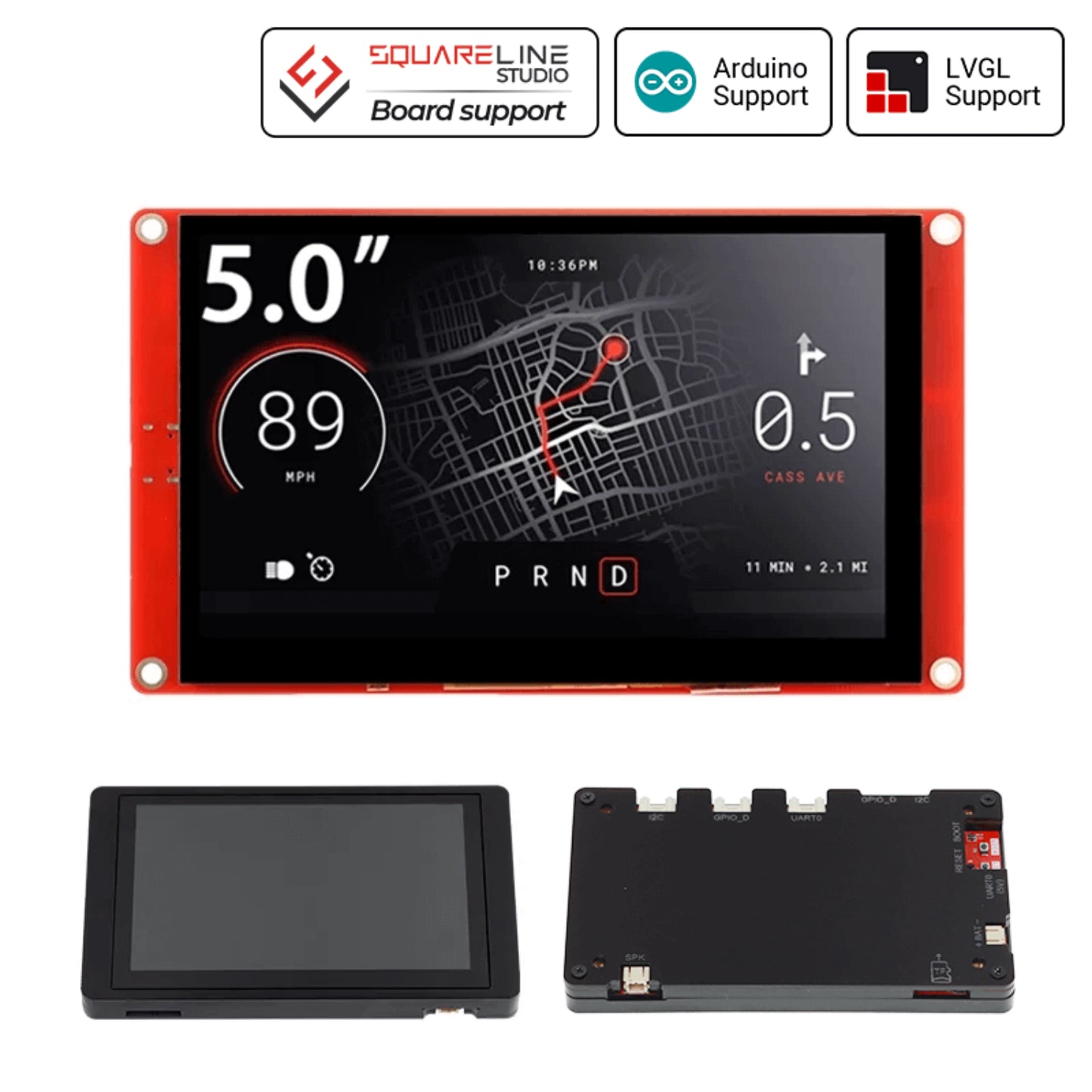

- Design and build UIs with ease with SquareLine Studio
Use SquareLine Studios to design and implement your own LVGL UI and export ready to use projects with one click.
- Connect with more than 150+ Crowtail sensors.
Useful Links:
- CrowPanel-5.0" ESP32 Terminal
- User Manual
- Specification Of LCD
- ESP32-S3-WROOM-1N4R8 Datasheet
- Outline Dimensions
- LVGL Reference
- openHASP Github
- CE Certificate

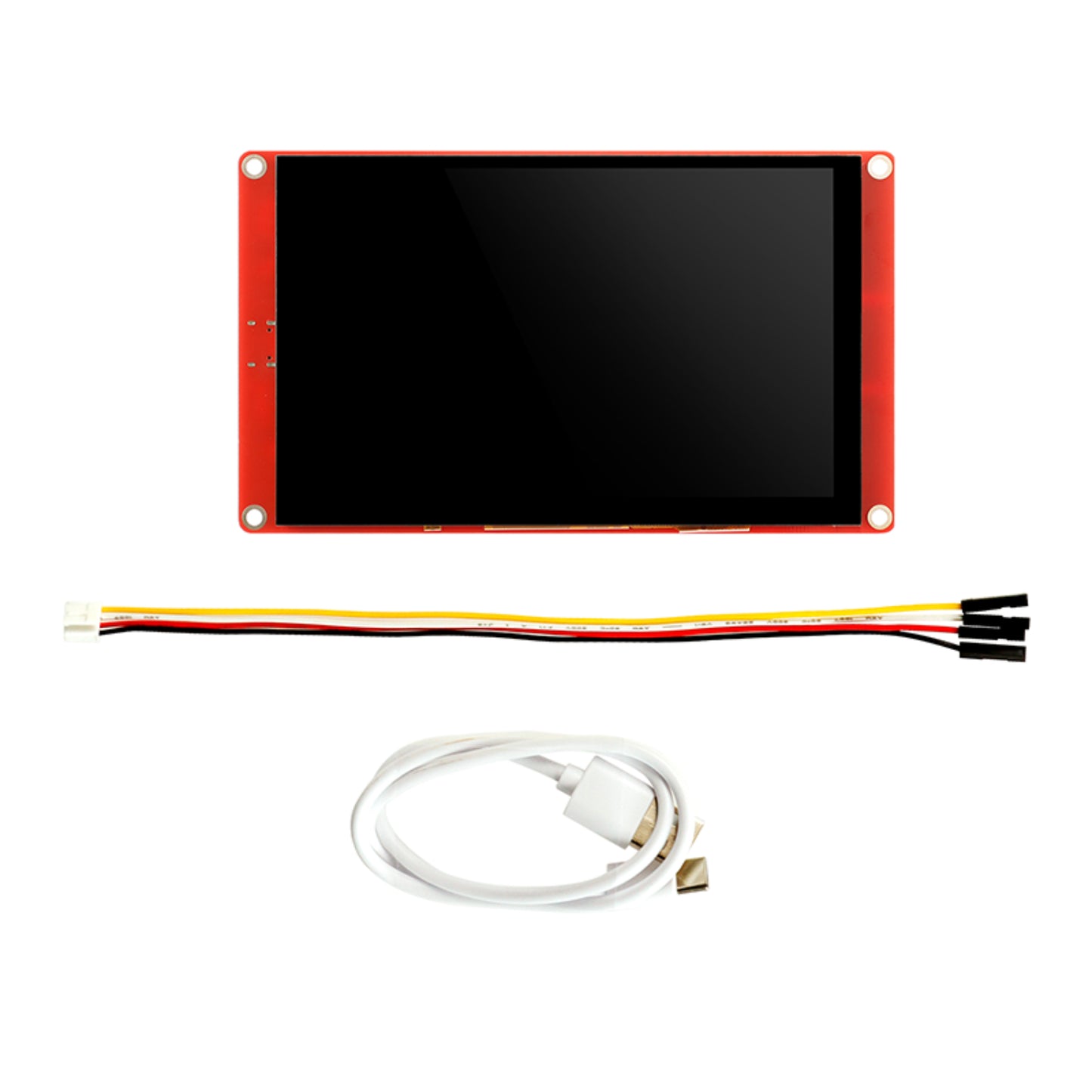

Package Included:
1 x ELECROW CrowPanel-5.0" ESP32 Terminal HMI Display 800x480 RGB TFT LCD Touch Screen Compatible With Arduino/LVGL/ PlatformIO/Micropython with Acrylic Case
