Description:

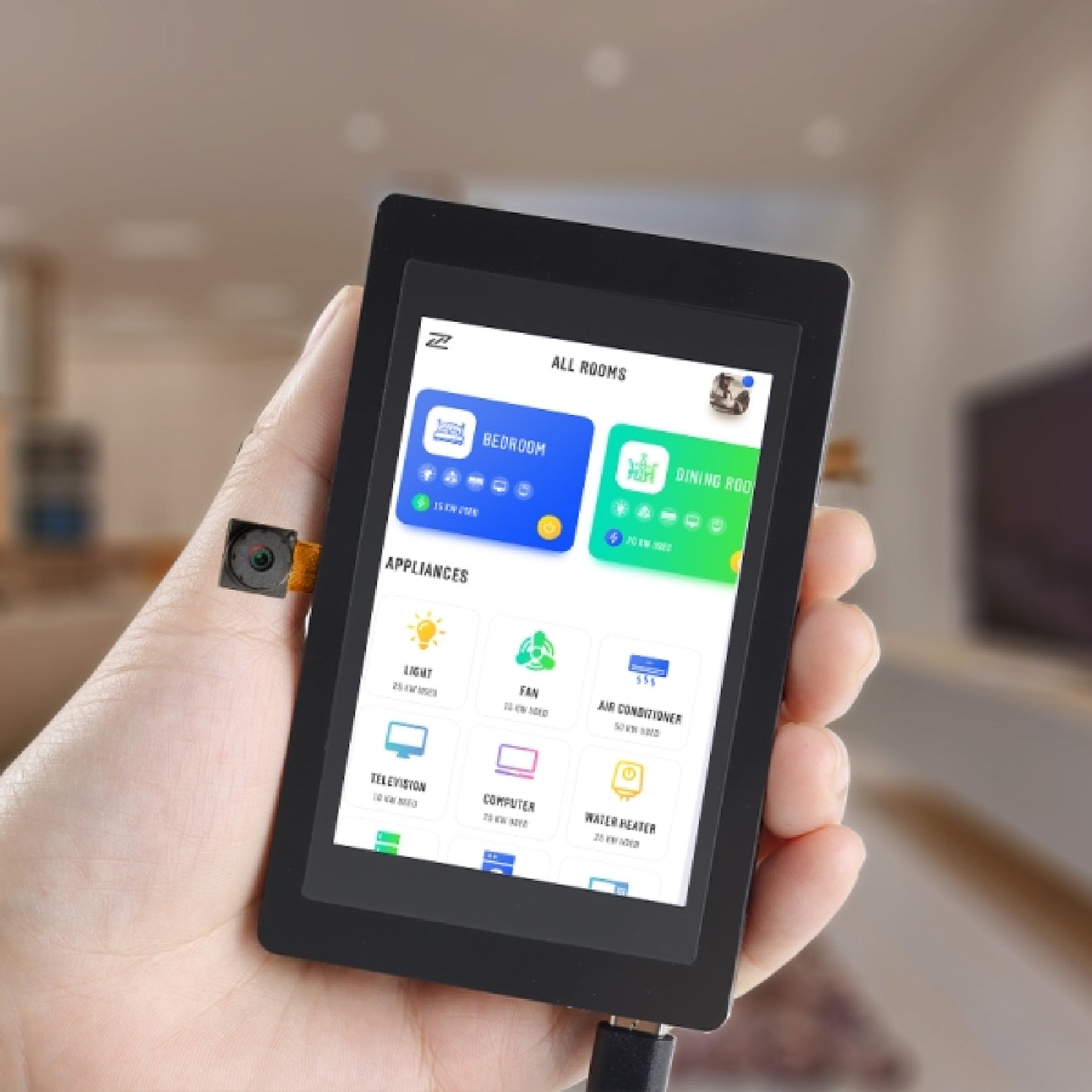

This handheld 3.5" ESP32 Terminal With Camera is based on the ESP32 controller, equipped with a powerful ESP32-S3 chip, and supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), providing more powerful computing and processing capabilities for IoT terminal applications. It is suitable for various scenarios, such as industrial IoT control terminals, smart agricultural terminals, personal smart home monitoring terminals, and personal DIY projects.
Portable TFT Display with ESP32 and Camera it can lead to various interfaces. This ESP32 touch screen not only has Crowtail's digital port, analog port, UART, and IIC interface, but also integrates a MEMS microphone, camera interface, and buzzer function. It supports ESP-IDF and Arduino IDE development and is compatible with Micropython/Arduino. It also supports LVGL, which is the most popular free and open-source embedded graphics library to create beautiful UIs for any MCU, MPU, and display type. We also support openHASP. With the 2M pixel camera, it can easily realize face/object/scene recognition and provide more creativity in cutting-edge projects such as speech recognition/voice control.

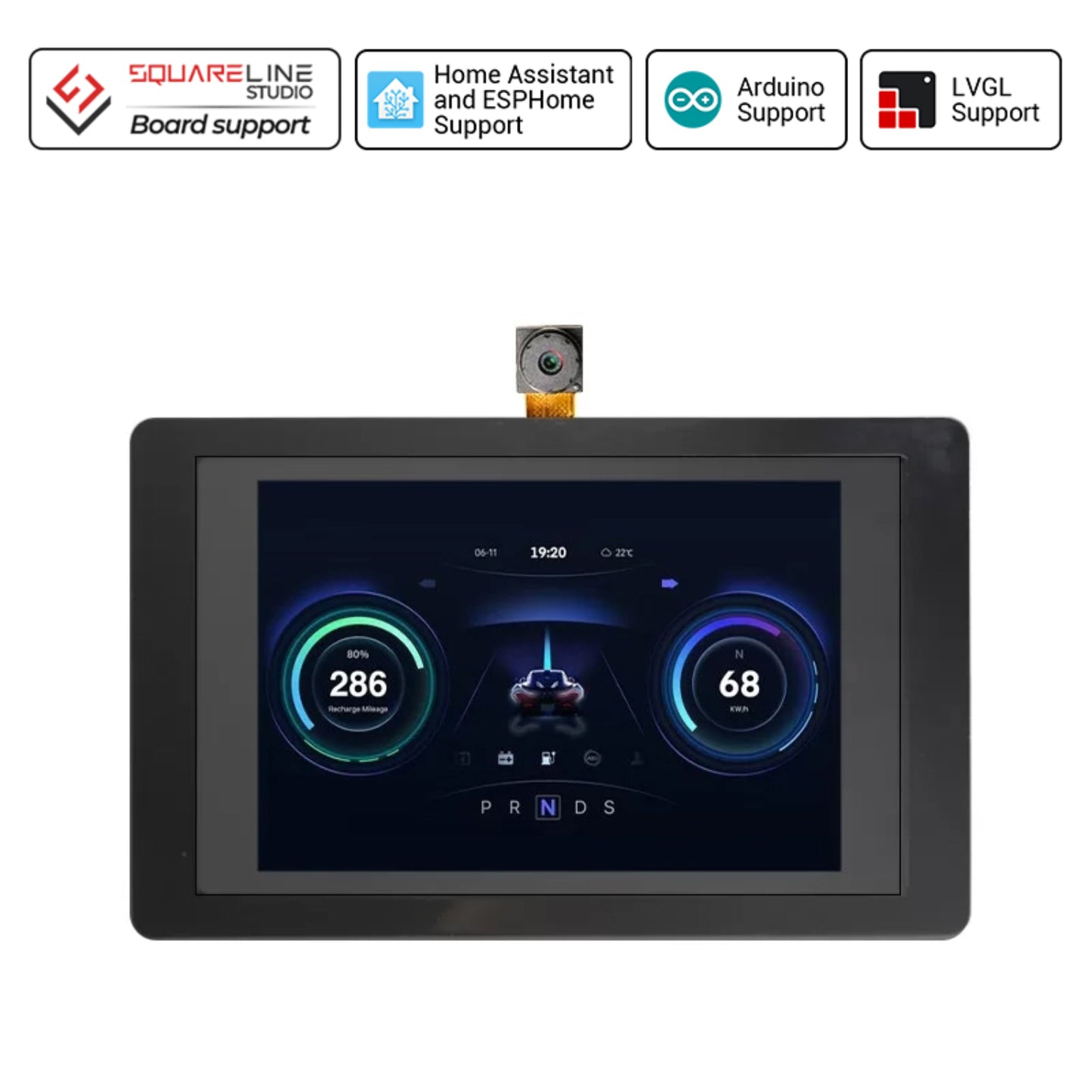

ESP32 Terminal with Touch Screen adopts SPI serial screen with 320x480 resolution, and the size of 3.5 inches is the best choice as a handheld/pocket terminal. The frame rate of the screen is up to 20FPS, which is sufficient for most application scenarios.
Versatile ESP32-Based Terminal is surrounded by a perfect acrylic shell, which makes the whole product lo'ok more beautiful. At the same time, it can also be fixed in other ways. With two M3 screw mounting holes, you can mount it on the wall or PLC rail.
Specifications:
Main Chip:
- Core Processore: Xtensa®32-bit LX7
- Memory: 16MB Flash 8MB PSRAM
- Maximum Speed: 240Mhz
- Bluetooth: BLE 5.0
- Wi-Fi: 802.11 a/b/g/n 1x1,2.4 GHz band supports 20 and 40 MHz bandwidth, Supports Station, SoftAP, and SoftAP + Station mixed modes.
LCD Screen:
- Resolution: 320*480
- Display Size: 3.5 inch
- Drive IC: ILI9488
- Touch: Capacitive Touch
- Interface: SPI Interface
Other Modules:
- Camera: OV2640, 2M Pixel
- Microphone: MEMS Microphone
- SD Card: Onboard SD Card Slot
Button:
- RESET Button: Press this button to reset the system.
- BOOT Button: Hold down the Boot button and press the EN button to initiate firmware download mode. Users can download firmware through the serial port.
Operating Environment:
- Operating Voltage: USB DC5V, lithium battery 3.7V
- Operating Current: Average current 83mA
- Operating Temperature: -10°C ~ 65°C
LiPo Battery Interface: PH 2.0
Features:
- Integrated ESP32-S3 module, which is support 2.4 GHz Wi-Fi and Bluetooth 5 (LE)
- 5 inch TFT 320*480 resolution touch LCD display with 2M Pixel OV2640 camera
- Supports 1T1R mode, data rate up to 150 Mbps, Wireless Multimedia (WMM)
- Support, USB, UART, SPI, I2C, PWM, and I2S communication protocols
- Compatible with Arduino/LVGL/Esphome-homeassistant/PlatformIO/Micropython
- Supports hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)

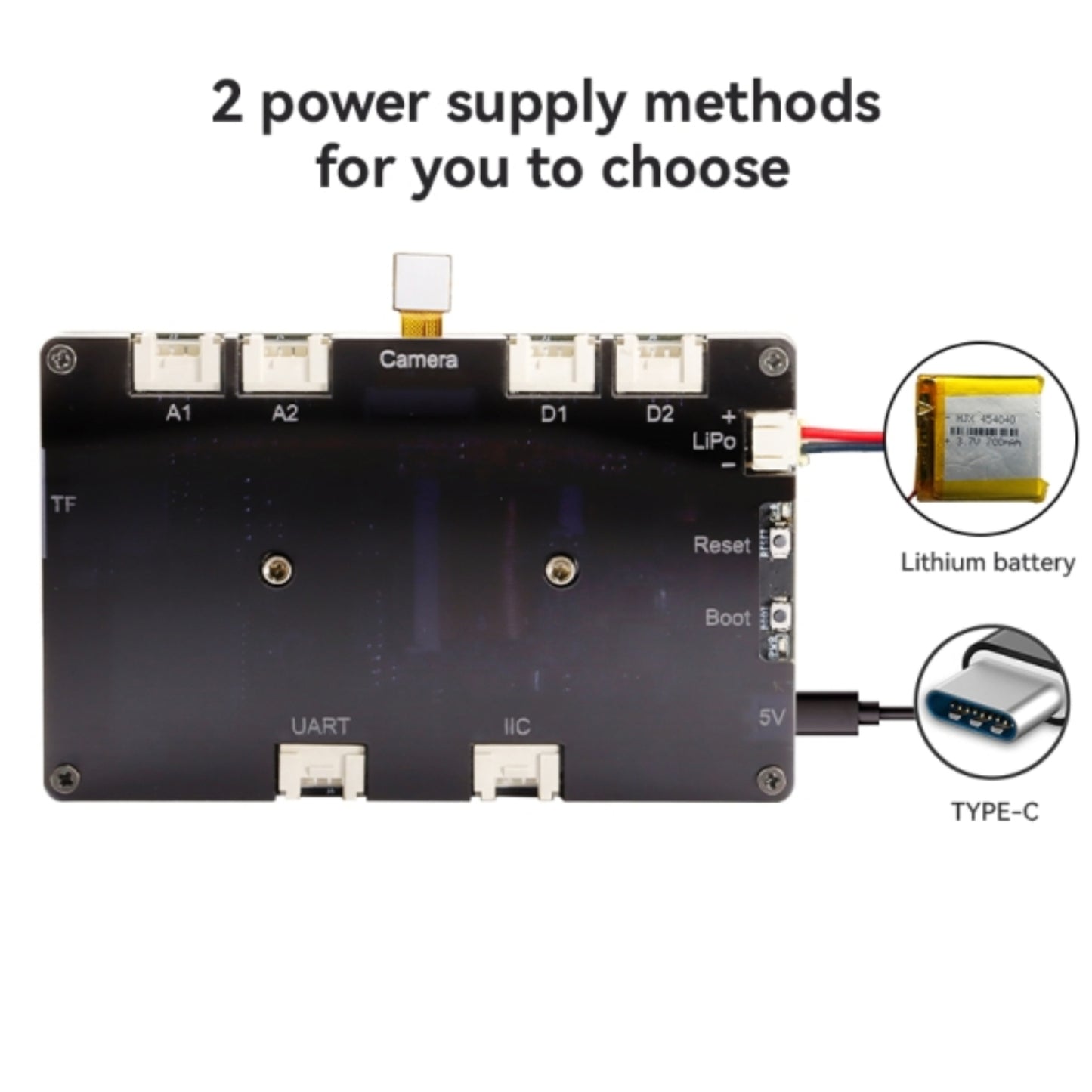

- Support TYPE-C USB power supply and polymer lithium battery power supply with 6 Crowtail interfaces (4P 2.0 connector), plug and play with various Crowtail sensor.
- As a smart home central control screen, it can perform video surveillance and face recognition, allowing you to keep abreast of home dynamics.
- Connect with Crowtail Sensors
It can be connected with 150+ types of Crowtail modules to complete more interesting projects.

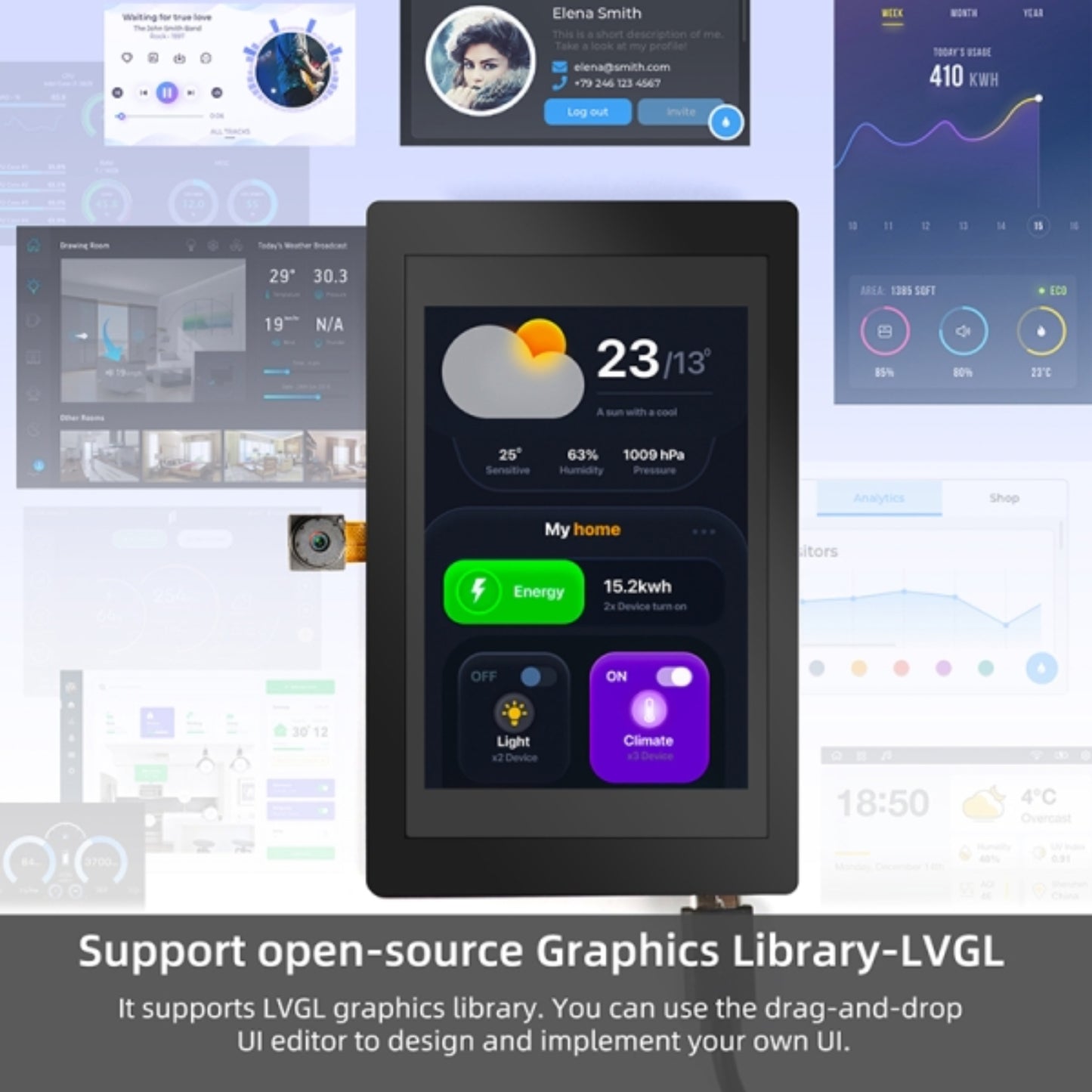

- Support open-source Graphics Library-LVGL
It supports LVGL graphics library. You can design a variety of UIs.
- Design and build UIs with ease with SquareLine Studio
Use SquareLine Studios to design and implement your own LVGL UI and export ready to use projects with one click.

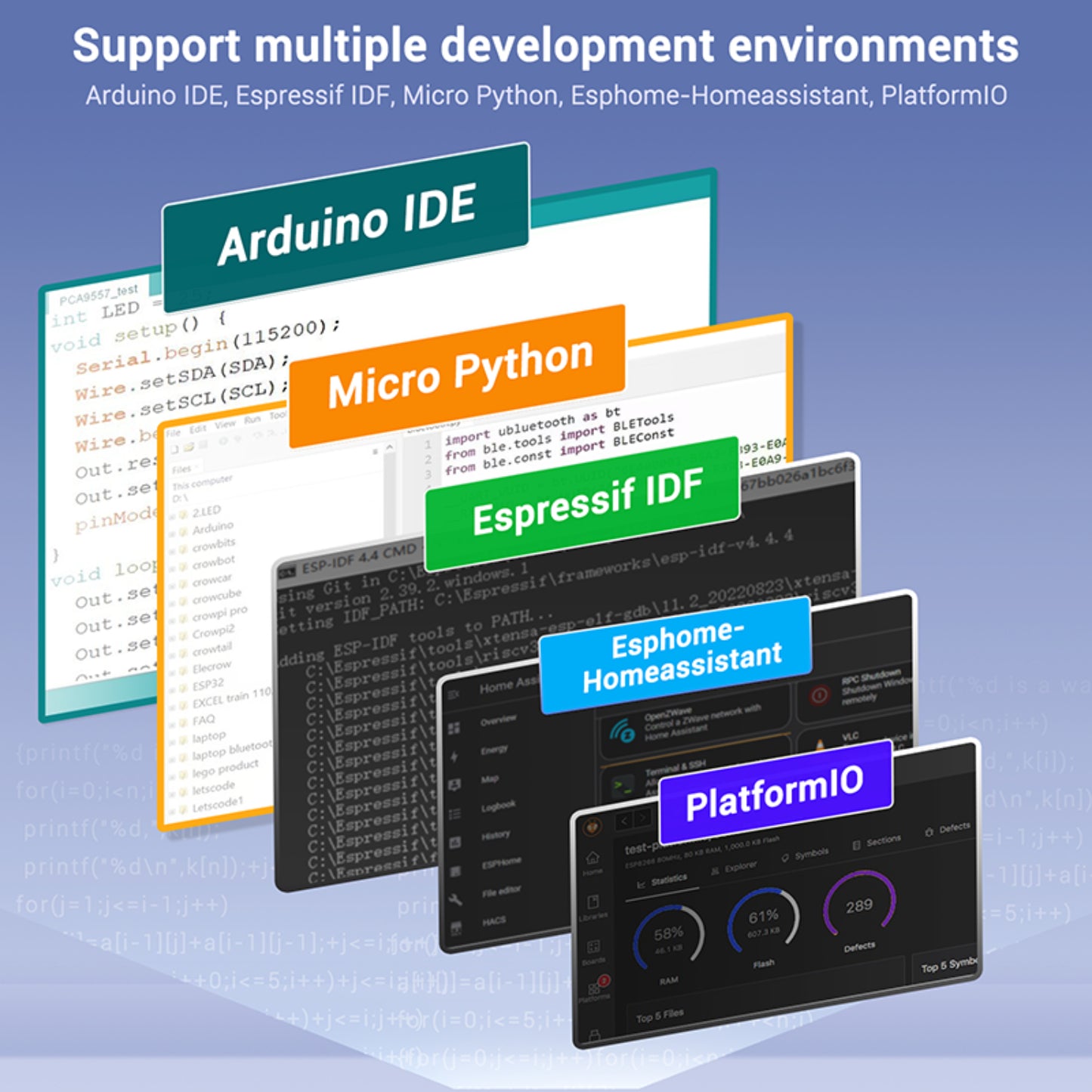

- Programming Environment Support
It supports programming with VS Code Arduino IDE, Espressif IDF, Esphome, and PlatformIO. Different projects can be easily developed.

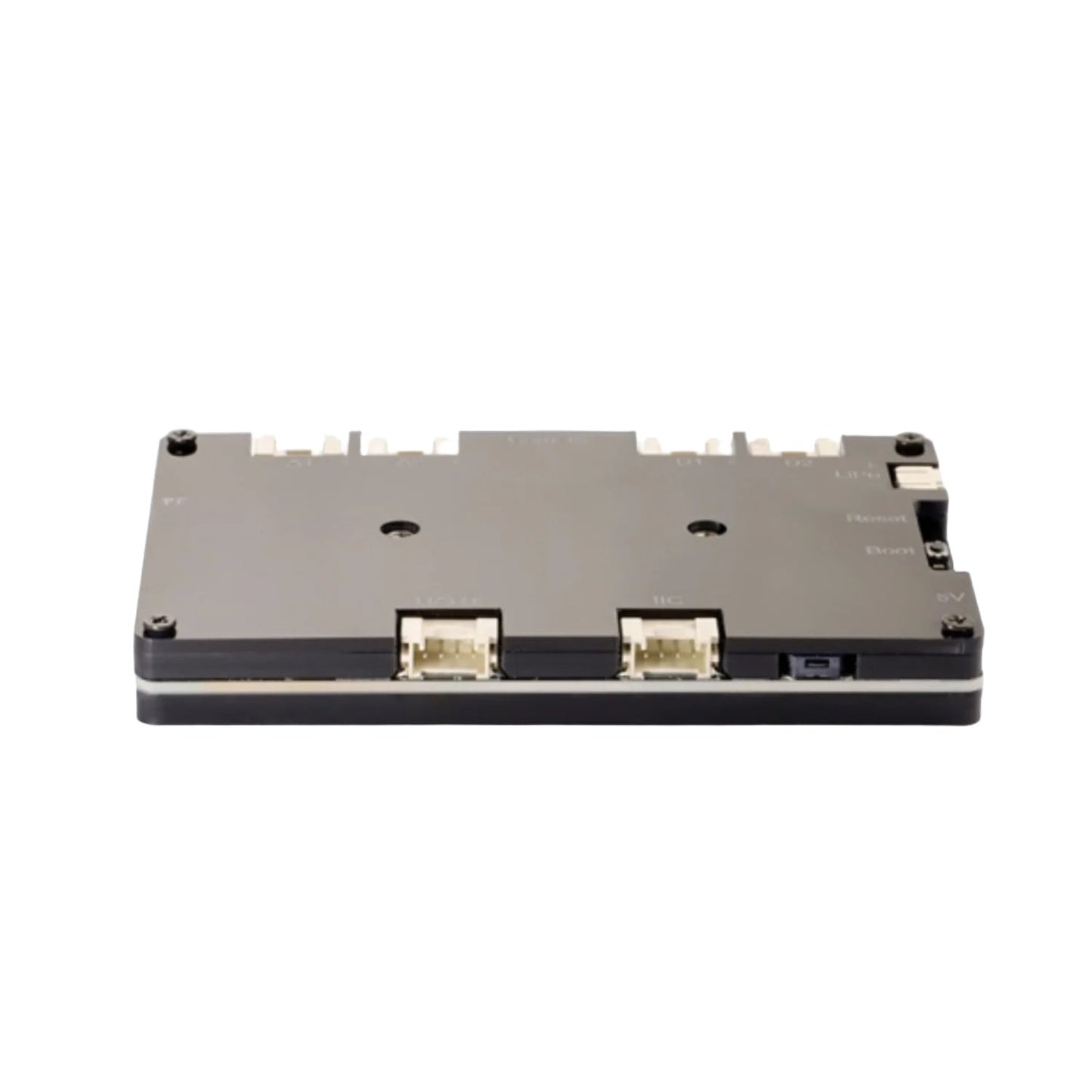

Pin Descriptions:
- RESET button: Press this button to reset the system.
- LiPo port: Lithium battery charging interface (lithium battery not included)
- BOOT button: Hold down the Boot button and press the RESET button to initiate firmware download mode. Users can download firmware through the serial port
- 5V Power/Type C interface: It serves as the power supply for the development board and the communication interface between the PC and ESP-WROOM-32.
- 6 Crowtail interfaces (2*Analog,2*Digital,1*UART,1*IIC): Users can program the ESP32-S3 to communicate with peripherals connected to the Crowtail interface.
Useful Links:

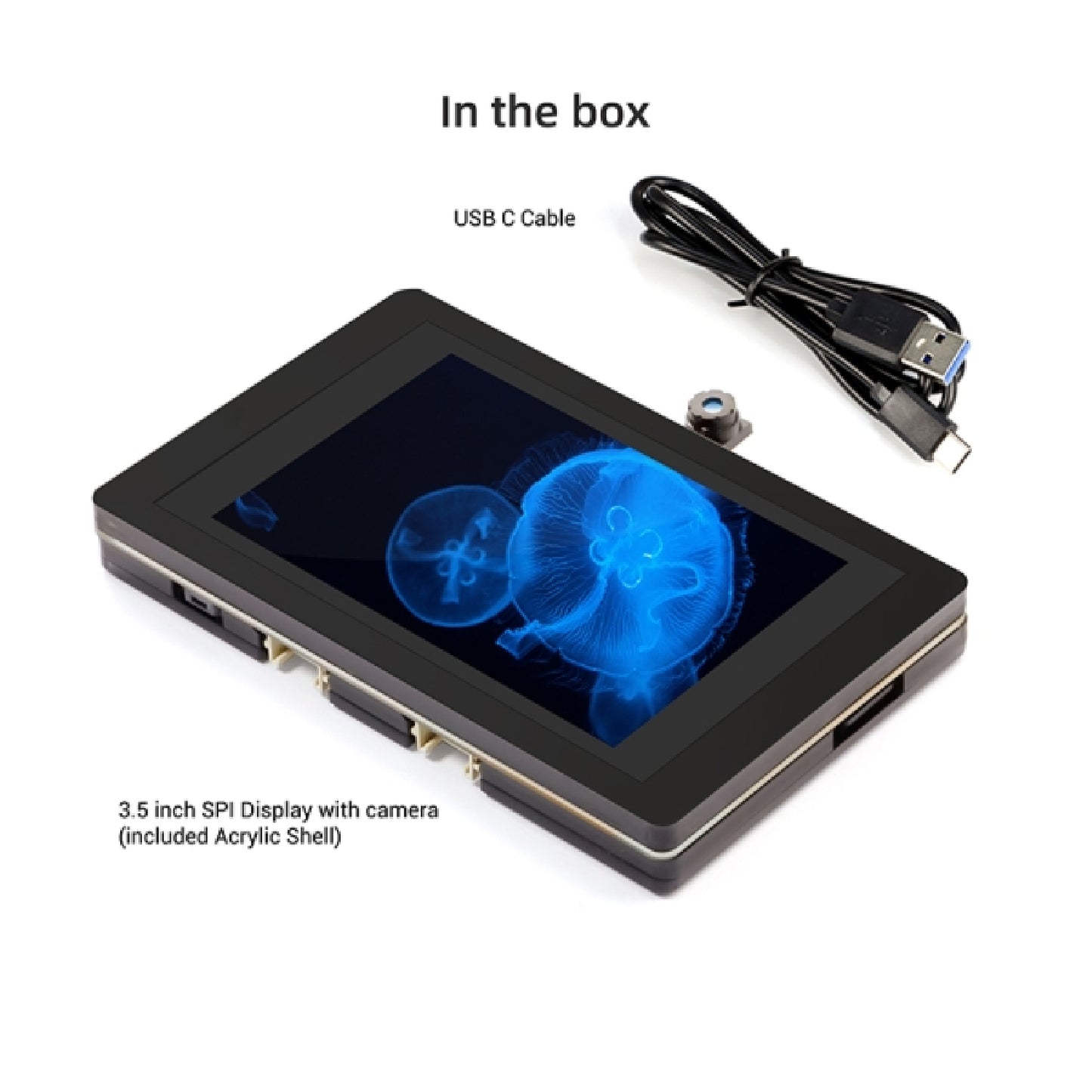

Package Included:
1 x ELECROW CrowPanel-3.5" ESP32 Terminal Display With Camera, 480x320 SPI TFT Capacitive Touch Display With OV2640 Camera It's A Versatile Terminal For IoT And Embedded Projects
