Description:

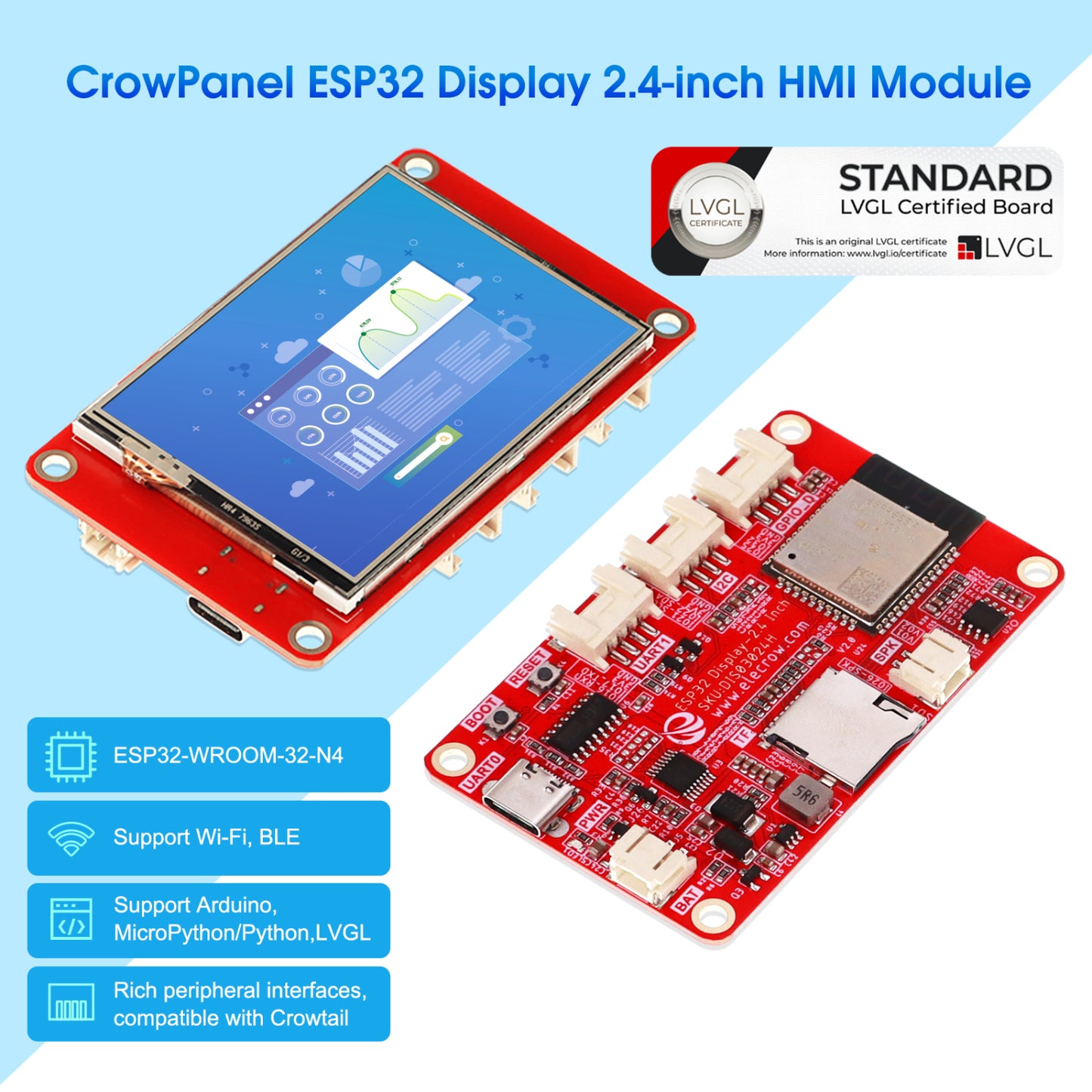

CrowPanel-ESP32 Display 2.4" module is a powerful HMI touch screen with a 320*240 resolution LCD display. It uses the ESP32-WROOM-32 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

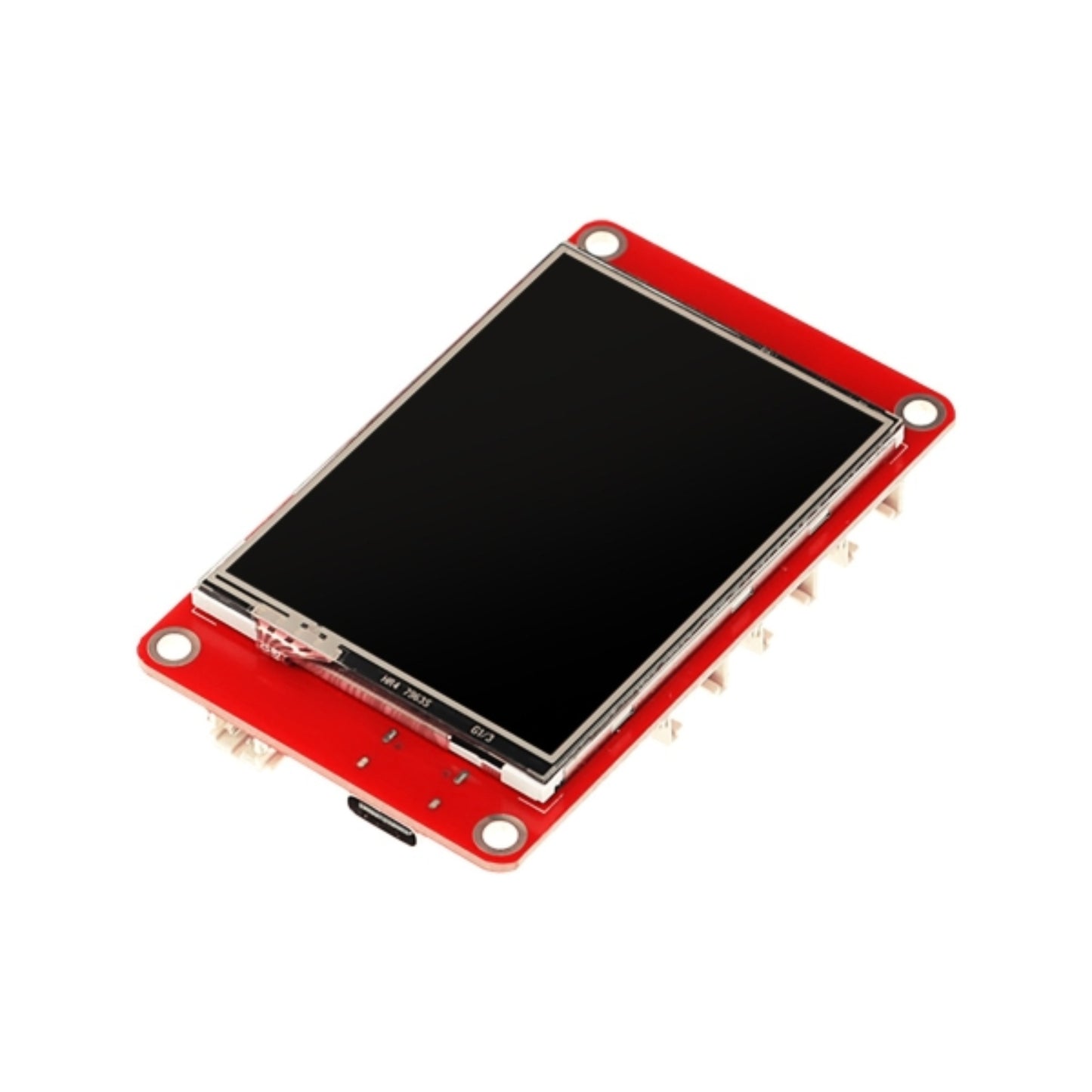

All-in-One ESP32 Display includes a 2.4-inch LCD display and a driver board. The display screen uses resistive touch technology and comes with a resistive touch pen, making the screen usage more flexible. In addition, the board has reserved a TF card slot, multiple peripheral/IO interfaces, USB (Convert TTL) interface, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supports openHASP. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.
2.4" TFT Touchscreen for Arduino and More to supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supportsopenhasp.openHASP. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle. The CrowPanel 2.4" ESP32 Touch Display is suitable for a wide range of scenes such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its various interfaces and expansion functions make it able to meet the needs of different fields, providing users with a more comprehensive solution.
Specifications:
- Model: 2.4 inches-CrowPanel ESP32 display
- Main Processor: ESP32-WROOM-32-N4
- Resolution: 240*320
- Touch Type: Resistive Touch Screen
- Display Type: TN Panel
- Screen: TFT-LCD Screen
- Display driver: ILI9341V
- External power supply: DC5V-2A

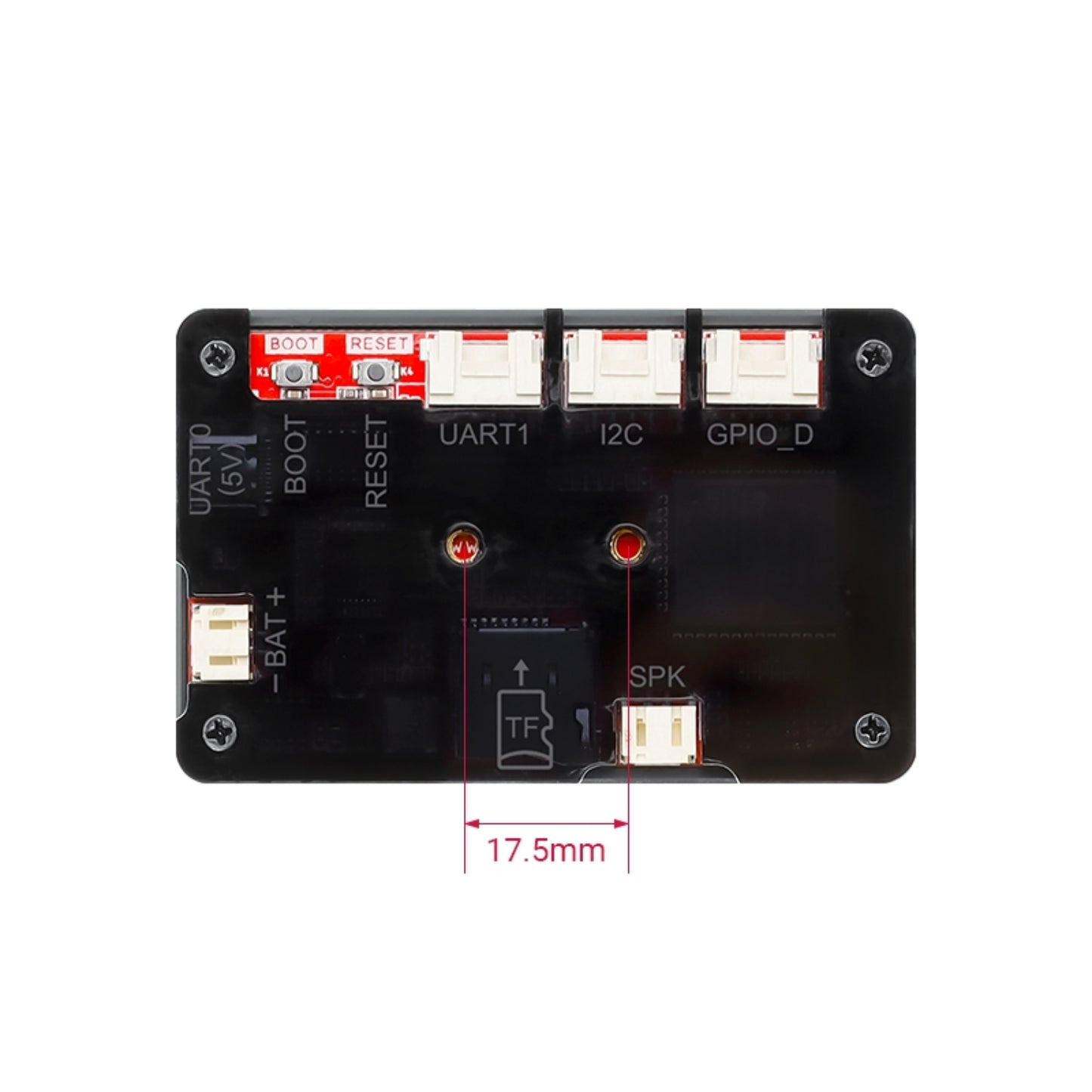

- Interface: 1*TF Card Slot, 1* I2C, 1* GPIO, 1*Speak, 1* UART1, 1*UART0
- Button: BOOT Button and Reset Button
- Multiple Application Scenario

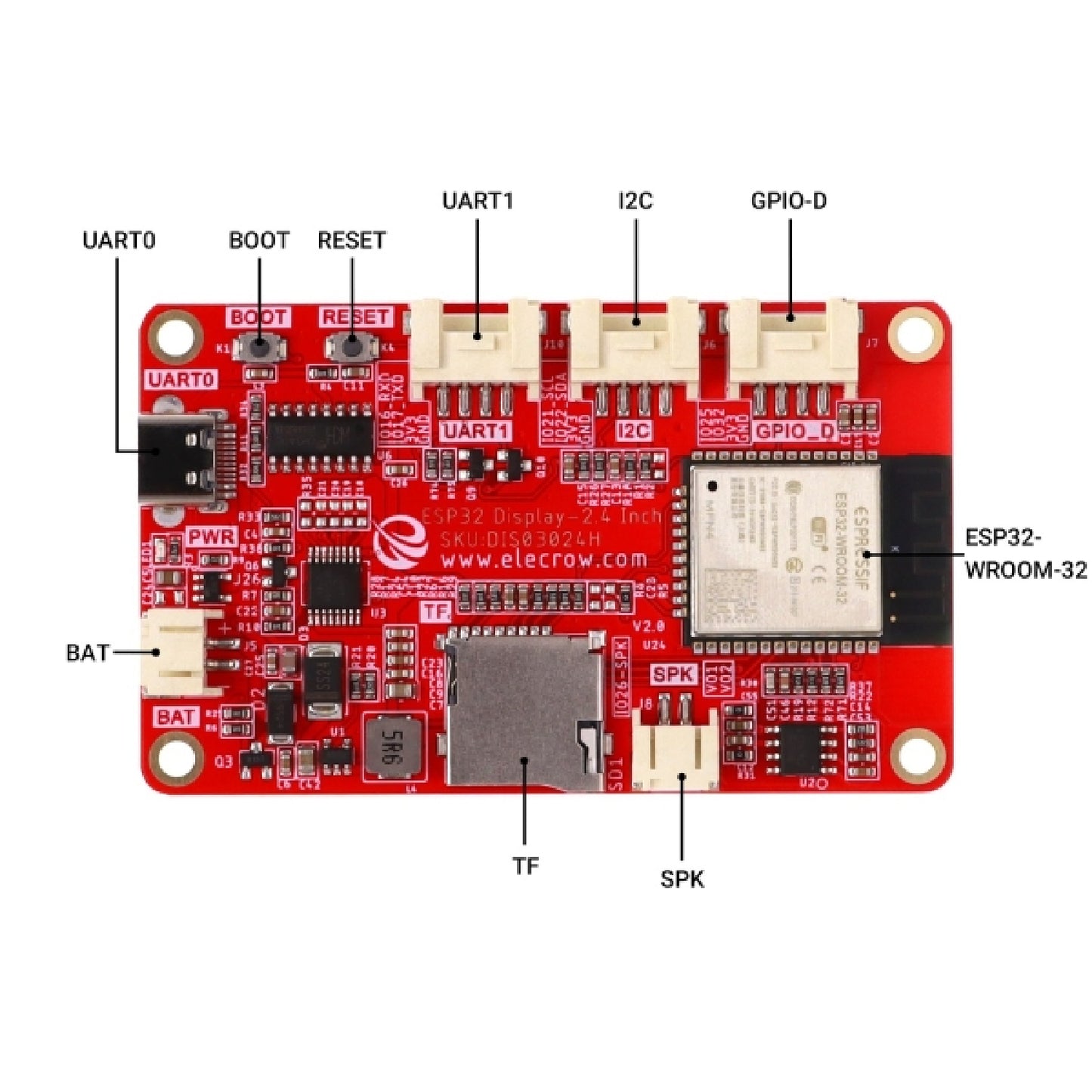

- Hardware Overview
Features:
- Integrated ESP32-WROOM-32 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0.
- Built-in LVGL demo interface and Arduino example, plug and play.
- LCD 320*240 2.4 inches TFT-LCD with driver IC ILI9341V.
- Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Esphome-homeassistant/PlatformIO/Micro python and compatible with LVGL graphics library.
- Support multiple development environments.
It supports a variety of development environments such as Arduino IDE, Espressif IDF, Lua RTOS, Esphome-Homeassistant, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.
- Support open-source Graphics Library-LVGL
It supports the LVGL graphics library. You can design a variety of UIs.

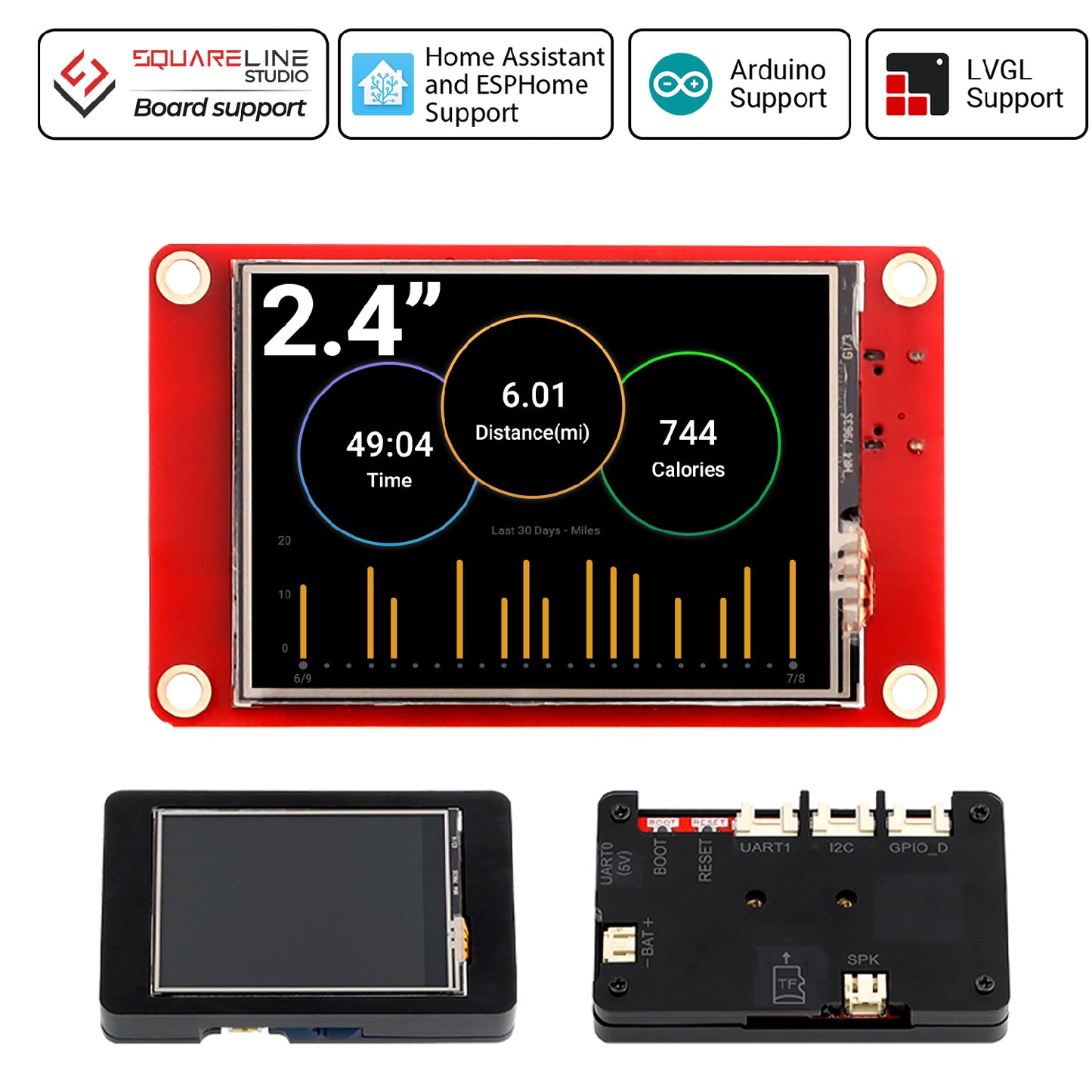

- Design and build UIs with ease with SquareLine Studio
Use SquareLine Studios to design and implement your own LVGL UI and export ready to use projects with one click.
- Connect with more than 150+ Crowtail sensors.
Useful Link:
- Wiki
- User manual
- Specification of LCD
- ESP32-WROOM-32-N4-Datasheet
- Outline Dimension
- LGVL Reference
- openHASP Github
- CE Certificate

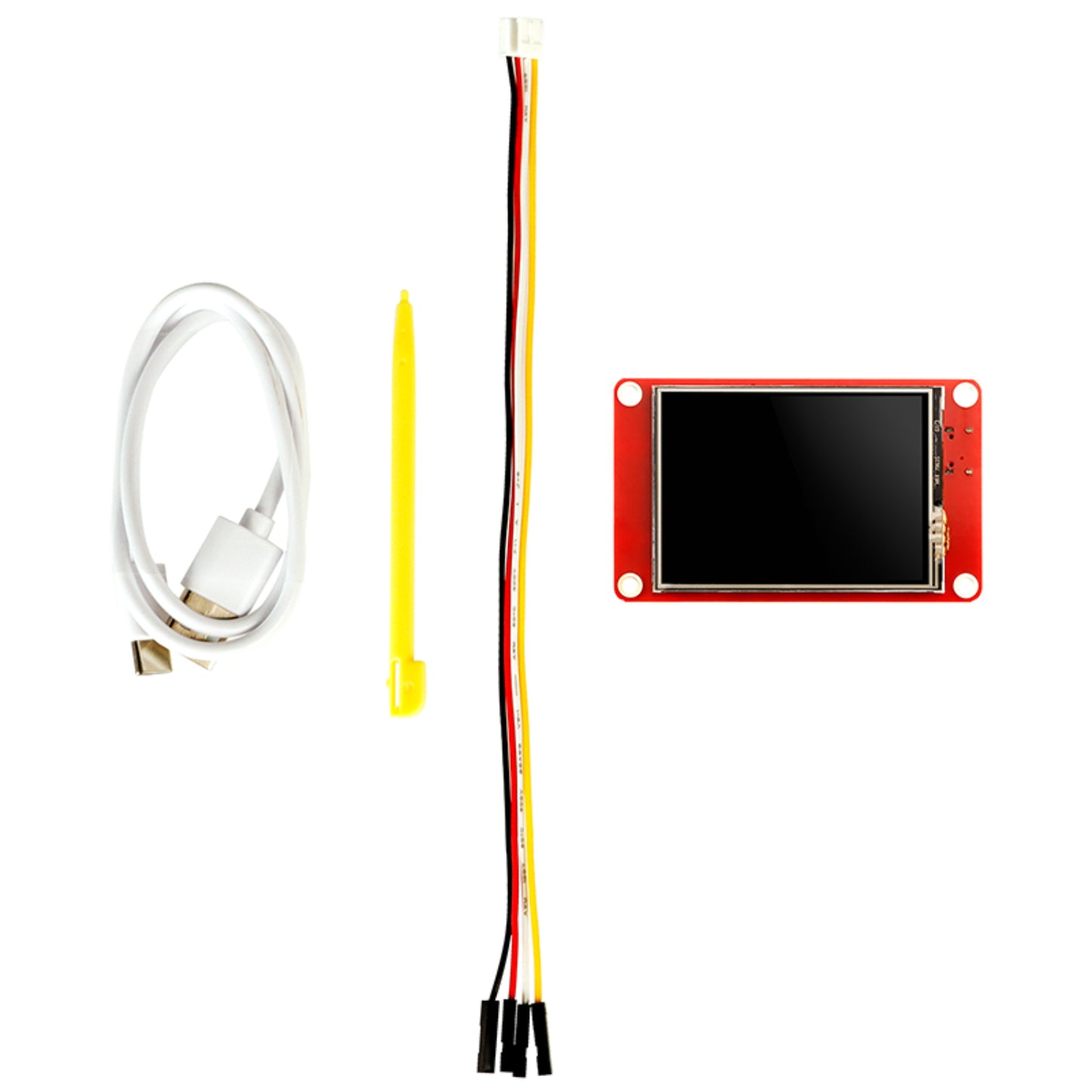

Package Included:
1 x ELECROW CrowPanel-2.4" ESP32 HMI Touchscreen Display 320x240 SPI TFT LCD Touch Screen Compatible With Arduino/LVGL/ Esphome-Homeassistant/PlatformIO/Micropython
