ELECROW CrowPanel 1.28-inch ESP32 Rotary Display 240x240 IPS Round Touch Knob Screen For DIY Projects

Description:

This compact and powerful CrowPanel 1.28-inch Human-Machine Interface (HMI) combines a vibrant 240x240 IPS round touch display with an integrated rotary encoder, all powered by an ESP32 microcontroller. It's the perfect solution for creating sleek, interactive control panels and user interfaces for your projects.

The high-resolution IPS screen delivers stunning visuals and wide viewing angles, while the capacitive touch and integrated rotary knob provide intuitive, multi-modal control. The built-in ESP32 offers robust processing power and Wi-Fi/Bluetooth connectivity, allowing for seamless integration with a wide range of devices and IoT applications.

Whether you're building a smart thermostat, a custom audio controller, or an advanced home automation system, the CrowPanel 1.28-inch HMI provides the perfect blend of form and function to bring your ideas to life.

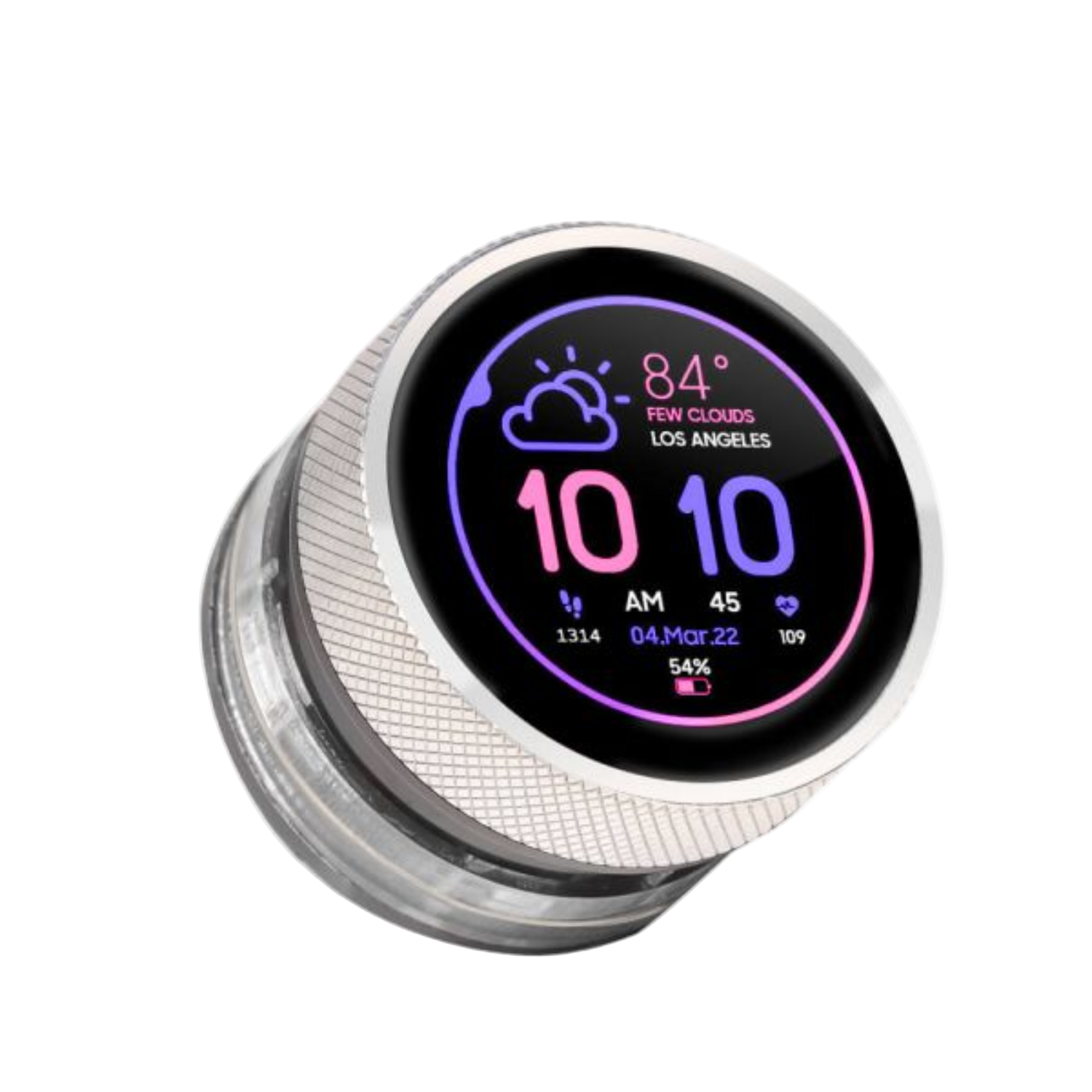

The rotary screen is an intelligent interactive device that usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information.

ESP32 Display - 1.28-inch rotary screen, uses high-performance ESP32-S3 chip, equipped with a 32-bit dual-core chip. The maximum clock frequency reaches 240MHz, with strong performance and the ability to handle complex tasks.

Supports 2.4G WiFi and BLE low-power Bluetooth, to achieve reliable wireless communication, easily connect to the Internet, suitable for smart home, industrial control, portable devices, and other scenarios.

Supports capacitive touch operation and knob input. The knob supports clockwise, counterclockwise rotation and full press operation, smooth feel, and various interaction methods.

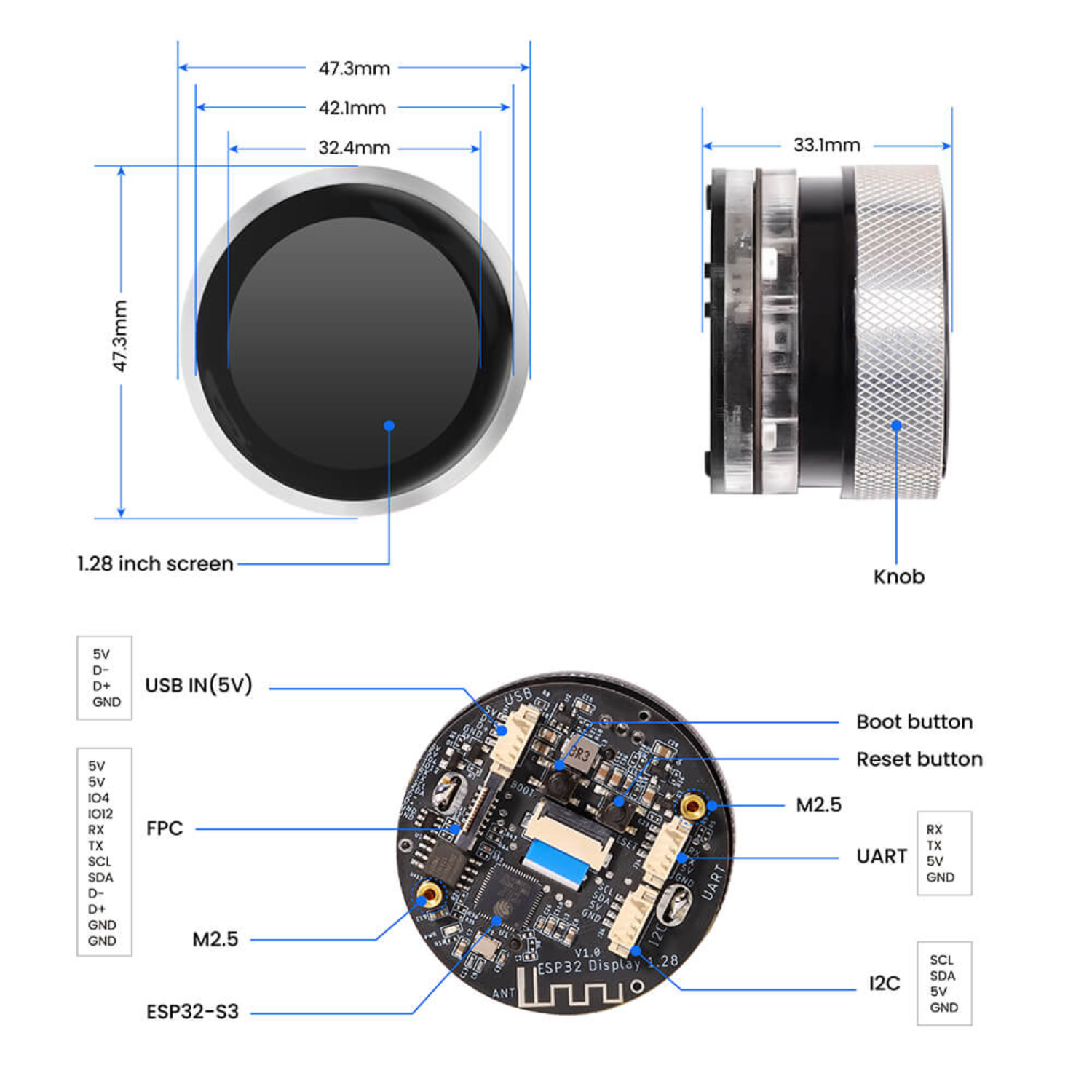

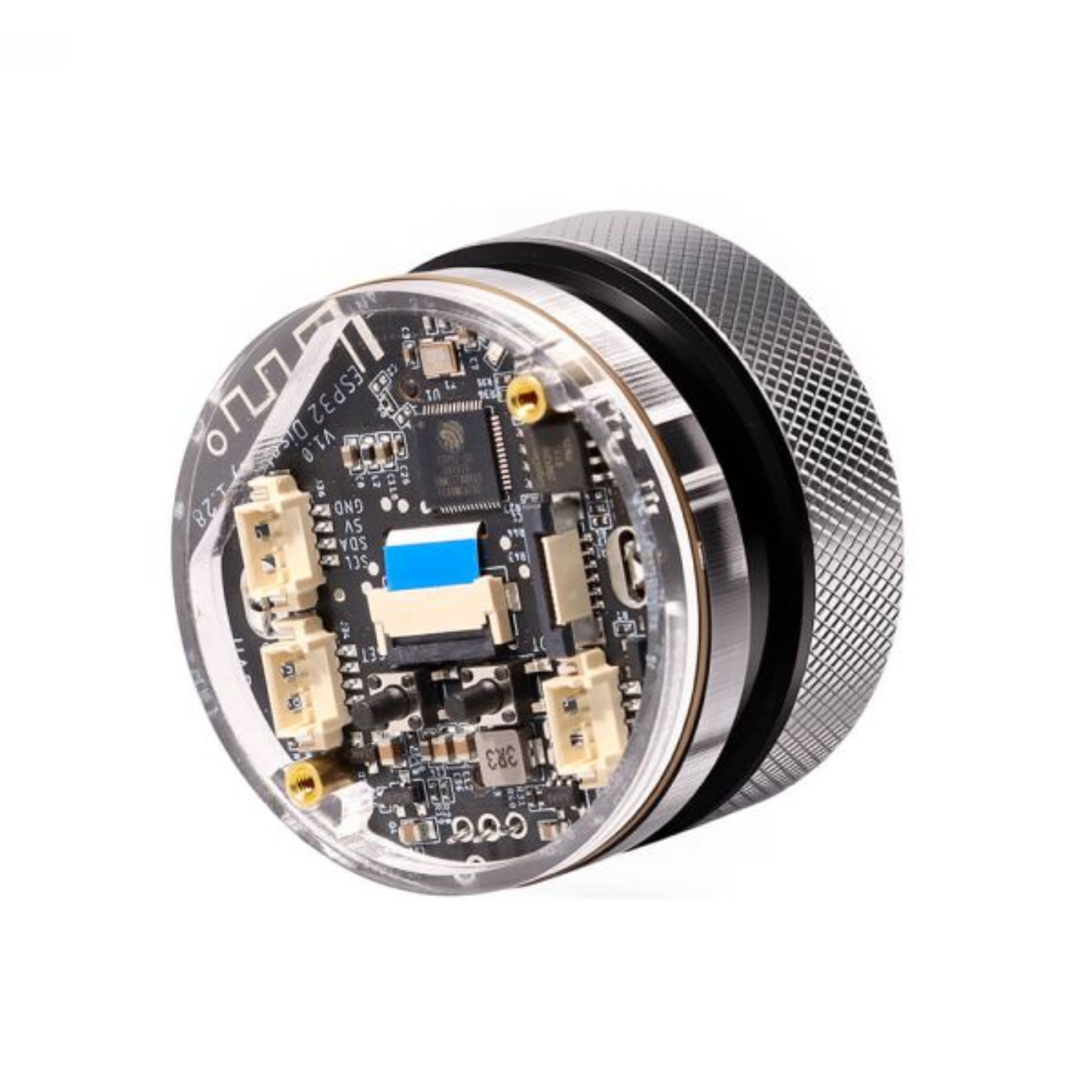

The 5V charging interface supports power supply and program burning, and is also equipped with three expansion interfaces of UART, I2C, and FPC to meet development needs.

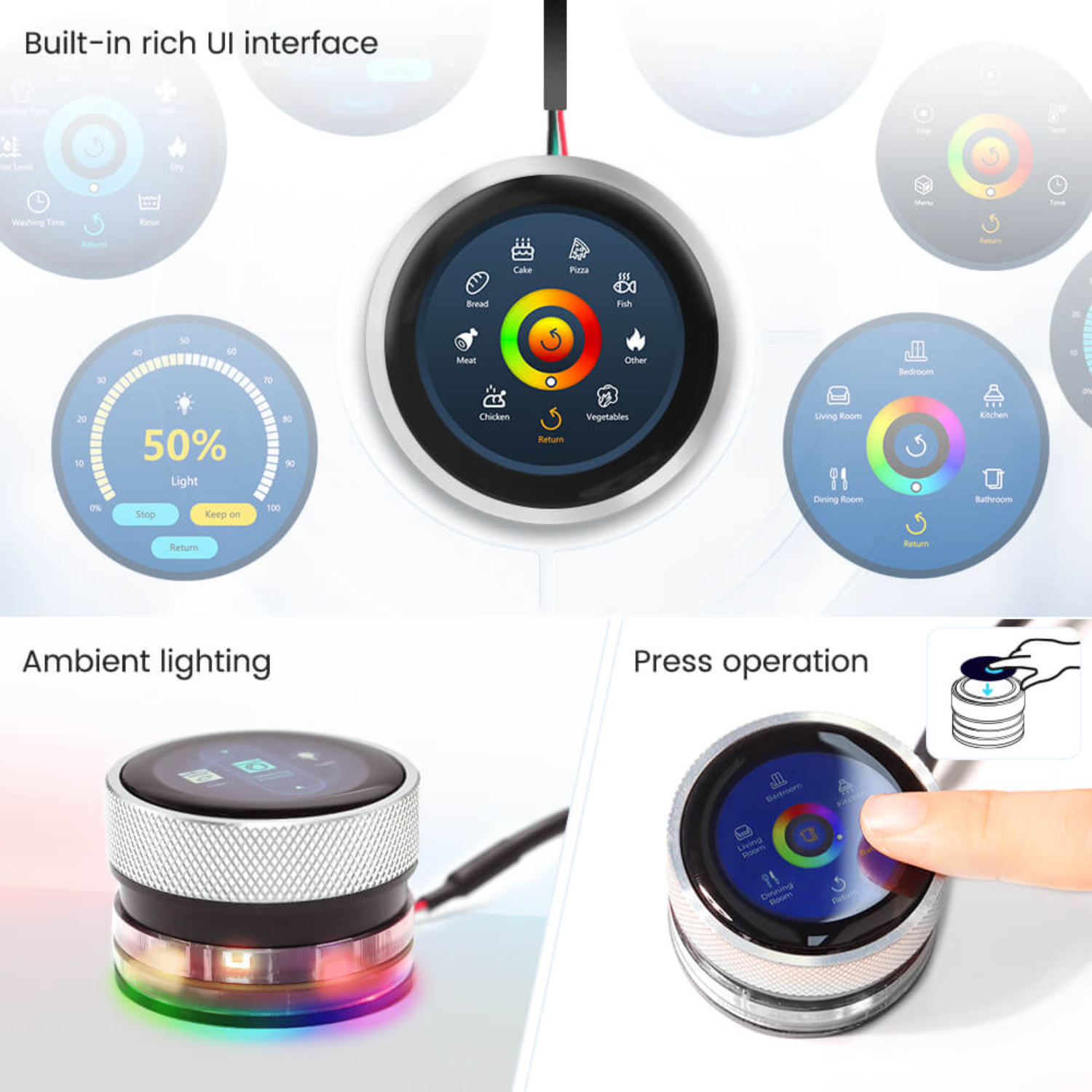

The atmosphere light design adds a cool feeling, and the low power design makes it suitable for smart home appliances and portable devices.

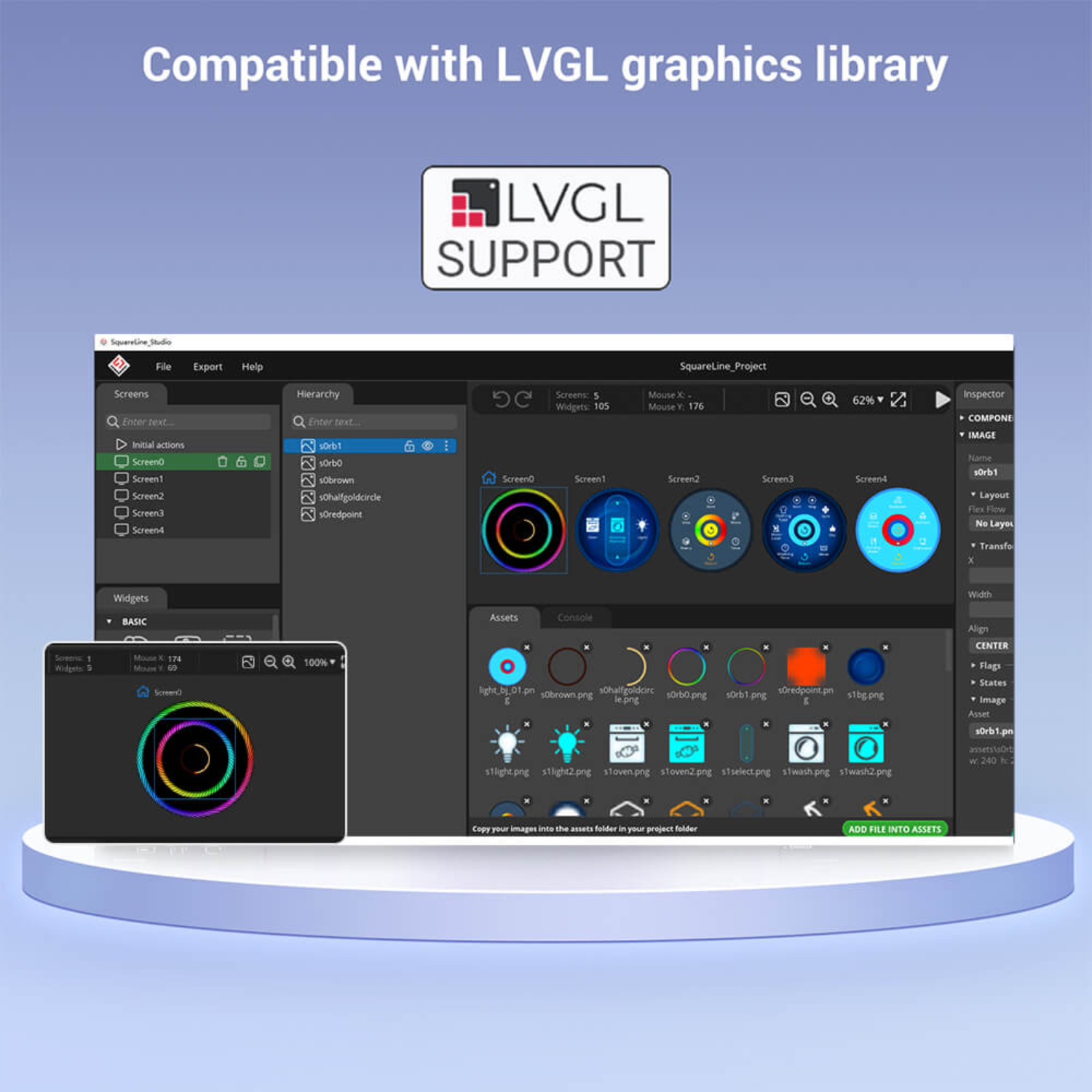

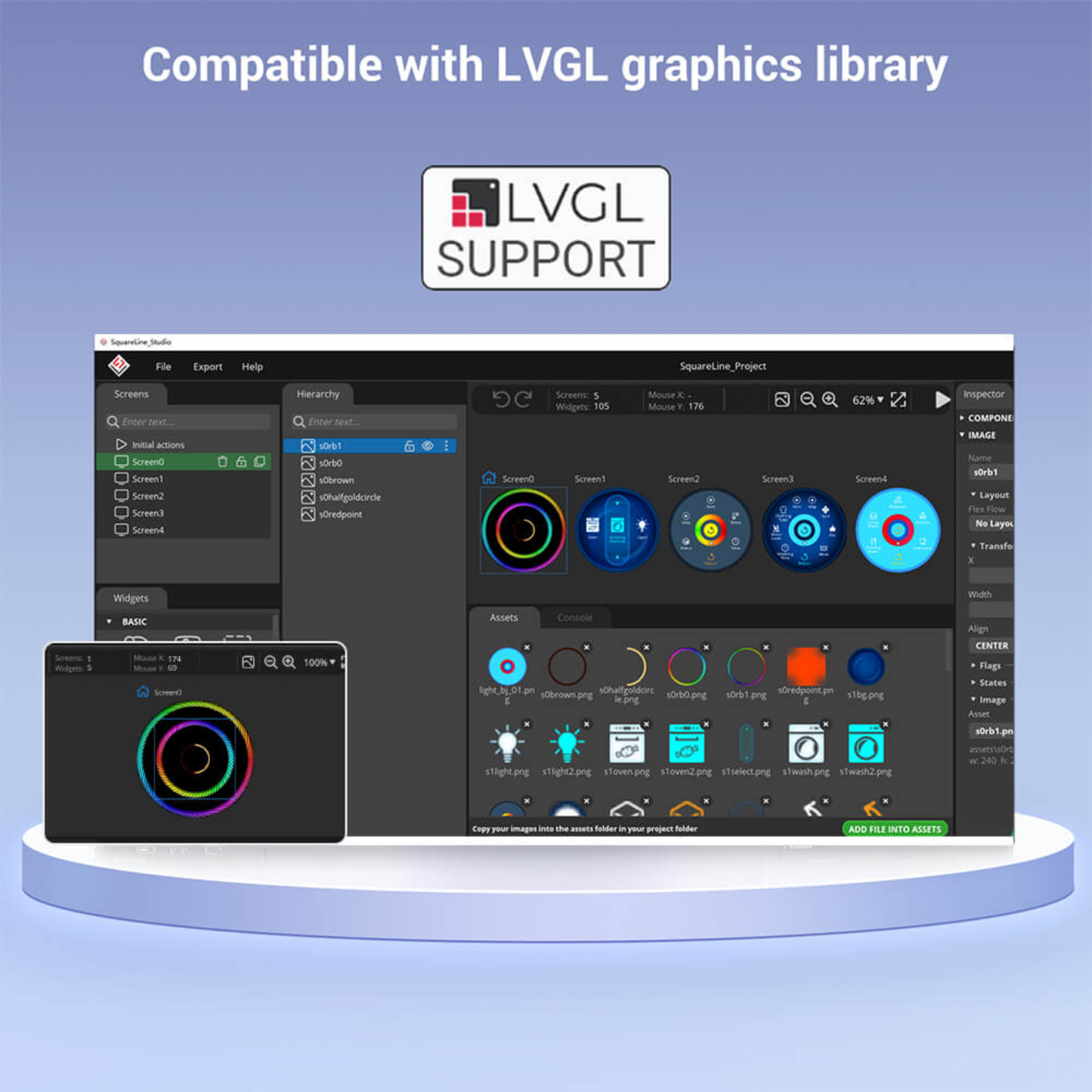

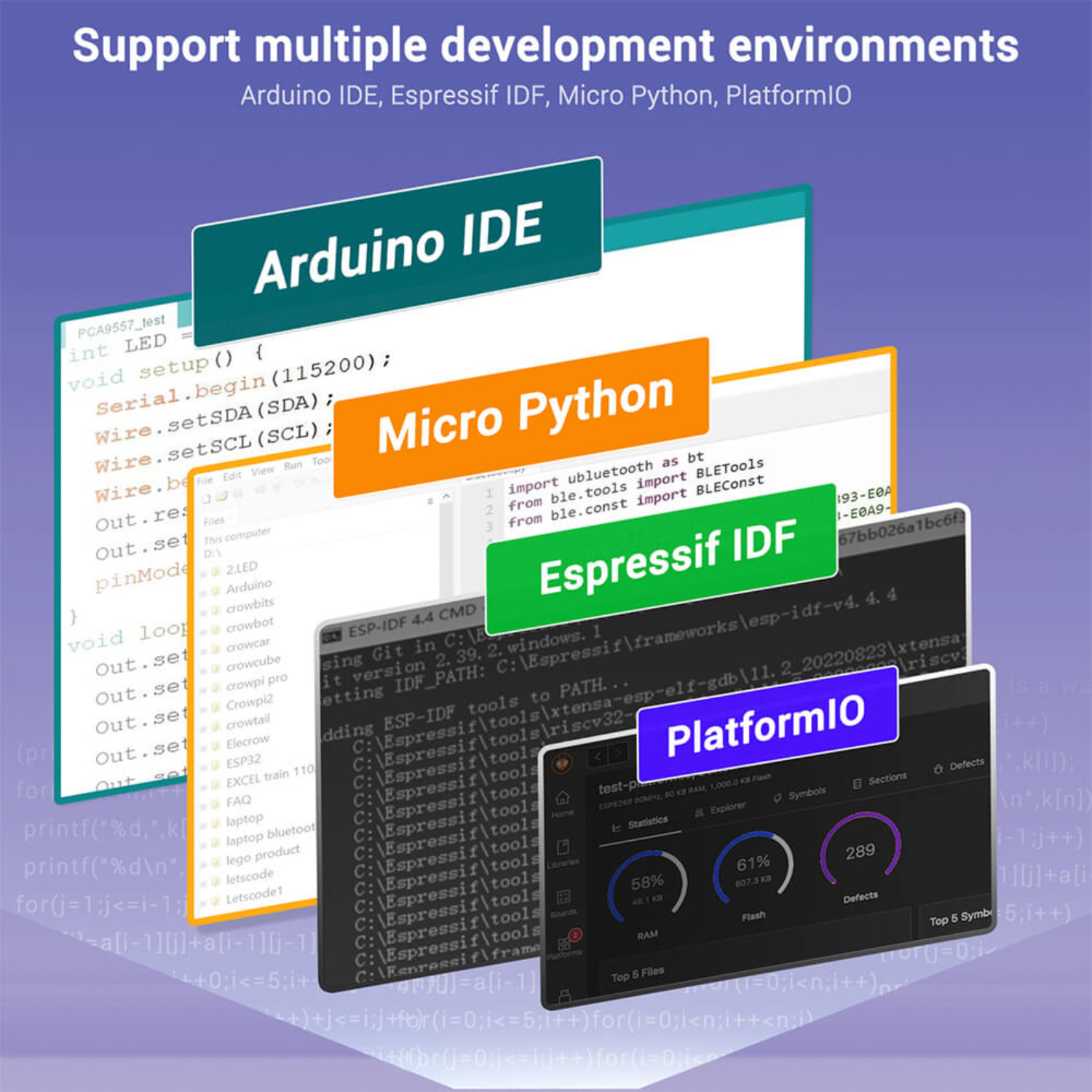

It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library; you can design the UI interface yourself. It is an ideal platform for DIY projects like a mechanical keyboard knob.

ESP32 Display - 1.28-inch rotary screen is not just an interactive module, but an intelligent interaction solution that combines high performance, multi-function, and ease of use. Whether you are an IoT developer, smart home enthusiast, or professional, you can find an efficient tool that meets your needs.

Features:

• Supports knob input, the knob supports clockwise, counterclockwise rotation, and full press operation, and can adjust volume, brightness, etc.
• Supports capacitive touch, sensitive operation, and provides a smooth user experience.
• Equipped with a 32-bit dual-core ESP32-S3 chip, equipped with 8 MB PSRAM and 16 MB flash memory, and the maximum clock frequency is 240MHz.
• Supports 2.4G WiFi and BLE low-power Bluetooth to achieve data exchange and remote control between devices.
• Equipped with a 5V charging interface, supports power supply and program burning; provides three expansion interfaces: UART, I2C, and FPC.
• Supports low power mode, suitable for smart home appliances and portable devices.
• Adds a cool feeling to the device and enhances the user experience.
• Supports Esphome-homeassistant/PlatformIO/Micro Python, and also supports the LVGL library.
• Suitable for smart home, industrial control, IoT projects, access control systems, Industrial control, portable devices, and other scenarios.

Package Included:

1 x ELECROW CrowPanel 1.28-inch ESP32 Rotary Display
