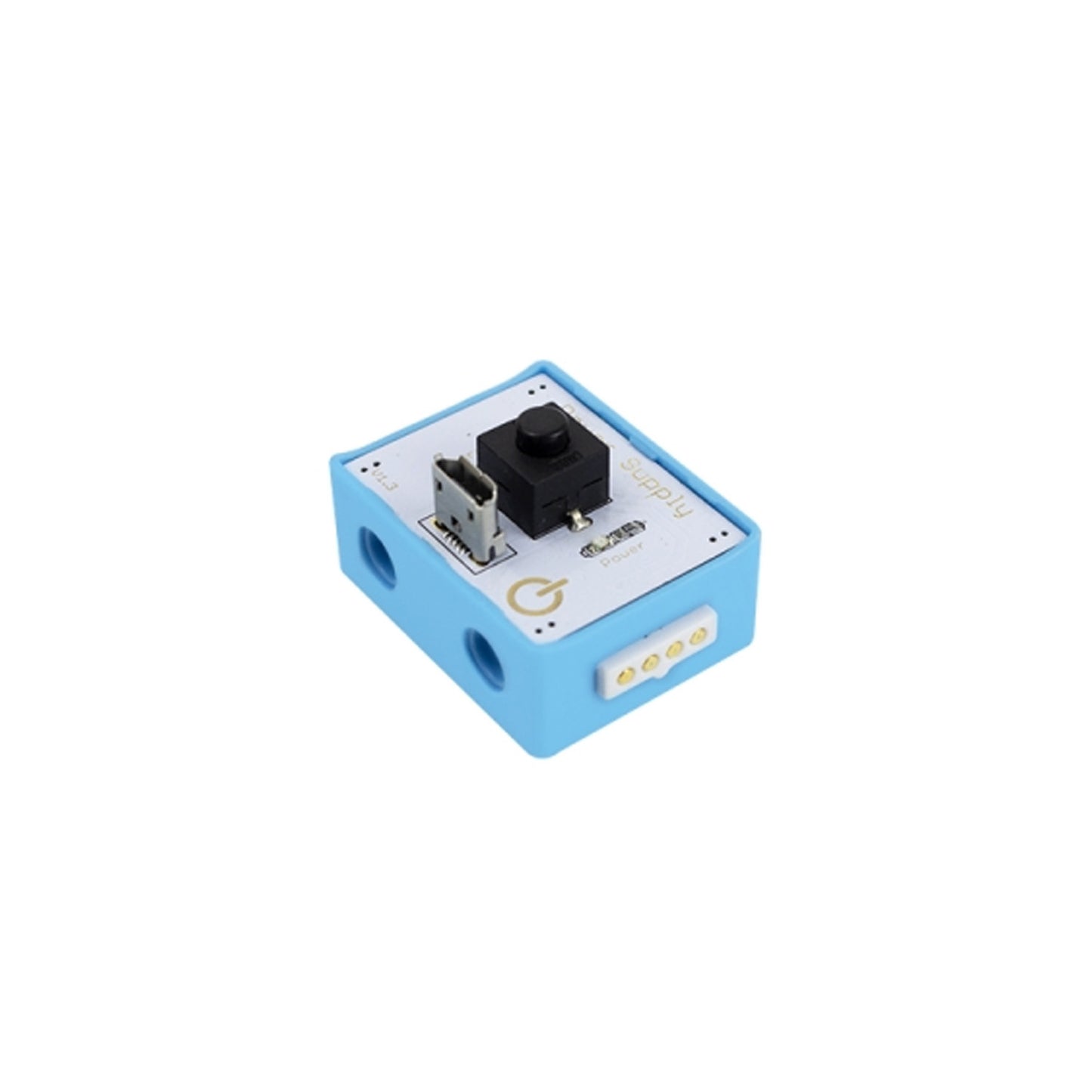

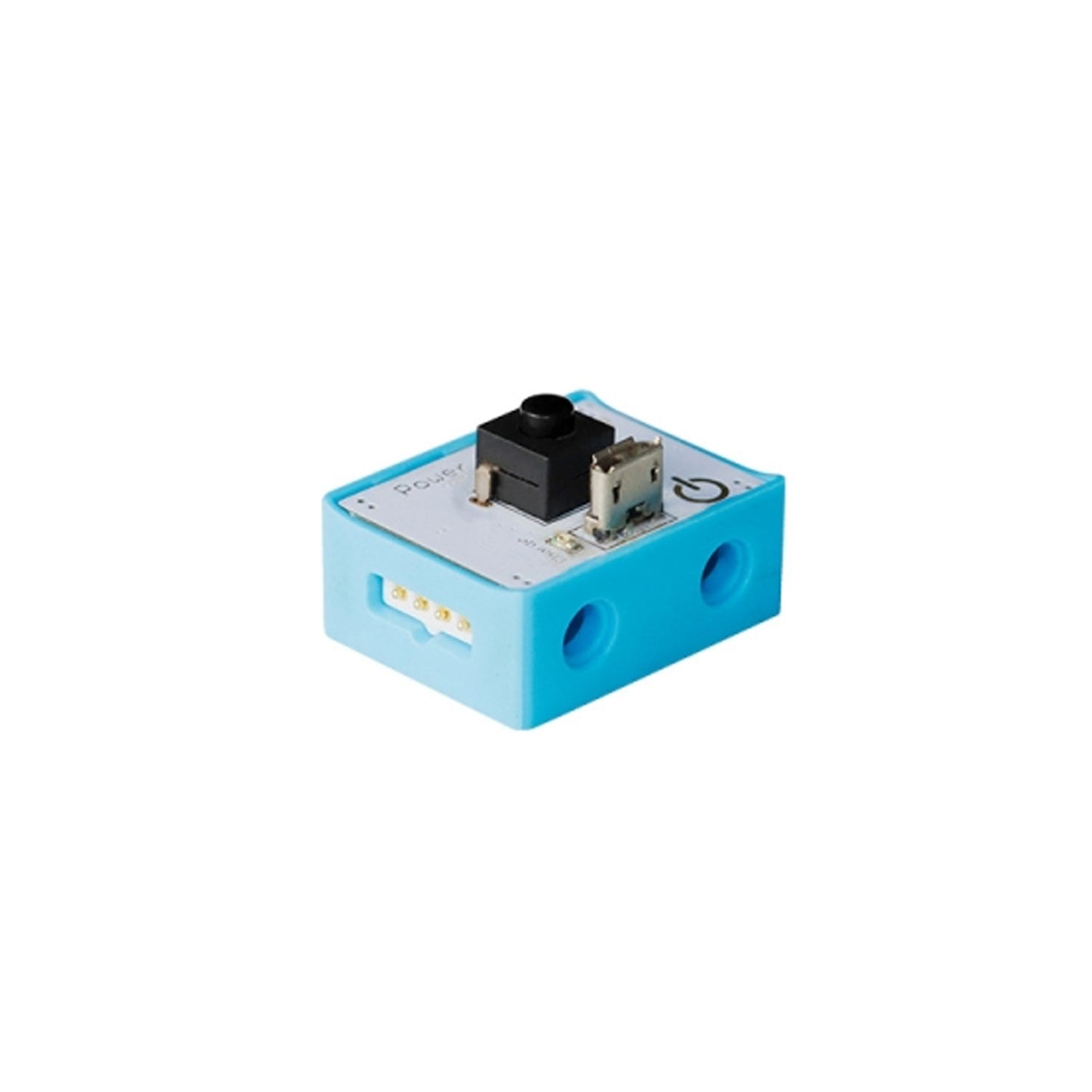

Description:
The Crowbits-Power Supply is the heart of the Crowbits, The power supply is the power source of the entire Crowbits eco-system and modules, allowing to power them both by battery and power cord connection.
Specifications:
- Output Voltage: 3.3V DC
- Charging method: Micro USB 5V DC
- Dimensions: 31.5(L)*24.5(W)*13(H) mm
How does it work?
On the technical side, the battery is a Lithium battery, the same battery that most of us have inside our phones these days. The voltage of the battery is 3.7V, 3.7 is a bit too much for our use case and the CrowBits, in order to protect them we step down using a module called DC-DC regulator from 3.7V to 3.3V - this allows us to power on the Crowbits safety.
The power supply module is rechargeable, it can be charged by a 5V/1A power adapter through a micro USB interface.
Use case
You will use the power supply to power the rest of the Crowbits when working with them and making various projects.
Notes:
- The power supply contains a battery, the battery is a re-rechargeable battery (same as our mobile phones) it can be charged by a 5V/1A (ampere) power adapter through a micro USB interface. It’s possible to charge it through the laptop USB port or any other.
- Make sure not to plug it into a voltage source of 5+ (for example: 12V) it will burn your little Crowbits.

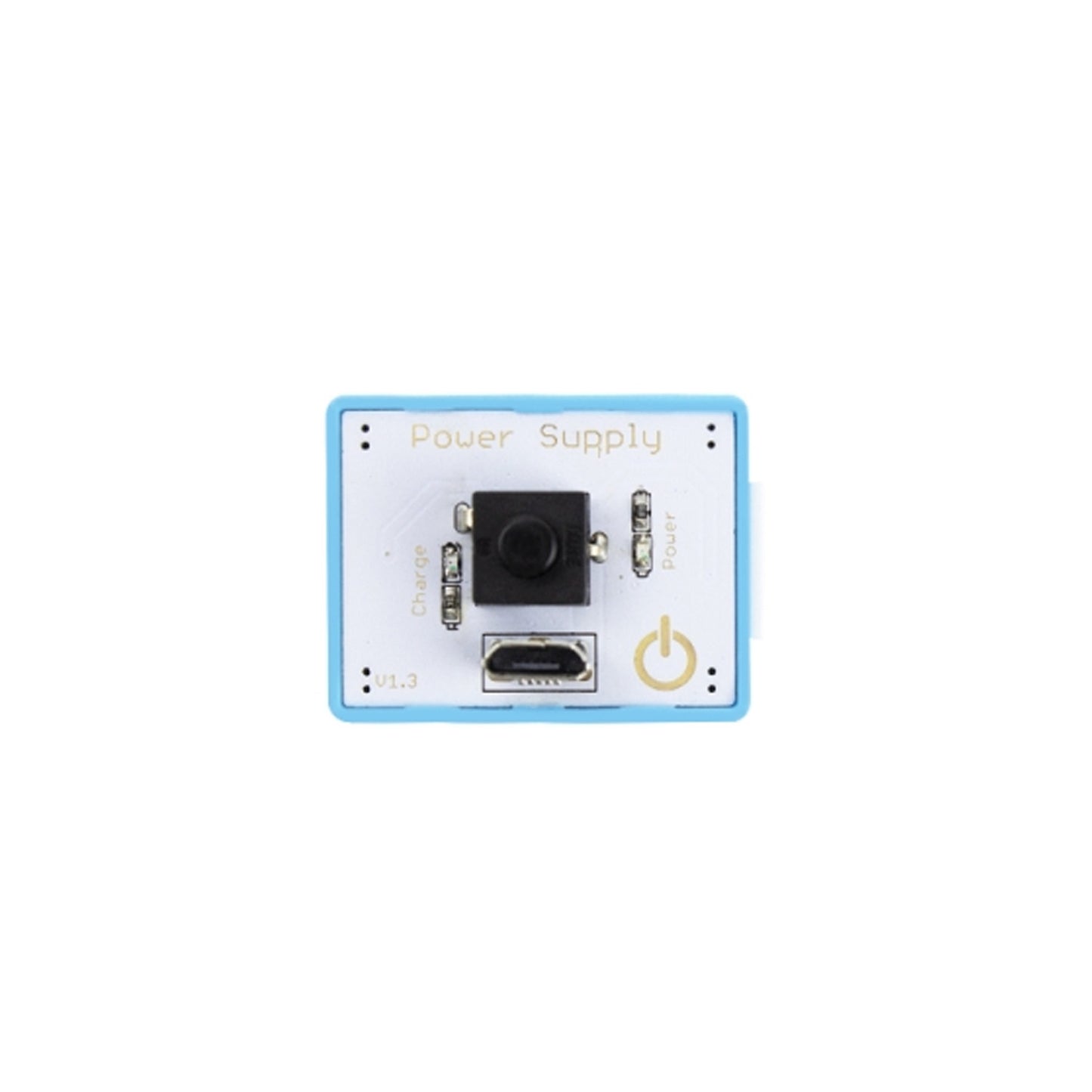

- When the power is about to run out, an indicator on top of the button will turn off, which means it’s a tie to charge the power supply module by plugging it into a 5V source using a USB cable.
- During the charging process, the power indicator on the left of the micro USB will stay on, it will automatically turn off once the power supply is fully charged.
Useful Link:
Package Included:
1 x ELECROW-Crowbits-Power Supply
