- Property: Flexible
- Bend radius: 0.25''
- Life time: 25,000 hours
- Height: 1 mtr
- Width: 1 cm
- Capacitance: 2-5nF/sq.in
- Applied frequency: 400-1200Hz
Description:
This is the latest breakthrough in helping people create their own glowing designs out of super-thin EL Panel - EL panel is much thinner than a credit card (just 1/3mm thick) and glows beautifully. To use this Panel, the first thing you must really think through is your design. If you have a pretty good idea what you want to make then you should decide whether you have to use this cuttable panel, or whether you can use one of our standard EL panels. If you simply have to have your EL shapes cut out then this cuttable panel is the thing for you.
Specification:
- Property: Flexible
- Bend radius: 0.25''
- Life time: 25,000 hours
- Height: 1 mtr
- Width: 1 cm
- Capacitance: 2-5nF/sq.in
- Applied frequency: 400-1200Hz
- Operating temperature: -30°c~80°c
- Operating humidity:0-90%
- Storage temperature: -40°c~85°c
- Operating current(100V/400Hz): 1.5~2.5mA/sq.in
- Applied voltage: DC12V OR AC 40-240V
- Brightness: 100-120cd/m⊃2;
- Function: Constant lighting/flash/of
Package Included:

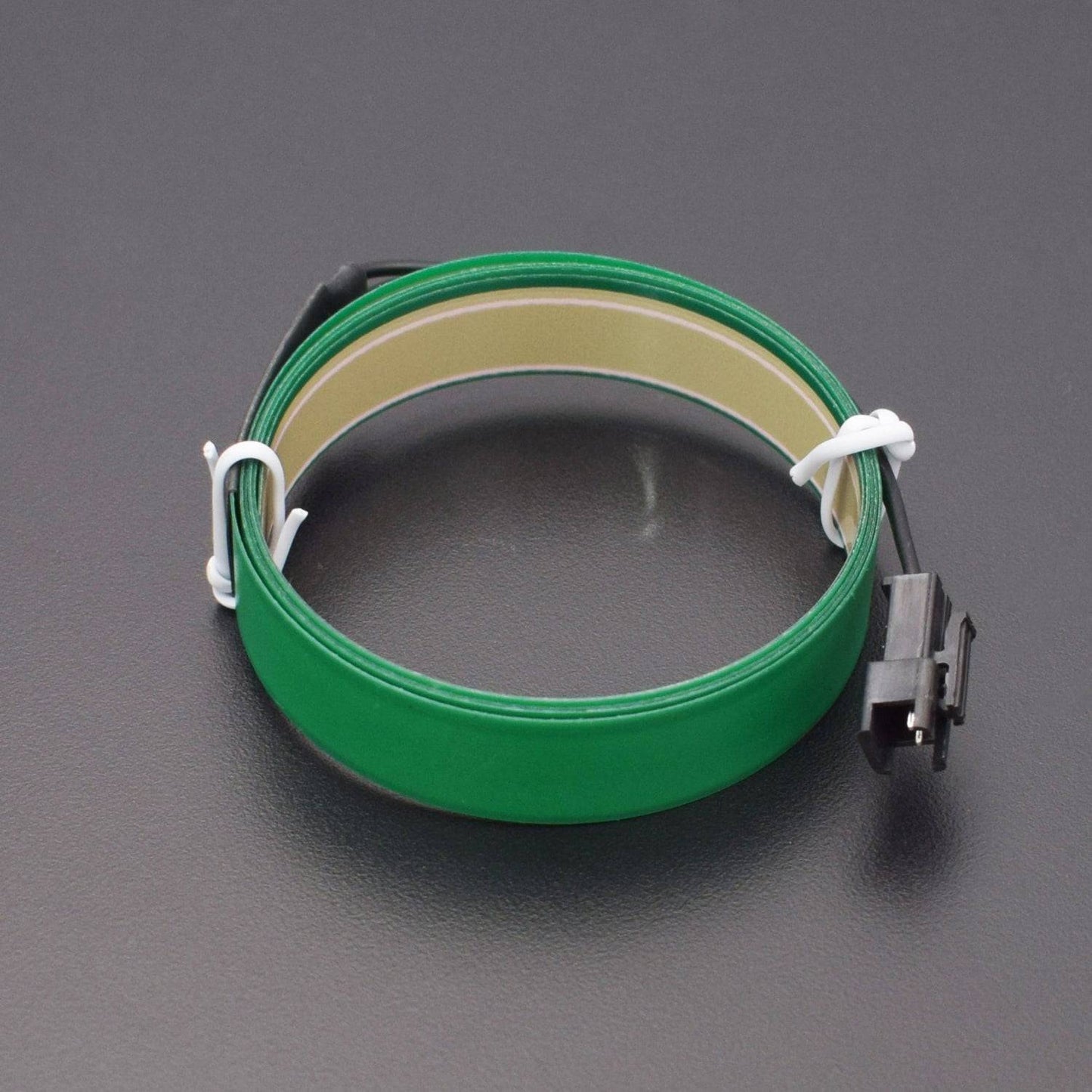

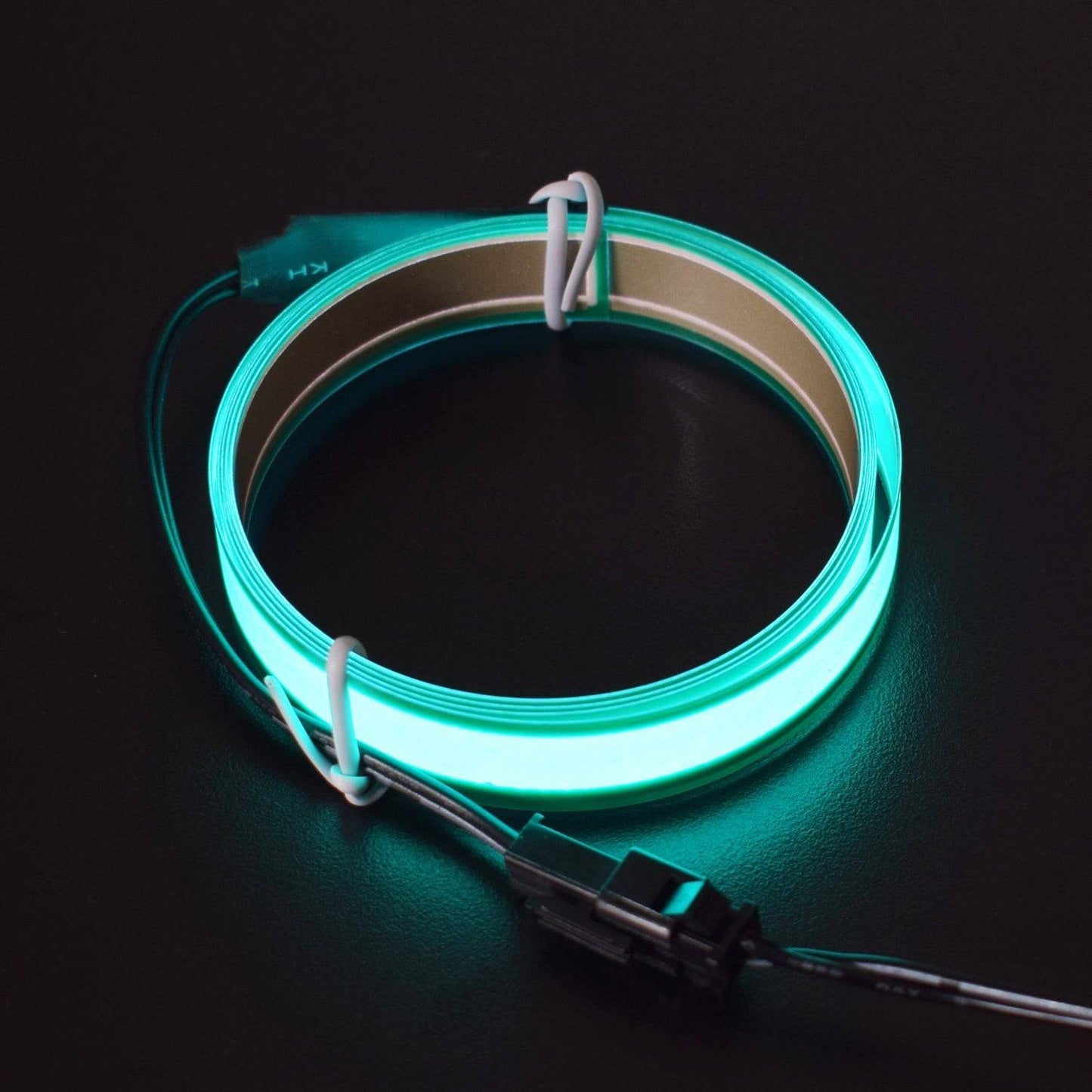

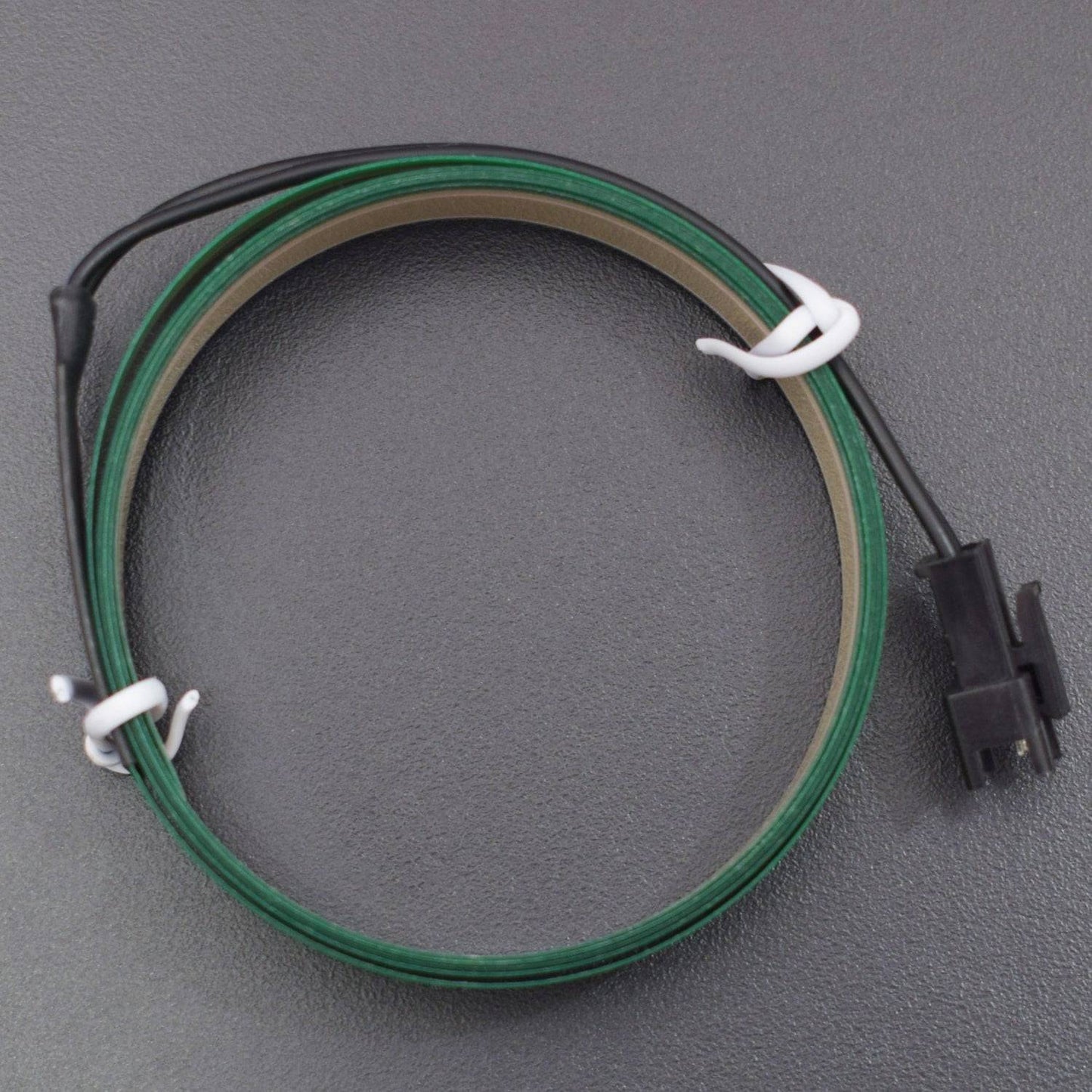

1 x EL Tape 1 Meter EL Strip - Green
