Description:

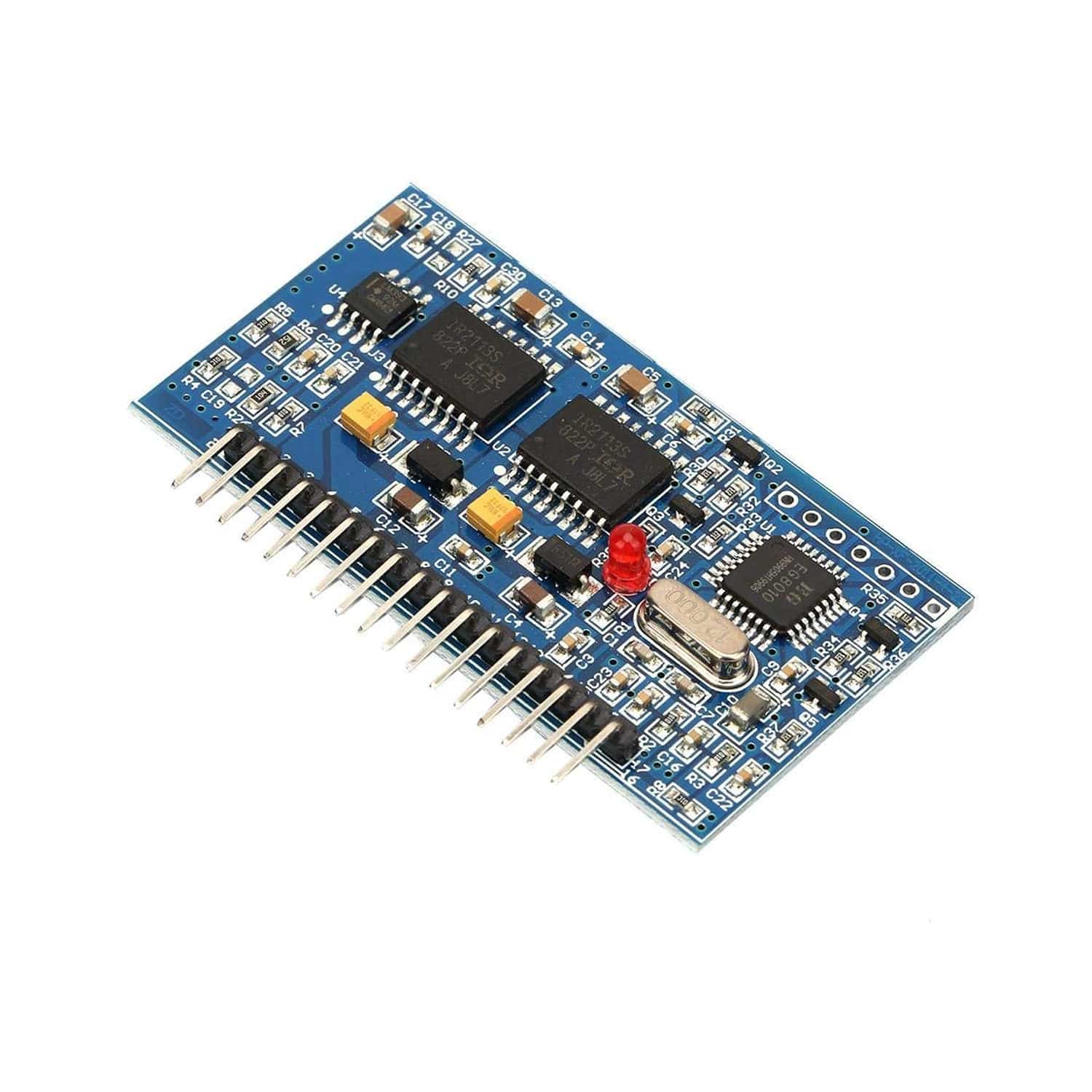

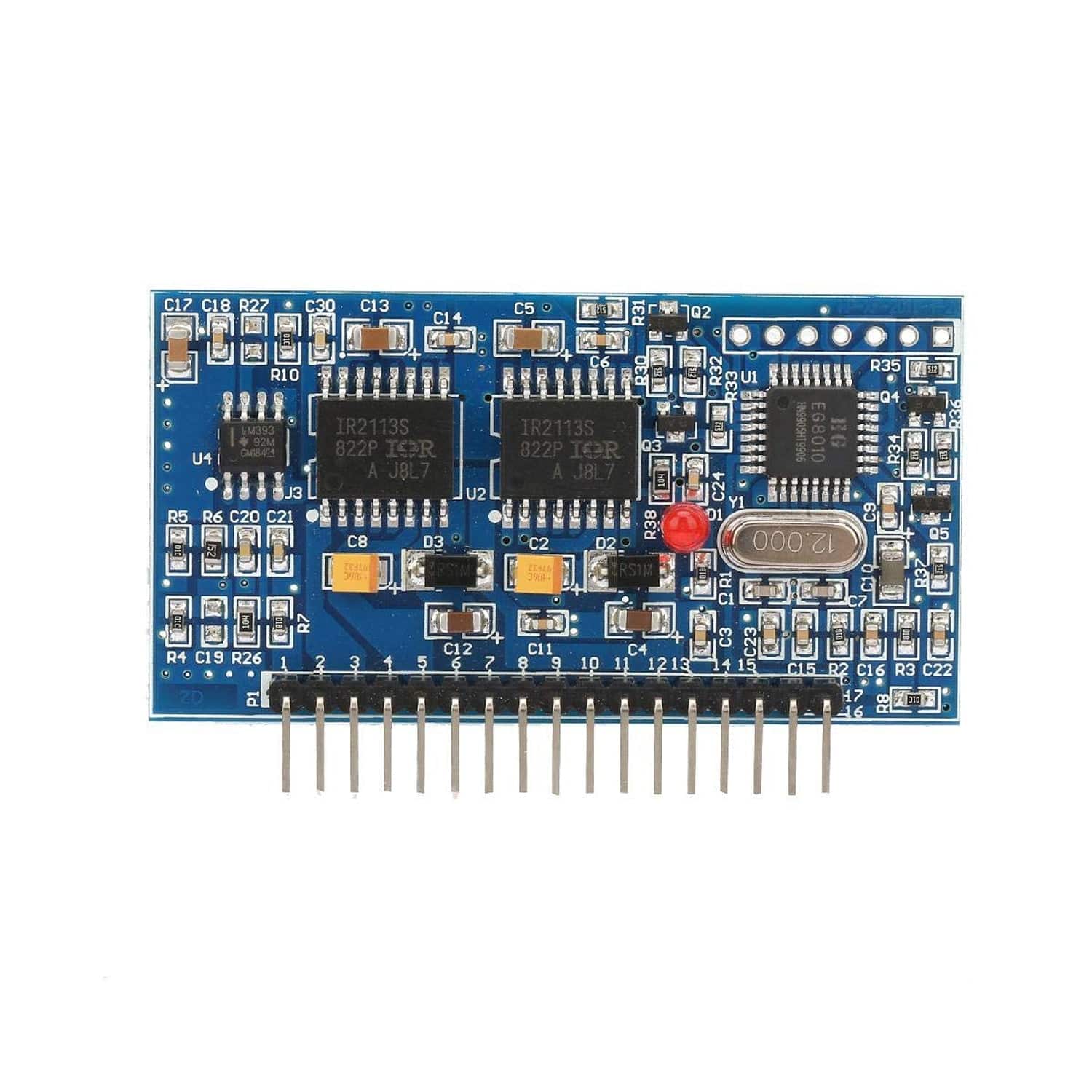

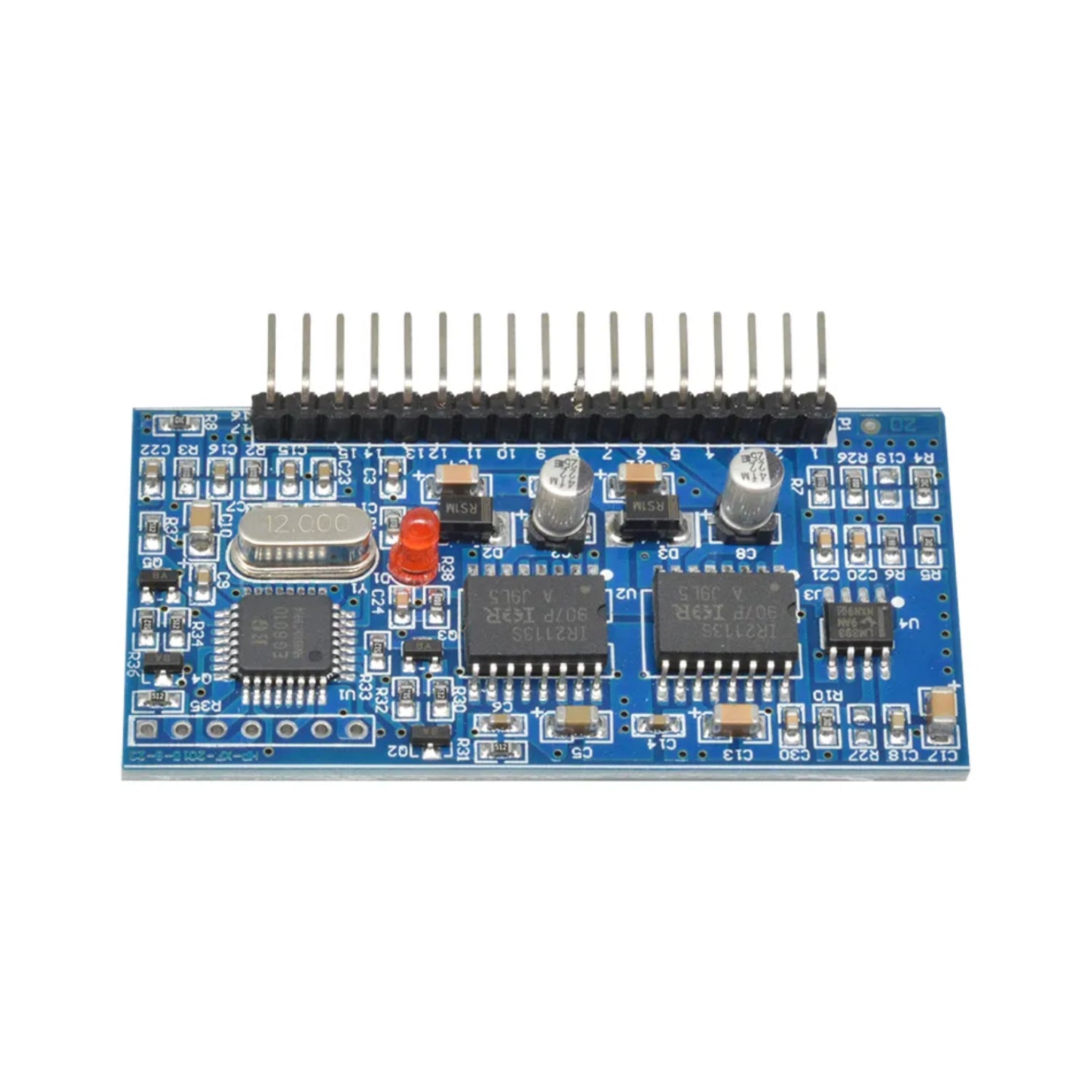

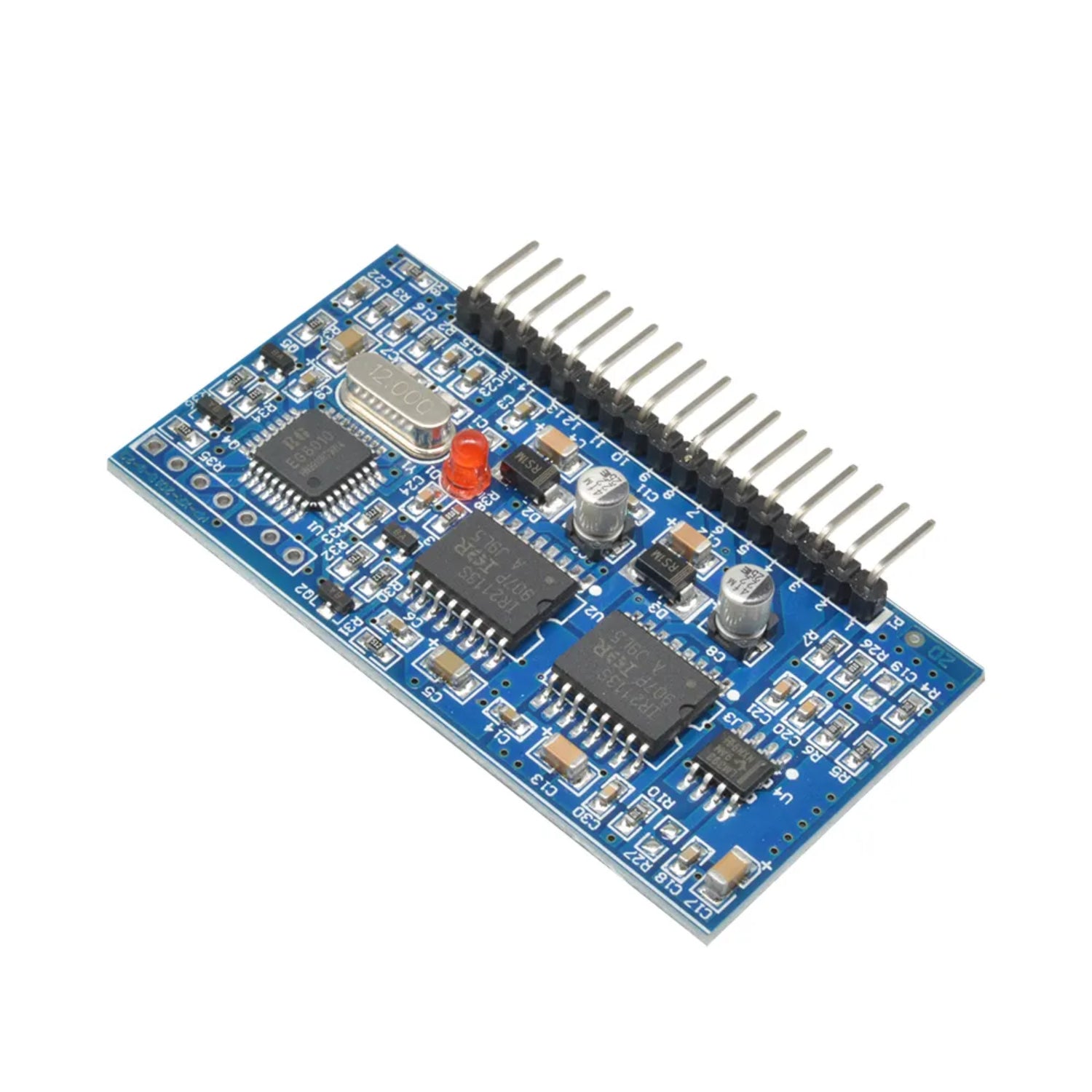

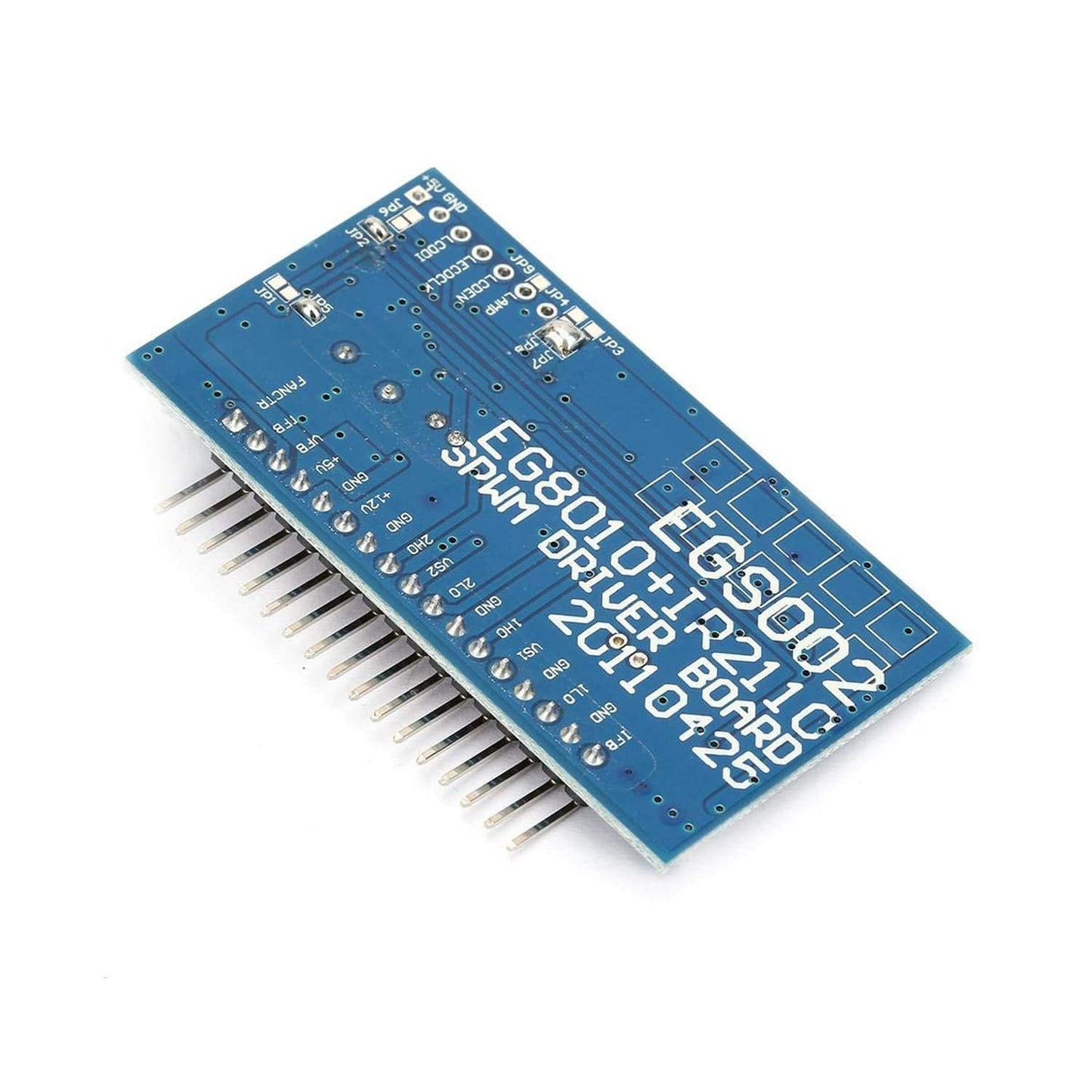

EGS002 Wave Inverter Module is a driver board specific for single-phase sinusoid inverter. EGS002 Wave Inverter Module uses ASIC EG8010 as the control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control. Jumper configures 50/60Hz AC output, soft start mode and dead time. EGS002 Wave Inverter Module is an improved version of EGS001 that is compatible with EGS001’s original interfaces. EGS002 also integrates cross-conduction prevention logic to enhance its ability to anti-interference, and LCD interface for users’ convenience to use the chip’s built-in display function.
EG8010 + IR2113 SPWM Inverter Module is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with a complete function of built-in dead time control. It applies to the DC-DC-AC two-stage power converter system or DC-AC single-stage low power frequency transformer system for boosting. EGS002 Wave Inverter Module can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by an external 12MHz crystal oscillator. EGS002 Wave Inverter Module is a CMOS IC that integrates an SPWM sinusoid generator, dead-time control circuit, range divider soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, etc.
Specifications:
- Operating Temperature Range: -25℃ to 85℃
- Operating Voltage: 5 VDC
- PWM Frequency: 23.4 KHz
Features:
- External 12MHz crystal oscillator
- PWM carrier frequency 23.4KHz
- Soft-start mode pin setting the response time of 1S
- Voltage, current, real-time temperature feedback
- Overvoltage, Undervoltage, overcurrent and overheating protection
- Serial communication to set the output voltage, frequency and other parameters
Package Included:
1 x EGS002 Wave Inverter Module EGS002 EG8010 + IR2113 SPWM Pure Sine Wave Inverter With DC-AC Conversion High-Efficiency Inverter Module
