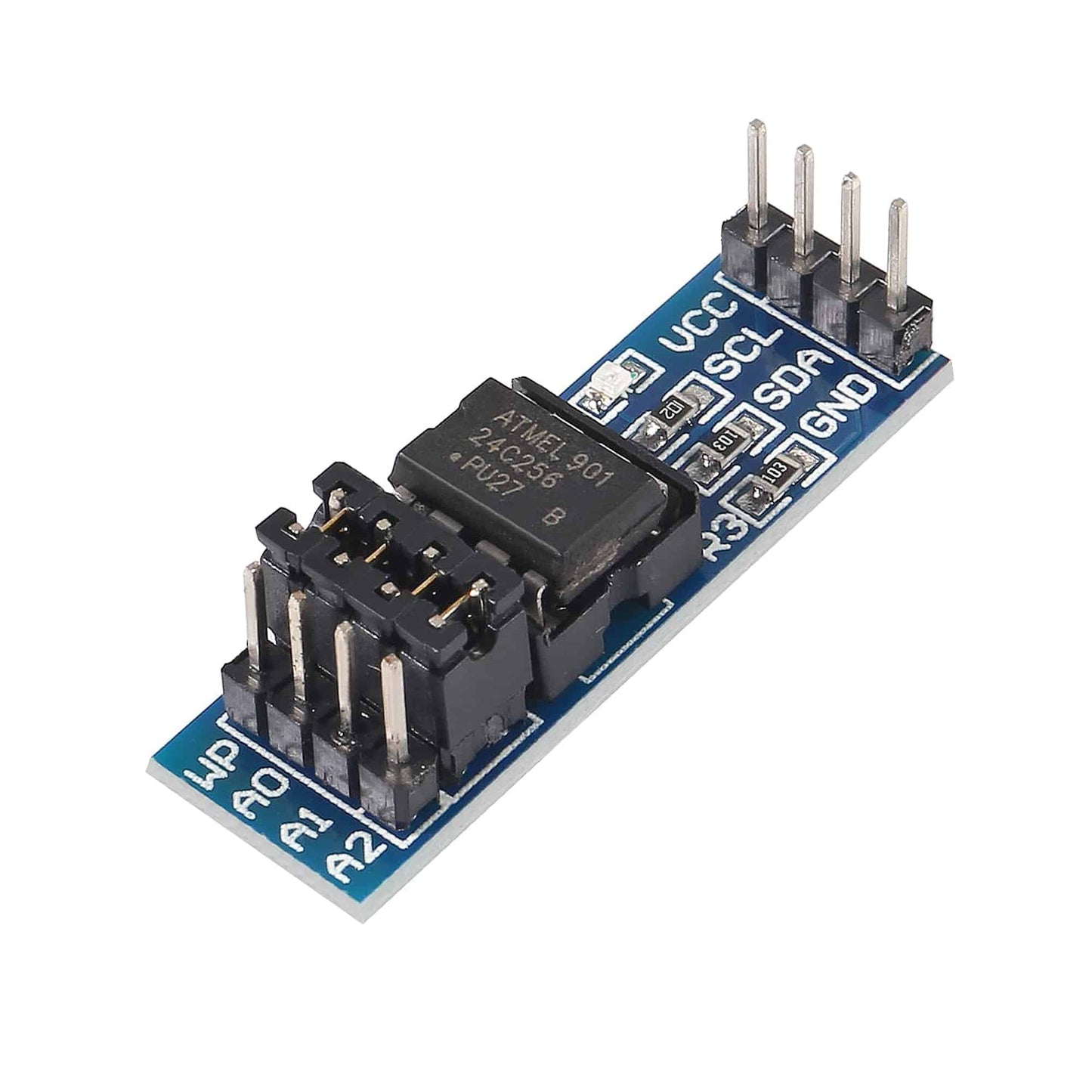

EEPROM Memory Module AT24C256 I2C Interface EEPROM Memory Module - RS3040

EEPROM Memory Module AT24C256 I2C Interface EEPROM Memory Module - RS3040

SKU:RS3040

Regular price Rs. 55.00
Regular price Sale price Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

If you need to do some data storage in Arduino, then using the EEPROM Memory Module is probably the most simple practice. In actuality, Arduino used the ATmega chip itself has a certain EEPROM memory, but only a limited number. Here is the external EEPROM memory module which uses the I2C bus line to connect with Arduino, and with a pluggable chip, inserted in this series, so it will easy to expand the capacity, basically just need to insert a bigger capacity EEPROM chip.

The EEPROM Memory Module is based on EEPROM chips of AT24C series, 256Kbit capacity, that’s 32k bytes. The EEPROM module communicates with Arduino through the I2C interface. It will be better to use Arduino-Sensor-Shield-V4.0 and the Arduino-I2C-COM-Cable.

Specifications:

  • Chipset: AT24C256
  • Maximum Operating Voltage: 6.25V
  • Output Current: 5mA
  • Operating Temperature: -55 ~ +125°C
  • Storage Temperature: -65 ~ +150°C

Features:

  • 8P chip seat, installation of AT24C256 chip.
  • Pin-powered onboard power indicator.
  • I2C communications required a pull-up resistor.

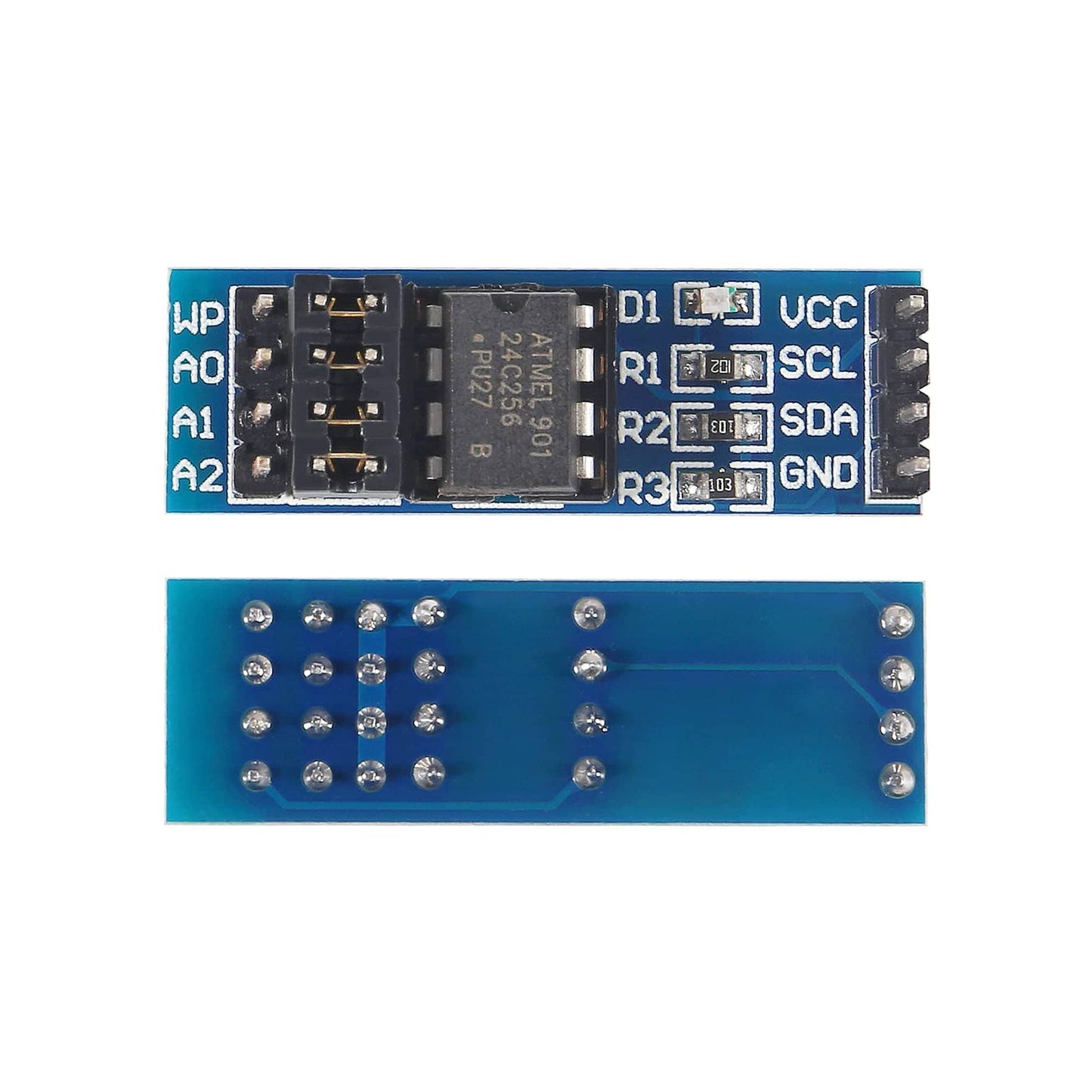

  • All pins are leads and marked address input and direct write-protect pin jumper settings.

Package Included:

1 x EEPROM Memory Module AT24C256 I2C Interface EEPROM Memory Module
