Description:

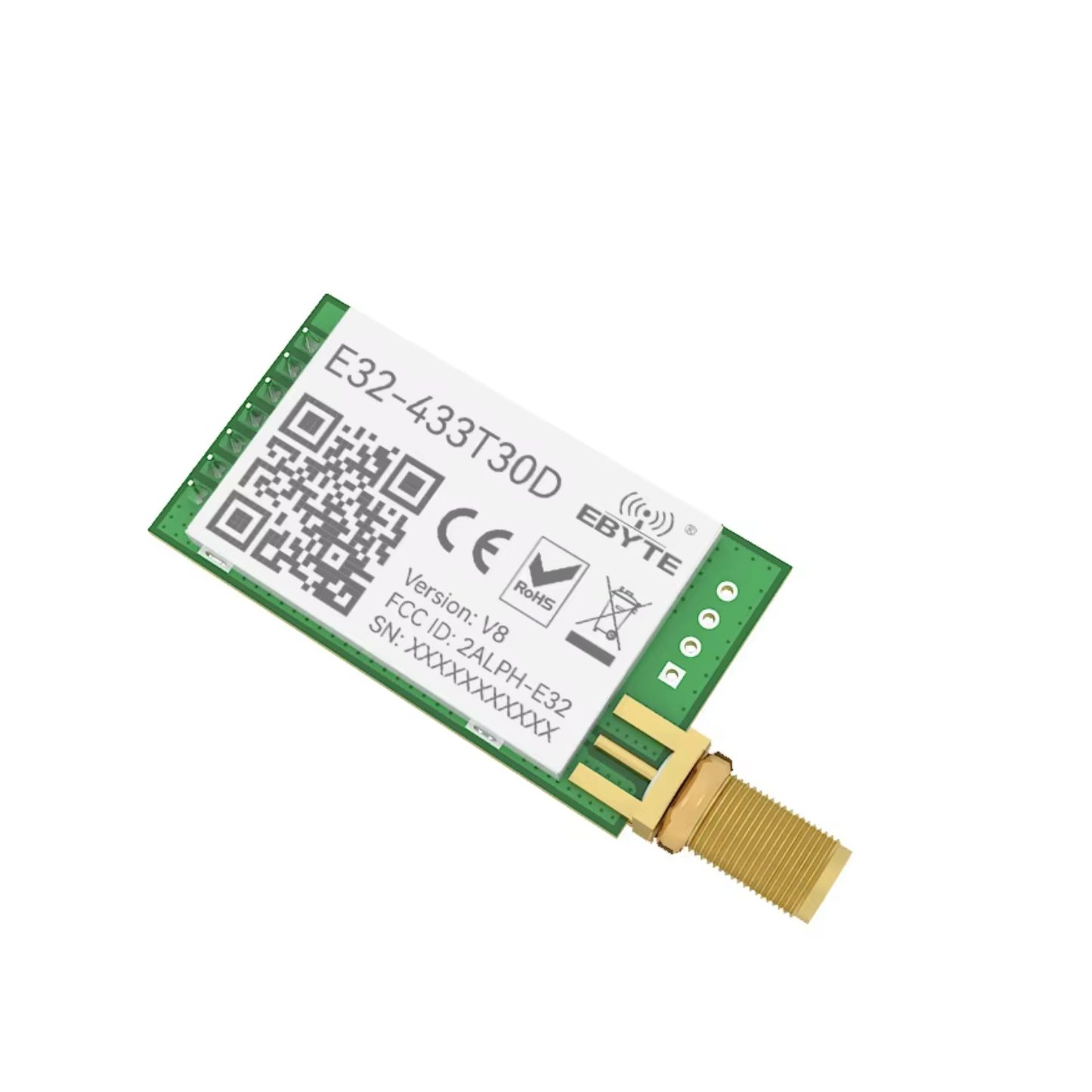

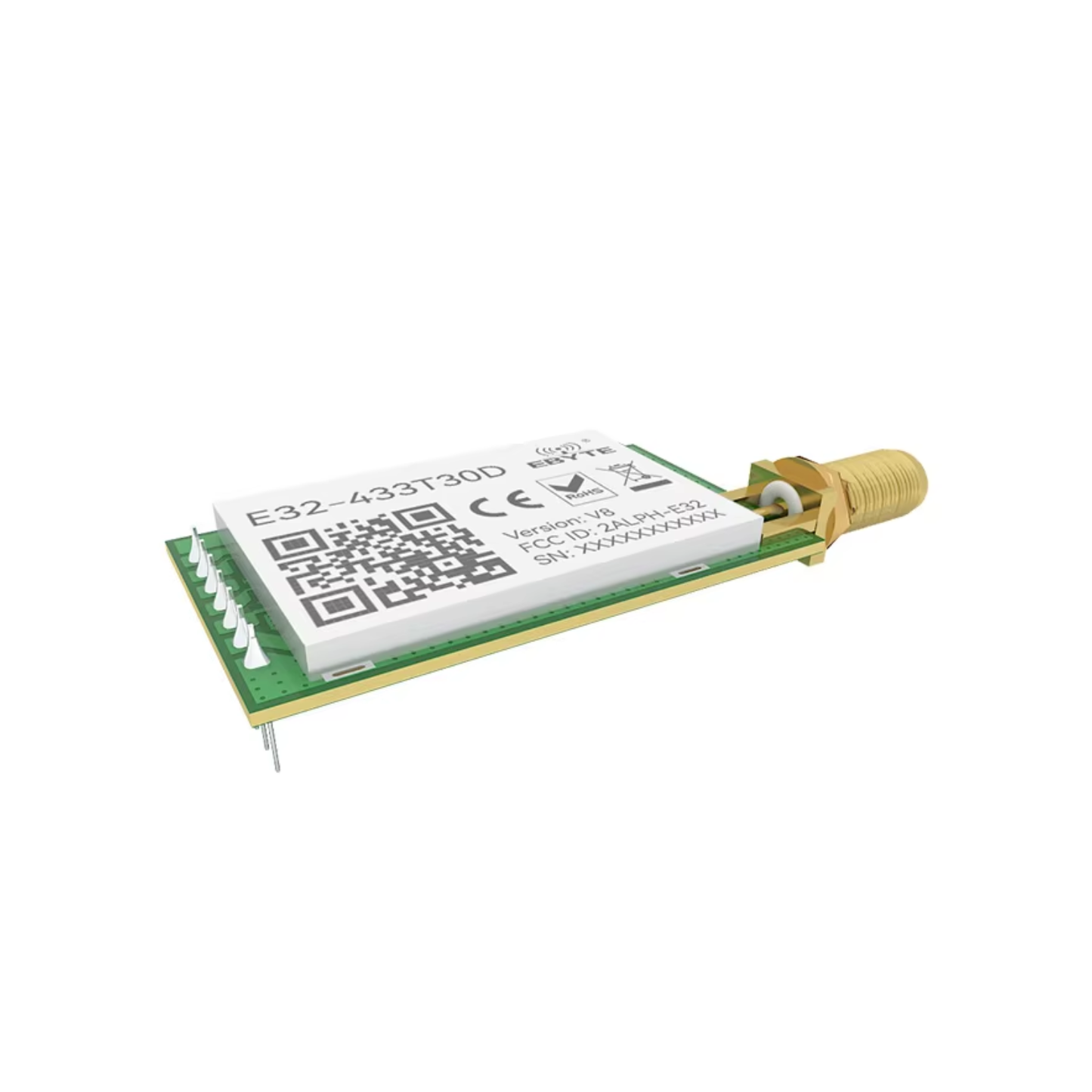

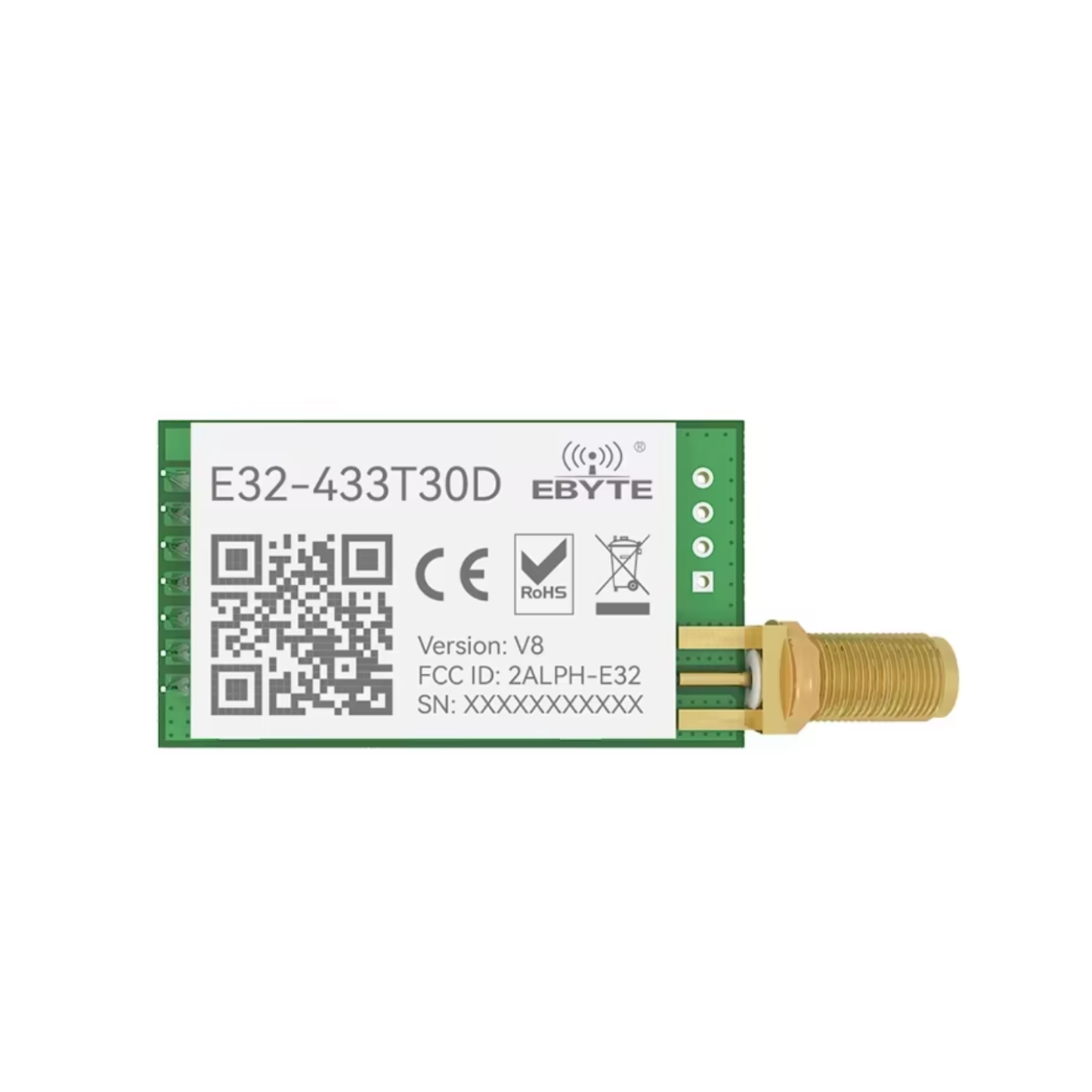

The E32-433T30D LoRa IoT Module offers a robust and high-performance wireless solution specifically designed for Internet of Things (IoT) applications, making it ideal for deployments like smart parking sensors and other long-range communication needs. Leveraging LoRa (Long Range) spread spectrum technology, this module excels in providing extended communication distances while significantly improving resistance to interference, ensuring reliable data transmission even in challenging environments.
Operating within the 410-441 MHz frequency range, the E32-433T30D boasts a transmit power adjustable from 21 to 30 dBm, enabling impressive communication ranges of up to 8 kilometers in open air conditions. It supports a flexible range of air data rates, from 0.3kbps up to 19.2kbps, allowing for optimization between range and data throughput. The module communicates via a standard UART interface, simplifying integration with microcontrollers and other embedded systems.
Designed with energy efficiency in mind, the E32-433T30D consumes only 106mA during transmission and a mere 15mA during reception, making it well-suited for battery-powered and energy-conscious applications. Its wide operating temperature range of -40°C to +85°C further enhances its suitability for diverse and demanding environments.
Specifications:
- Frequency Range (MHz): 410 ~ 441 MHz (default: 433 MHz)
- Interface: UART (Baud rate: 1200 ~ 115200, default 9600)
- Buffer: 512 bytes buffer
- Antenna Type: SMA-K
- Transmitting power: 21 ~ 30 dBm (about 1W)
- Power Supply: 3.3V to 5V
- Receiving Sensitivity: 147 dBm
Features:
- Frequency Range: 410~441 MHz (default: 433 MHz)
- Transmitting Power: 21~30 dBm (about 1W)
- Range: Up to 8 km (in open air with maximum power, 5dBi antenna)
- Antenna Type: SMA-K
- Power Supply: 3.3V to 5V (5V ensures maximum power output)
- Low Power Consumption: 106mA (transmitting), 15mA (receiving), 4μA (when off)
- Operating Temperature: -40°C to +85°C
- Buffer: 512 bytes (automatically sub-packaging with 58 bytes per package)
- Communication Interface: UART (Baud rate: 1200~115200, default 9600)
- Air Data Rate: 0.3kbps to 19.2kbps (programmable)
- Low Power Shutdown: Automatically turns off with 4μA current draw when inactive.
Package Included:
1 x EBYTE E32-433T30D-V8 LoRa 433MHz UART IoT Long Range Wireless Transceiver Transmitter Receiver EBYTE E32-433T30D V8 Module 1W SMA Antenna
