Description:

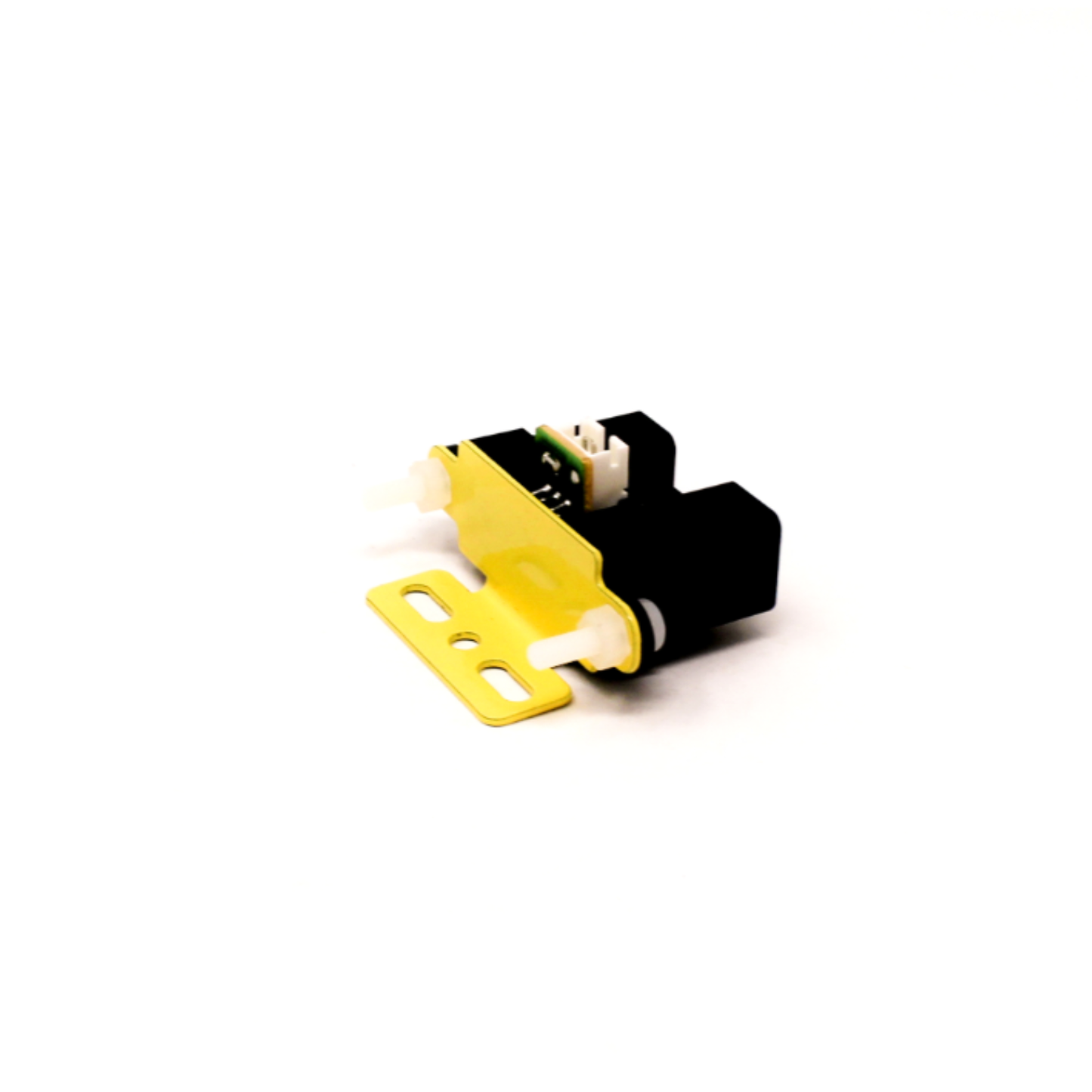

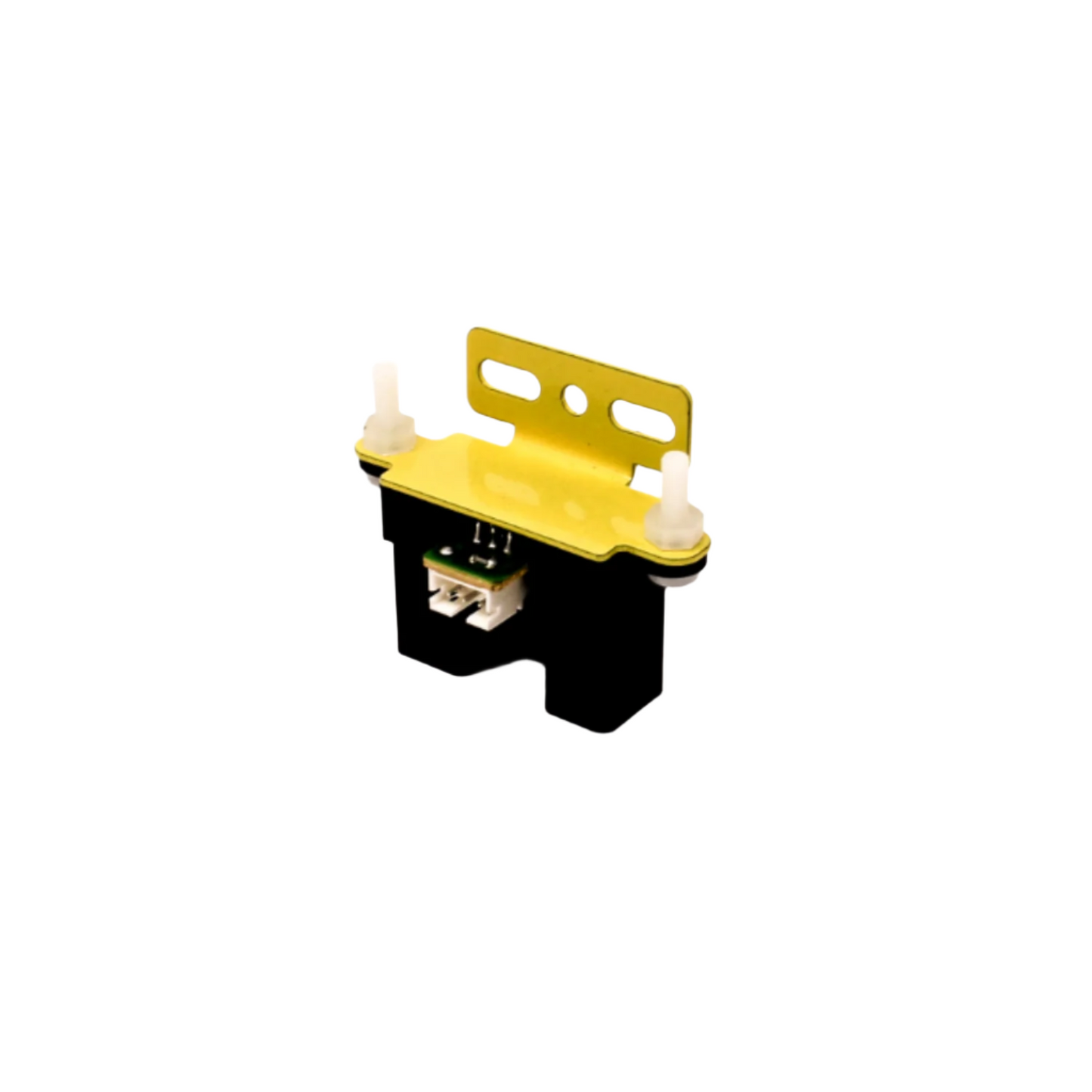

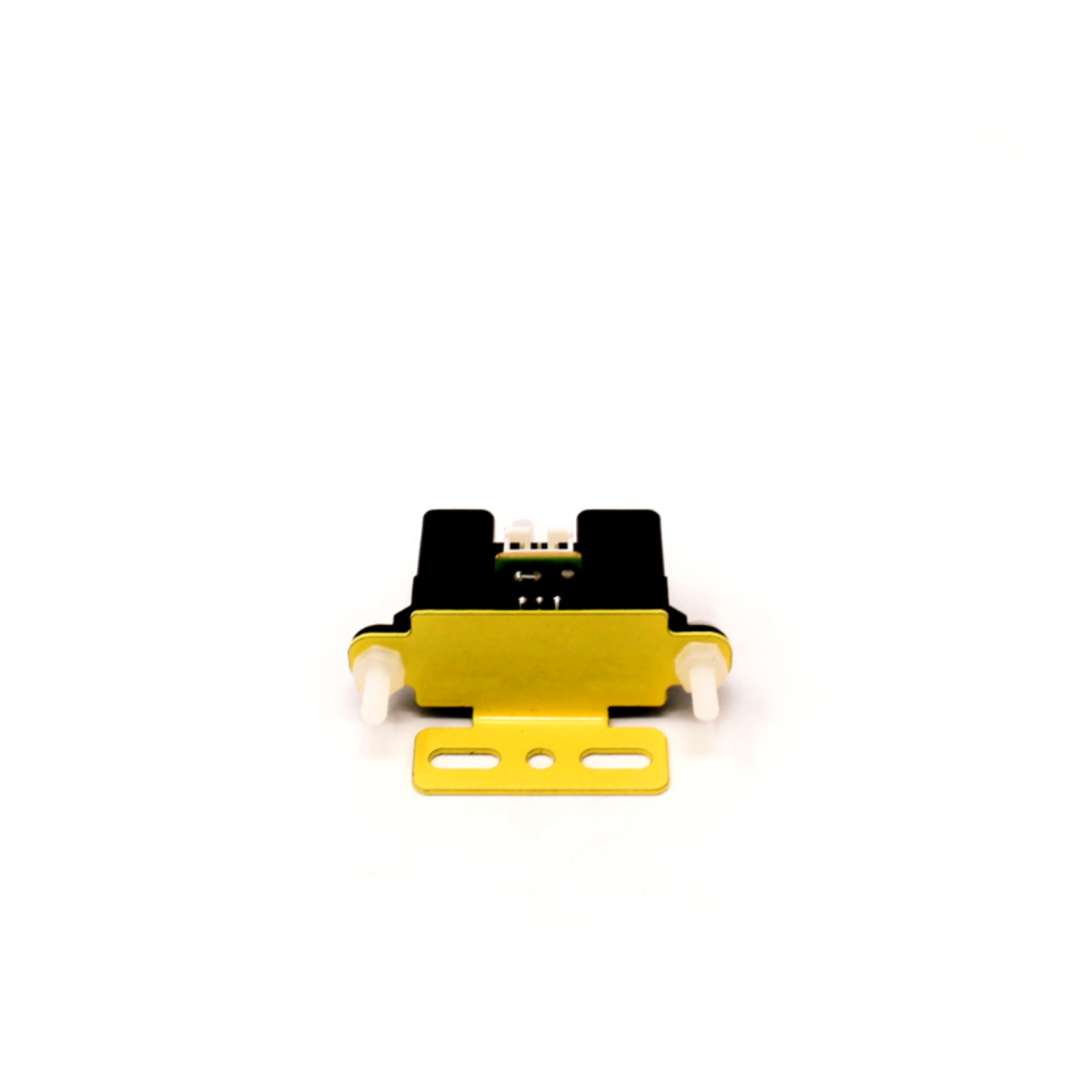

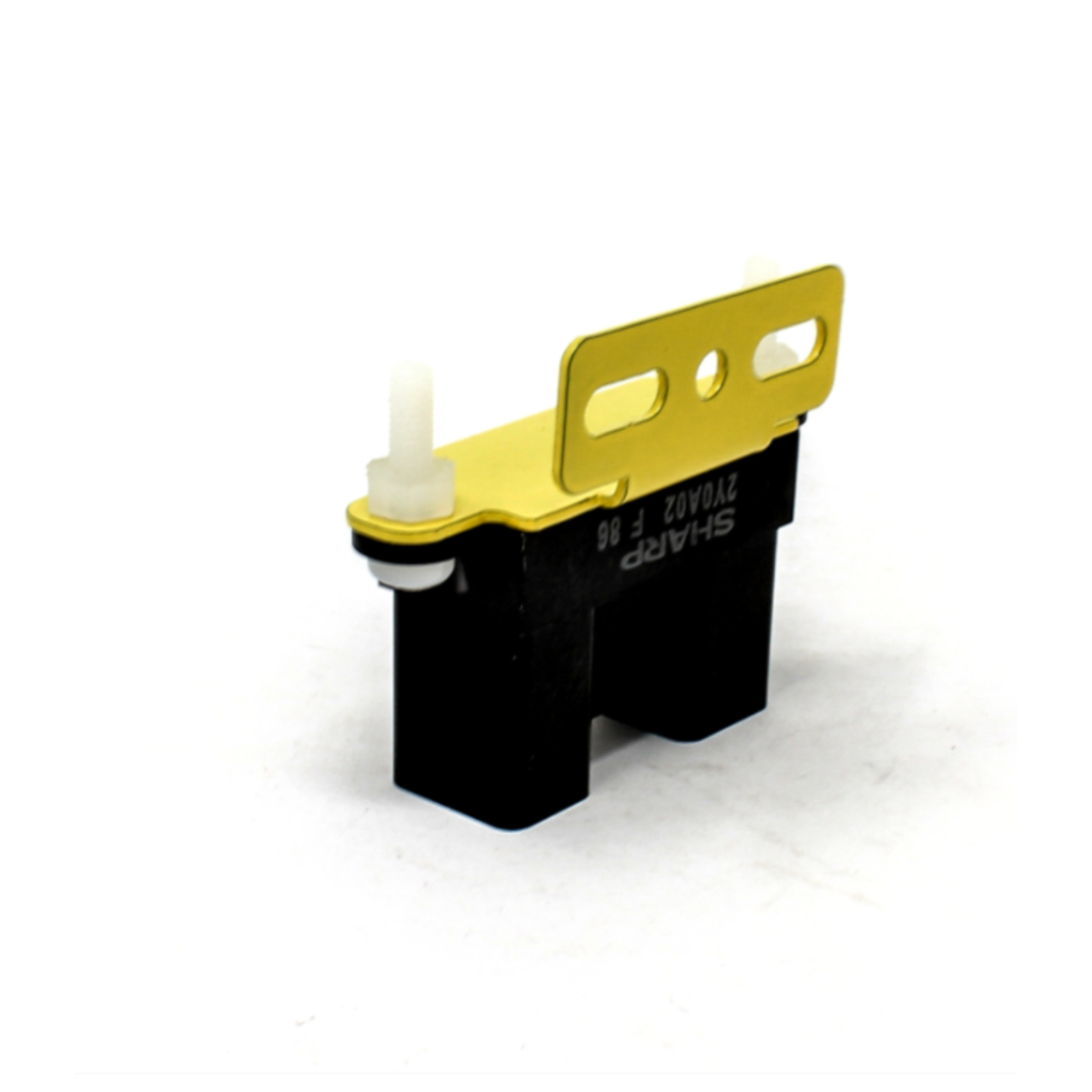

These EasyMech lightweight mounting brackets are designed to simplify the integration of Sharp GP2Y0A41SK0F, GP2Y0A02YK0F, and GP2Y0A21YK0F Distance Sensors into your projects.
Crafted from durable 1mm-thick MS material, these brackets are strong enough to securely hold the sensors in place while offering flexibility for slight angle adjustments. The brackets come with M3 X12 bolts and nuts—featuring nylon bolts and nuts for mounting the sensor, and MS bolts and nuts for securing the bracket to your platform.
The design allows for precise parallel sensor orientation and includes slight room in the mounting holes to accommodate adjustments, making them ideal for robots or various applications.

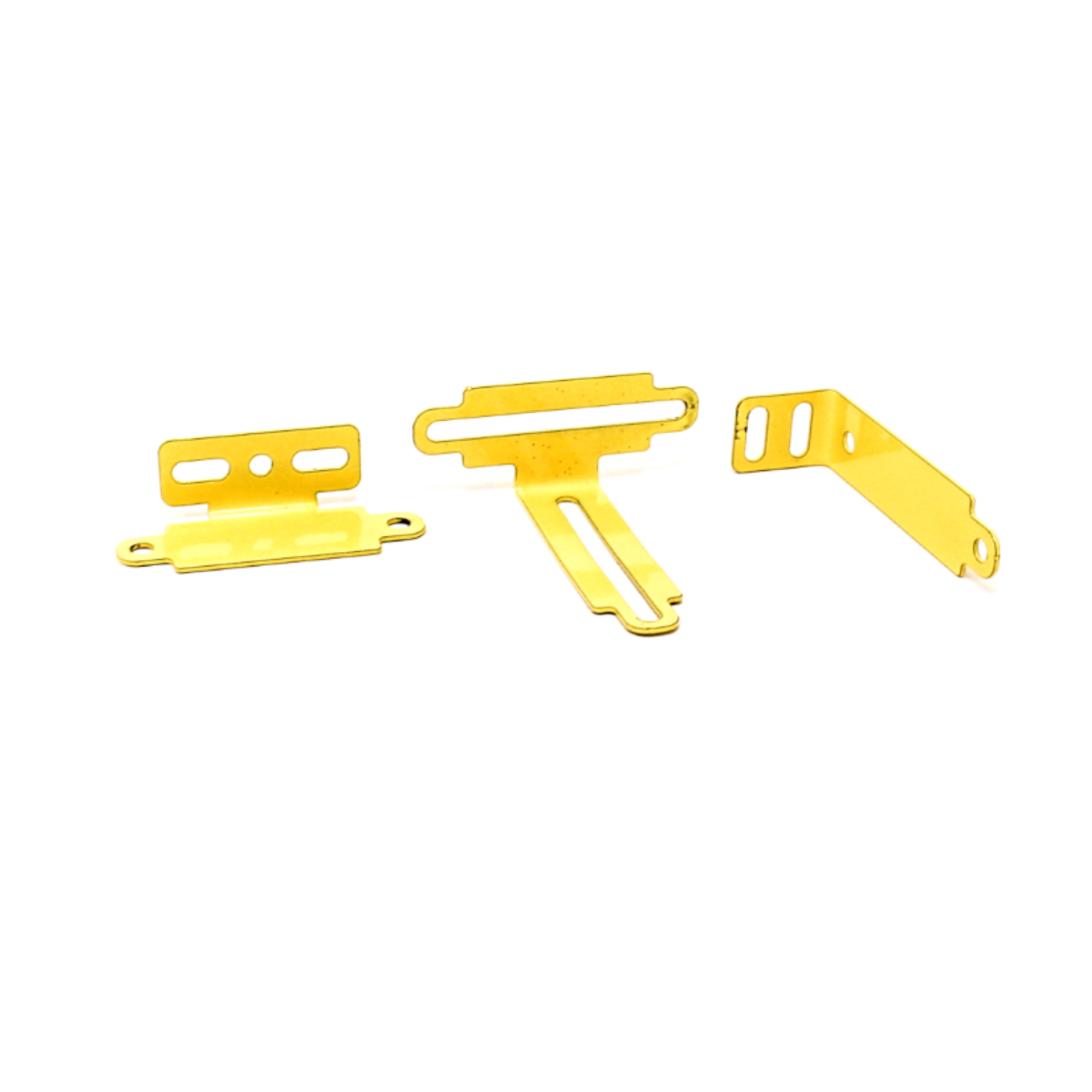

Three versions are available: a compact perpendicular version, a parallel version, and a versatile multi-option version that provides greater flexibility, allowing you to mount the sensor in either orientation and adjust sensor placement for optimized performance.
Specifications:
- Model Type: Bracket

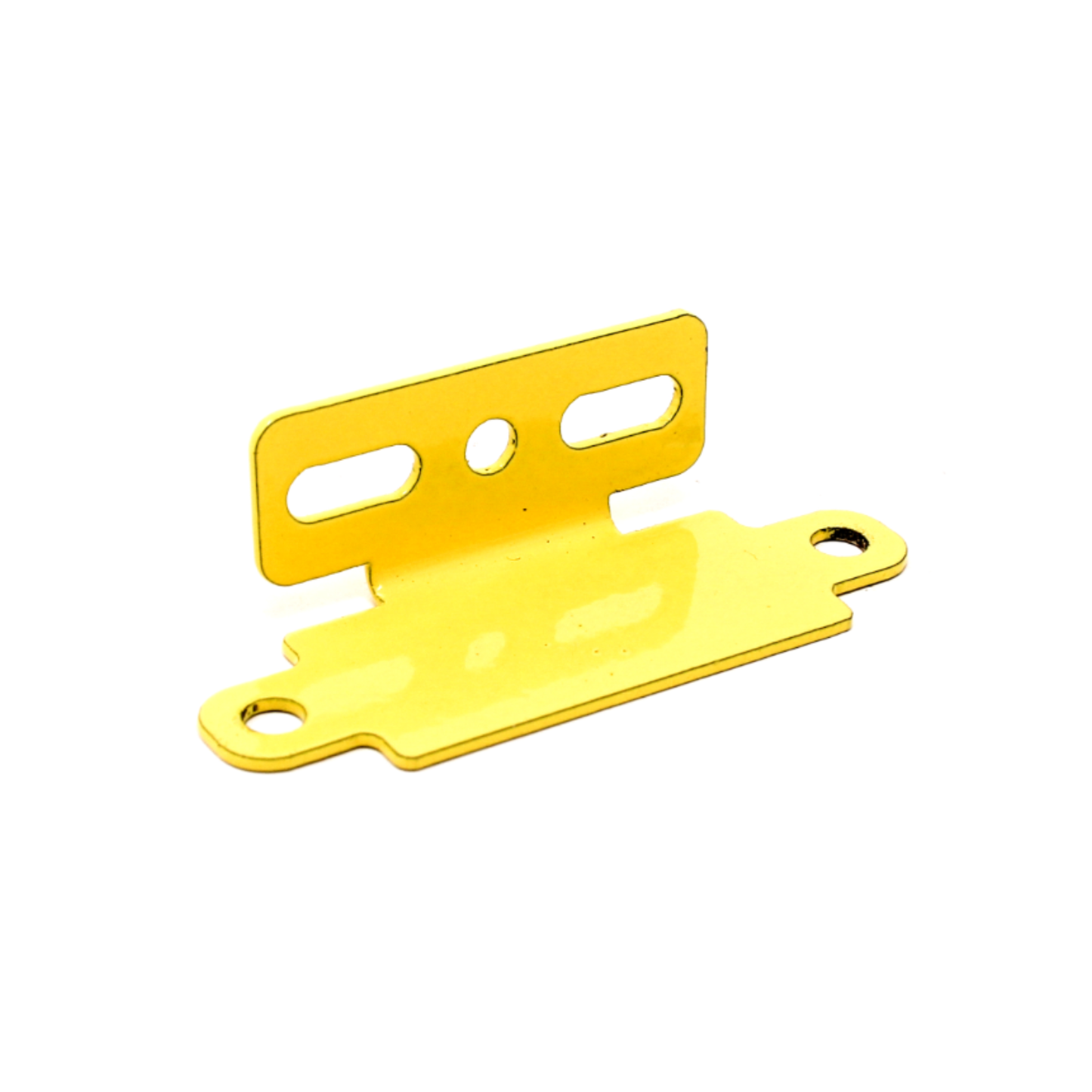

- Mounting Type: Parallel
- Material: Mild Steel (MS)
- Thickness (mm): 1 mm
- Mounting Hole (mm): 3 mm
- Mounting Holes (mm): 3 mm
- Color: Lemon Yellow
Features:
- EasyMech’s branded brackets.
- Made up of good quality MS.
- Possess good stability and durability.
- Specially designed for Sharp Distance Measuring Sensor

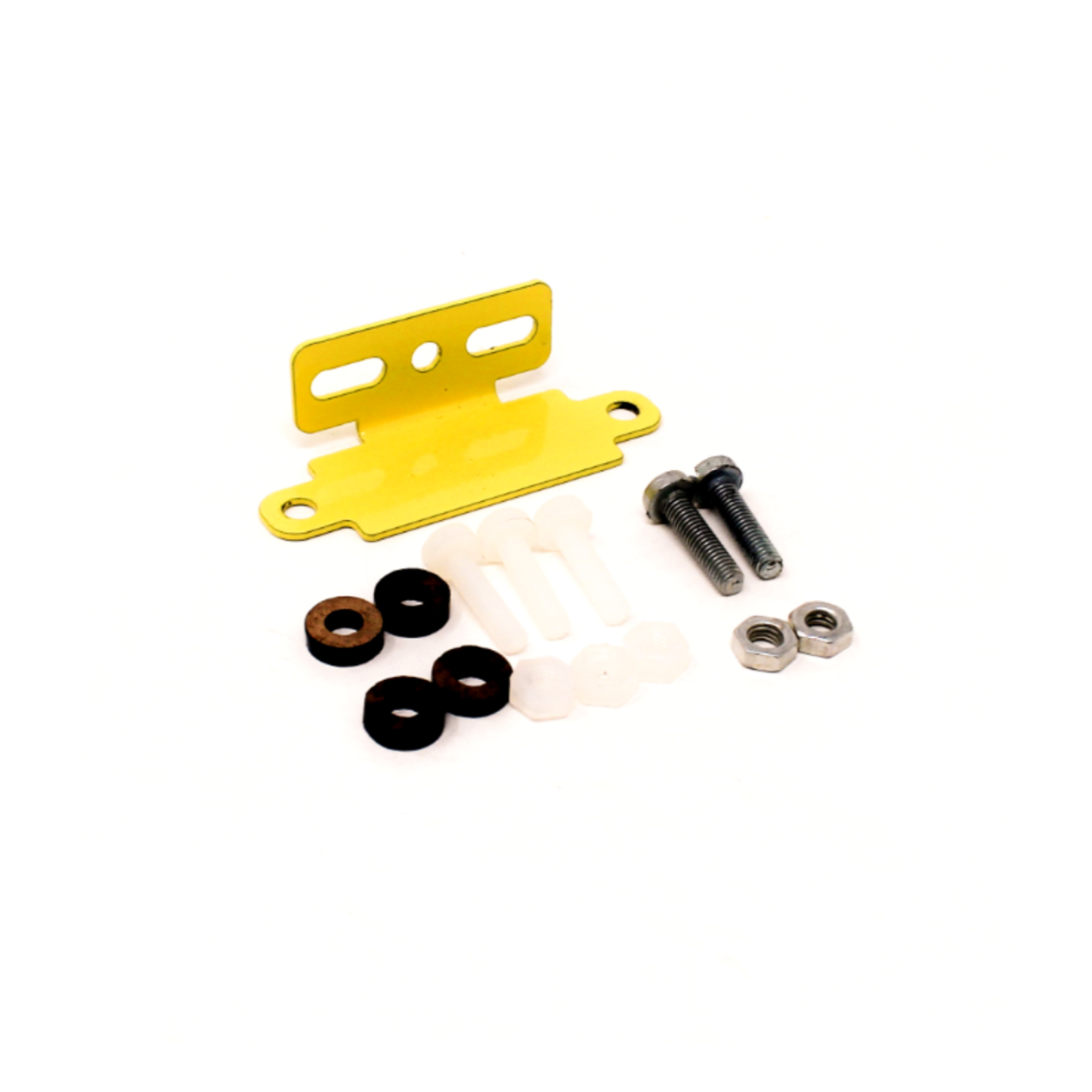

Package Included:
- 1 x Bracket
- 2 x M3 Nylon Bolt-Nut set for Sensor Mount
- 2 x M3 MS Bolt-Nut Set for Bracket Mount
- 4 x Acrylic Spacers for Sensor Mount
