Description:
The Eachine EV100 FPV goggles are engineered for drone enthusiasts who crave an immersive flying experience. With a blend of comfort, functionality, and advanced features, these 5.8G 72CH FPV Goggles are suitable for both beginners and experienced pilots. The receiver on EV100 Goggles doesn't receive audio. But the goggles support audio input, so you can hear the audio if you input the video to the goggles.
Specifications:
- Display Resolution: 720 x 540 pixels
- Field Of View (FOV): 28° diagonal
- Aspect Ratio: 4:3
- IPD Visual Range: 58mm to 68mm
- Focal Length (mm): -400 degrees myopia and +150 degrees hyperopia
- Frequency: 5.8GHz (5333MHz – 5945MHz)
- Sensitivity (dB): =-93dB
- Antenna Impedance: 50Ω
- Antenna Gain (peak) (dBi): 3dBi
- Antenna Connector: RP-SMA
- Video Format Supported: NTSC/PAL
- Power Input: 7.4V
- Low Voltage Warning: 6.8V
- Battery: 2S 7.4V 1000mAh
- Charging: USB Cable(not included)
- Operating Temperature (°C): -10℃ to +40℃
Features:
- Auto-Search Function: Automatically finds the strongest signal.
- External HDMI to AV Module Support: Broadens compatibility with various devices.
- Adjustable Settings: Customizable focal length, brightness, and contrast.
- Debug Mode: Advanced options for compatible VTX.
- AV Input and Output Support: Connects to external devices and DVRs.
Package Included:

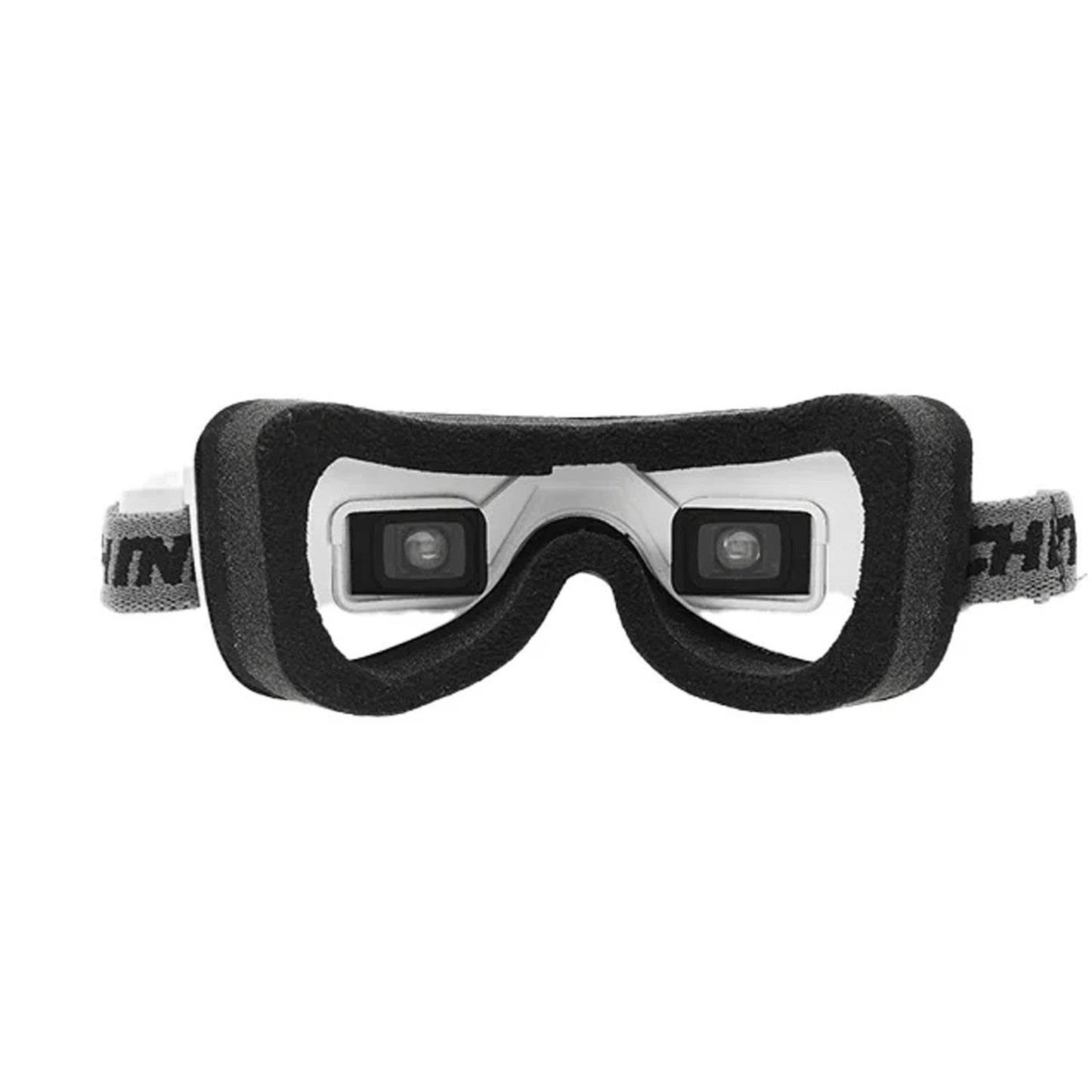

1 x Eachine EV100 FPV Goggles 5.8G 72CH FPV Goggles 720*540 FPV Goggles With Dual Antennas Fan 7.4V 1000mAh Battery RC Drone FPV Drone Spare Part – Black
