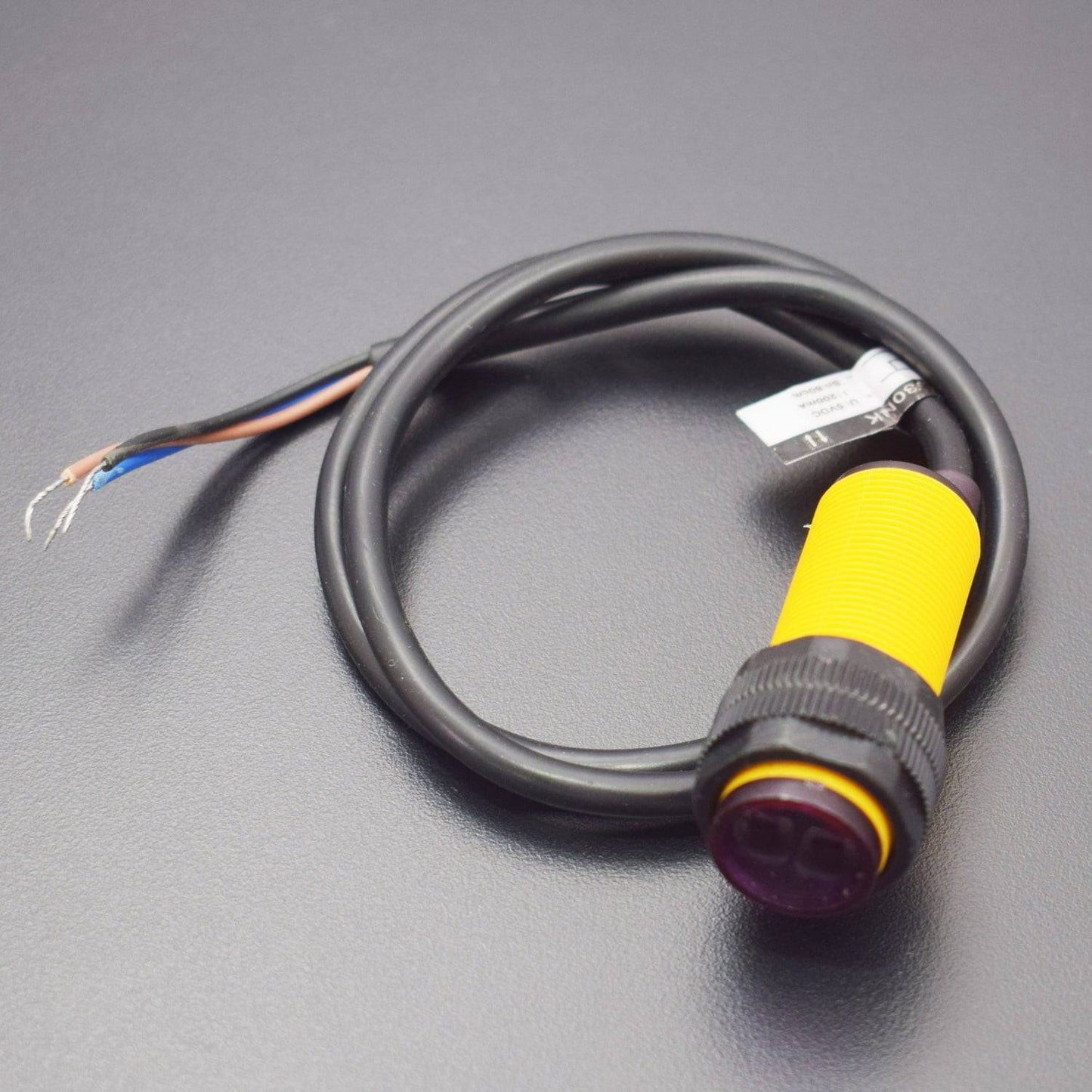

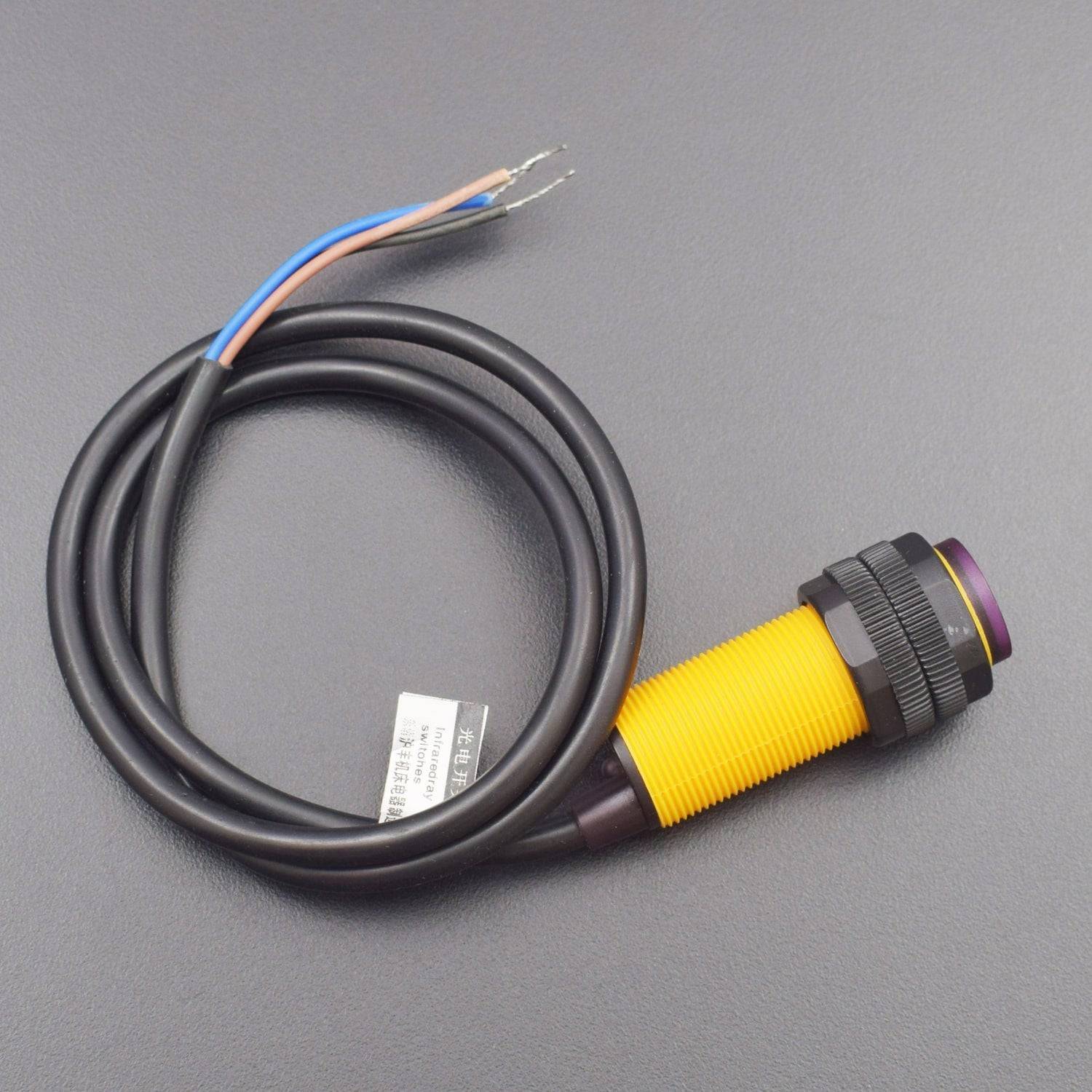

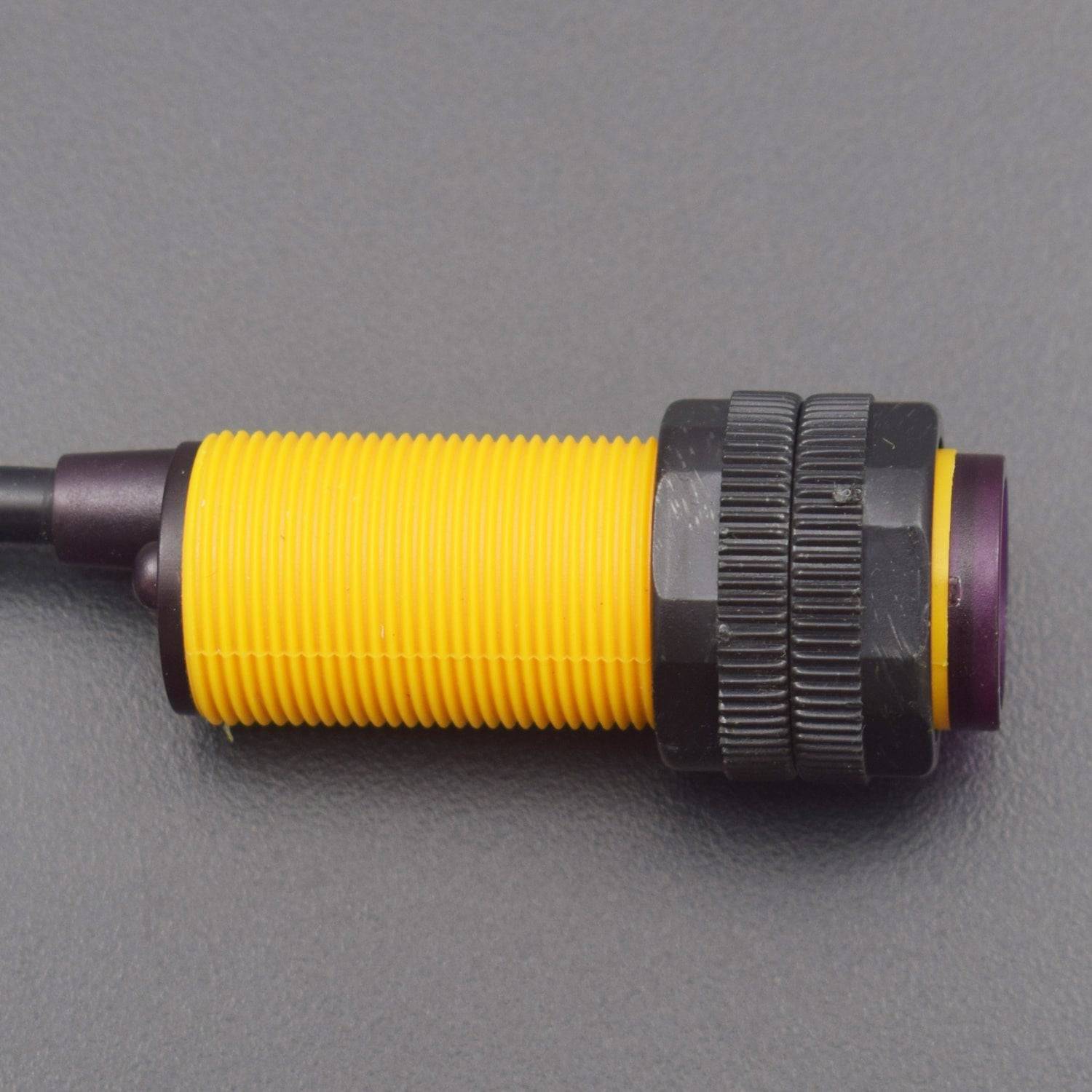

E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor Proximity Sensor Switch Detect 3-80cm for Arduino - SR046

E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor Proximity Sensor Switch Detect 3-80cm for Arduino - SR046

SR046

195 in stock

Rs. 165.00
Rs. 165.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Model: E18-D80
  • Voltage: DC 5V
  • Current: 100mA
  • Type: DC 3 Wire PNP
  • Sensory Distance: 3-80 cm adjustable

Description :

Arduino infrared proximity switch module is a reflection-type photoelectric sensor which integrates transmitting and receiving infrared beams function. Infrared proximity switches work by sending out beams of invisible infrared light. A photodetector on the proximity switch detects any reflections of this light. These reflections allow infrared proximity switches to determine whether there is an object nearby. The trigger distance can be anywhere between 30 - 800mm, by manual adjustment of the potentiometer in the sensor

Specification:

  • Model: E18-D80
  • Voltage: DC 5V
  • Current: 100mA
  • Type: DC 3 Wire
  • Sensory Distance: 3-80 cm adjustable
  • Sensory distance regulator and output indicator light on the product back
  • Control signal level:
    • High Voltage: 2.3V; Vin-5V
    • Low Voltage: 0.3V; Vin-1.5V
  • Ambient Temperature: -25 ~ 70 degrees C
  • Guard Mode: reverse polarity protection

Package Included:

1 x E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor Proximity Sensor Switch Detect 3-80cm for Arduino
