Description:

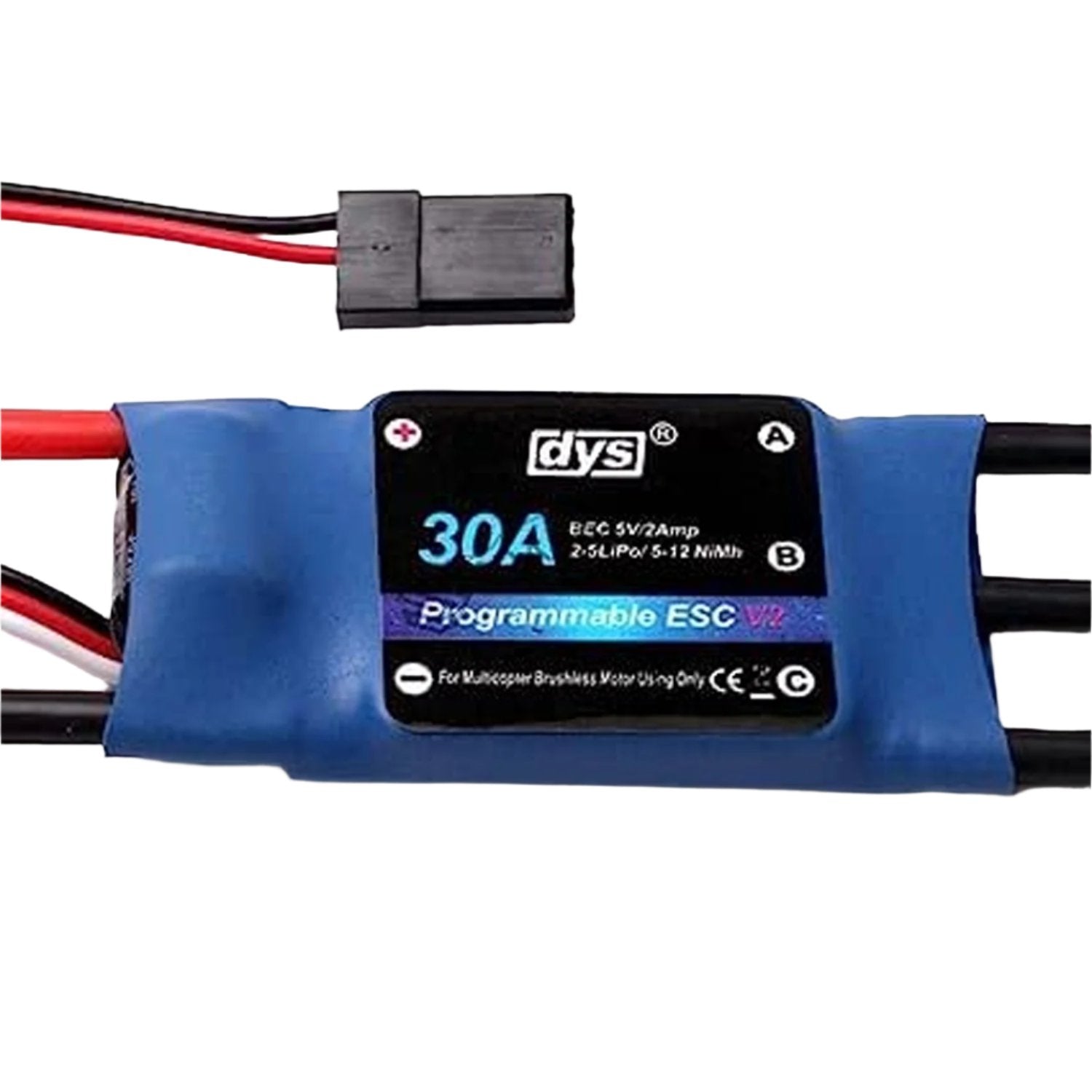

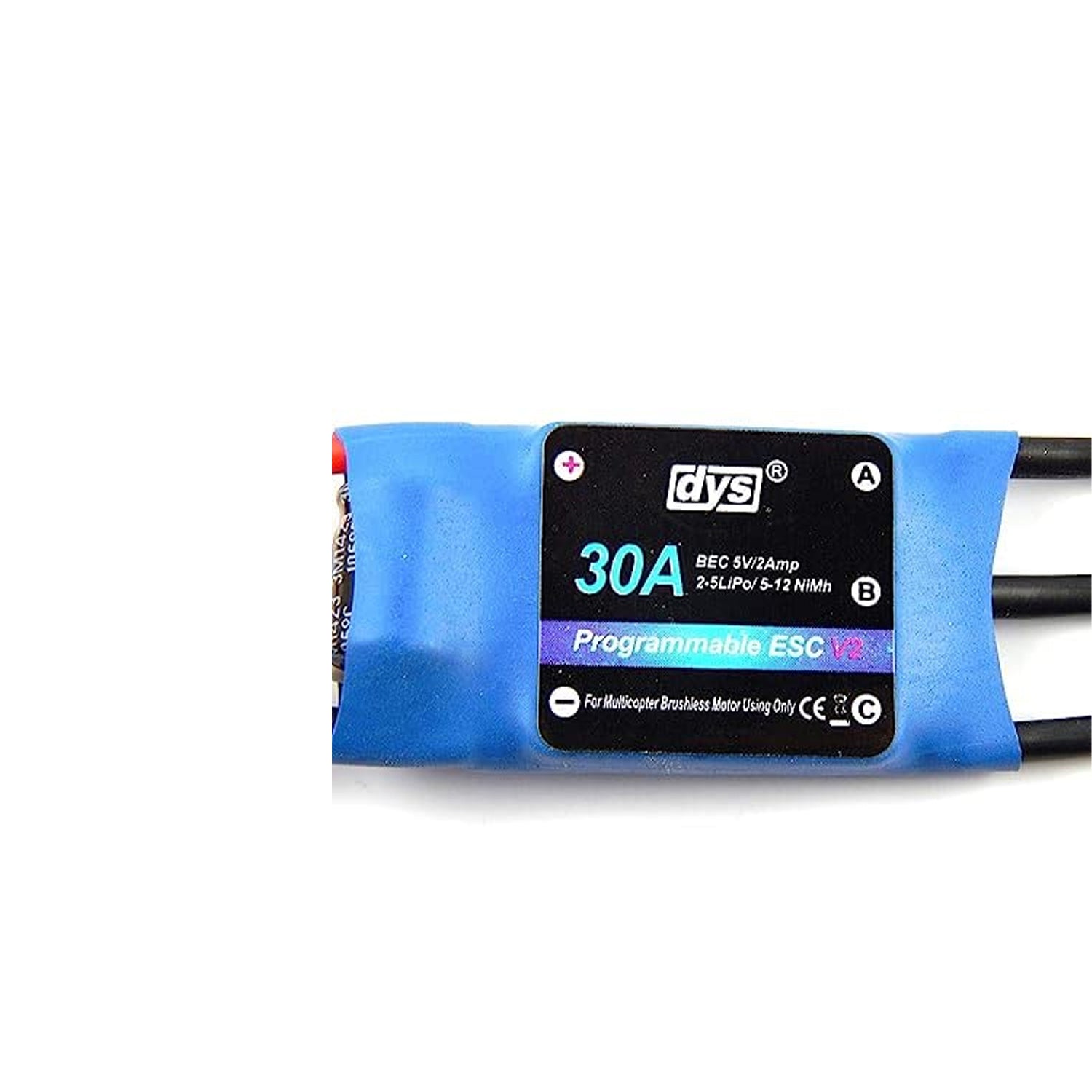

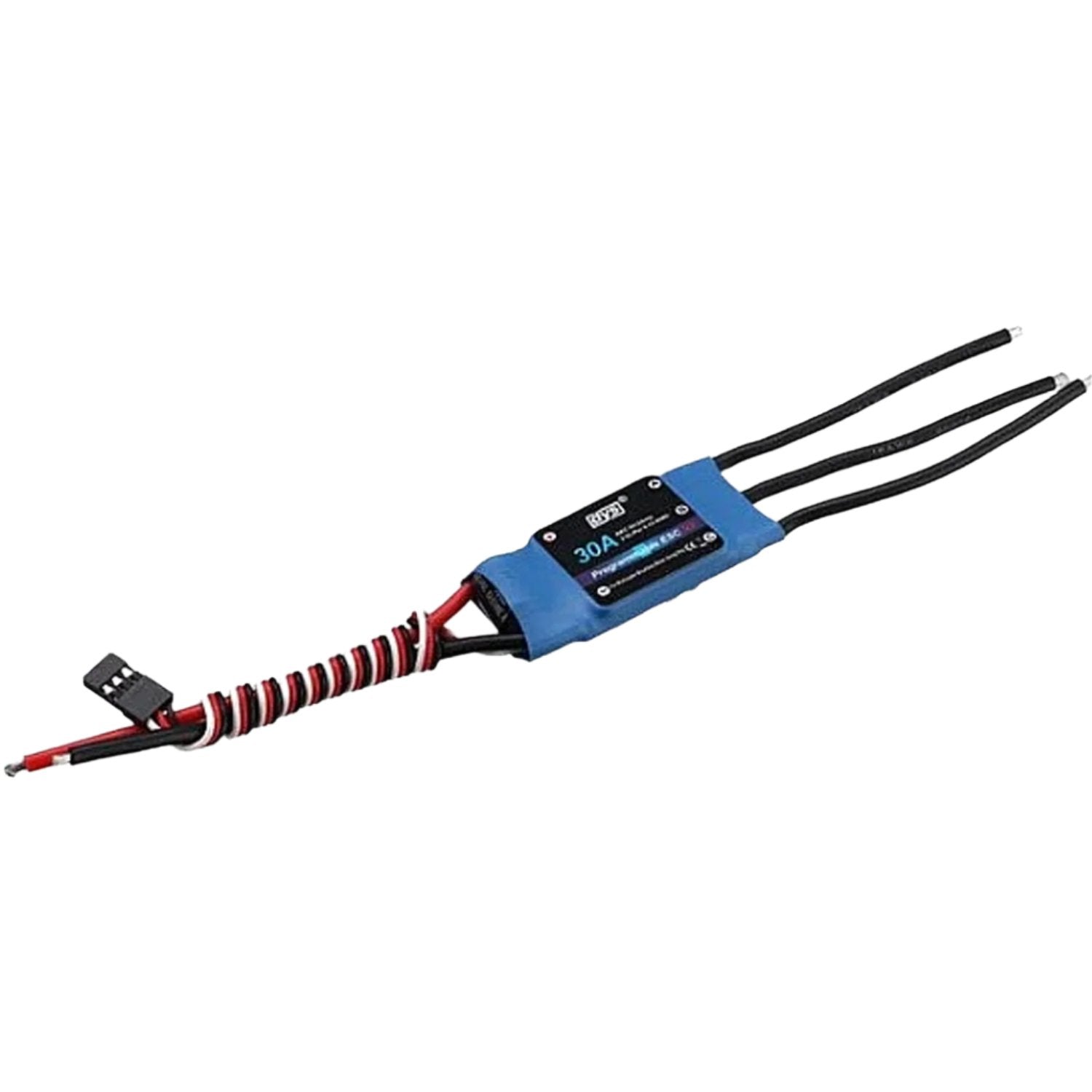

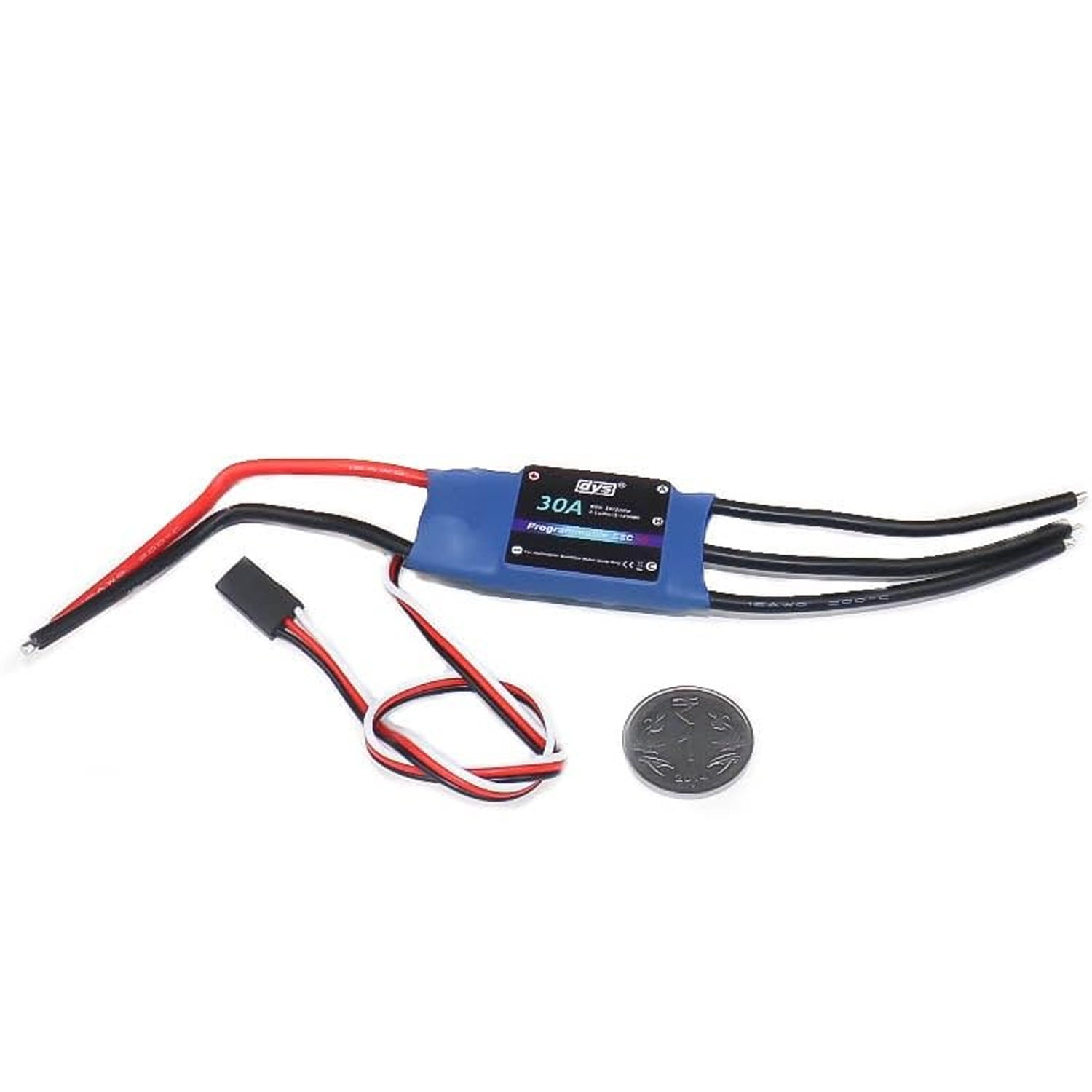

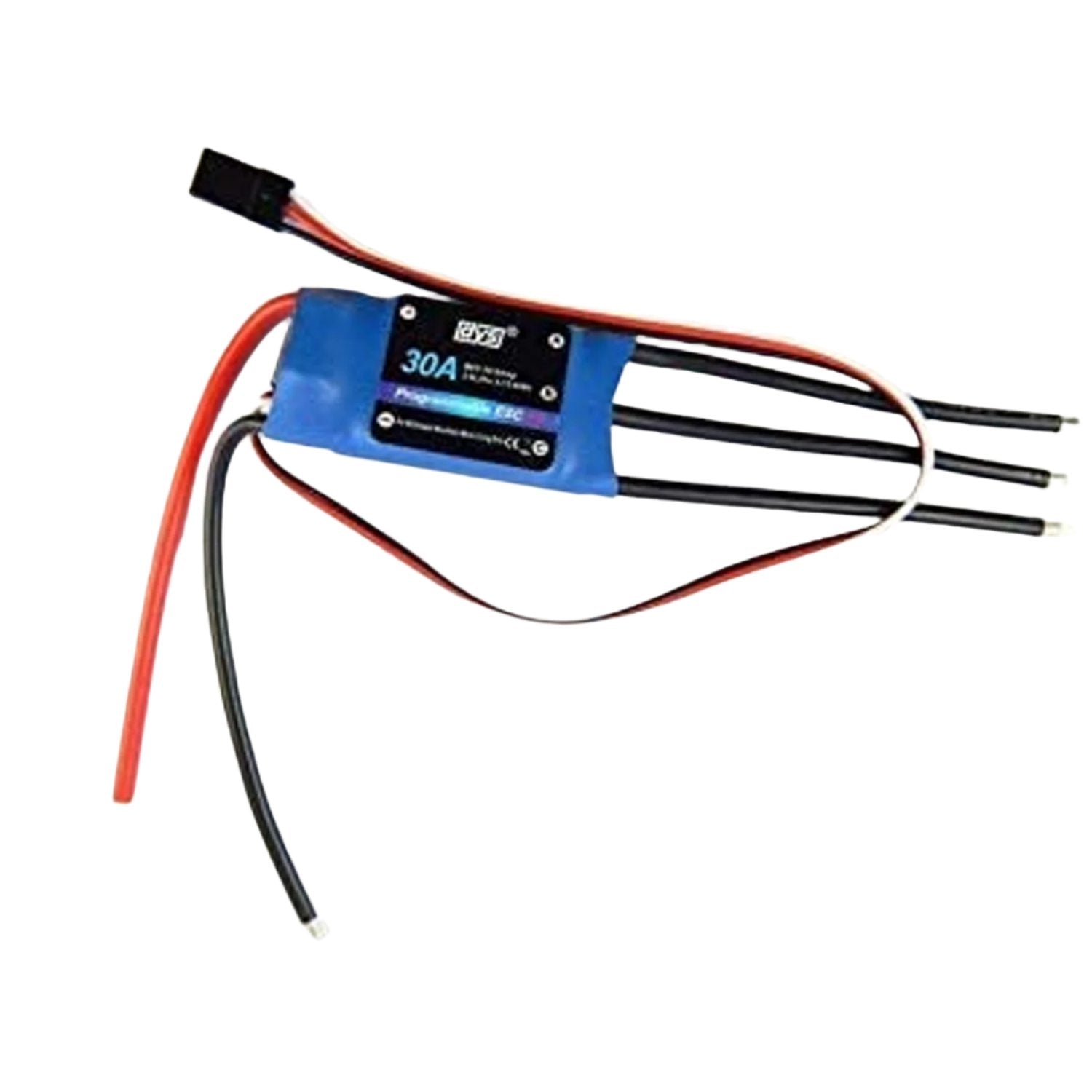

This is a 30A ESC, Multi-copter Brushless Motor Speed Controller with a running current of 30A. The power input uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery. Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability. Using (Simonk Firmware) Brushless Speed Controller dedicated multi-copter program tgy_debug, and the master chip with a high stability crystal oscillator, making the motor control more precise.
Specifications:
- Item Type: Brushless ESC
- Constant Current (A): 30
- Burst Current (A): 40
- BEC (Y/N): Yes
- Compatible LiPO Batteries: 2 to 4S
- Colour: Black, Blue
- Application: BLDC Motors, Multirotors, Rc Planes etc.
Features:
- Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately; to avoid personal injury.
- Separately voltage regulator IC for the microprocessor; providing the good anti-jamming capability.
- Using SimonK a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator; making the motor control more precise.
- Drive tube and high-power Mos, and Mos tube plus a separate heat sink; Extremely low output resistance of the PCB(printed circuit board), super current endurance.
- The power input uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
Package Included:
1 x DYS SimonK 30A ESC Brushless Motor ESC 30A 2-4S ESC for Multicopter (Simonk Firmware) Brushless Speed Controller ESC For Drone Quadcopter-Original DYS SimonK 30A ESC for FPV Racing Drones
