Description:

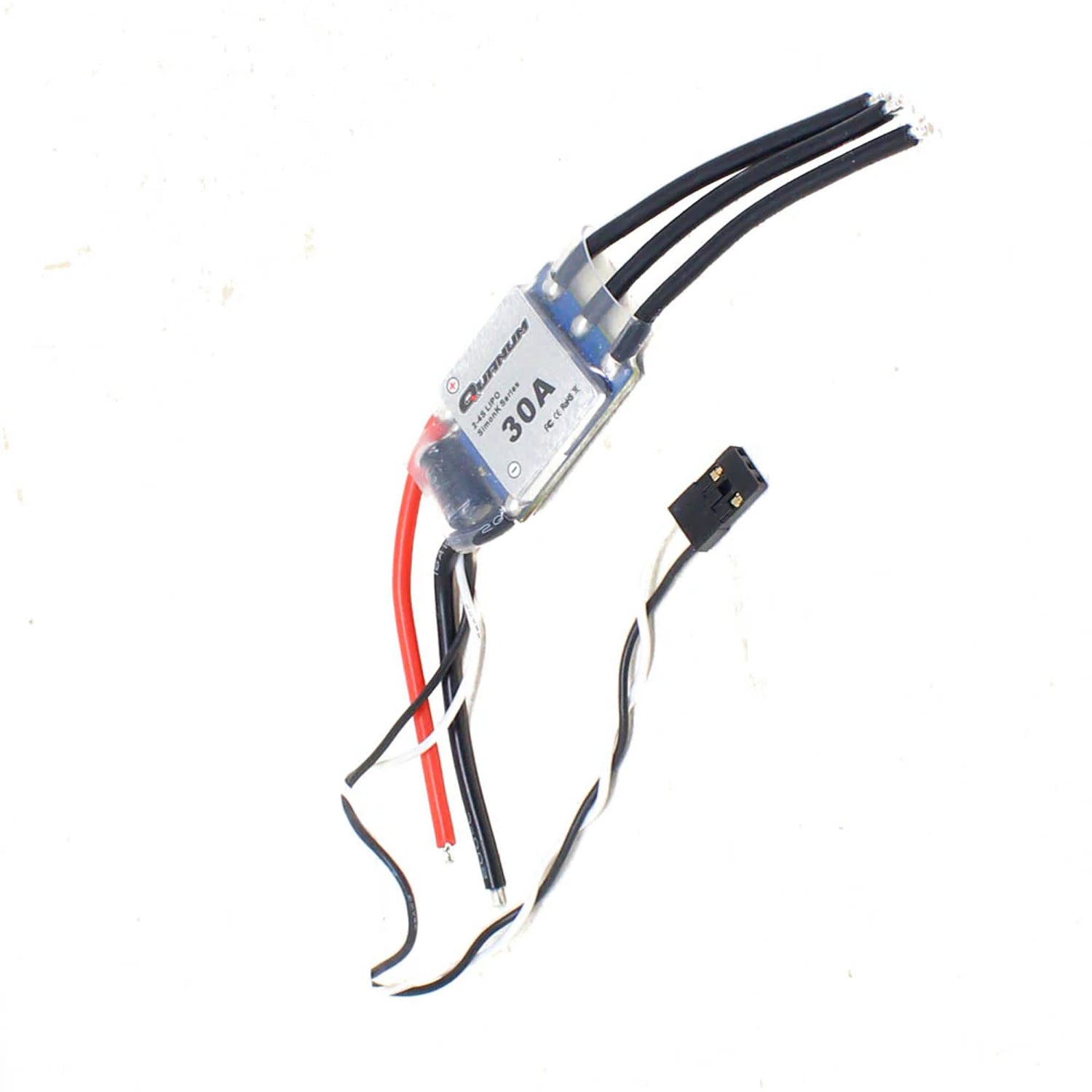

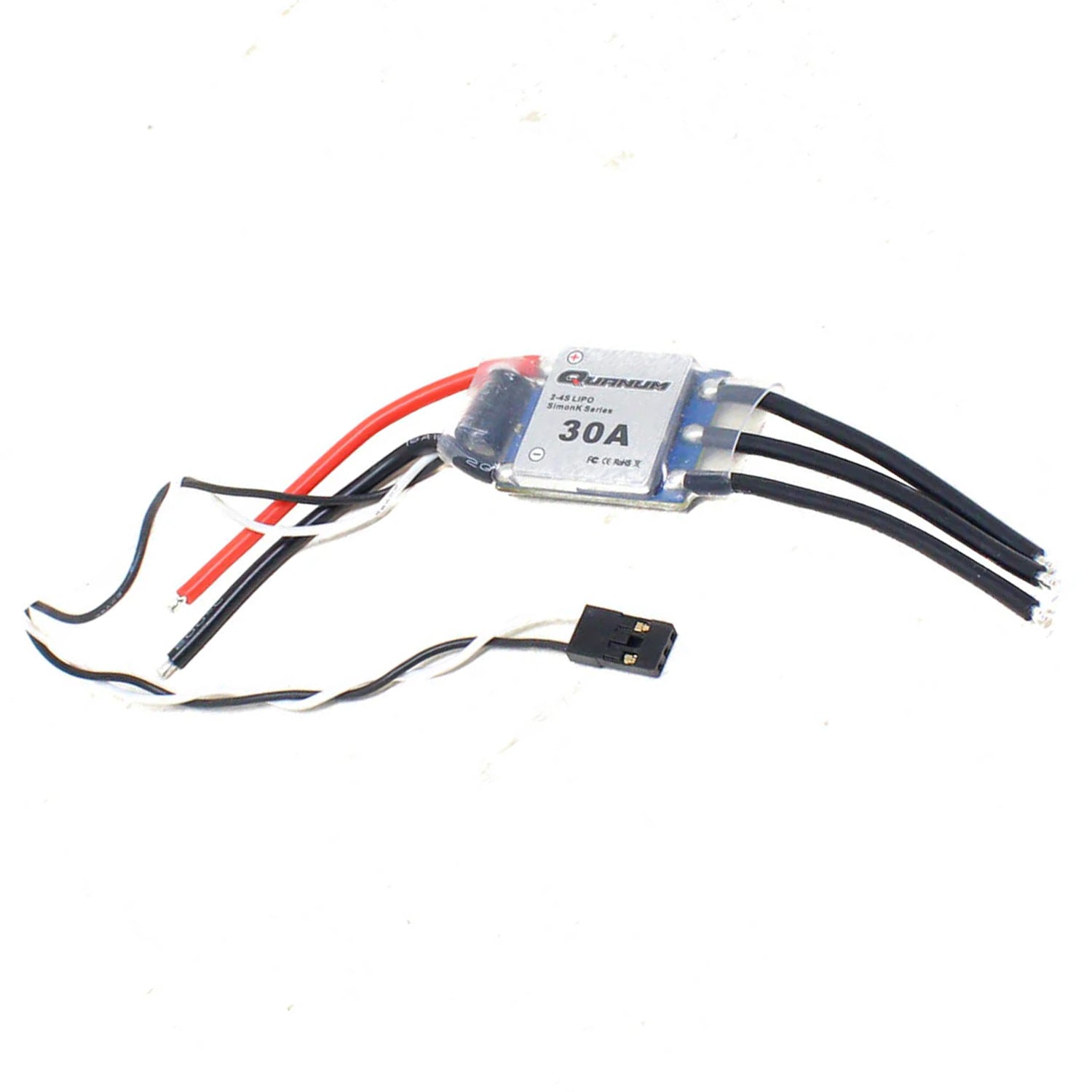

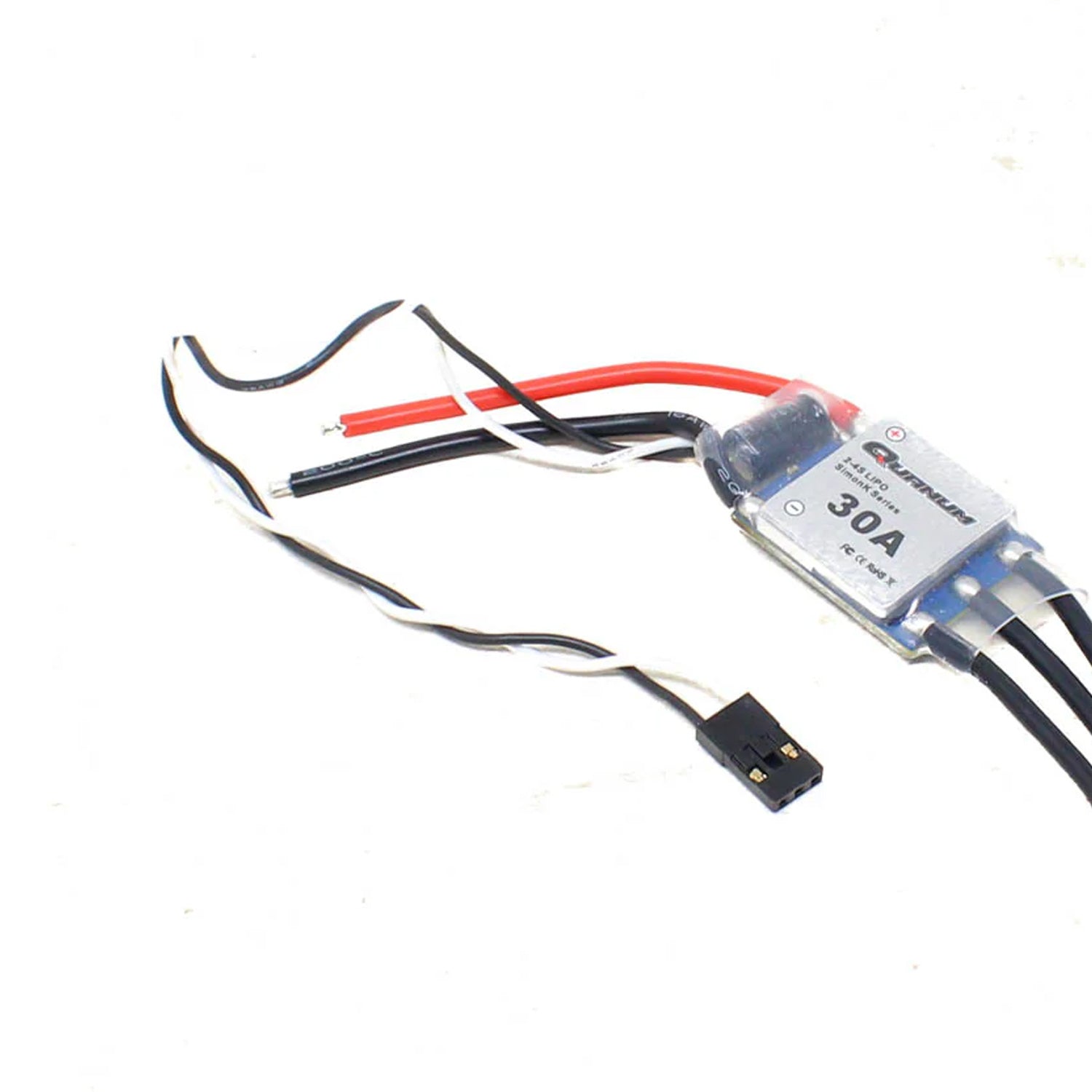

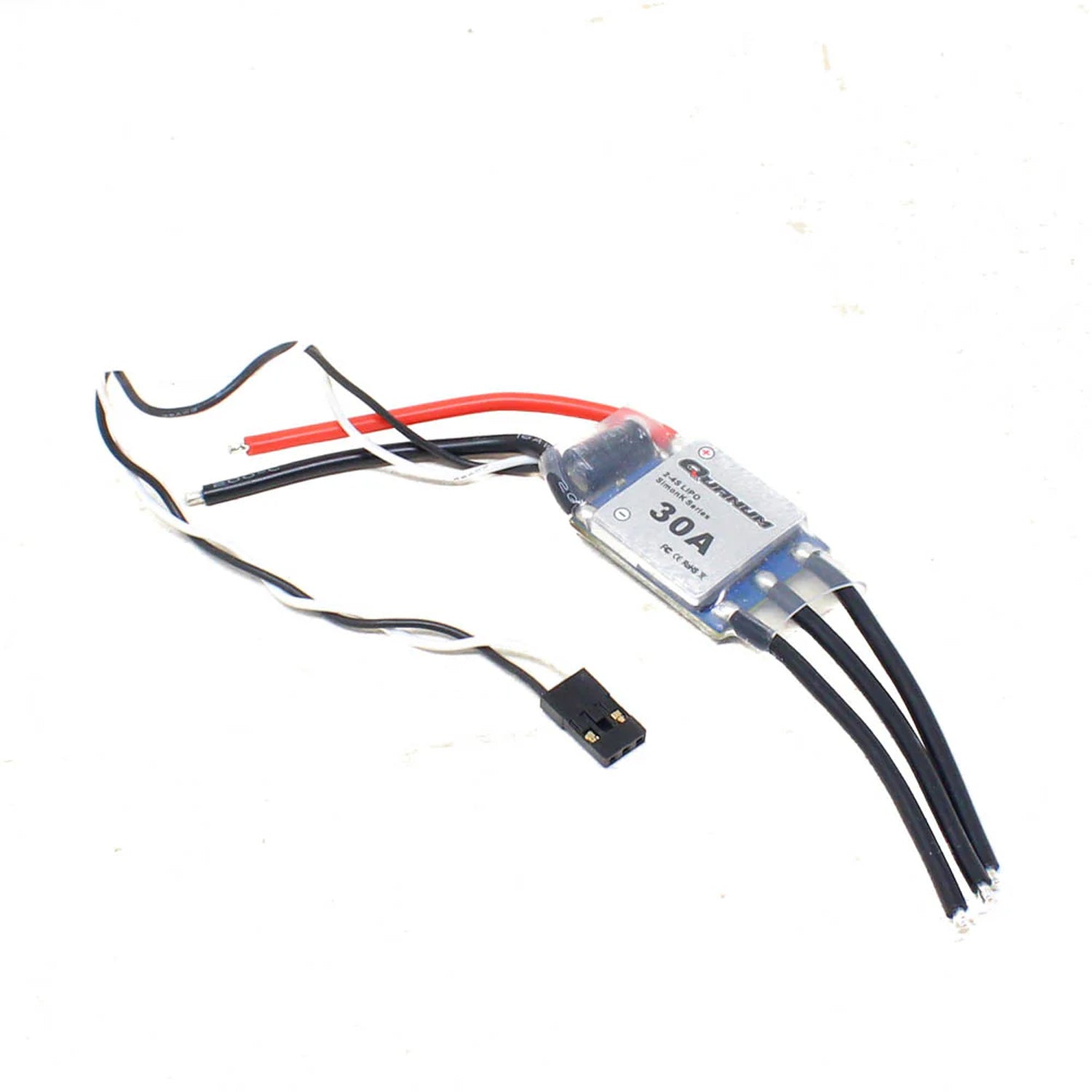

DYS Quanum 30A ESC Multi-Copter Brushless Speed Controller Programmable with 5V/3A (Original). The ESC’s power input uses extremely low output resistance greatly enhances power stability and has a protective effect on the battery. Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extremely low output resistance of the PCB(printed circuit board), super current endurance. The power input uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery.
Specifications:
- Item Type: Brushless ESC
- Color: Blue
- Running current: 30A(Output: Continuous 30A, Burst 40A up to 10 Secs.)
- Input Voltage: DC 6-16.8V(2-4S Lixx)
Features:
- Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extremely low output resistance of the PCB(printed circuit board), super current endurance.
- Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using Simon K’s dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control more precise.
- The power input uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery.
- Safety electrical function: When the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
Package Included:
1 xDYS Quanum 30A ESC Brushless Speed Controller 30A Multi-Copter Brushless Speed Controller Programmable With 5V/3A BEC For RC Drones (Original)
