- KV: 1100
- No load Current : 10 V : 0.5 A.
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: Φ27.5 x 30mm
Description:

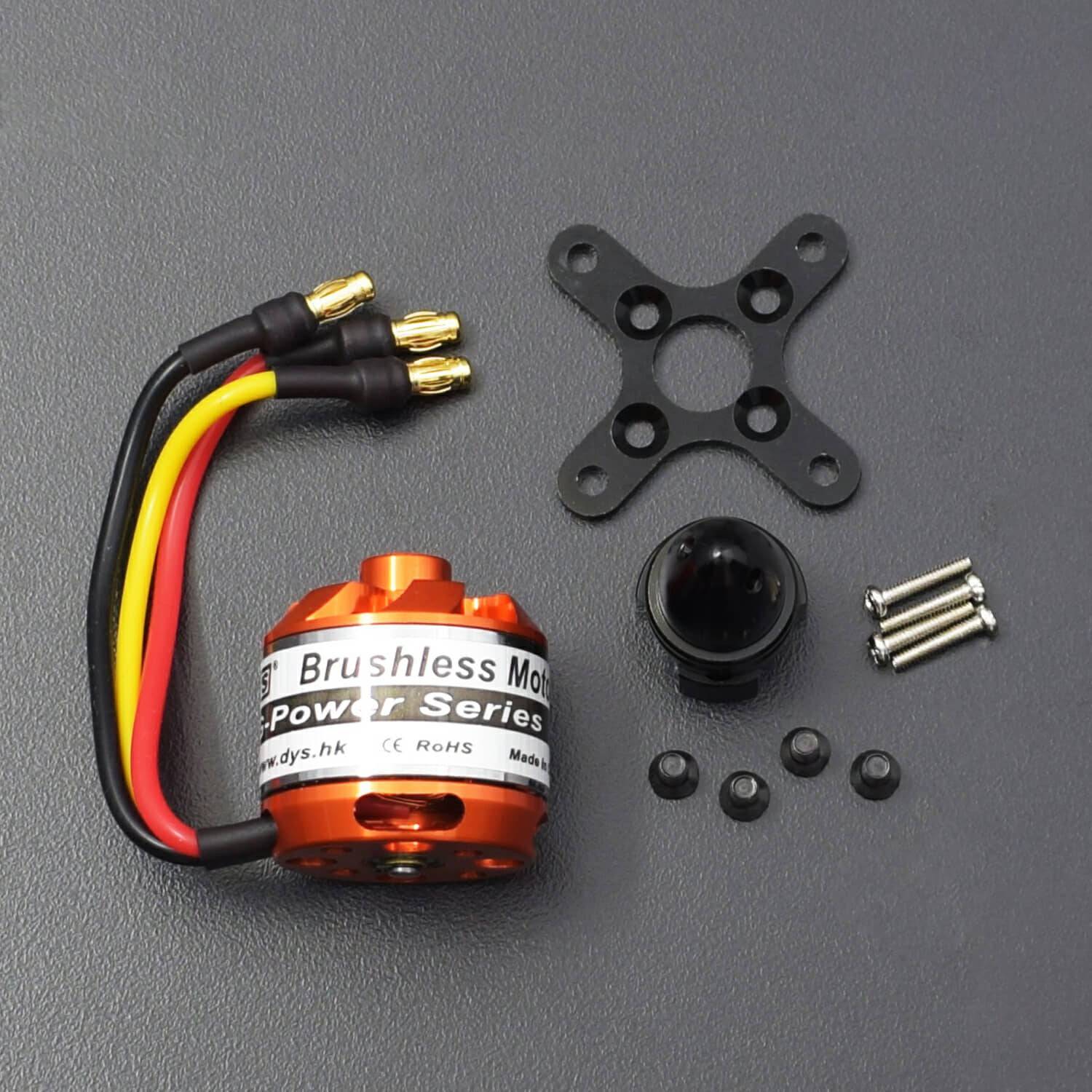

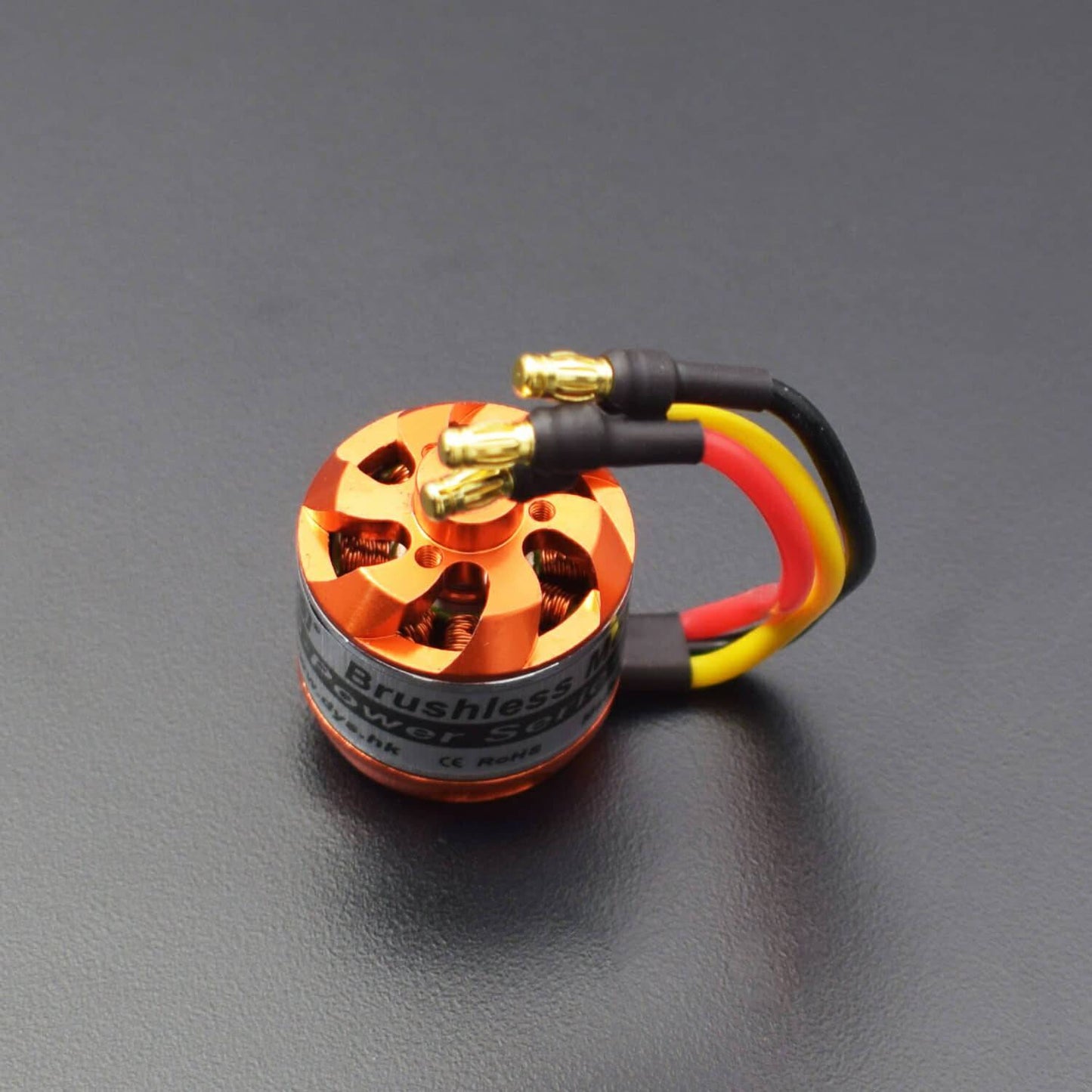

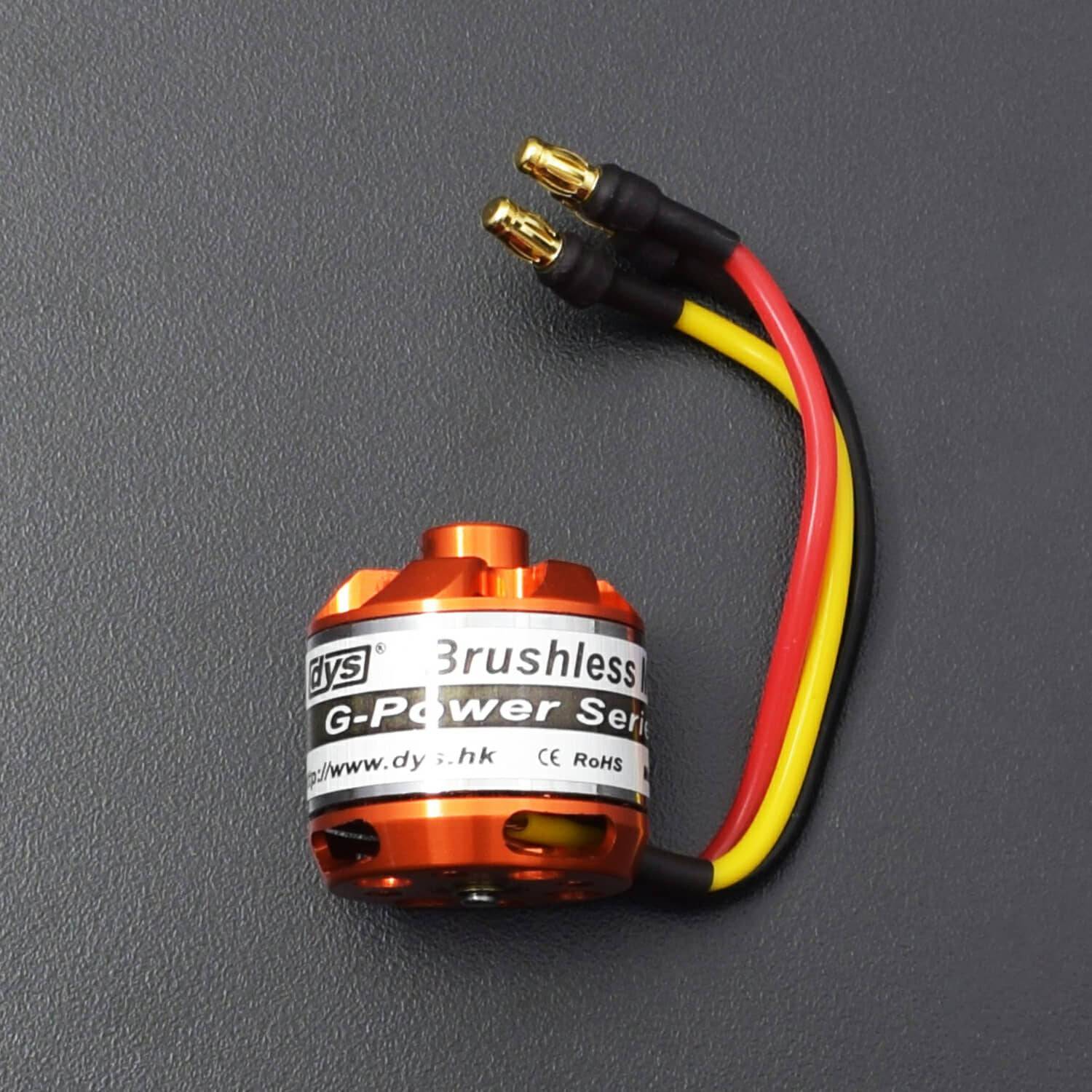

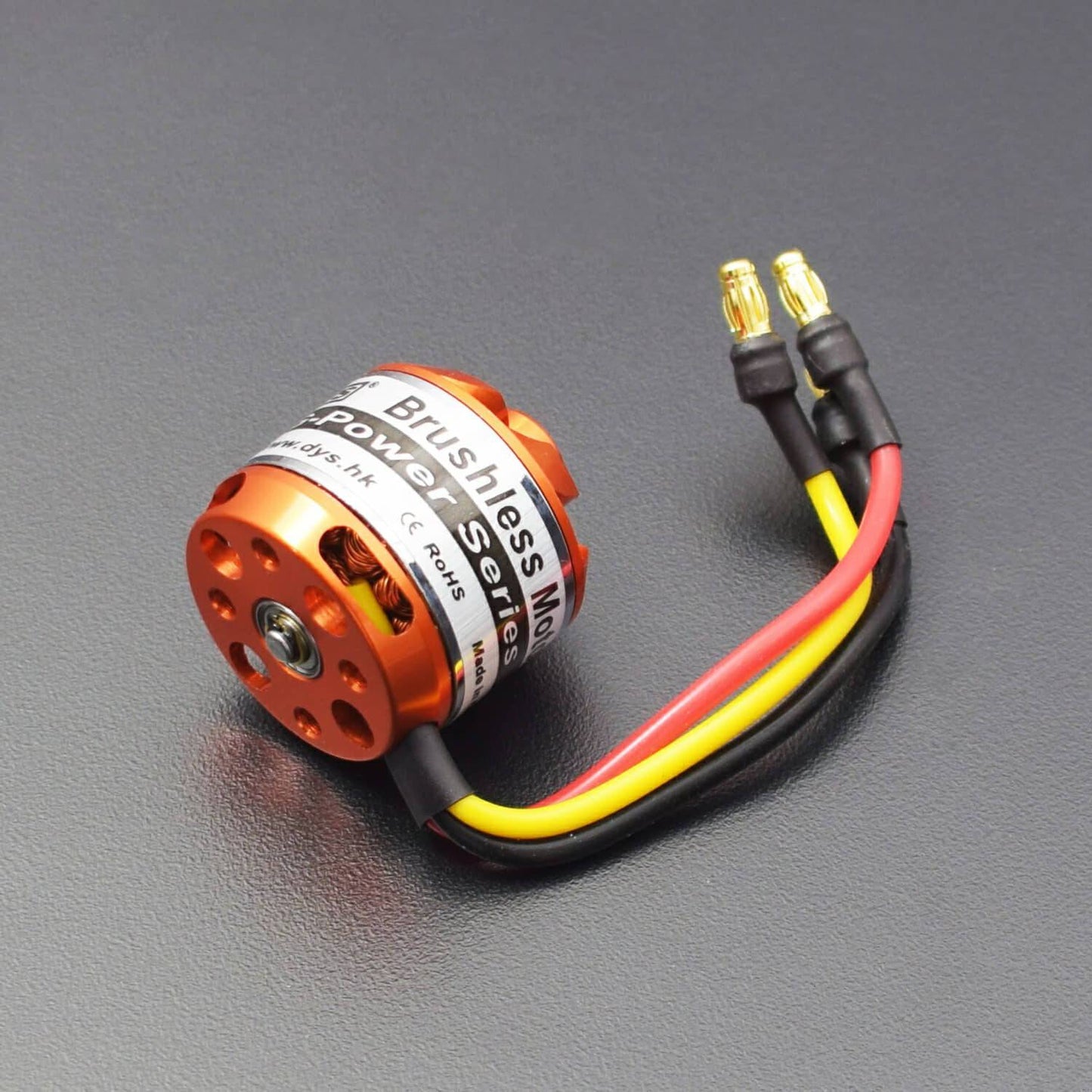

This is a brushless (BLDC) outrunner motor specifically made for quadcopters and multirotors. It is a 1100kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters. The brushless dc electric motor (bldc motors, bl motors) also known as electronically commutated motors (ecms, ec motors) are synchronous motors that are powered by a dc electric source via an integrated inverter/switching power supply, which produces an ac electric signal to drive the motor. In this context, ac, alternating current, does not imply a sinusoidal waveform, but rather a bi-directional current with no restriction on waveform. Additional sensors and electronics control the inverter output amplitude and waveform (and therefore percent of dc bus usage/efficiency) and frequency (i. E. Rotor speed).
Specification:
- KV: 1100
- No load Current : 10 V : 0.5 A.
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: Φ27.5 x 30mm
- Shaft Diameter: Φ3.17mm
- Shaft diameter : 3.175mm.
- Minimum ESC Specification: 18A (30A Suggested)
