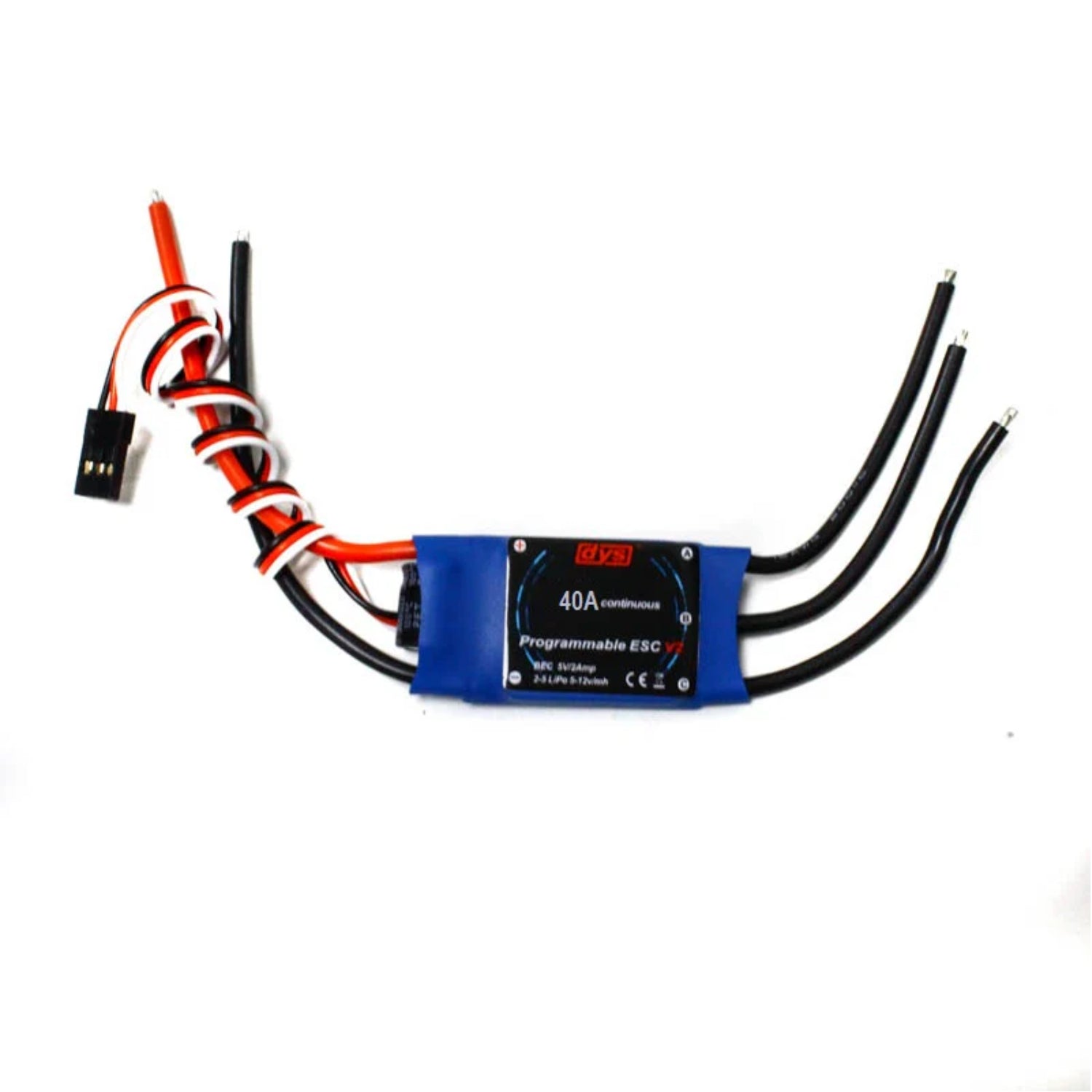

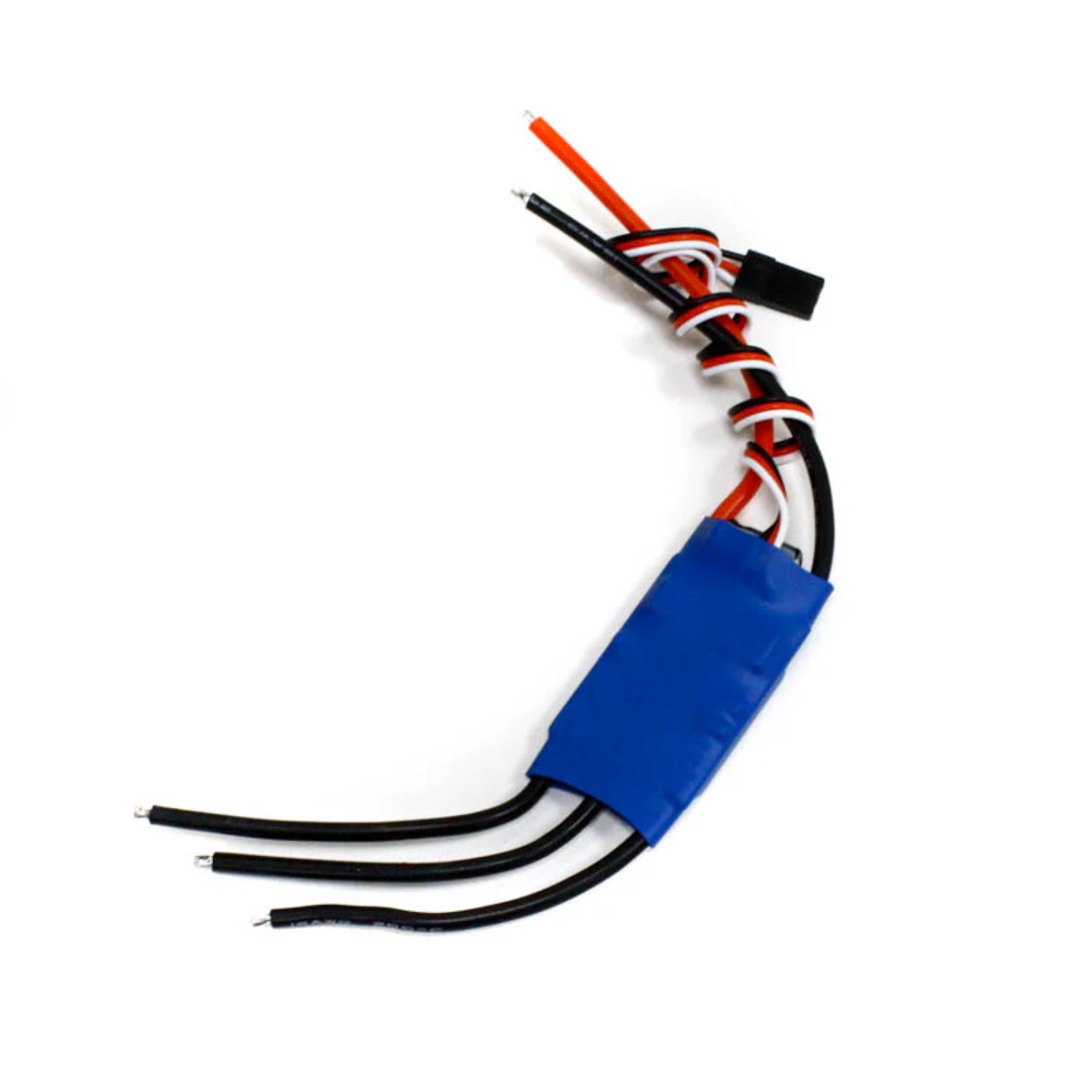

DYS 40A Brushless ESC DYS 40A Multi-Copter Brushless Speed Controller DYS 40A ESC Programmable ESC With 5V/3A BEC For RC Applications - RS3319

DYS 40A Brushless ESC DYS 40A Multi-Copter Brushless Speed Controller DYS 40A ESC Programmable ESC With 5V/3A BEC For RC Applications - RS3319

RS3319

In stock

Rs. 1,479.00
Rs. 1,479.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

DYS 40A Brushless ESC uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery. The DYS 40A Multi-Copter Brushless Speed Controller is a high-performance electronic speed controller designed for multi-rotor applications. It offers a continuous output current of 40 amps, making it suitable for powering powerful brushless motors.

Specifications:

  • Model: DYS 40A ESC V2
  • BEc: Yes (5V/3A)
  • Operating Voltage (VDC): DC 6-22.2V(2-4S Lixx)
  • Continuous Current (A): 40
  • Color: Blue
  • Length (mm): 55
  • Width (mm): 26
  • Height (mm): 13

Features:

  • Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
  • A separate voltage regulator IC for the microprocessor. providing good anti-jamming capability.
  • Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately to avoid personal injury.

Package Included:

1 x DYS 40A Brushless ESC DYS 40A Multi-Copter Brushless Speed Controller
