DYP-ME007YS-TX1 V2.0 UART Controlled Ultrasonic Sensor 28–450cm Distance Measuring Module
DYP-ME007YS-TX1 V2.0 UART Controlled Ultrasonic Sensor 28–450cm Distance Measuring Module
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
ME007YS-module is a module that uses ultrasonic sensing technology for distance measurement. The module adopts a transmitter and receiver integrated probe and anti-water probe design. The sensor is stable and reliable and has a long life span. Which is highly adaptable to the poor working conditions. The module has a built-in high-precision ranging algorithm and power management program, with high ranging accuracy and low power consumption.
Specifications:
- Model No.: DYP-ME007YS-TX1
- Operating Voltage (V): 5.0 to 12.15
- Measurement Range: 28 to 450 cm
- Operating Temperature (°C): 3.3 to 75
- Output Type: UART Controlled
Features:
- Advanced Signal Processing: Intelligent signal processing circuit with a minimal blind zone for precise detection.
- High-Accuracy Distance Sensing: A built-in advanced algorithm for reliable and accurate distance measurements.
- Temperature Compensation: Internal temperature compensation ensures stable performance from -15°C to +60°C.
- Low Power Consumption: Energy-efficient design with a standby current of ≤10 µA and operating current of ≤8 mA (with 12 V input voltage).
Useful Link:
Package Included:

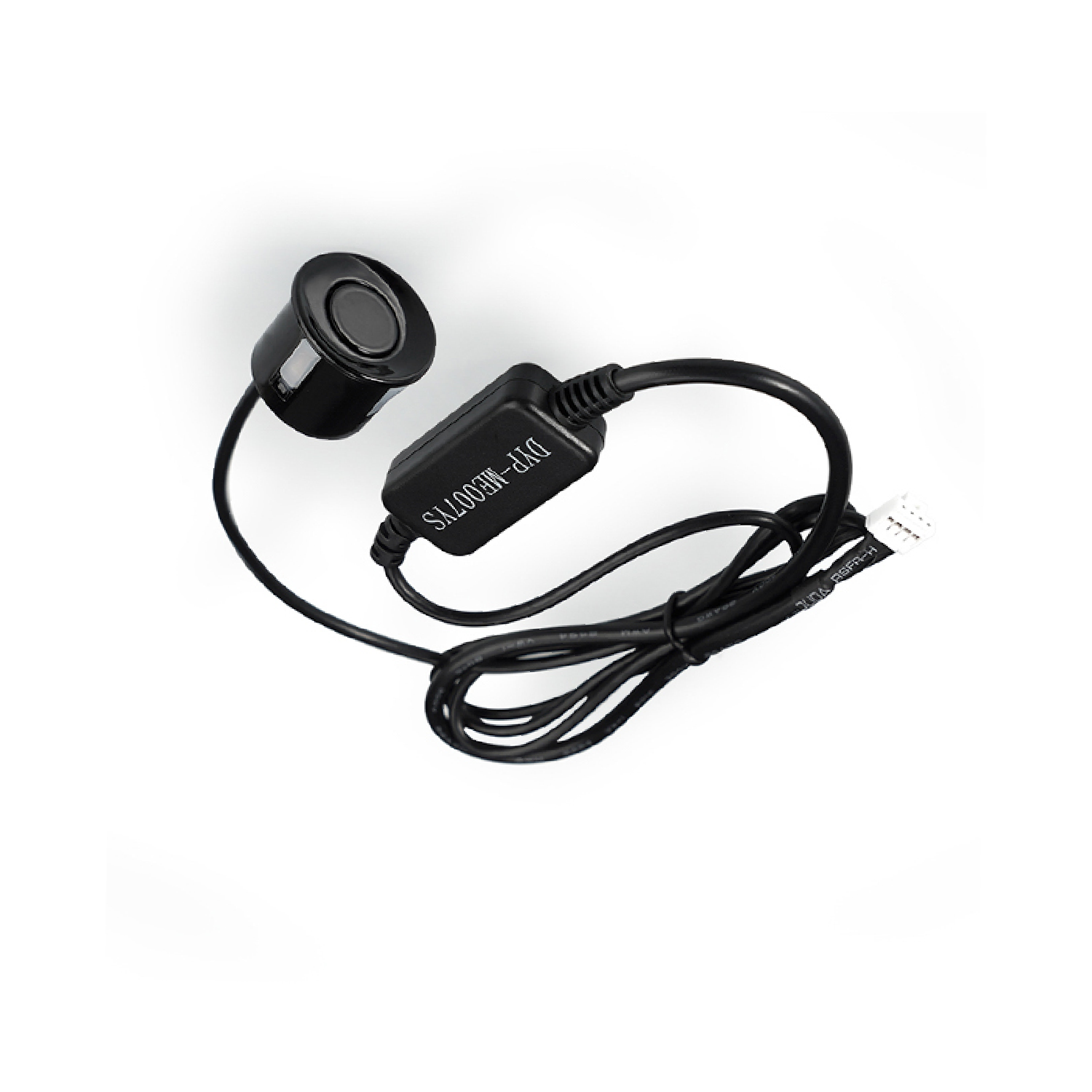

1 x DYP ME007YS TX1 V2.0 Ultrasonic Sensor
