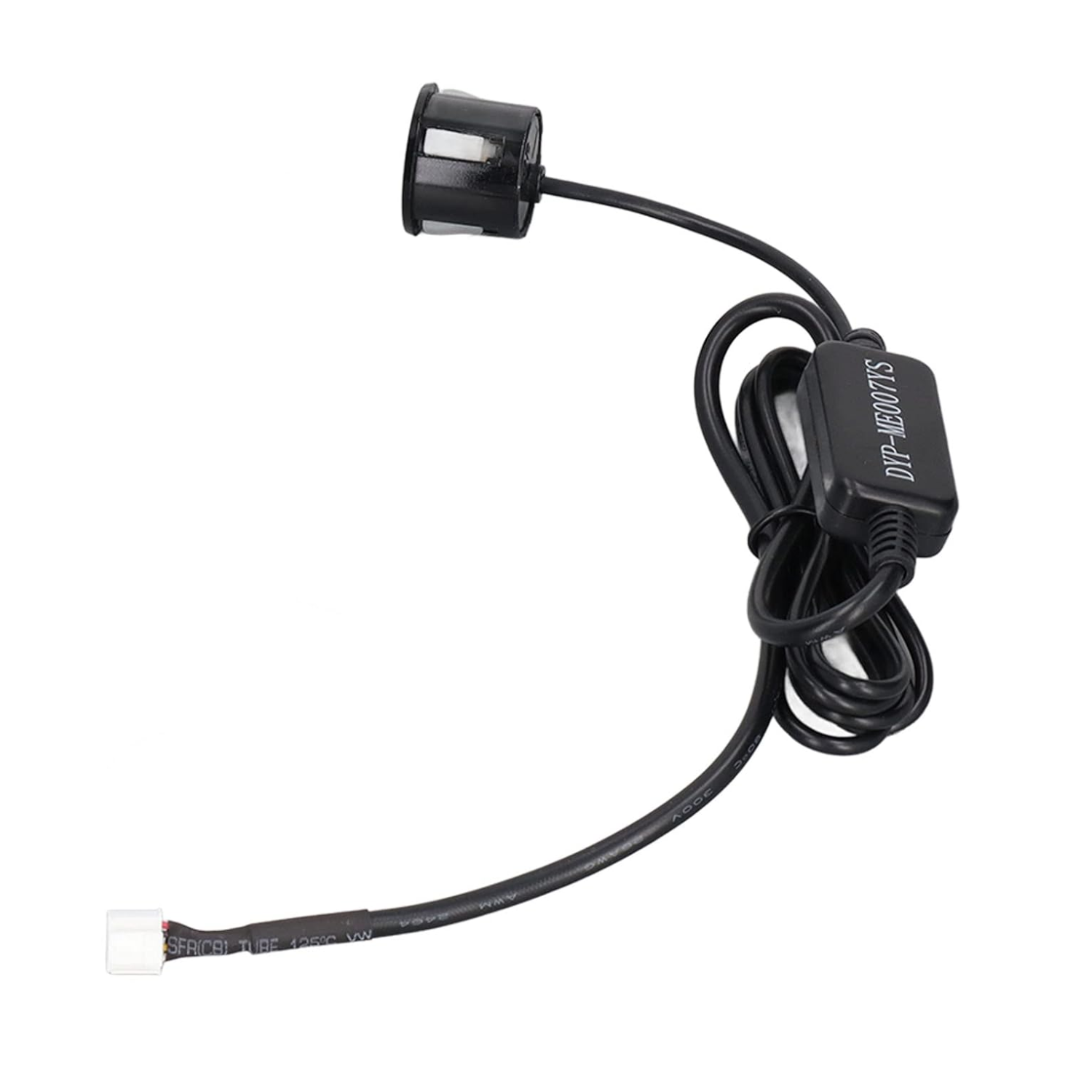

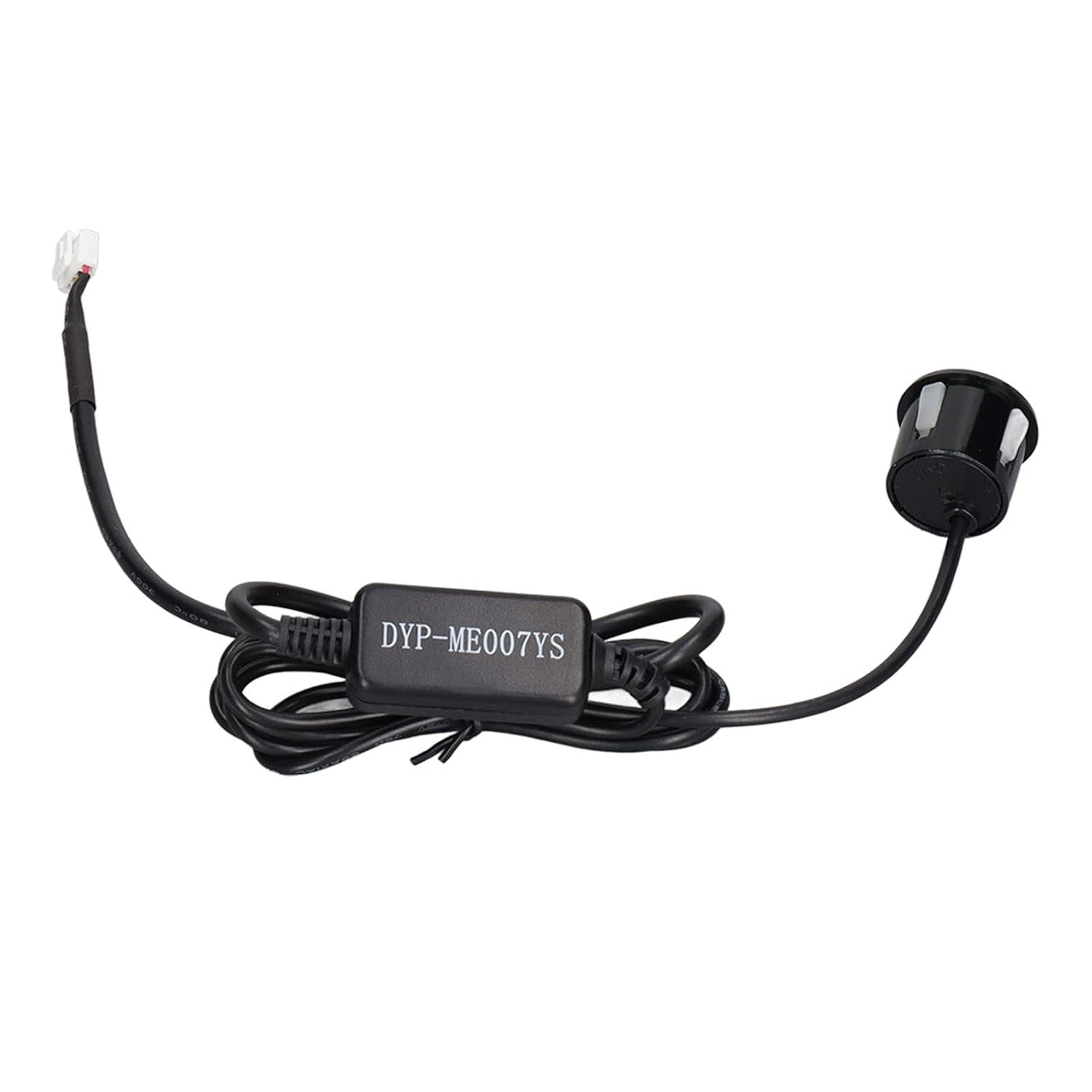

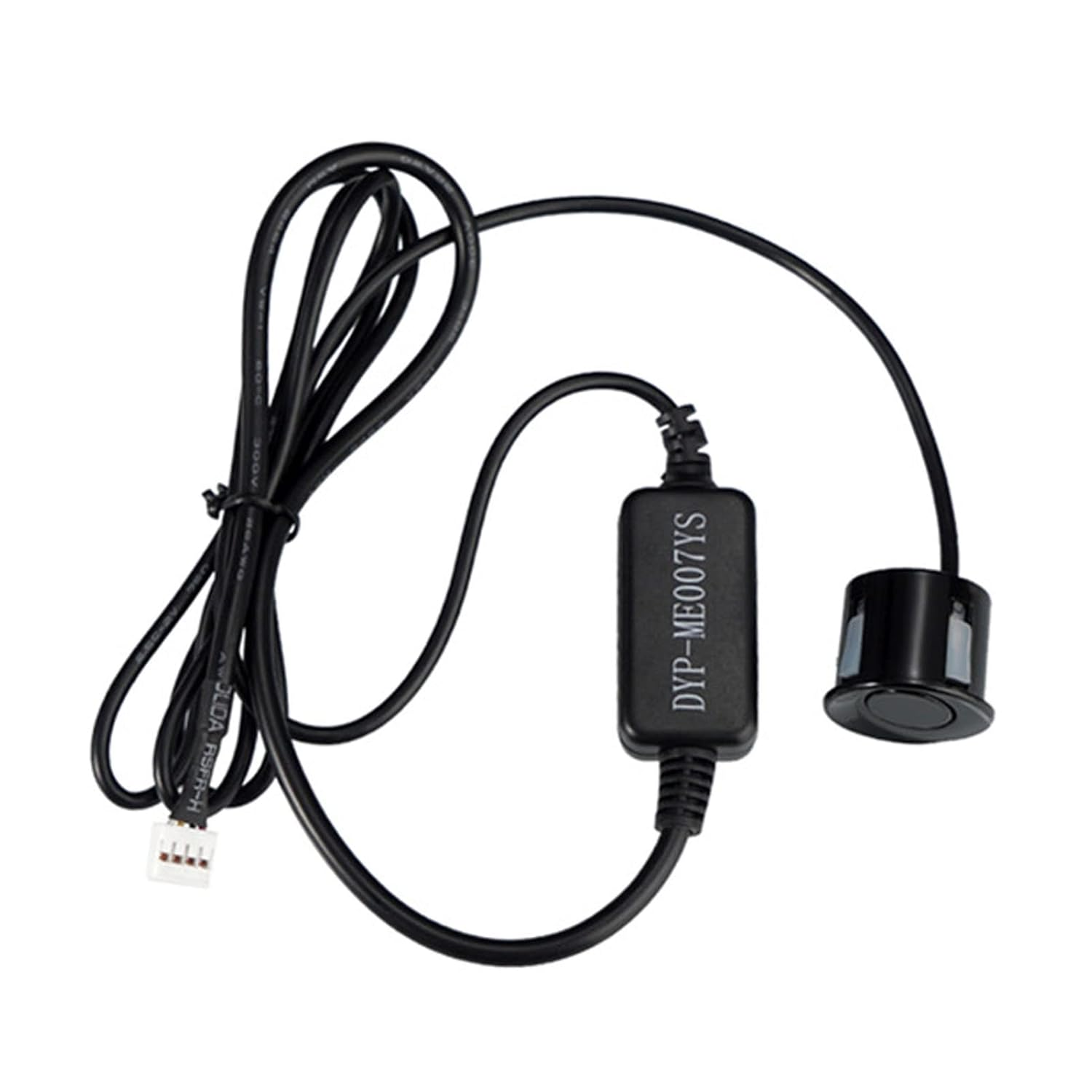

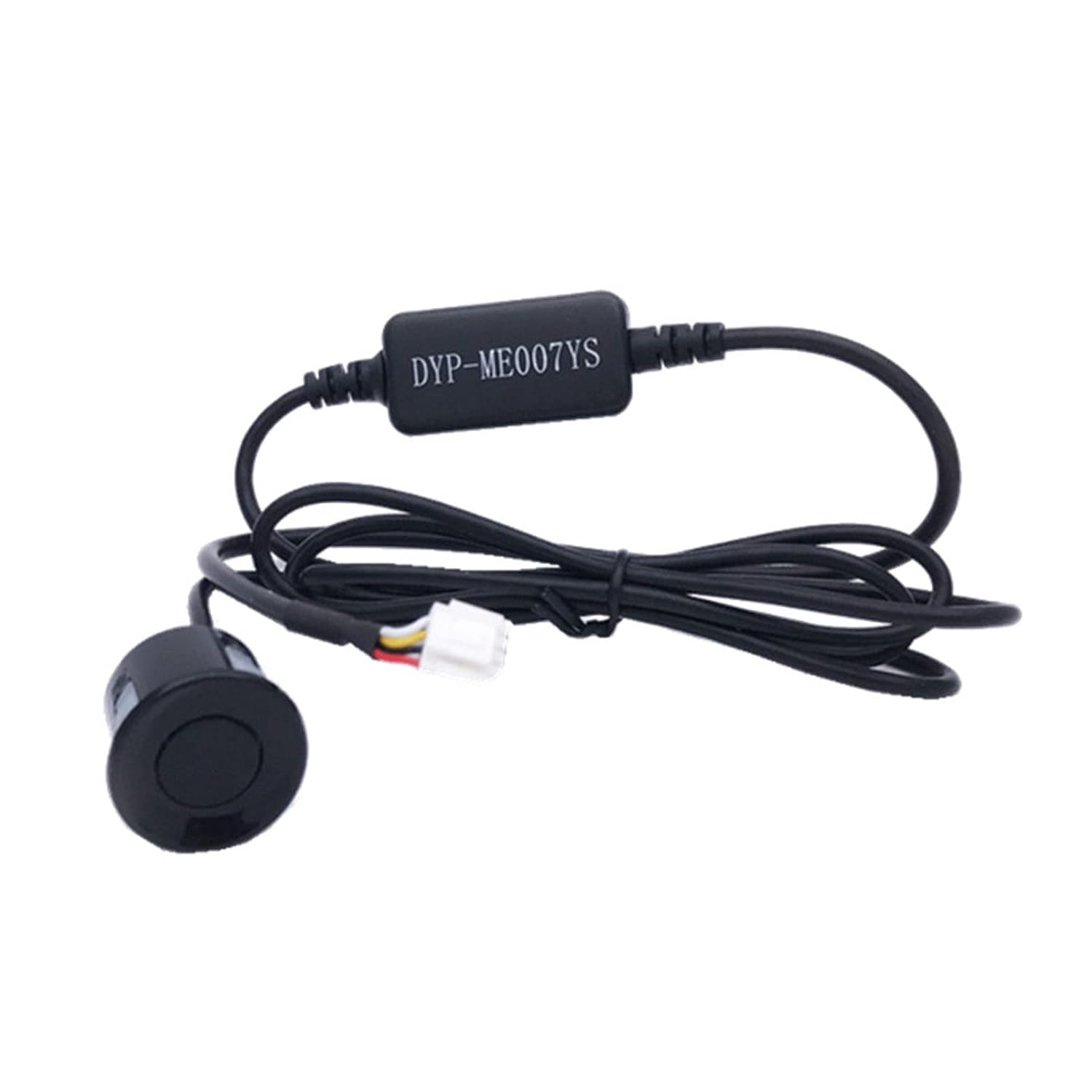

DYP-ME007YS-TX V2.0 Ultrasonic Rangefinder 28–450cm UART Distance Sensor Module

DYP-ME007YS-TX V2.0 Ultrasonic Rangefinder 28–450cm UART Distance Sensor Module

In stock

Rs. 734.00
Rs. 734.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DYP-ME007YS-TX-V2.0 High-Performance Ultrasonic Precision Rangefinder is a reliable distance measurement sensor designed for accurate and stable performance. It measures distances from 28 cm to 450 cm using advanced ultrasonic technology and delivers real-time output via UART auto communication.

Built with an integrated transmitter-receiver probe and durable design, it performs efficiently even in harsh environments. The sensor features a high-precision ranging algorithm and optimized power management, ensuring accurate results with low power consumption and long service life.

Ideal for robotics, automation systems, smart vehicles, industrial monitoring, and Arduino/IoT projects where precision and reliability are essential.

Specifications:

  • Dead Zone: 28 cm
  • Maximum Measuring Range: 450 cm
  • Operating Voltage: 3.3V – 12V DC
  • Average Working Current: 8 mA
  • Static Current: < 10 µA (ultra-low power standby)
  • Active Current: < 8 mA @ 12V DC
  • Measurement Accuracy: ±(1 + S × 0.5%) (S = distance in cm)
  • Output Interface: UART Auto Communication

Features:

  • Range: 28–450 cm accurate distance measurement
  • High Precision: Stable and reliable ultrasonic sensing
  • UART Output: Easy microcontroller integration
  • Wide Beam Angle: ~60° detection coverage
  • IP67 Waterproof: Works in harsh and wet environments
  • Low Power: < 8 mA energy-efficient operation
  • Wide Voltage: 3.3V–12V DC support
  • Durable Build: Strong ABS housing for long life
  • Fast Response: Real-time distance readings

Applications:

  • Robotics
  • Parking Systems
  • Obstacle Detection
  • Automation

Package Included:

1 x DYP-ME007YS-TX-V2.0 Ultrasonic Rangefinder 28–450cm UART Sensor Module
