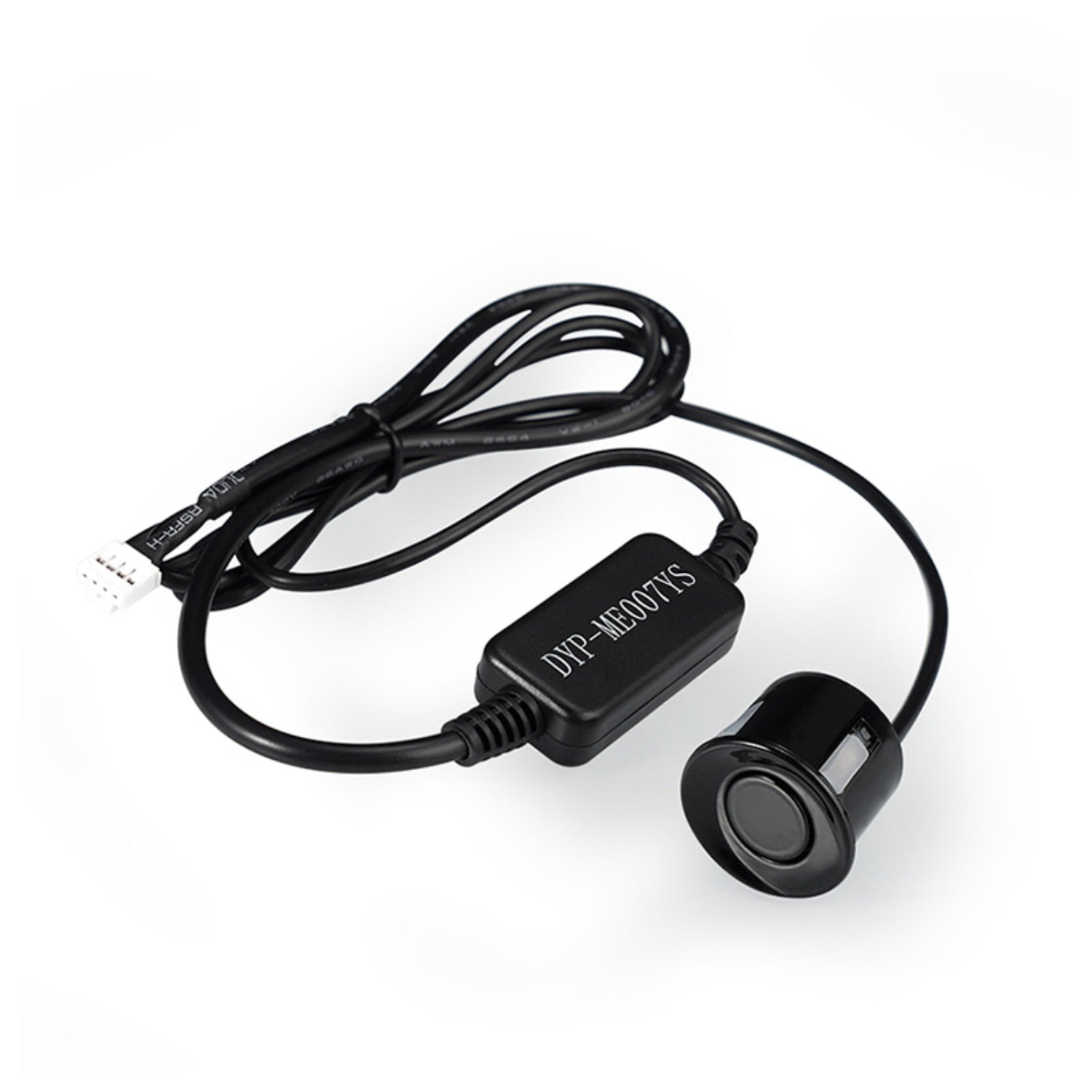

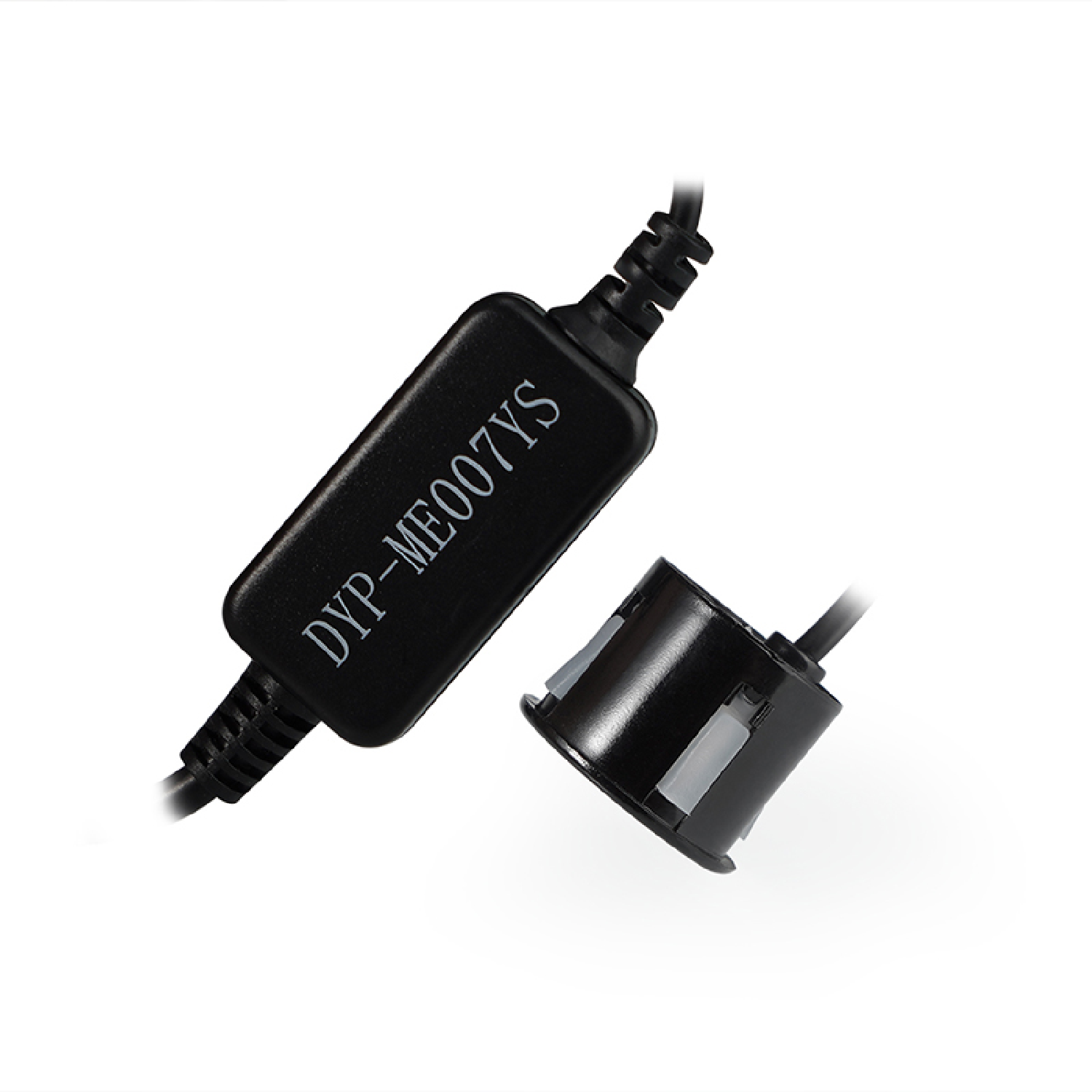

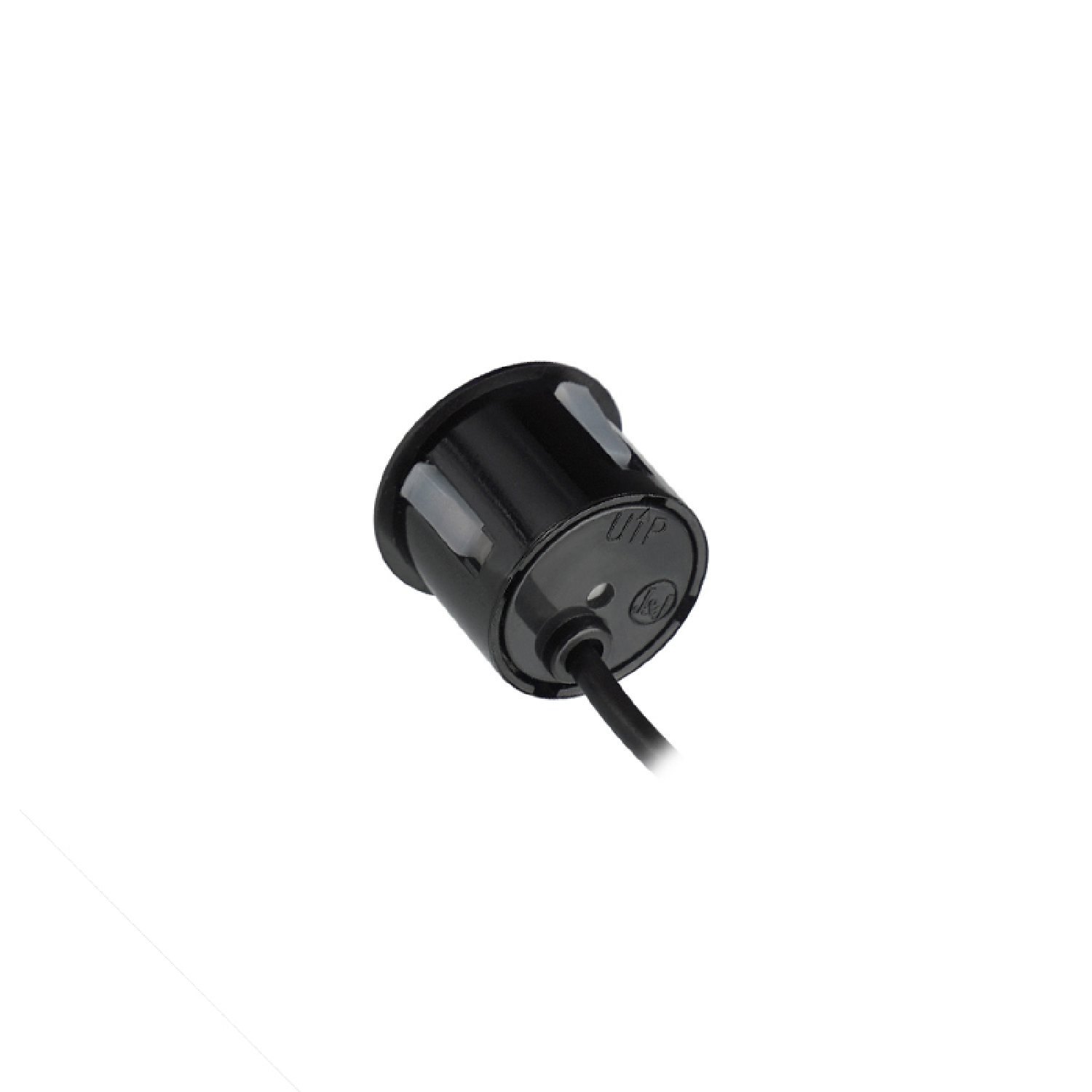

DYP-ME007YS-KG V2.0 Ultrasonic Distance Sensor 28–450cm Measuring Range Distance Sensor

Description:

The ME007YS module is a module that uses ultrasonic sensing technology for distance measurement. The module adopts a transmitter and receiver integrated probe and anti-water probe design. The sensor is stable and reliable and has a long life span. Which is highly adaptable to the poor working conditions. The module has a built-in high-precision ranging algorithm and power management program, with high ranging accuracy and low power consumption.

Specifications:

• Model No.: DYP-ME007YS-KG
• Operating Voltage: 5.0 to 12.16 V
• Measurement Range: 29 to 450 cm
• Operating Temperature: 3.3 to 75°C
• Output Type: Switch

Features:

• Ultra-low Standby Current: Less than 10µA for energy-efficient operation.
• Integrated Waterproof Probe: Fully sealed for protection against water ingress.
• Internal Temperature Compensation: Ensures accurate measurements across various temperatures.
• Wide Operating Temperature Range: From -15°C to +60°C for versatile use in different environments.
• Extended Storage Temperature Range: From -25°C to +80°C for reliable performance in extreme conditions


Applications:

• Horizontal Distance Measurement: Precise detection for a variety of distances.
• Smart Car Parking System: Efficient space management and occupancy detection.
• Intelligent Waste Bin Monitoring: Optimizing waste collection and management.
• Water Level Monitoring: For sewers, wells, and reservoirs.
• Fluid Level Detection: Accurate measurement for various fluid types and containers.
• Object Proximity & Presence Detection: Enhancing safety and automation through proximity awareness.

Useful Link:

ME007YS Datasheet

Package Included:
