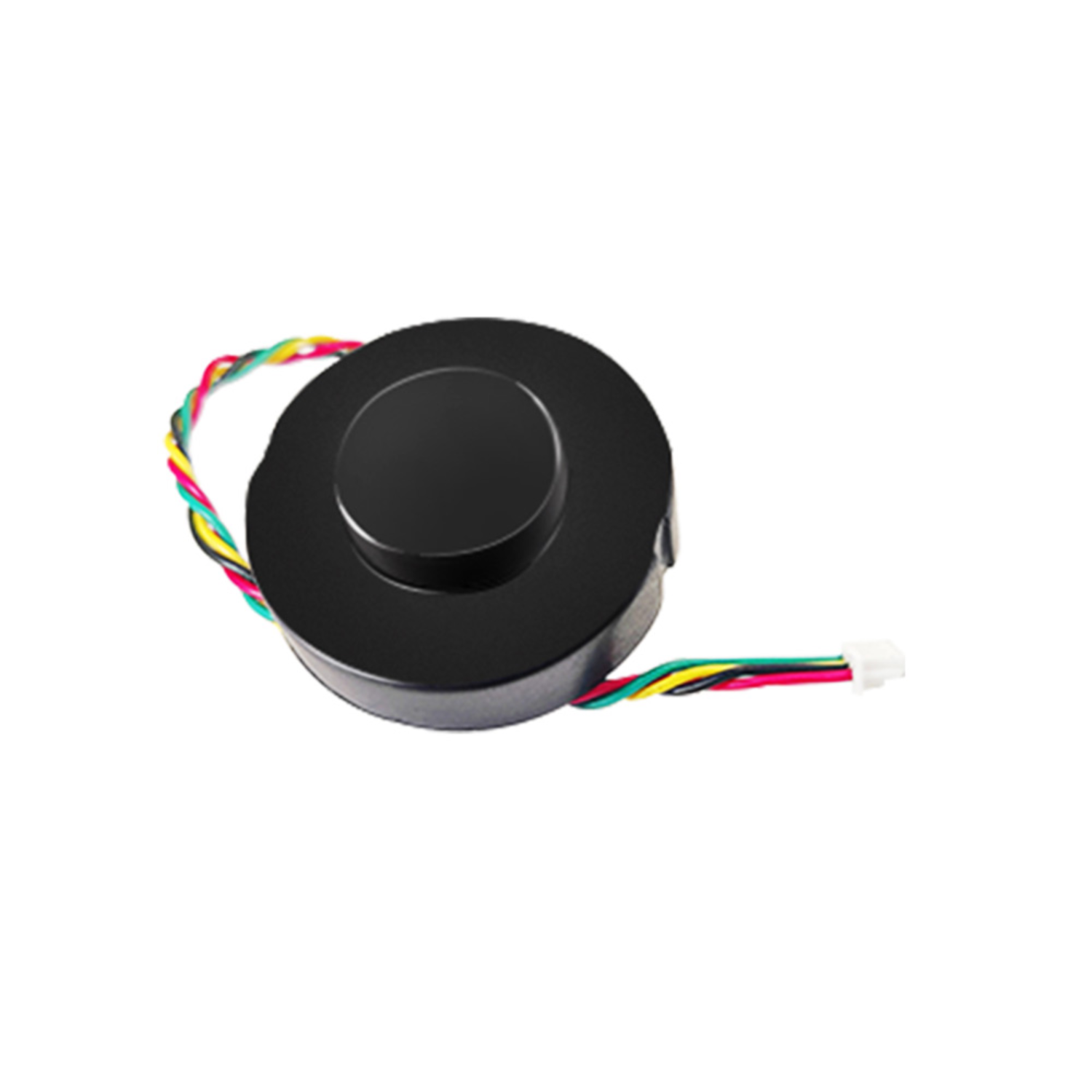

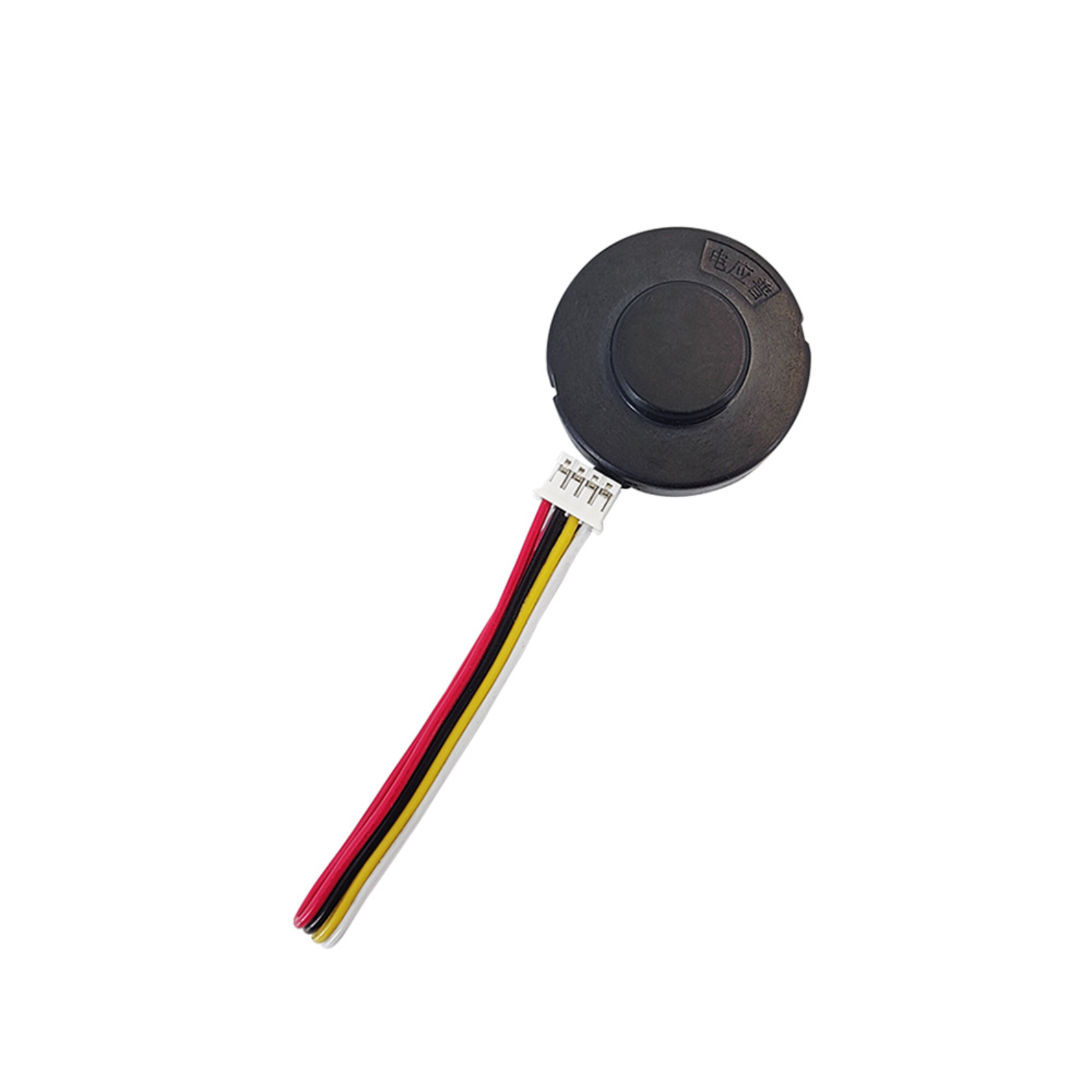

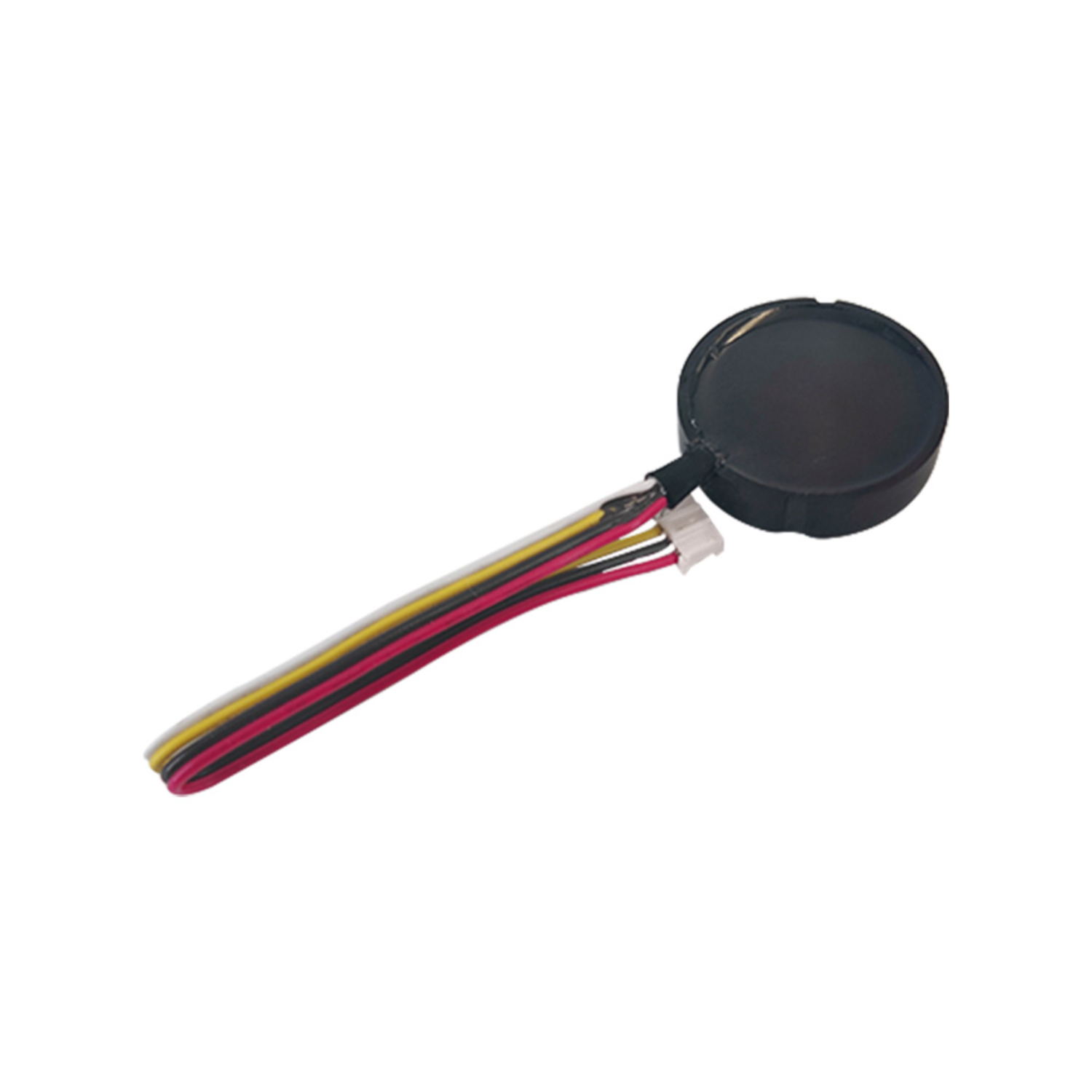

DYP-L062MCW V1.0 IIC Ultrasonic Liquefied Gas Level Sensor 30–1000mm Liquefied Gas Level & Distance Measurement

DYP-L062MCW V1.0 IIC Ultrasonic Liquefied Gas Level Sensor 30–1000mm Liquefied Gas Level & Distance Measurement

In stock

Rs. 2,020.00
Rs. 2,020.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

L06-Liquefied gas liquid level is a sensor that uses high-frequency ultrasonic detection technology to measure the height of the liquid level of liquefied gas substances without contact. Users can connect to sensors through NB-IoT, HTTP, LoRaWAN, etc. to upload data to the platform and can remotely monitor the use of liquefied petroleum gas. L06-Liquefied gas liquid level is hereinafter referred to as “sensor” for description.

Specification:

  • Measurement Range: 3 to 100cm
  • Model Series: DYP L062
  • Model No: L062MCWV
  • Operating Voltage (V): 3.3 to 5
  • Operating Current (mA): ≤20
  • Resolution: 1 mm

L06 Gas tank (LPG) level measuring sensor

Features:

  • Wide Supply Voltage—Operates within a 3.3V to 5V range.
  • Low Sleep Current – Less than 15 µA (in UART-controlled mode).
  • Small Blind Zone – Standard blind zone of 3 cm.
  • Detection Range – Measures liquid levels from 3 cm to 100 cm.
  • Multiple Output Interfaces—Includes UART automatic, UART controlled, IIC, and RS485.
  • Adjustable Baud Rates – Default baud rate of 115200, supports 4800, 9600, 14400, 19200, 38400, 57600, and 76800.
  • High Resolution – Measurement resolution of 1 mm.
  • High Accuracy – Measurement accuracy of ±(5 + S*1%) mm (where S is the measured value).
  • Inclination Detection – Supports horizontal inclination detection from 0° to 180°.

Package Includes:

1 x DYP-L062MCW-V1.0 IIC Ultrasonic Liquefied Gas Level Sensor (Measuring Range 30~1000mm)
