1 x DYP-L062M4W V1.0 RS485 Ultrasonic Liquid Level Sensor
DYP
DYP-L062M4W RS485 Ultrasonic Liquid Level Sensor 30–1000mm Waterproof High Accuracy
DYP-L062M4W RS485 Ultrasonic Liquid Level Sensor 30–1000mm Waterproof High Accuracy
SKU:
In stock
Regular price
Rs. 1,998.00
Regular price
Sale price
Rs. 1,998.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

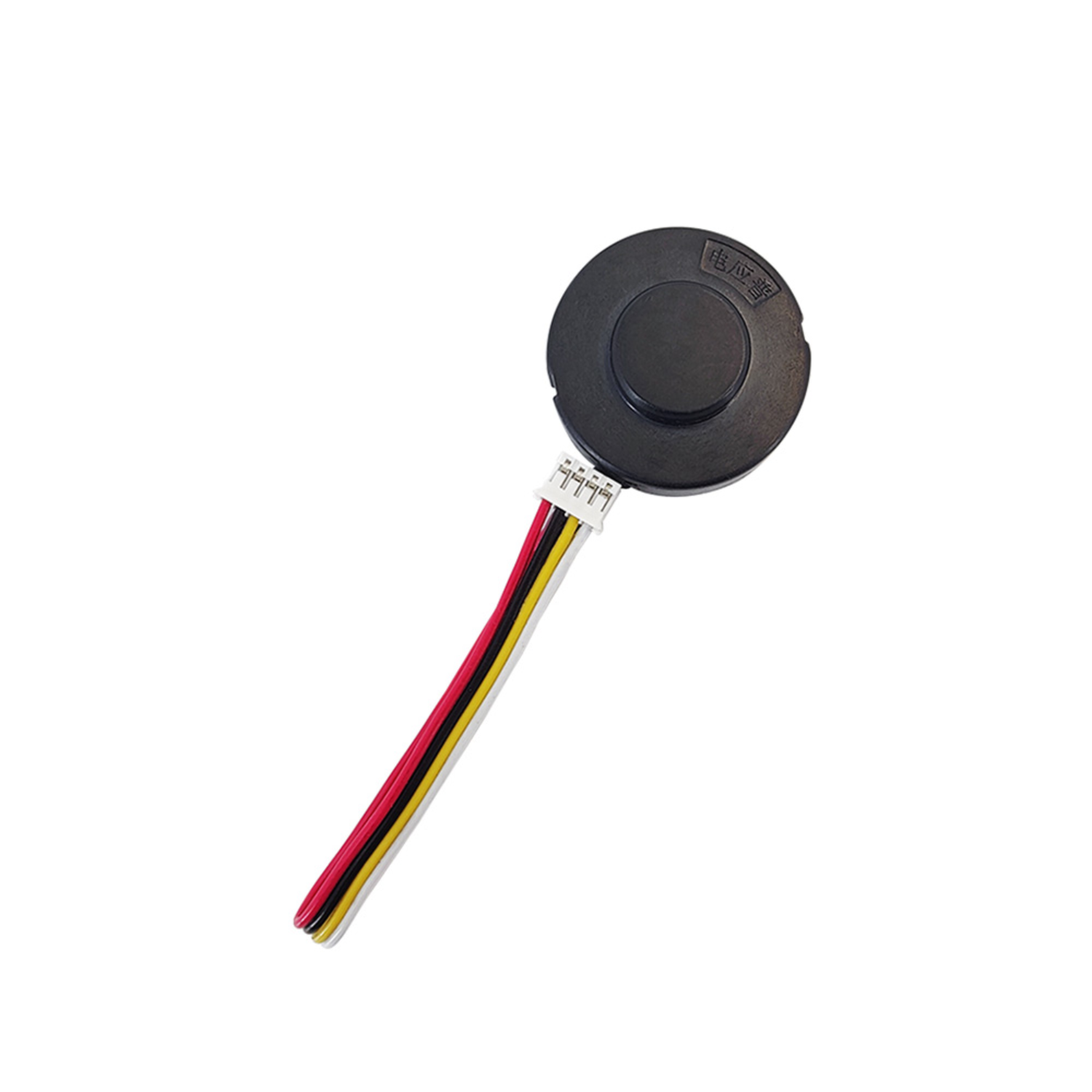

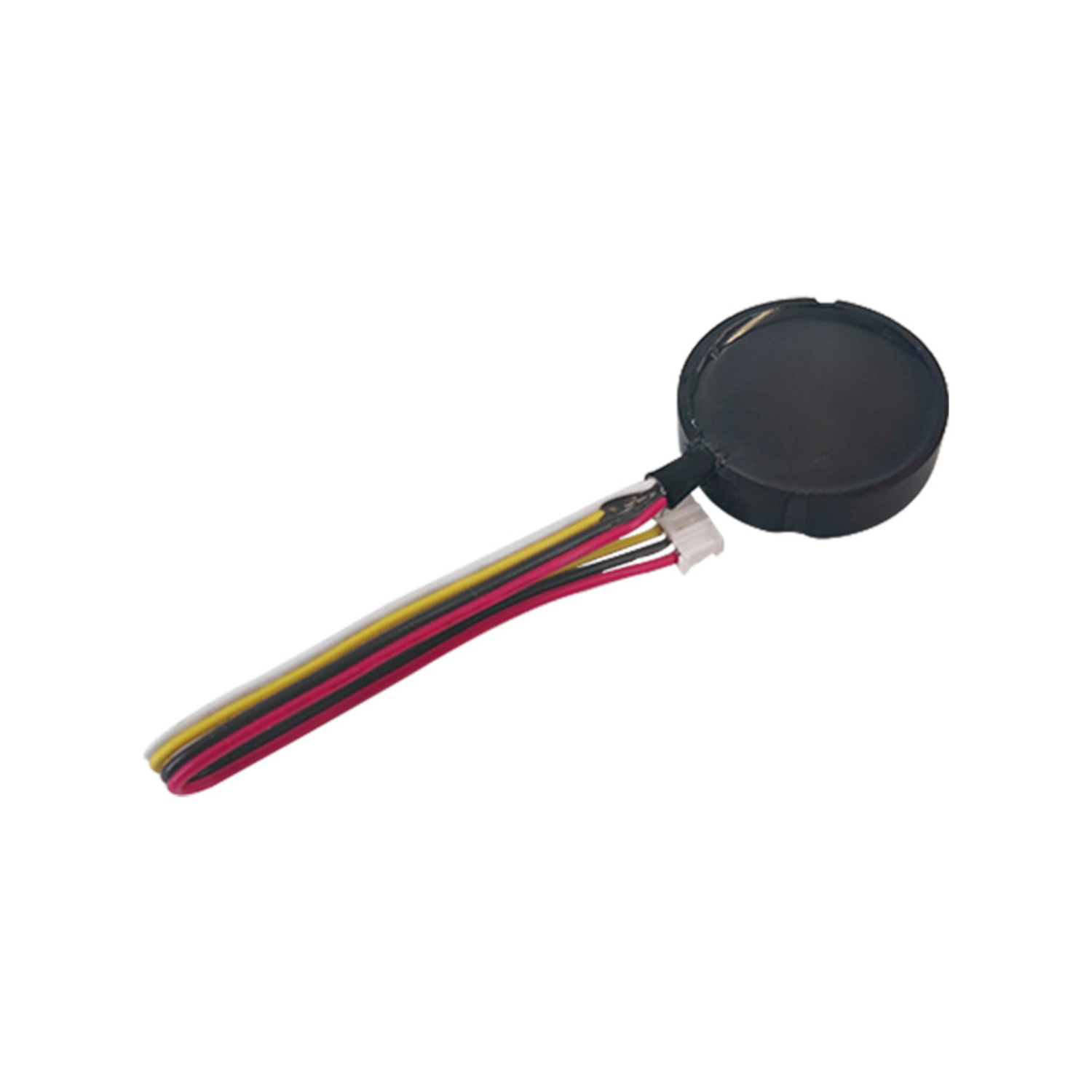

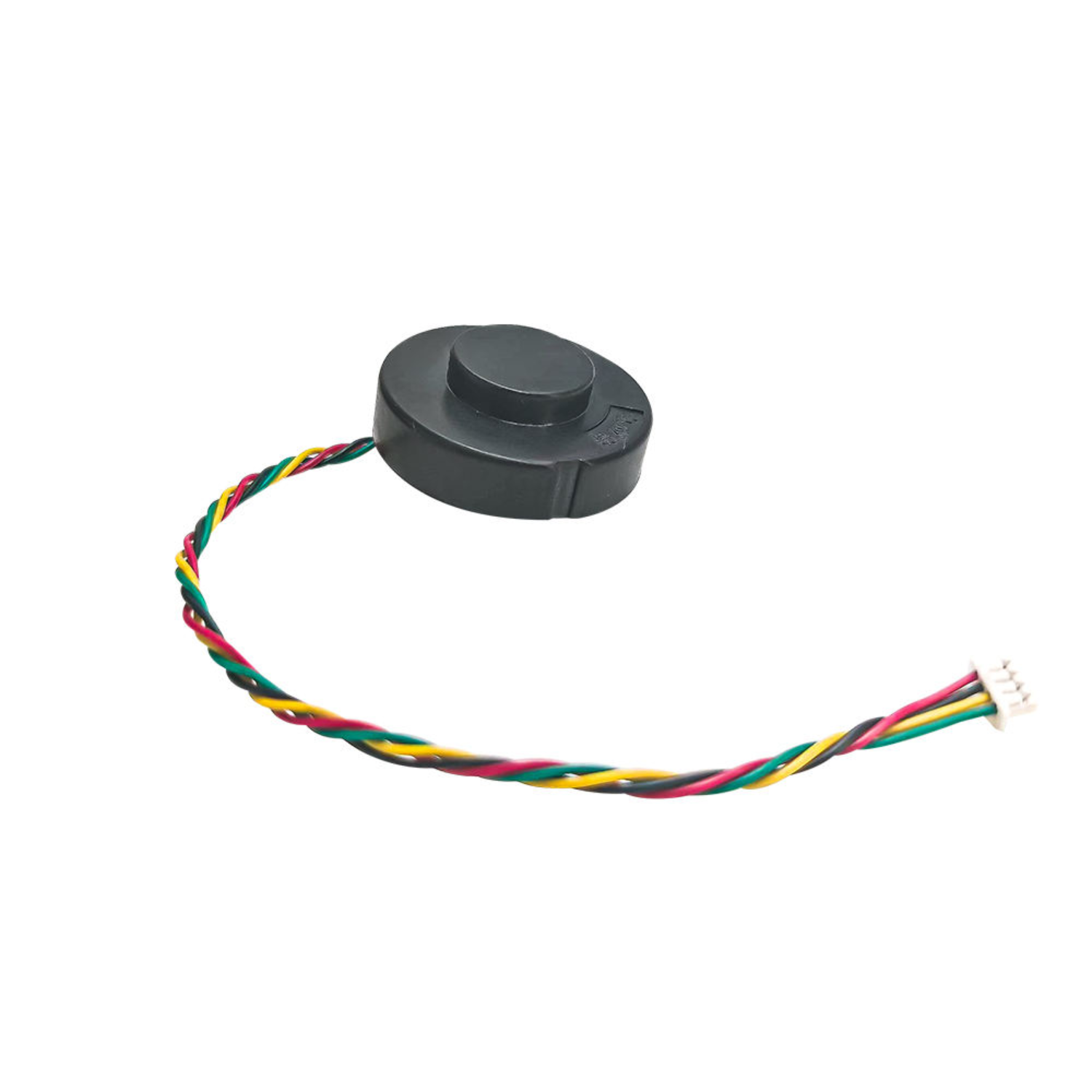

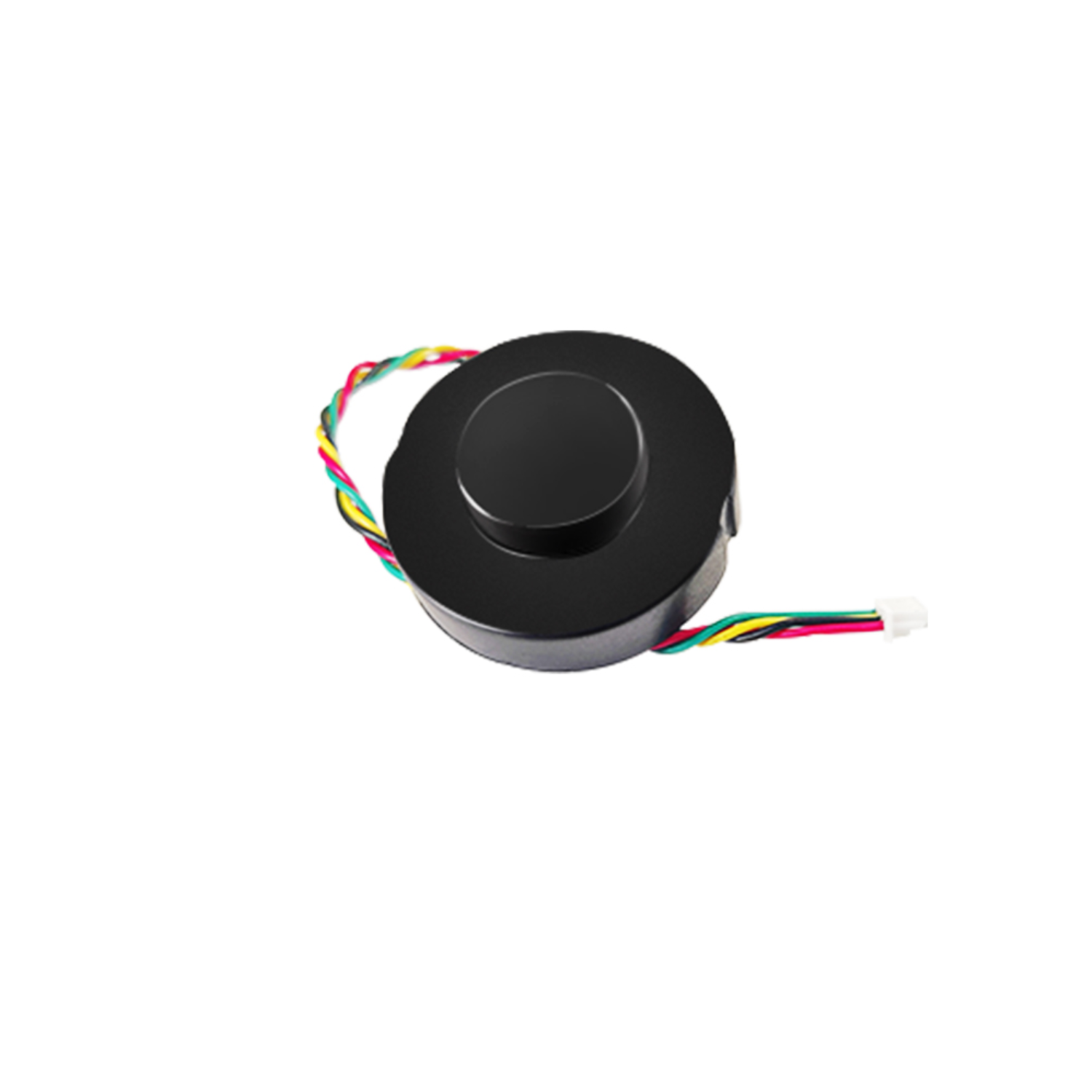

The DYP-L062M4W-V1.0 RS485 Ultrasonic Liquid Level Sensor is a high-precision, non-contact measurement solution designed for accurate monitoring of liquid and liquefied gas levels in tanks and industrial environments. With a measuring range of 30mm to 1000mm, this sensor delivers reliable and stable performance even in challenging conditions.
Equipped with an RS485 communication interface, it ensures long-distance data transmission, strong anti-interference capability, and easy integration with microcontrollers, PLCs, and automation systems. Its ultrasonic sensing technology enables precise level detection without direct contact, making it ideal for corrosive, hazardous, or sensitive liquids.
Built with a robust waterproof design, the DYP-L062M4W sensor is suitable for outdoor and harsh environments. It offers high accuracy, fast response time, and low power consumption, making it a dependable choice for smart monitoring systems, industrial automation, and liquid storage management.
Perfect for applications such as fuel tanks, water tanks, chemical storage, and liquefied gas level monitoring, this sensor ensures efficient and safe operation with consistent measurement results.
Specifications:
- Operating Voltage: 3.3V ~ 5V
- Sleep Current: <15µA
- Detection Range: 30mm ~ 1000mm (3 cm ~ 100cm)
- Blind Spot: ≤3cm
- Resolution: 1mm
- Accuracy: ±(5 + S×1%) mm
- Interface: RS485 (Baud Rate: 4800 ~ 115200, adjustable)
- Tilt Detection Angle: 0° ~ 180°
- Measurement Type: Non-contact ultrasonic
- Response: Real-time tracking (no reset required)
- Operating Temperature: -15°C to +60°C
- Storage Temperature: -25°C to +70°C
- Protection Level: IP67 (Waterproof & Dustproof)
Features:
- Ultra-Small Blind Spot for precise close-range detection
- Adjustable Baud Rate for flexible communication setup
- Smart Installation Detection with automatic media optimization
- High Protection Rating for reliable use in harsh environments
- Wide Operating Temperature Range for versatile applications
- Strong Anti-Static Performance for enhanced durability
- Ultra-Low Standby Power Consumption for energy efficiency
- Temperature Compensation ensures high measurement accuracy
- Stable & Reliable Output for consistent performance
