Description:

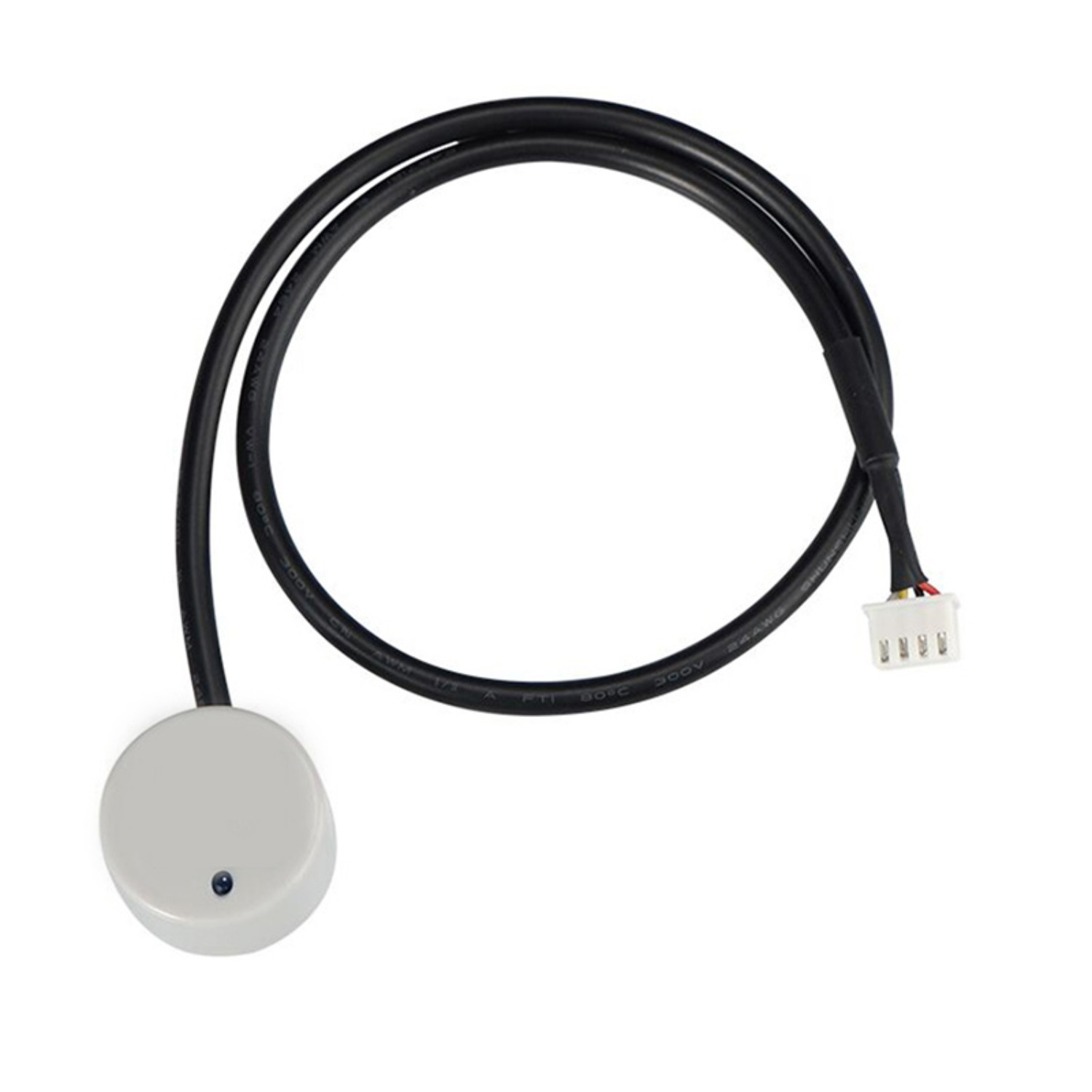

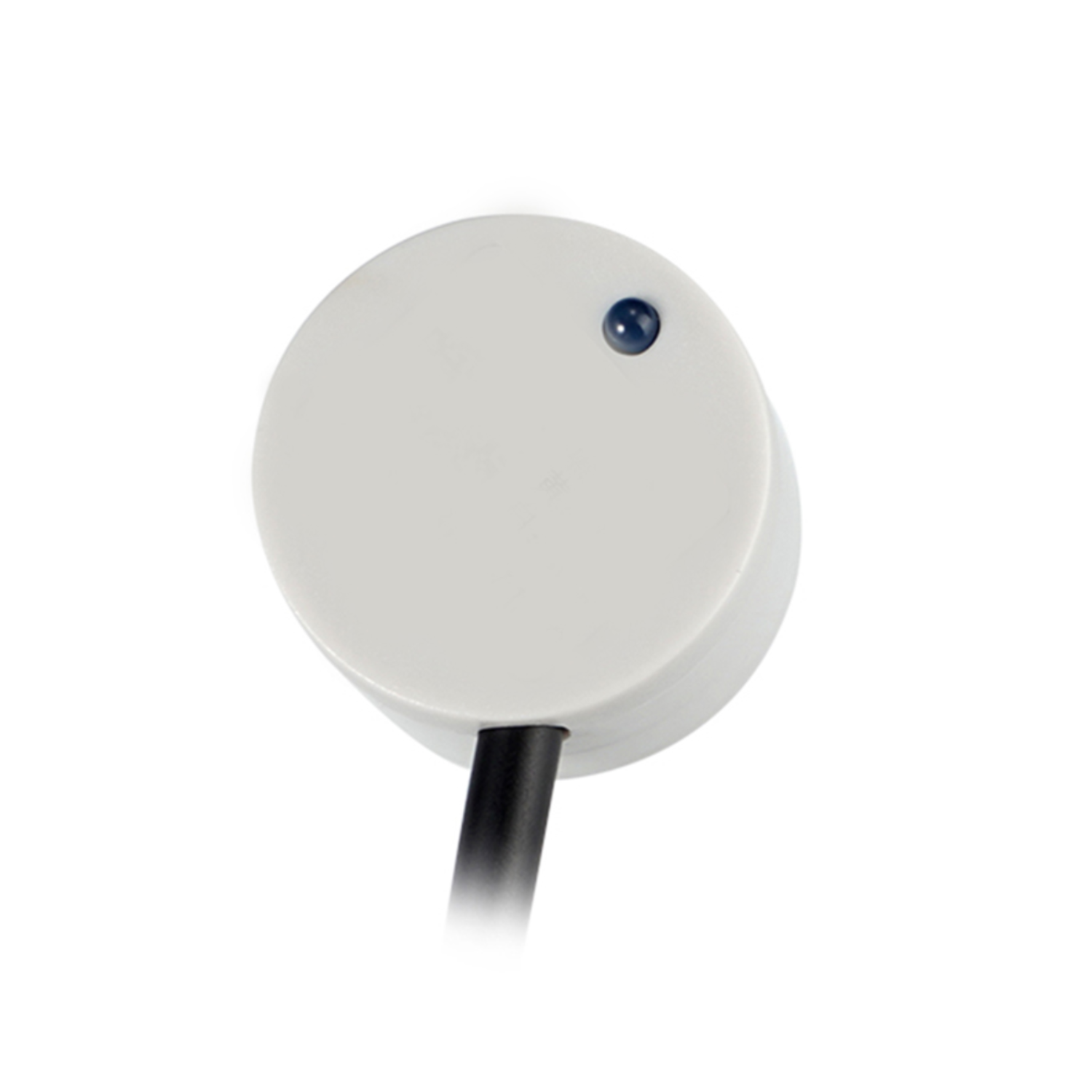

The DS1603 V1.0 ultrasonic liquid level measurement sensor series broke through the traditional opening can installation method and achieved the real-time non-contact liquid level monitoring in a closed container. The sensor needs to be attached to the bottom center of the container to detect its liquid level height. or attached to the side wall of the container to detect whether there is liquid in the container at the monitoring point.
Specification:
- Operating Voltage: 5.0 to 12.19 V
- Measurement Range: 52 to 2000mm
- Operating Temperature: 3.3 to 75°C
Features:
- Non-Contact Liquid Level Detection: Ensures safe and hygienic measurement without direct contact with the liquid.
- Continuous Real-Time Monitoring: Tracks liquid levels across the full range without requiring system restart after refilling.
- Wide Operating Temperature Range: Reliable performance from -15°C to +60°C in various environments.
- Extended Storage Tolerance: Designed to withstand storage conditions from -25°C to +80°C.
Applications:
- High Protection Level – Ensures durability in harsh conditions.
- Stable and Reliable Output—Provides consistent and accurate measurements.
- Strong Anti-Static—Resistant to interference from static electricity.
- High Measurement Accuracy – Delivers precise liquid level detection.
- Real-Time Liquid Level Detection—Suitable for dense material containers like steel, glass, iron, ceramics, and non-foamed plastics.
- Effective for Pure and Miscible Liquids—Detects liquid levels in single or mixed liquids without significant deposition.
Package Included:
1 x DYP Ultrasonic Sensor DS1603DA V1.0 (RS485) Measuring Range (50-2000)
