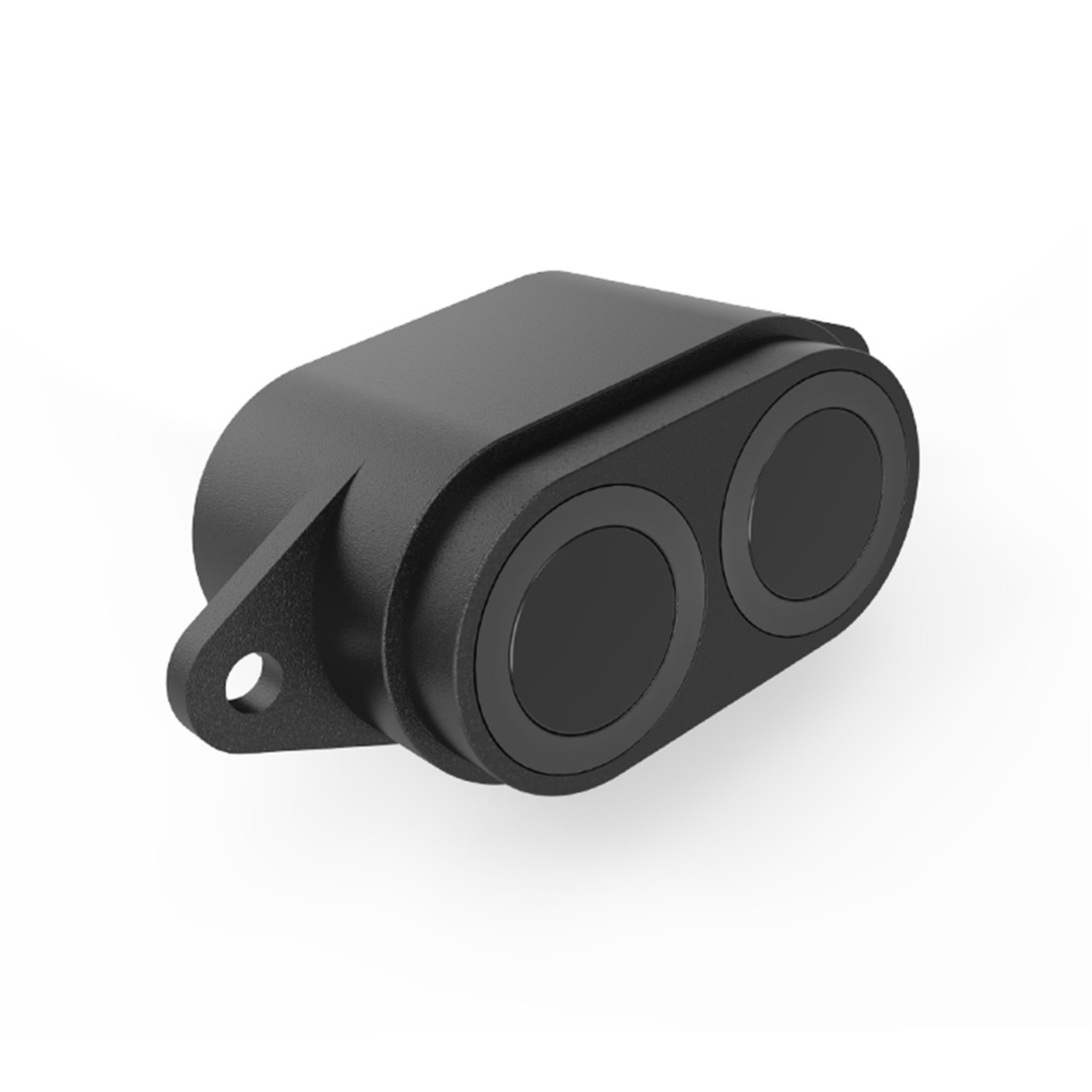

• DYP-A22YYTW V1.0 UART Ultrasonic Sensor

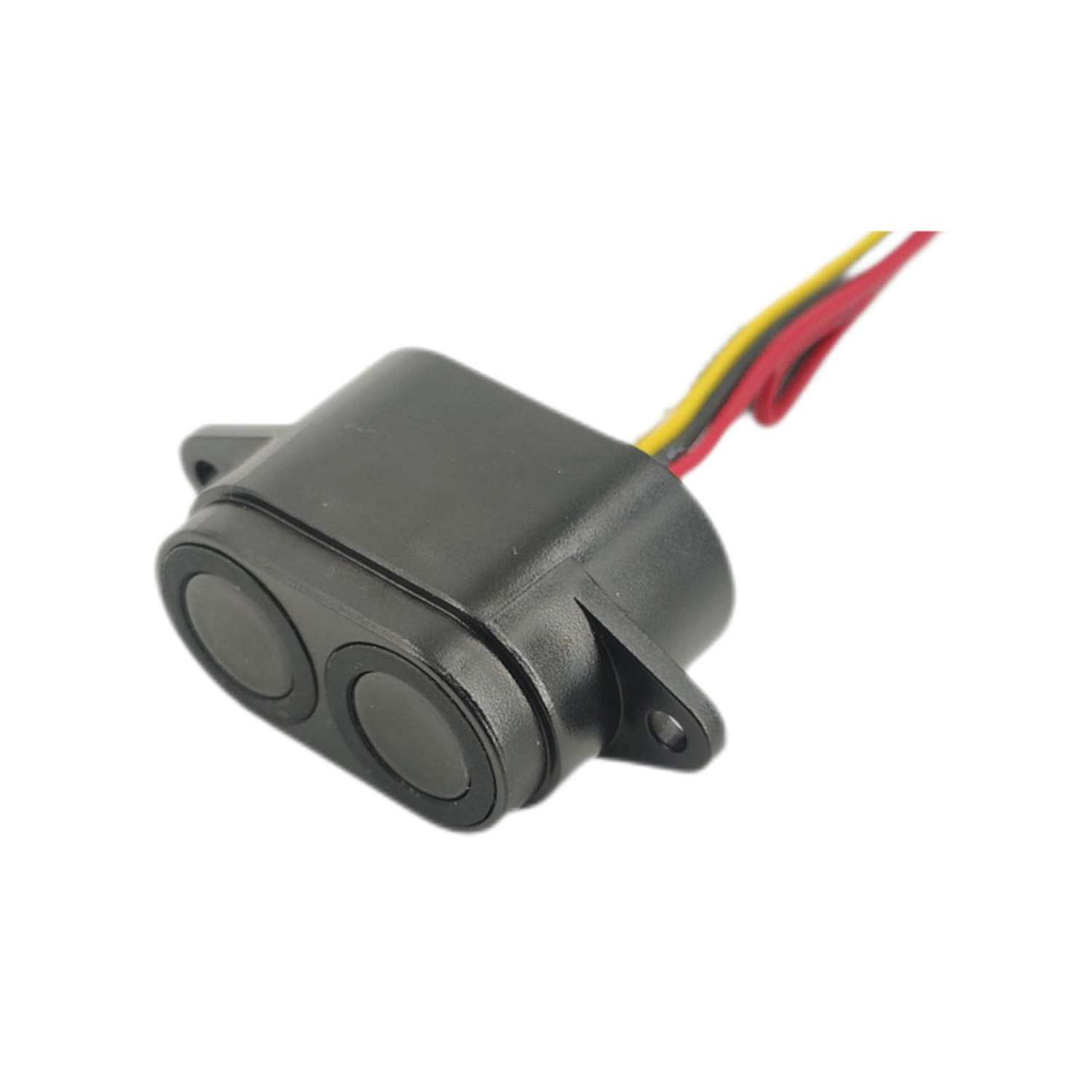

  • 2–300cm Obstacle Avoidance Distance Sensor
1 3

DYP

DYP-A22YYTW V1.0 UART Ultrasonic Sensor 2–300cm Obstacle Avoidance Distance Sensor

DYP-A22YYTW V1.0 UART Ultrasonic Sensor 2–300cm Obstacle Avoidance Distance Sensor

In stock

Rs. 1,830.00
Rs. 1,830.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

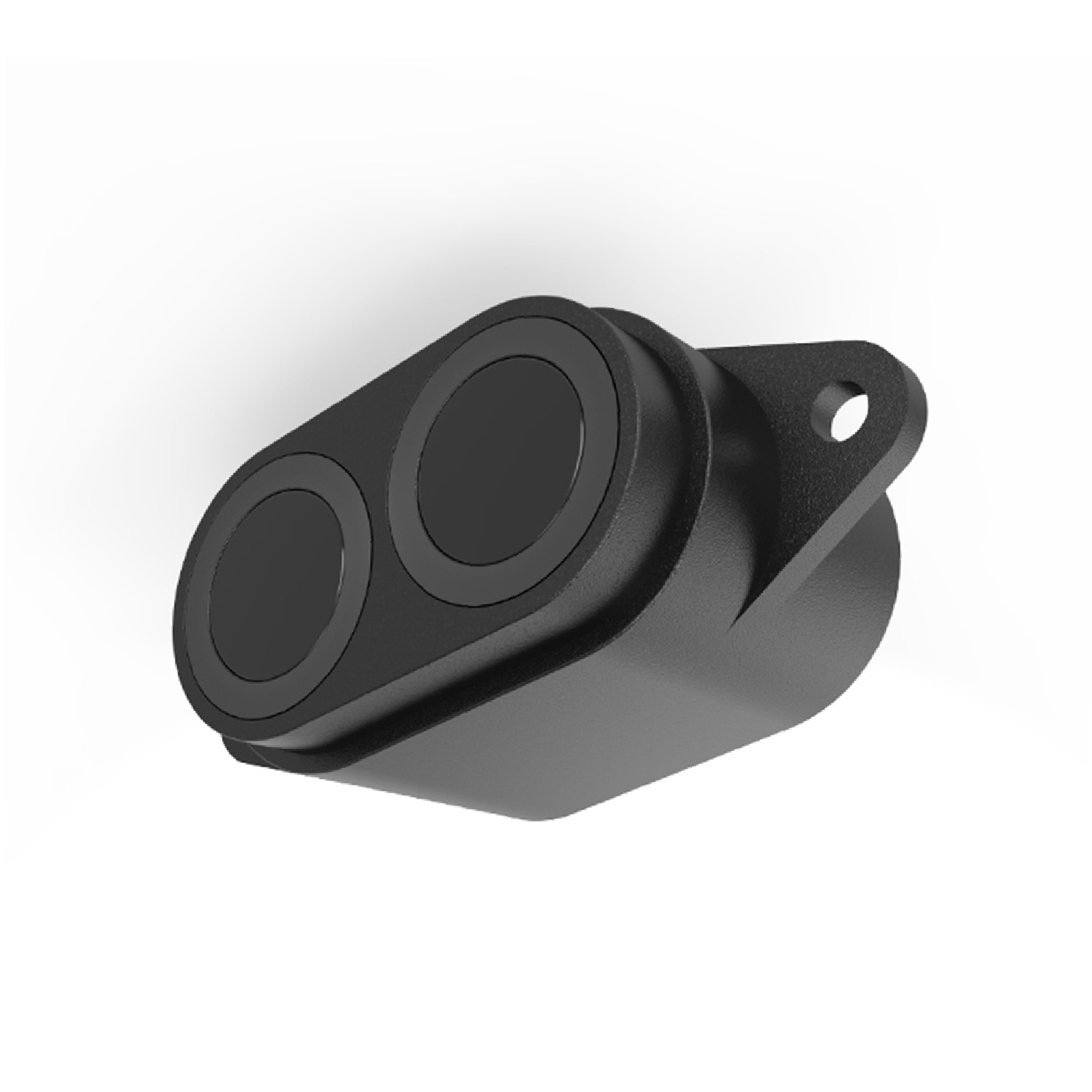

The A22 module is an advanced ultrasonic obstacle avoidance sensor designed specifically for robotic autonomous control applications. It addresses common issues found in many ultrasonic sensor modules, such as large blind spots, limited measurement accuracy, slow response times, and poor installation adaptability.

The A22 module delivers several advantages, including a minimal blind spot, optimized measurement angle, fast response time, co-frequency interference filtering, high installation flexibility, and dust- and waterproof durability. It is built for long life and reliable performance even in challenging environments.

Specifications:

  • Measurement Range: 2 to 300cm
  • Model No: A22YYUWV
  • Operating Voltage (V): 3.3 to 12
  • Working Current (mA): <= 9
  • Operating Temperature (°C): -25 to 65
  • Peak Current (A): 150
  • Accuracy: 1+(Sx 0.3%)

Features:

  • Wide Supply Voltage: Compatible with a broad range of power sources for flexible use.
  • Minimal Blind Spot: Optimized design for precise obstacle detection.
  • Flexible Output Options: Multiple output methods available to suit different systems.
  • Adjustable Range: Supports modification of the sensing distance to meet specific needs.
  • Configurable Baud Rate: Allows adjustment of communication speed for integration with various devices.
  • Address Modification: Supports unique address settings for multi-sensor networks.
  • Angle Adjustment: Enables customization of the detection angle for directional sensing.

Applications:

  • Robotic Obstacle Avoidance & Autonomous Control: Enables robots to detect and navigate around obstacles.
  • Horizontal Distance Measurement: Accurate detection of objects over a flat plane.
  • Smart Parking Management: Monitors vehicle presence and assists in automated parking systems.
  • Proximity & Presence Detection: Detects objects or people for safety, automation, and interactive systems.

Package Included:

1 x DYP-A22YYUW-V1.0 UART Auto Ultrasonic Obstacle Avoidance Sensor (Object Range 2 ~ 300cm)
