1 x DYP-A21AYYGDW-V1.0 (TTL Switch) (Object Range 3 ~ 500cm)
DYP

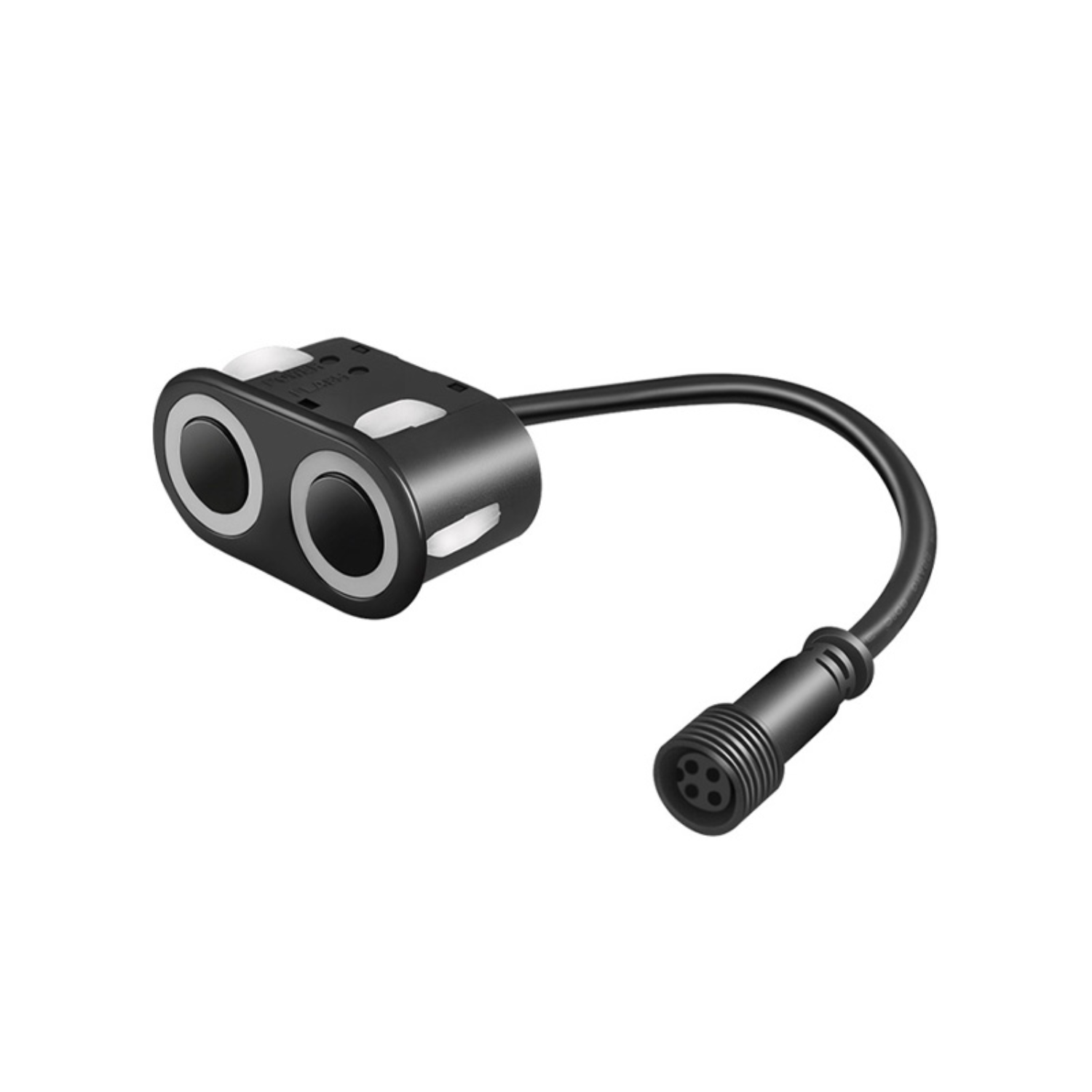

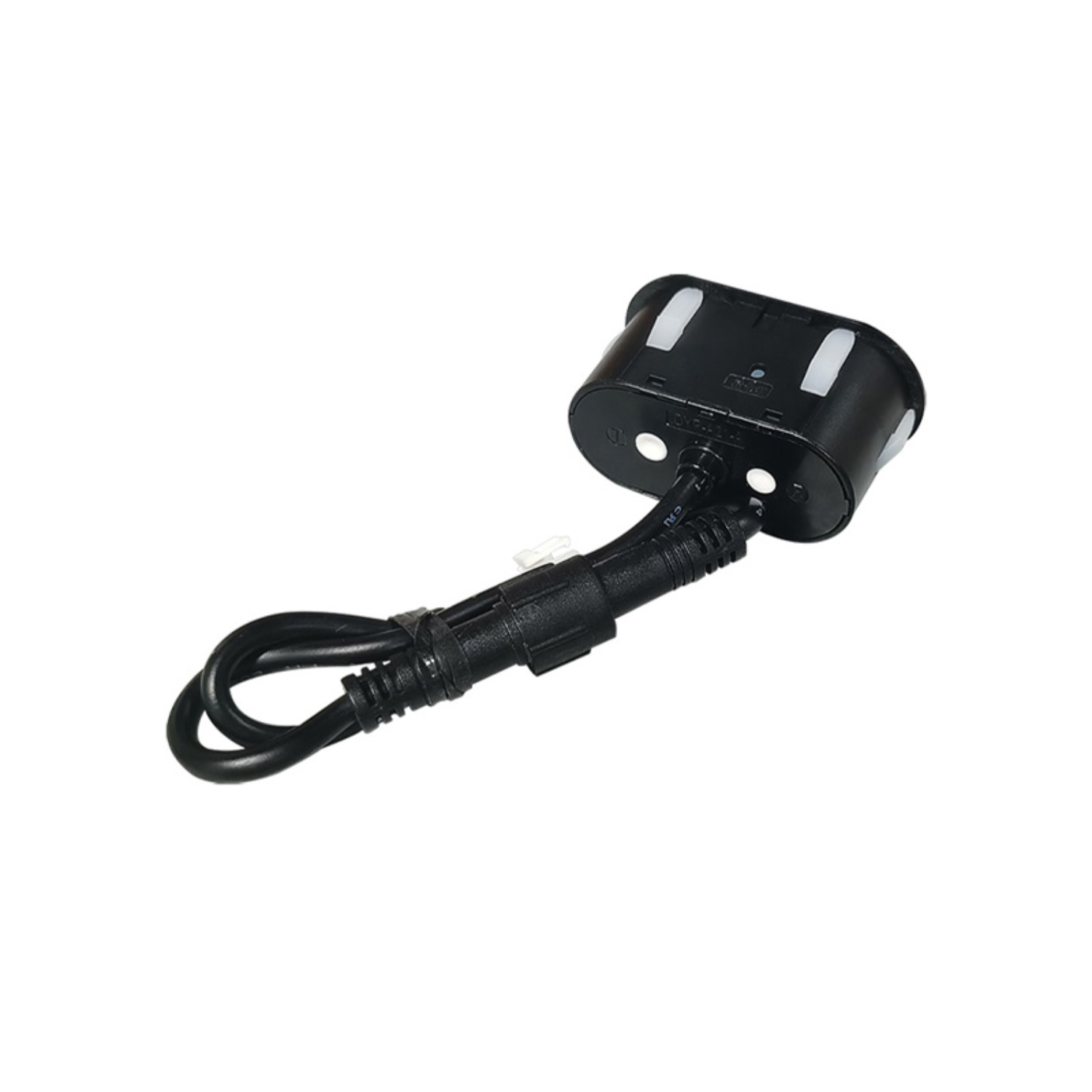

DYP-A21AYYGDW V1.0 TTL Switch Ultrasonic Distance Sensor 3–500cm Obstacle Avoidance Module
DYP-A21AYYGDW V1.0 TTL Switch Ultrasonic Distance Sensor 3–500cm Obstacle Avoidance Module
SKU:
In stock
Regular price
Rs. 2,299.00
Regular price
Sale price
Rs. 2,299.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The A21-module is based on the use of a closed split waterproof probe. IP67 is suitable for harsh environments. The 3cm small blind area is suitable for different detection conditions. It is a simple operation high-performance, high-reliability commercial-grade functional module.
Specifications:
- Model: DYP-A21AYYGDW-V1.0
- Sensor Type: Ultrasonic Obstacle Avoidance
- Range: 3 cm to 500 cm
- Operating Voltage: 5V DC ± 10%
- Current Consumption: < 20 mA (typically)
- Output Type: TTL Level (High and Low Pulse)
- Response Time: < 20 ms
- Measuring Angle: 30°
- Blind Spot: < 3 cm
- Detection Mode: Active (Object Detection)
- Interface: 4-pin connection (VCC, GND, Trigger, Echo)
Features:
- Easy Installation: Simple and user-friendly installation process for quick setup.
- Wide Operating Temperature Range: Performs reliably in extreme temperatures, from -10°C to +60°C.
- Strong Anti-Static Protection: Designed with enhanced anti-static capabilities to ensure stable performance in various environments.
- Ultra-Low Standby Power Consumption: Extremely low power consumption during standby mode, extending battery life and optimizing energy efficiency.
- High Measurement Accuracy: Provides precise distance measurements with a high degree of accuracy (3 cm to 500 cm).
- Stable and Reliable Data Output: Delivers consistent and trustworthy data, even in challenging environments, ensuring optimal sensor performance.
