Description:

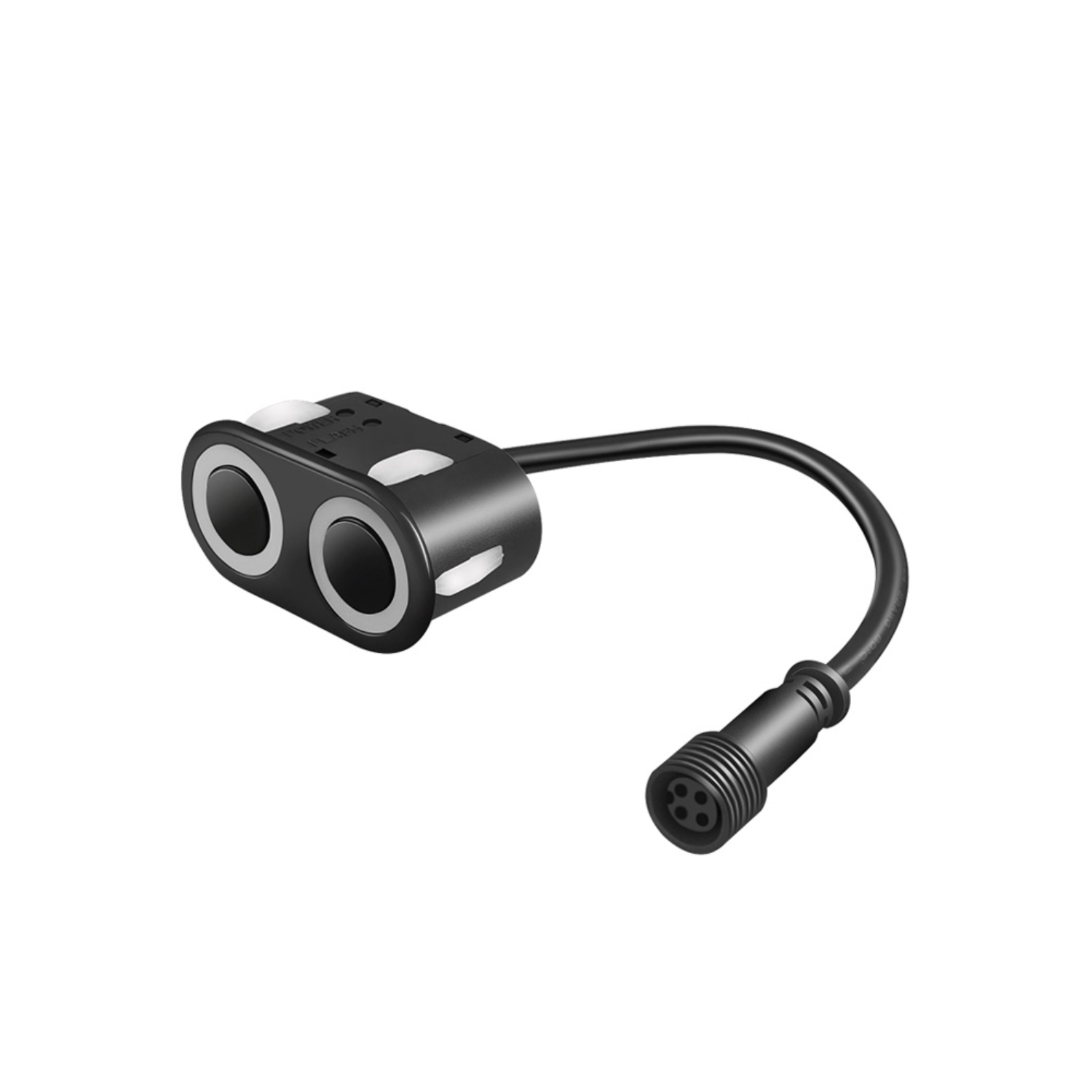

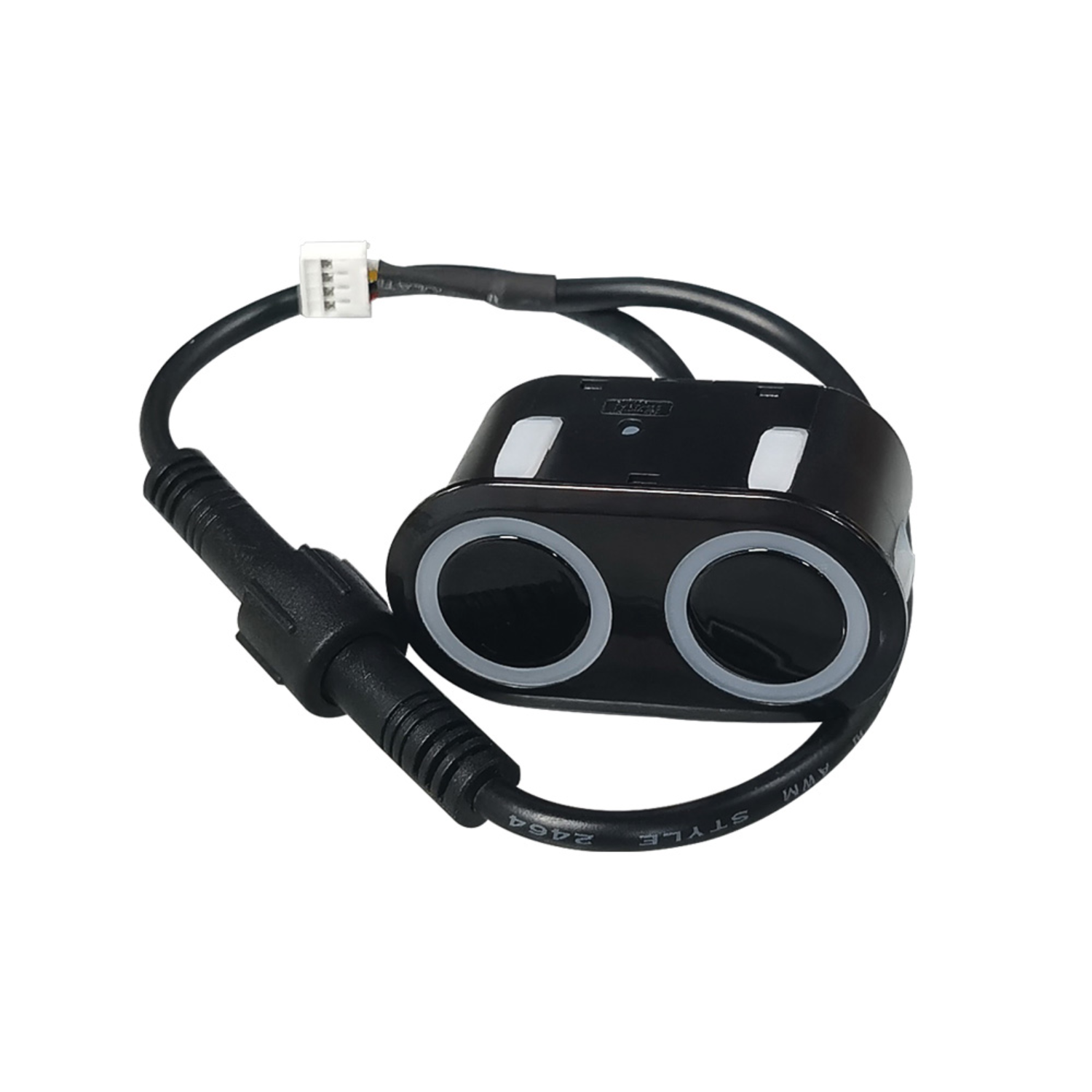

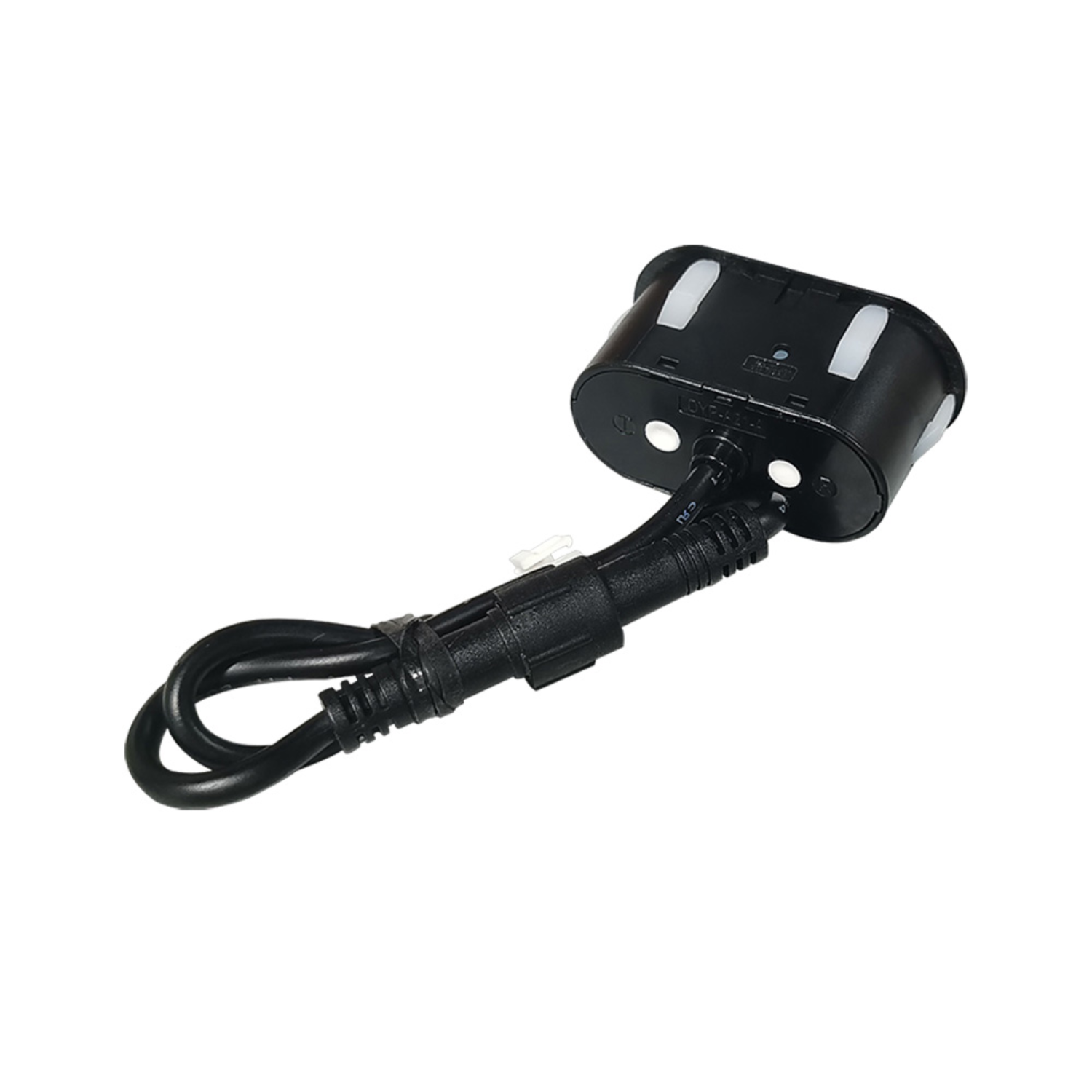

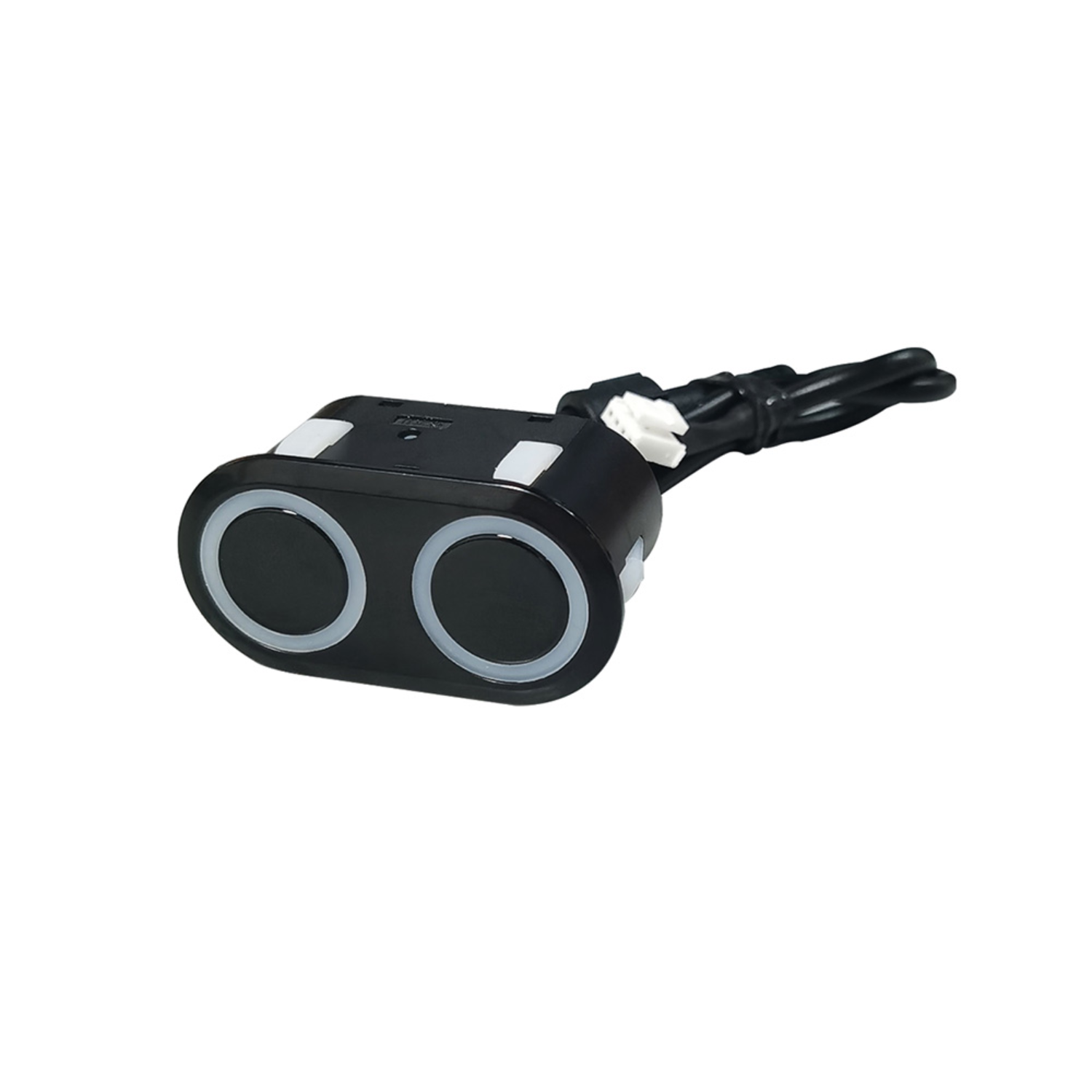

The DYP-A21AYY4W-V1.0 is an advanced ultrasonic obstacle avoidance sensor specifically designed for robotic automation and control applications. Addressing common limitations of traditional ultrasonic sensors, such as large blind spots, narrow measurement angles, slow response times, and poor adaptability for installation, the A21 module offers several key advantages: a small blind spot, a wide measurement angle, fast response time, and high installation flexibility. It also features a dustproof, waterproof design, ensuring reliable performance in harsh environments, with a long lifespan and high reliability.
Specifications:
- Measurement Range: 3 to 500cm
- Model No: A21AYY4W
- Operating Voltage (V): 3.3 to 24
- Accuracy: 1+(Sx 0.3%)
- Working Current (mA): <=10
- Output: controlled
Features:
- Wide Supply Voltage Range: Compatible with a variety of power sources for versatile use.
- Minimal Blind Spot: Optimized for precise detection with a narrow blind zone.
- Multiple Output Options: Flexible output methods to suit different system requirements.
- Customizable Range: Adjustable sensing range to meet specific application needs.
- Adjustable Baud Rate: Supports modification of baud rate for communication speed flexibility.
- Configurable Address: Address modification capability for easy integration into multi-sensor networks.
- Angle Adjustments: Supports angle setting for customized detection direction.
