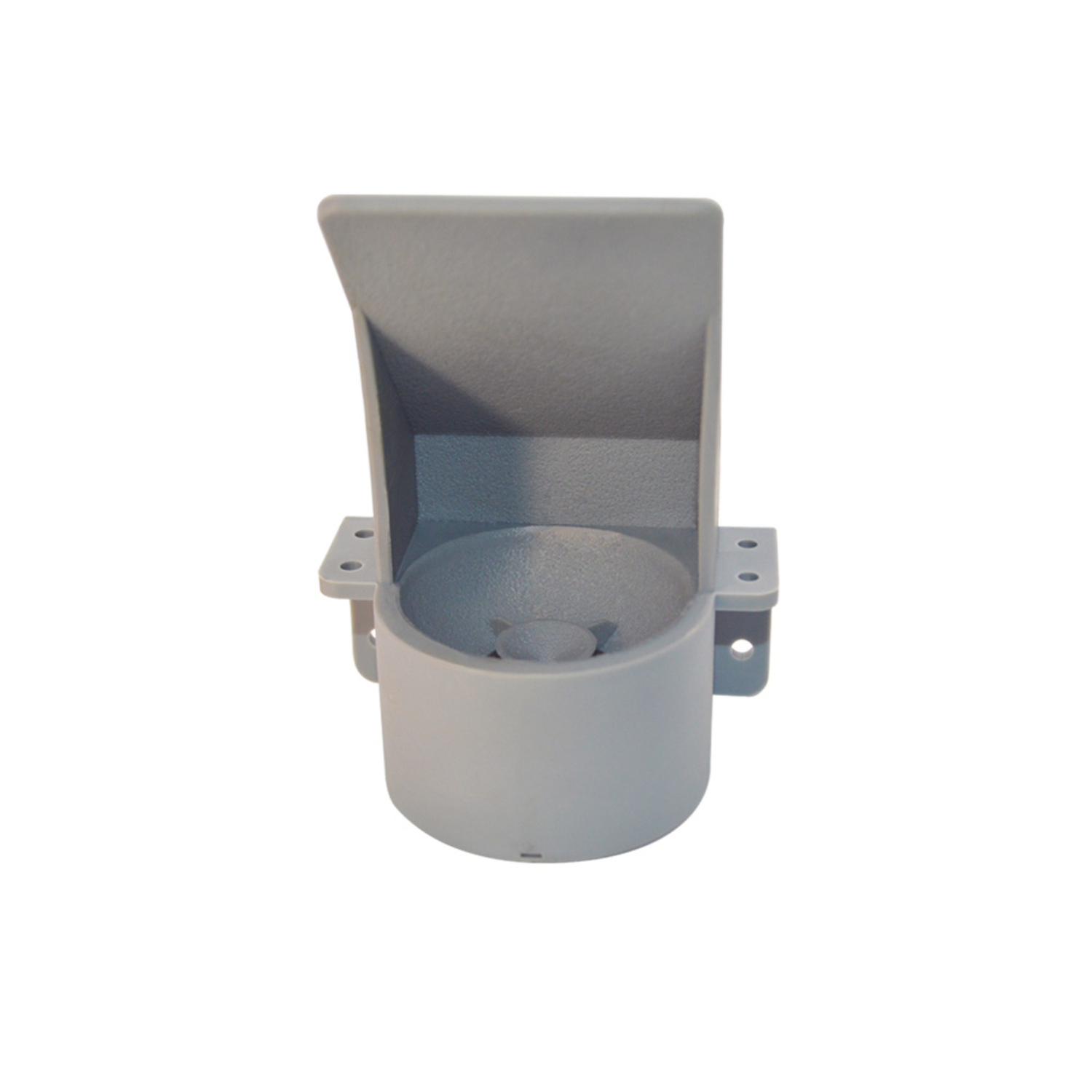

• DYP-A17 Series

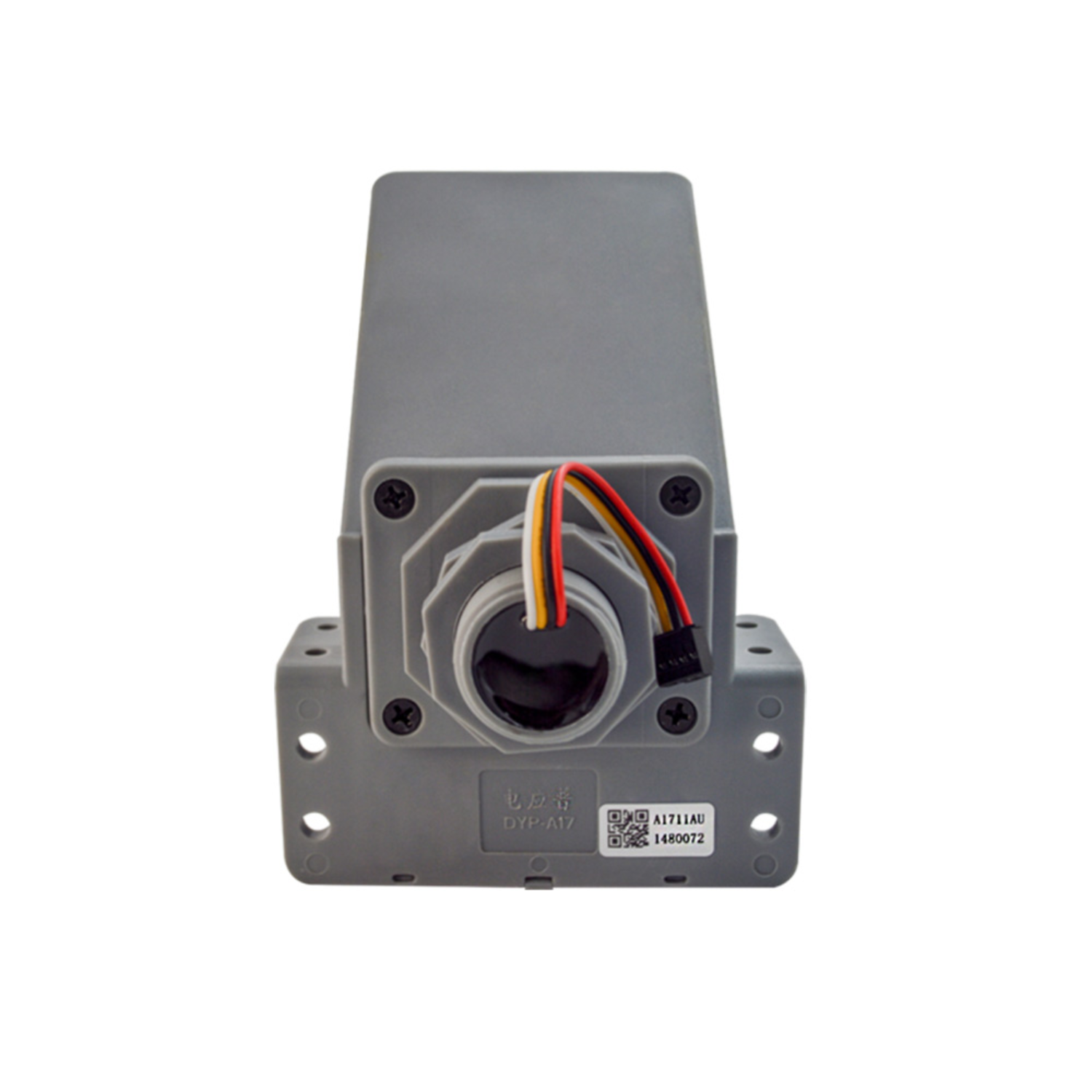

  • 1000cm Measuring Range

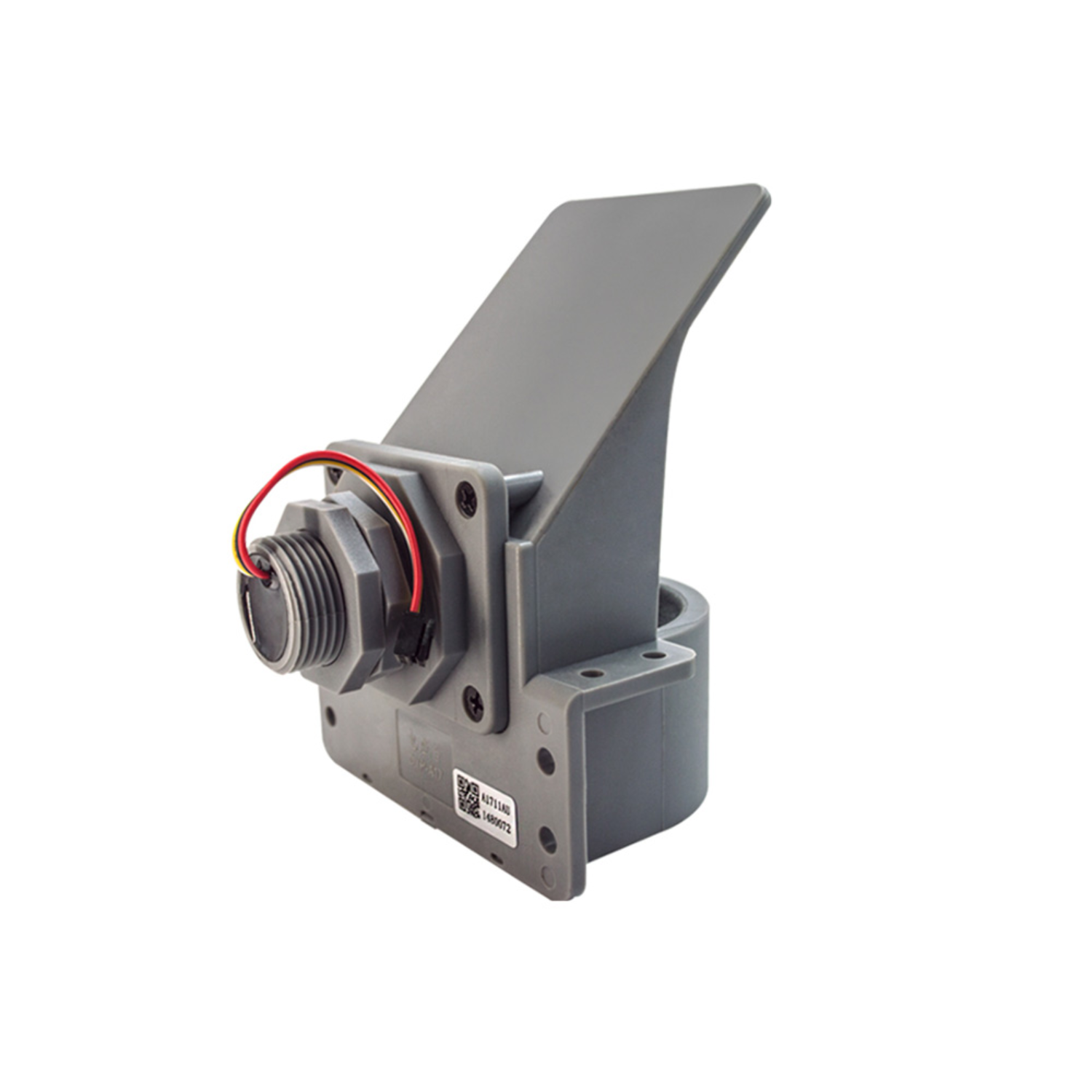

  • Low Power Consumption Sensor

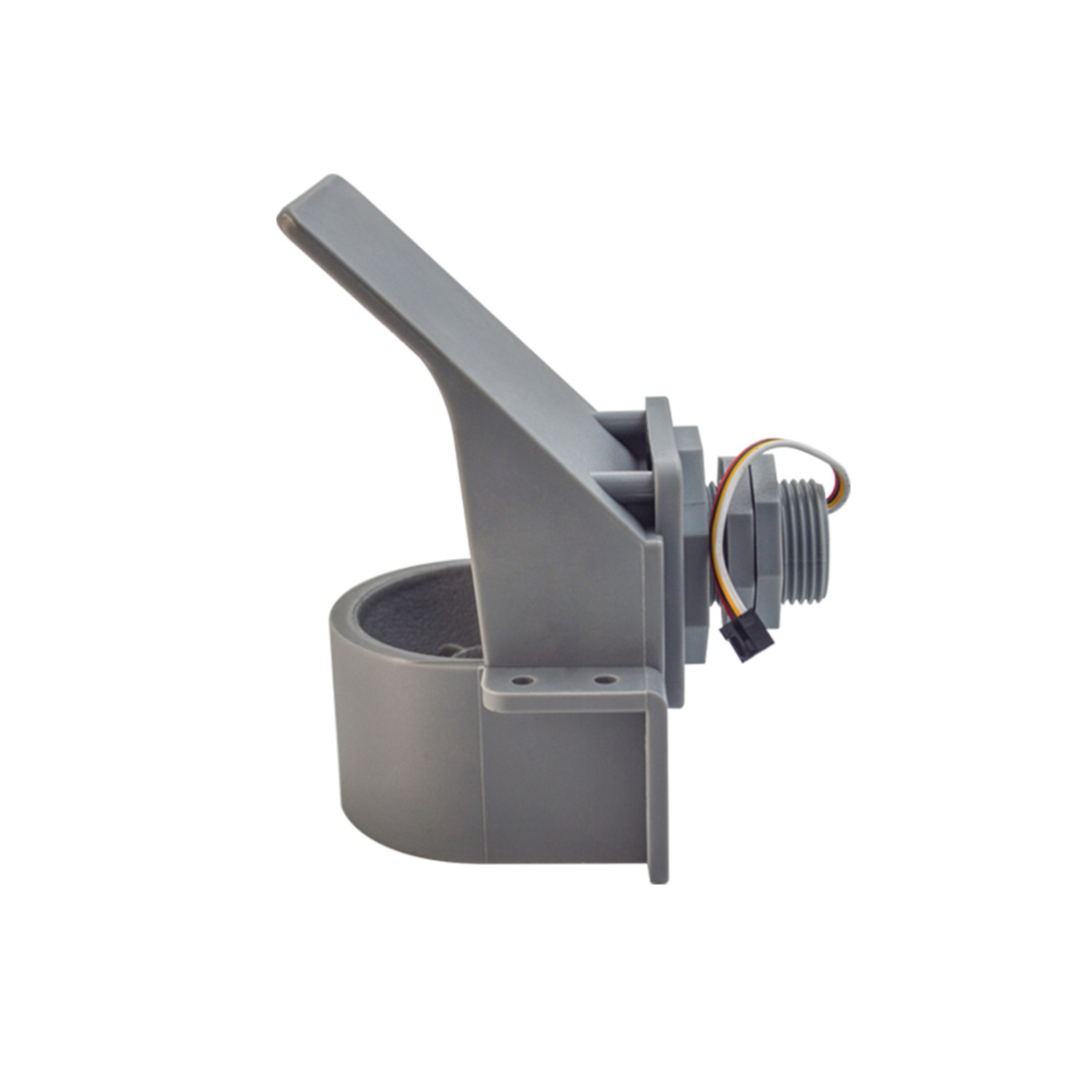

  • PWM Ultrasonic Module
1 4

DYP

DYP-A17NYWW-V1.0 Ultrasonic Water Distance Sensor – 25-1000cm Detection Range With PWM Output

DYP-A17NYWW-V1.0 Ultrasonic Water Distance Sensor – 25-1000cm Detection Range With PWM Output

In stock

Rs. 7,477.00
Rs. 7,477.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DYP-A17NYWW-V1.0 is a high-precision ultrasonic level sensor designed to measure distances in wells, tanks, or other environments where accurate water level detection is crucial. With a measuring range of 25 to 1000 cm, this sensor is ideal for applications such as water level monitoring, liquid detection, and distance measurement.

Specifications:

  • Model Series: DYP A17
  • Model No.: A17NYWWV
  • Measurement Range:  25 to 1000cm
  • Operating Voltage: 3.3 to 5 V
  • Static Current: <10 µA
  • Operating Current: than 15 mA
  • Distance Measure: ~25~1000 cm
  • Accuracy: ±(1+S×0.3%) cm
  • Response Time: 0.9~2.5 s
  • Resolution: 1 cm

Features:

  • Measuring Range: 25-1000 cm with minimal blind zone and high precision (error < 1 cm).
  • High Sensitivity: Controllable beam angle, anti-interference, and accurate target recognition.
  • Multiple Outputs: Supports PWM, UART, and RS485 interfaces for easy integration.
  • Temperature Stability: Internal compensation ensures stable output from -15°C to +60°C.
  • Water Resistance: Anti-condensation design for reliable use in wet conditions.
  • Low Power Consumption: Static current is less than 10 µA, and operating current is less than 15 mA.
  • Wide Voltage Range: Operates on 3.3-5.0V DC input.
  • Durability: Antistatic protection and remote firmware updates for lasting performance.

Applications:

  • Water Level Monitoring: Ideal for tracking water levels in wells, tanks, and reservoirs.
  • Liquid Sensing: Can be used in various liquid measurement applications, such as fuel and chemical tanks.
  • Distance Sensing: Suitable for distance measurement in robotics, industrial automation, and other distance-based sensing tasks.

Package Included:

1 x DYP-A17NYWW-V1.0 Ultrasonic Water Distance Sensor – 25-1000cm Detection Range
