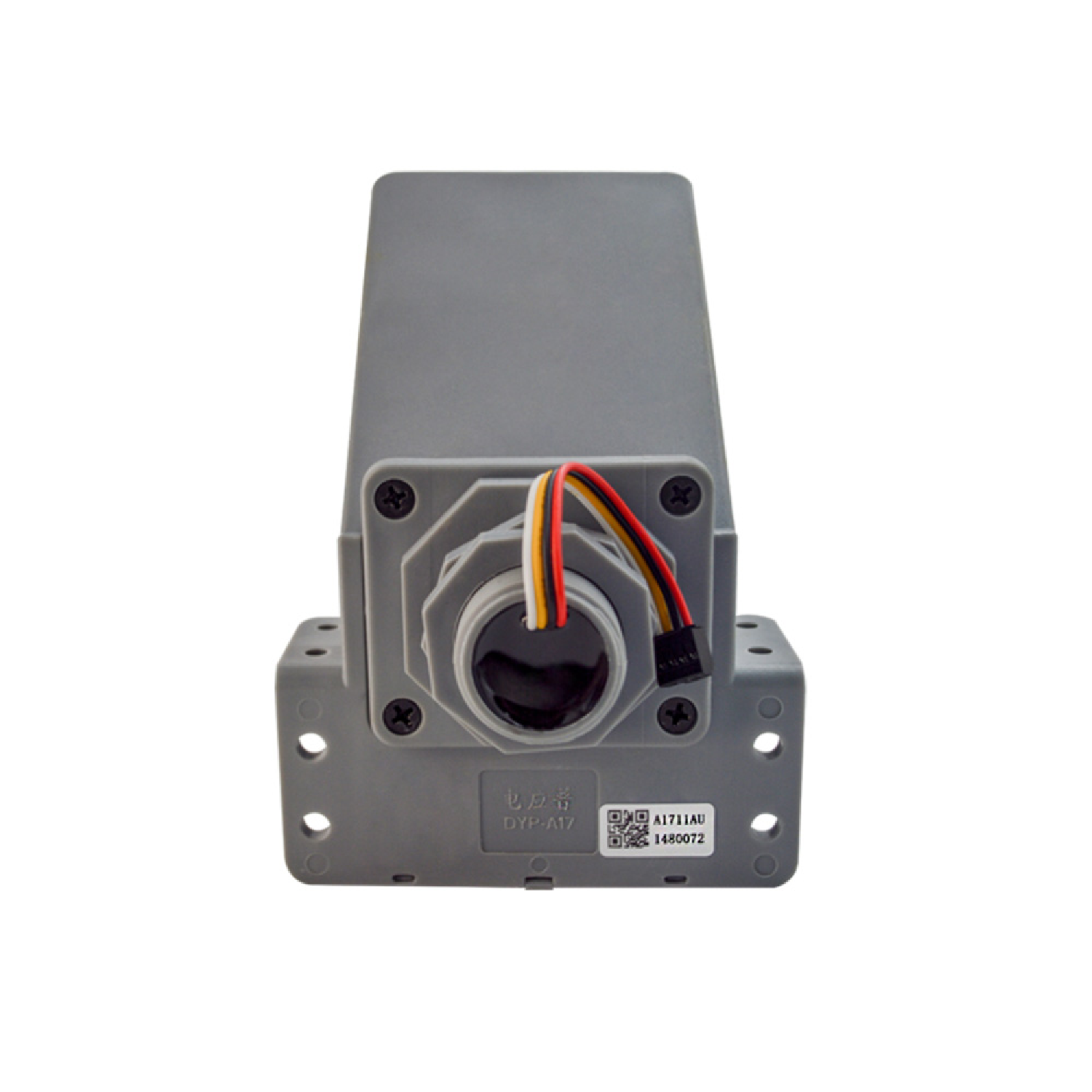

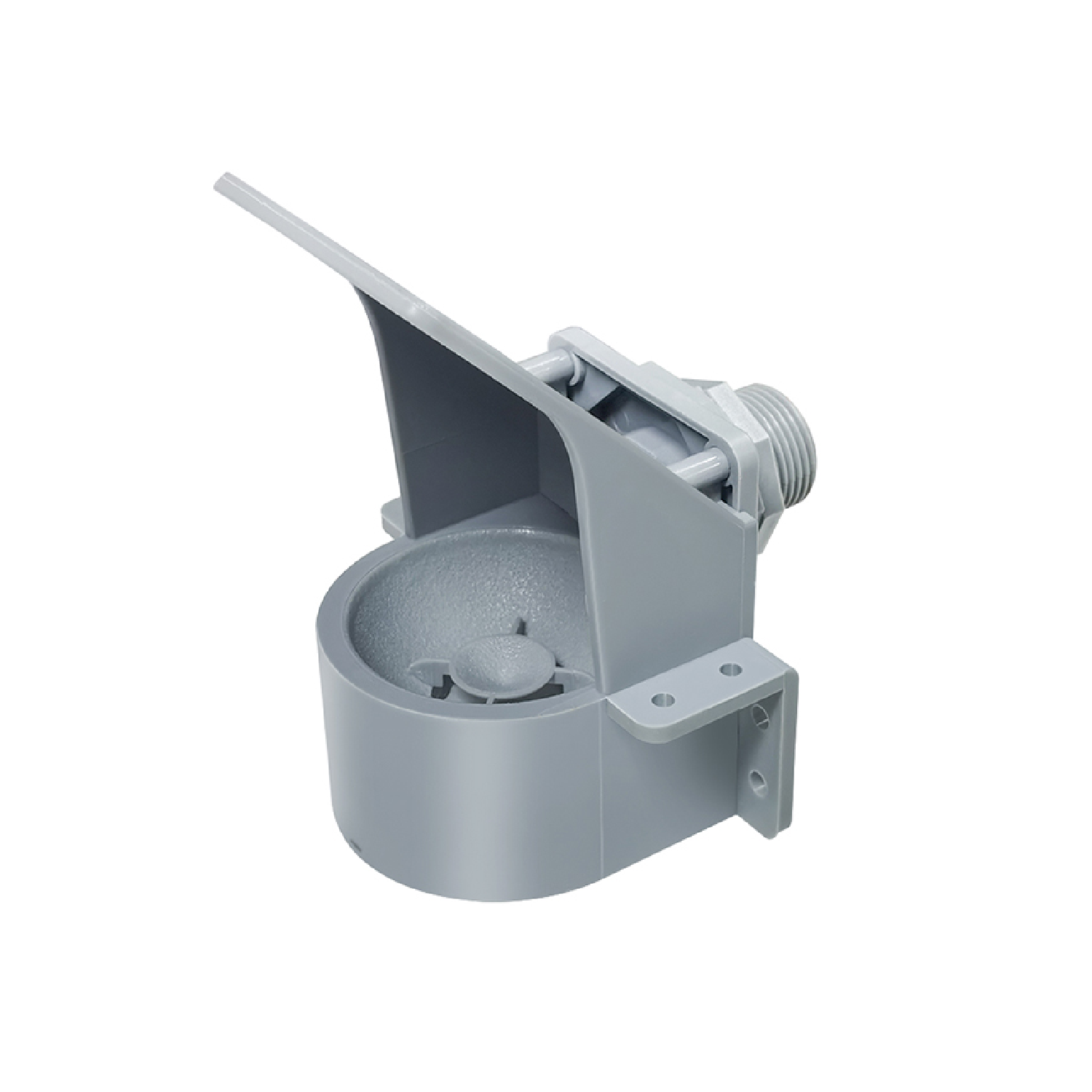

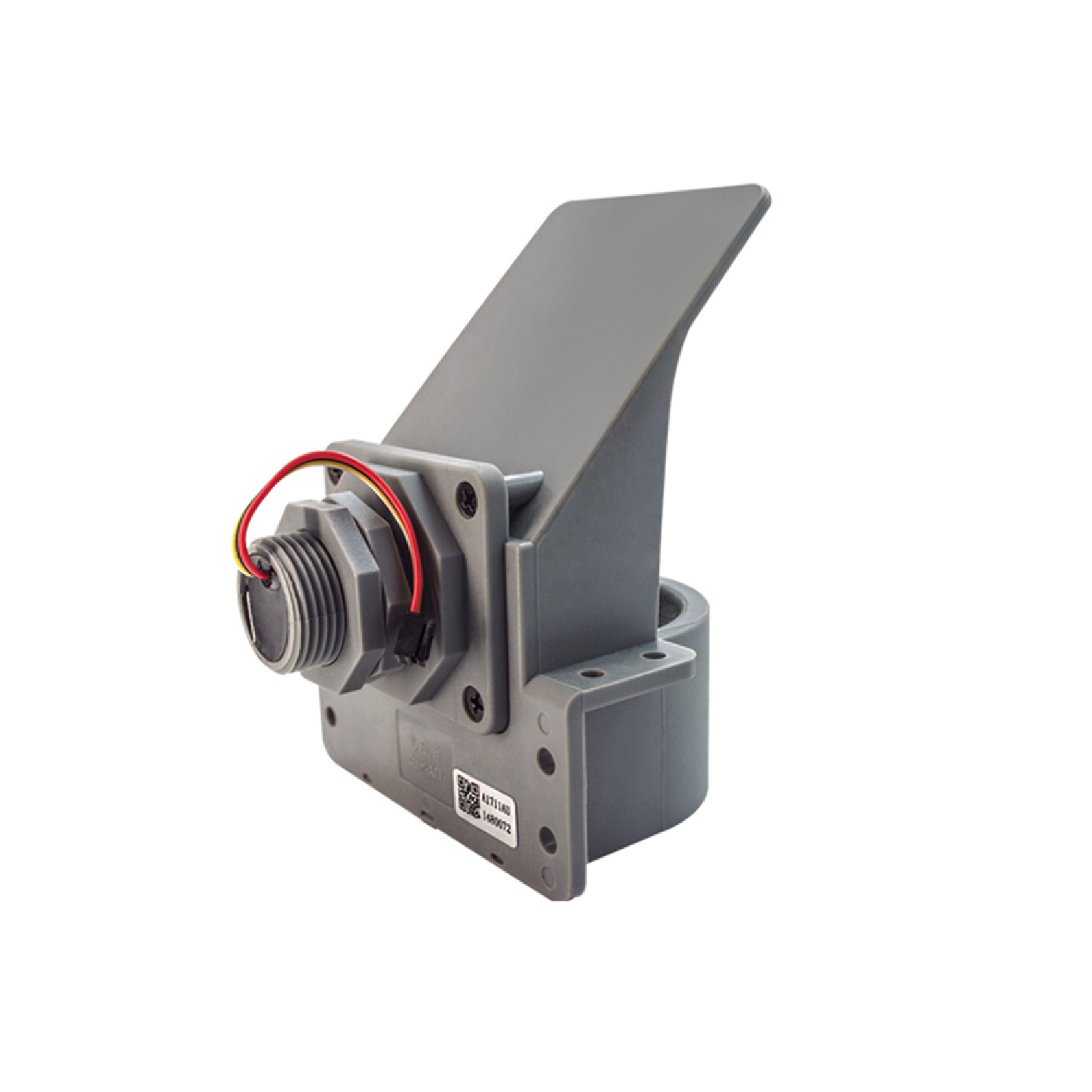

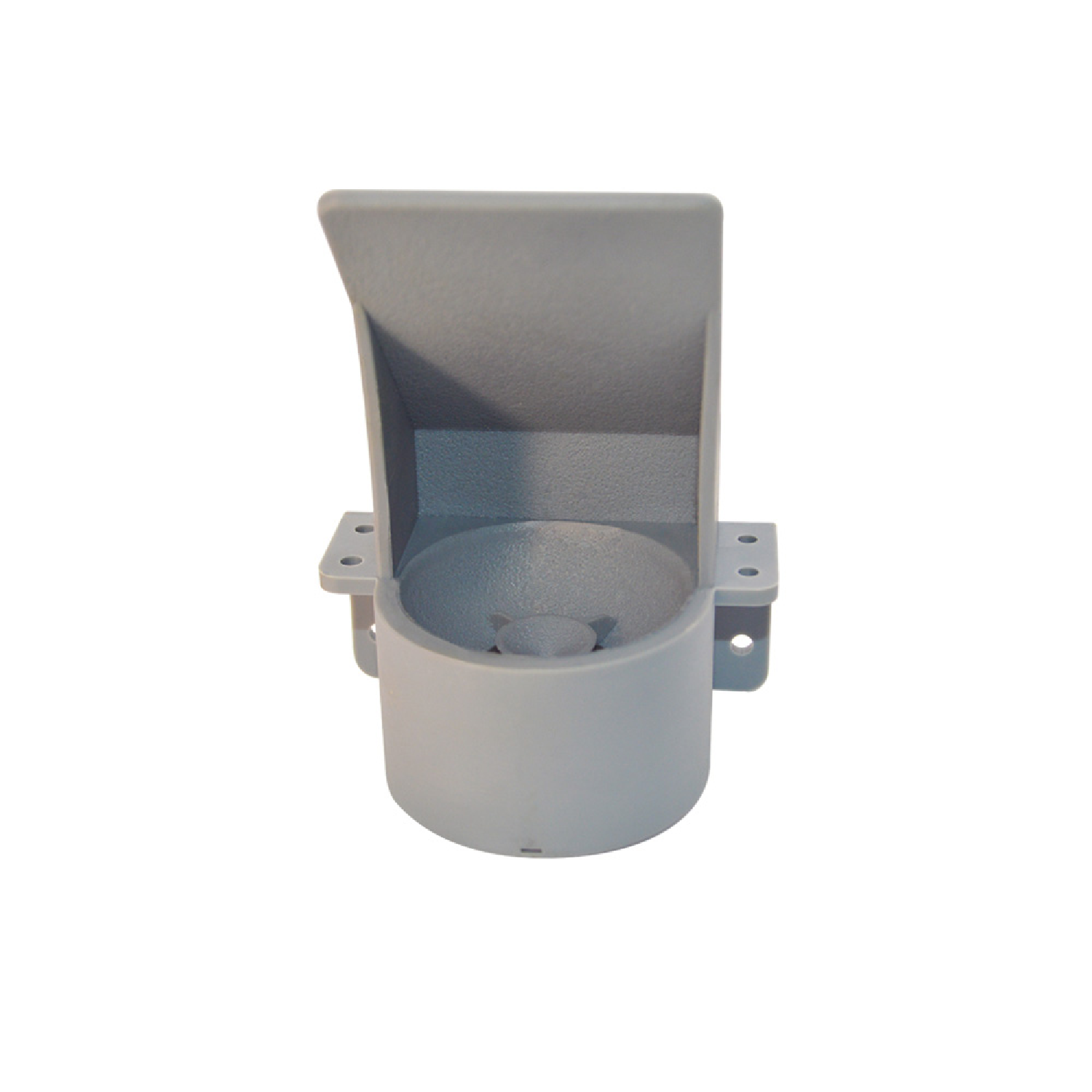

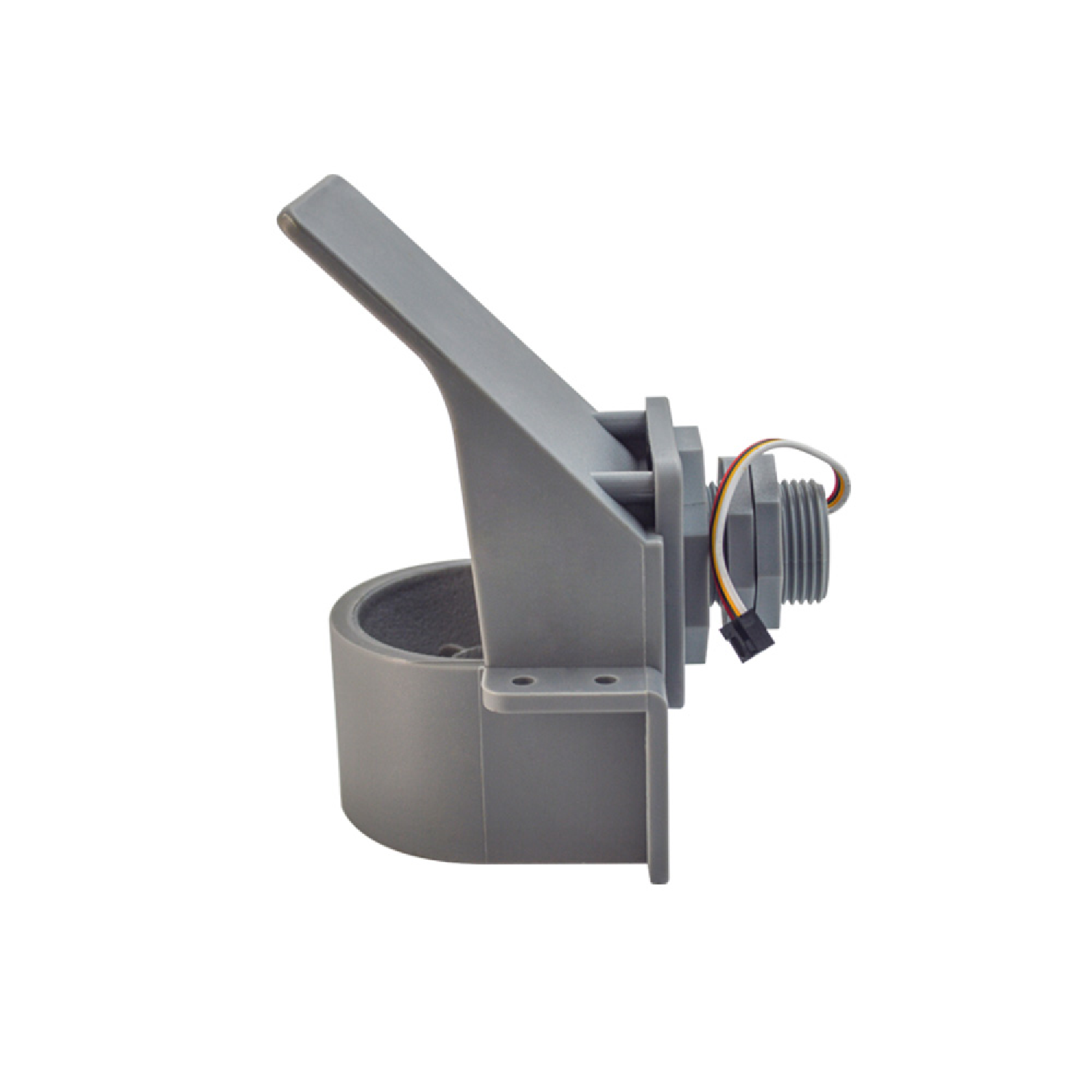

DYP-A17NY4W-V1.0 RS485 Ultrasonic Well Level Sensor With 25–1000cm Range For Non-Contact Water & Liquid Level Monitoring
DYP-A17NY4W-V1.0 RS485 Ultrasonic Well Level Sensor With 25–1000cm Range For Non-Contact Water & Liquid Level Monitoring
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The DYP-A17NY4W-V1.0 RS485 Ultrasonic Well Level Sensor offers high-performance, accurate water level detection for wells, tanks, and liquid measurement systems. Built for long-lasting durability in harsh environments, this sensor delivers precise, stable readings even under challenging conditions.
Whether you're involved in water management, industrial automation, or agricultural systems, the DYP-A17NY4W-V1.0 offers a cost-effective, dependable solution for accurate water level detection.
Specifications:
- Model No: A17NY4WV
- Operating Voltage: 3.3 to 5V
- Measurement Range: 25 to 1000cm
- Accuracy: ±(1+S×0.3)% cm
- Operating Current: < 15m A
- Static Current: <10 uA
- Distance Measure: ~25~1000cm
- Response Time: 0.9~2.5
- Resolution:1cm
Features:
- Wide Range: Measures from 25 cm to 1000 cm with a minimal blind zone and long detection distance.
- High Accuracy: Error < 1 cm for precise distance measurements.
- Flexible Power: Works with 3.3V - 5.0V input for versatile power options.
- Temperature Stability: Operates reliably from -15°C to +60°C.
- Multiple Control Modes: Supports PWM, UART Auto, UART Controlled, and RS485 Controlled.
- Anti-Interference: High sensitivity and strong resistance to interference.
- Energy Efficient: Static current < 10 µA and operating current < 15 mA
- Condensation Protection: Reduces condensation for better reliability.
- Electrostatic Protection: Compliant with IEC 61000-4-2 standard.
Package Included:
1 x DYP-A17NY4W-V1.0 RS485 Ultrasonic Well Level Sensor With 25–1000cm Range
