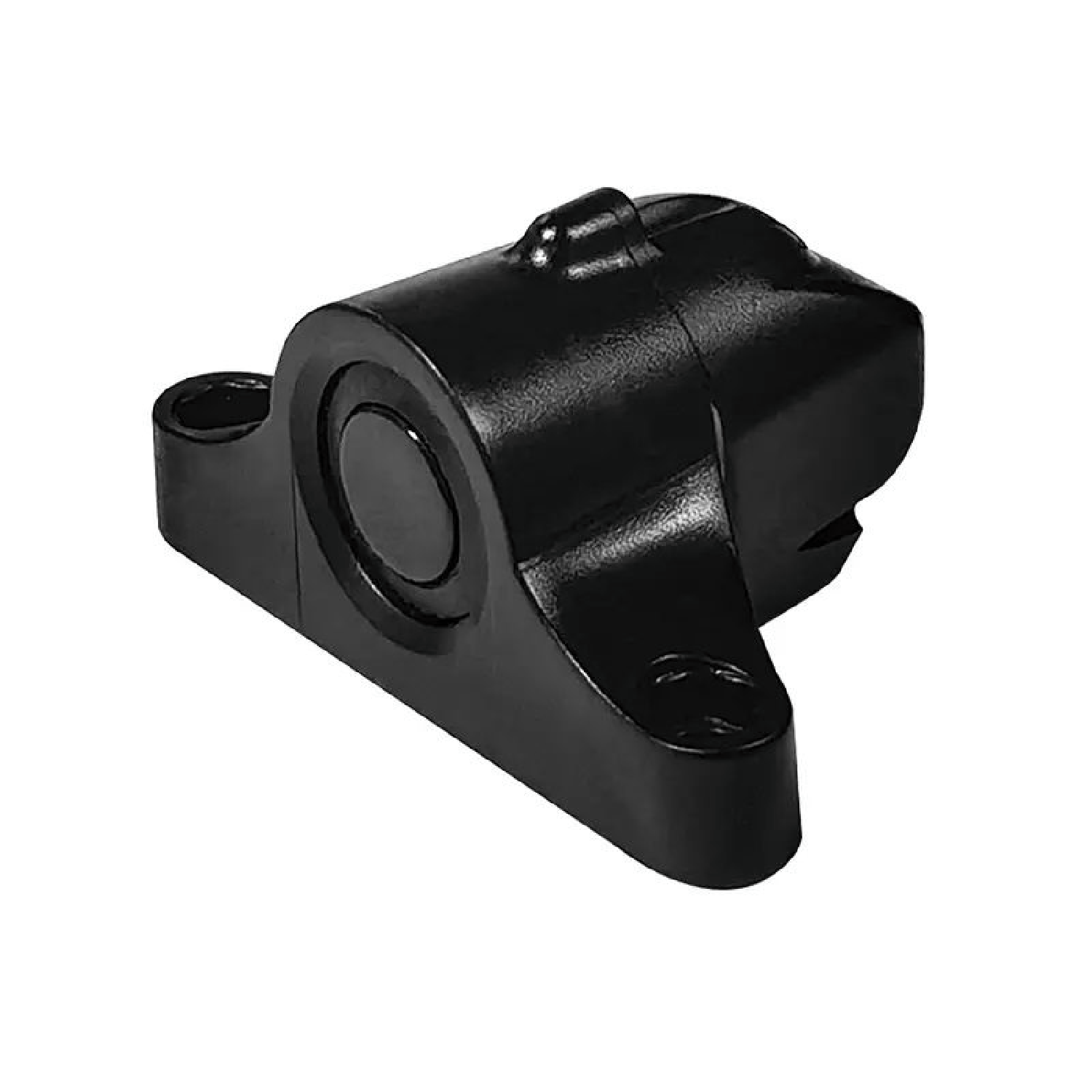

DYP-A10ANYUW-V1.0 Ultrasonic Precision Rangefinder 25–450cm UART Auto Sensor

DYP-A10ANYUW-V1.0 Ultrasonic Precision Rangefinder 25–450cm UART Auto Sensor

In stock

Rs. 1,249.00
Rs. 1,249.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DYP-A10ANYUW-V1.0 Ultrasonic Distance Sensor delivers high-precision measurement from 25 cm to 450 cm, making it ideal for robotics, automation, and smart parking systems. Designed with a waterproof ultrasonic transducer and advanced ranging algorithm, it ensures stable and reliable performance even in challenging environments. The built-in automatic temperature compensation enhances accuracy across varying conditions, while UART automatic output simplifies integration with microcontrollers. Operating on a low power supply (3.3V–5.0V), this compact sensor is perfect for embedded systems requiring efficiency and precision.

Specification:

  • Resolution: 1mm
  • Various interface output formats: UART Automatic, UART Control, PWM, Switch
  • Flat-range mode dead zone: 25cm
  • People detection mode dead zone: 28cm
  • Max ranging measurement: 450cm
  • Working voltage: 3.3-5.0 Vdc
  • Low average current requirement: 10.0 mA
  • Controlled output static current: < 10 uA
  • Flat object measurement accuracy: ±(1+S*0.5%), where S equals measuring distance
  • Operational temperature -15°C to +60°C
  • Protection: IP67

Features:

  • 25–450 cm Long Range Sensing – Accurate distance measurement for robotics and automation
  • UART Auto Interface – Simple plug-and-play communication with microcontrollers
  • High Precision Accuracy—Millimeter-level stable and reliable readings
  • Temperature Compensation – Maintains accuracy in changing environmental conditions
  • Low Power Consumption – Ideal for battery-powered and embedded systems
  • Wide Voltage Support (3.3V–5.0V) – Easy compatibility with most controllers
  • Fast & Stable Output – Real-time distance detection with minimal delay
  • IP67 Waterproof Design – Reliable performance in outdoor and harsh environments
  • Compact Size – Easy integration into tight or space-limited projects
  • Simple Setup – No complex calibration or configuration required

Package Included:

1 x DYP-A10ANYUW-V1.0 Ultrasonic Precision Rangefinder
