DYP

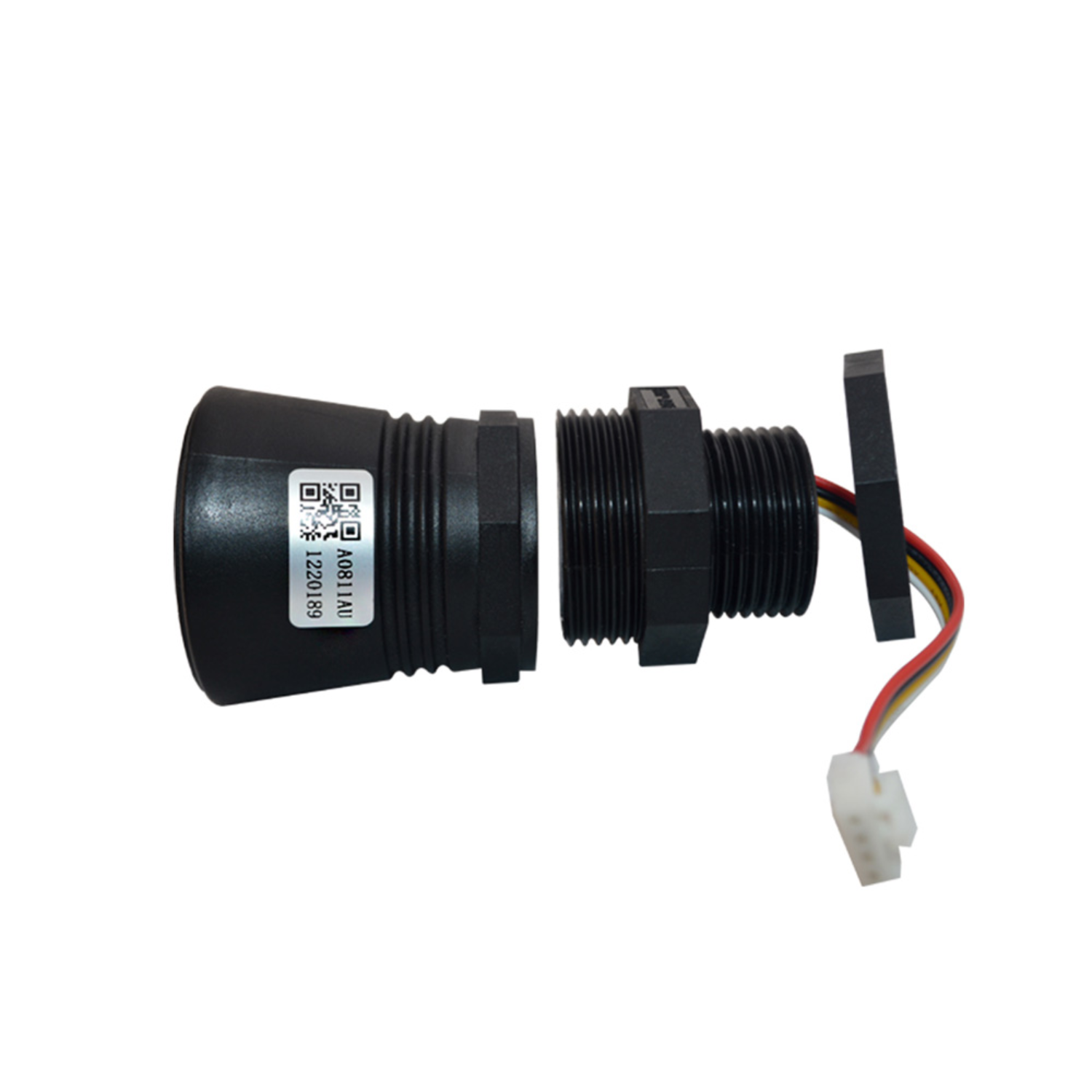

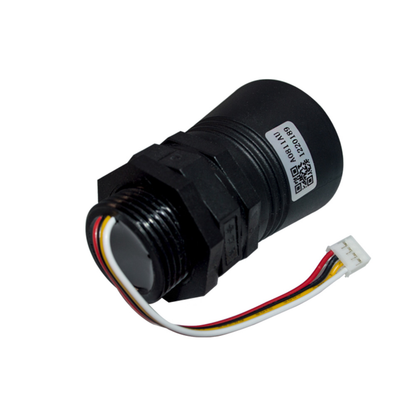

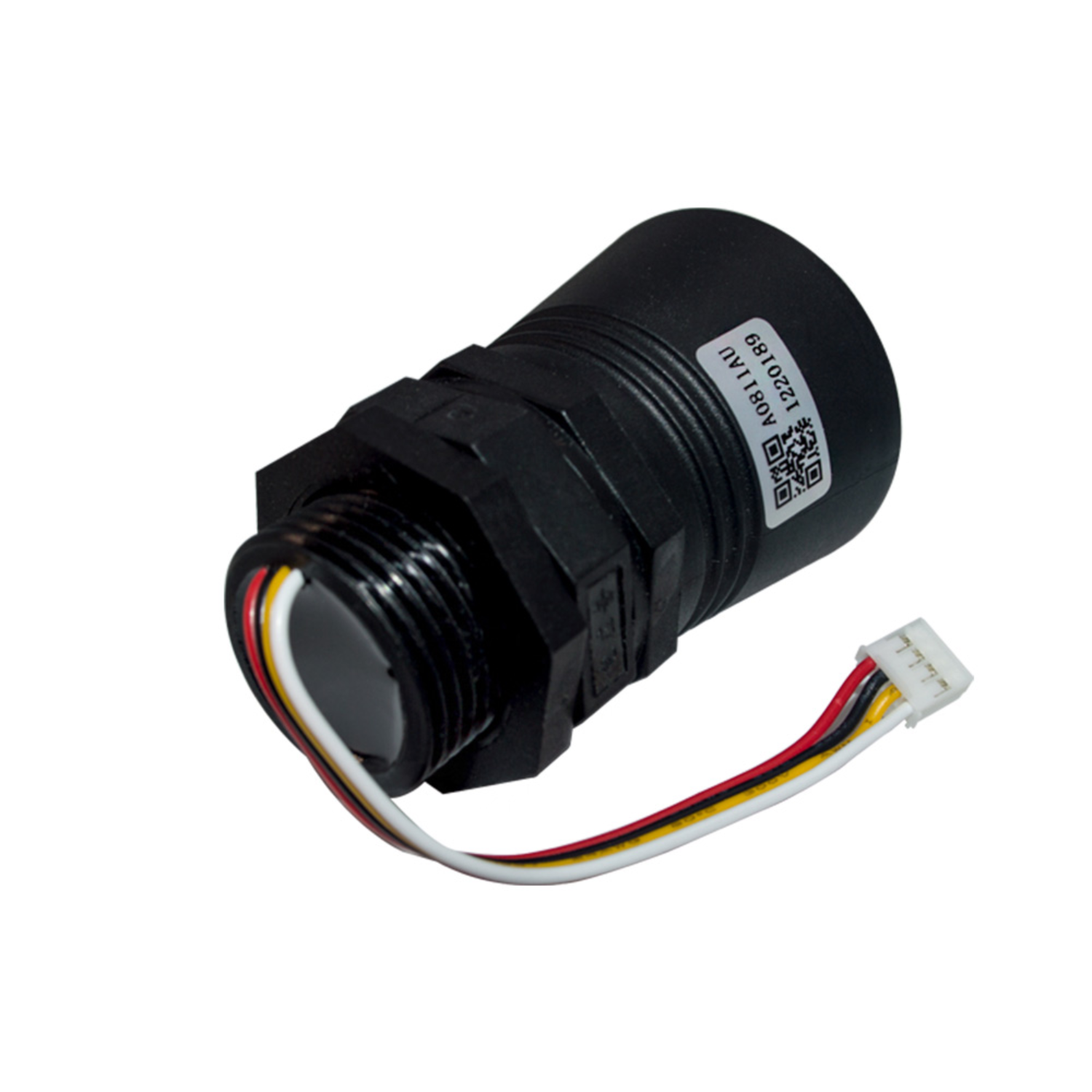

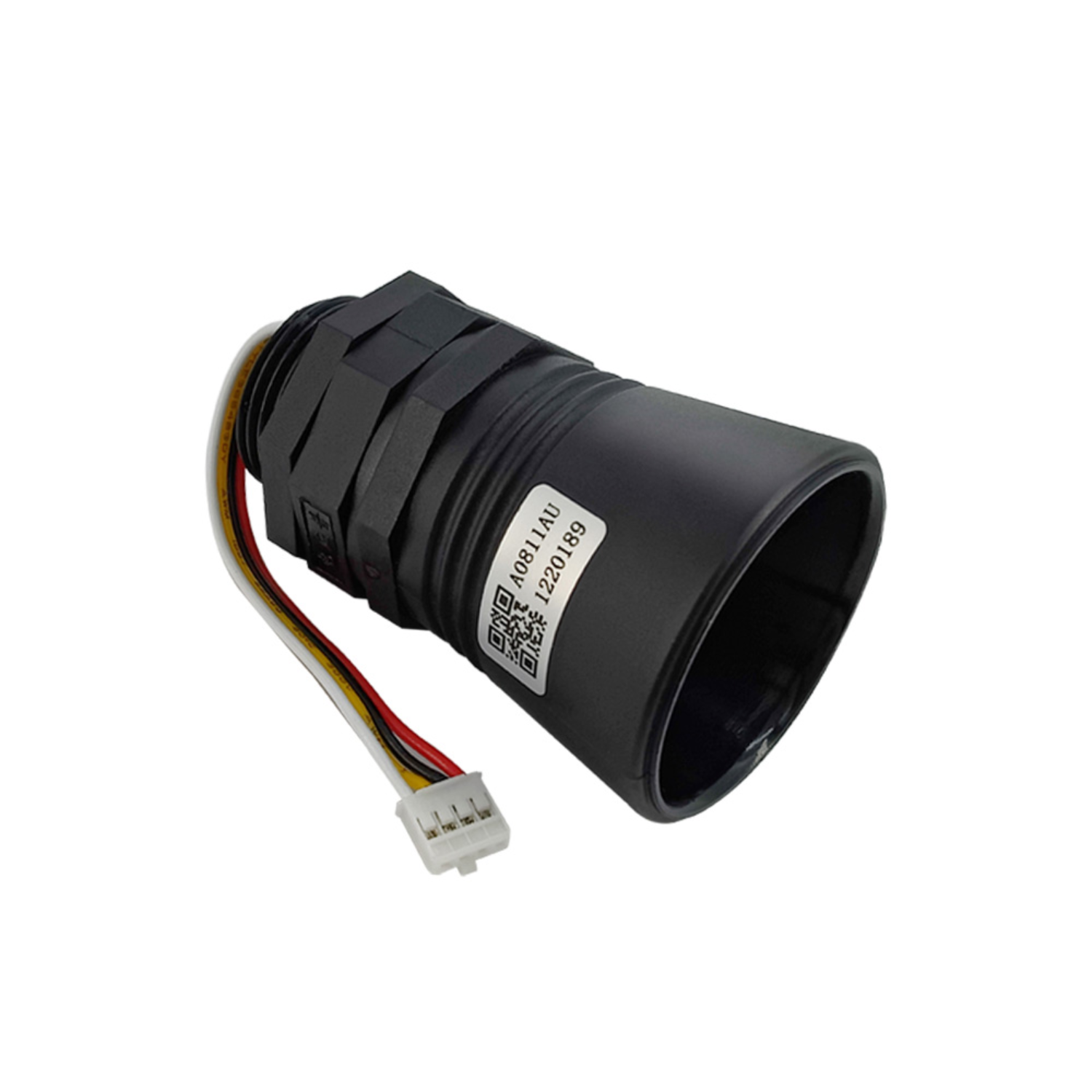

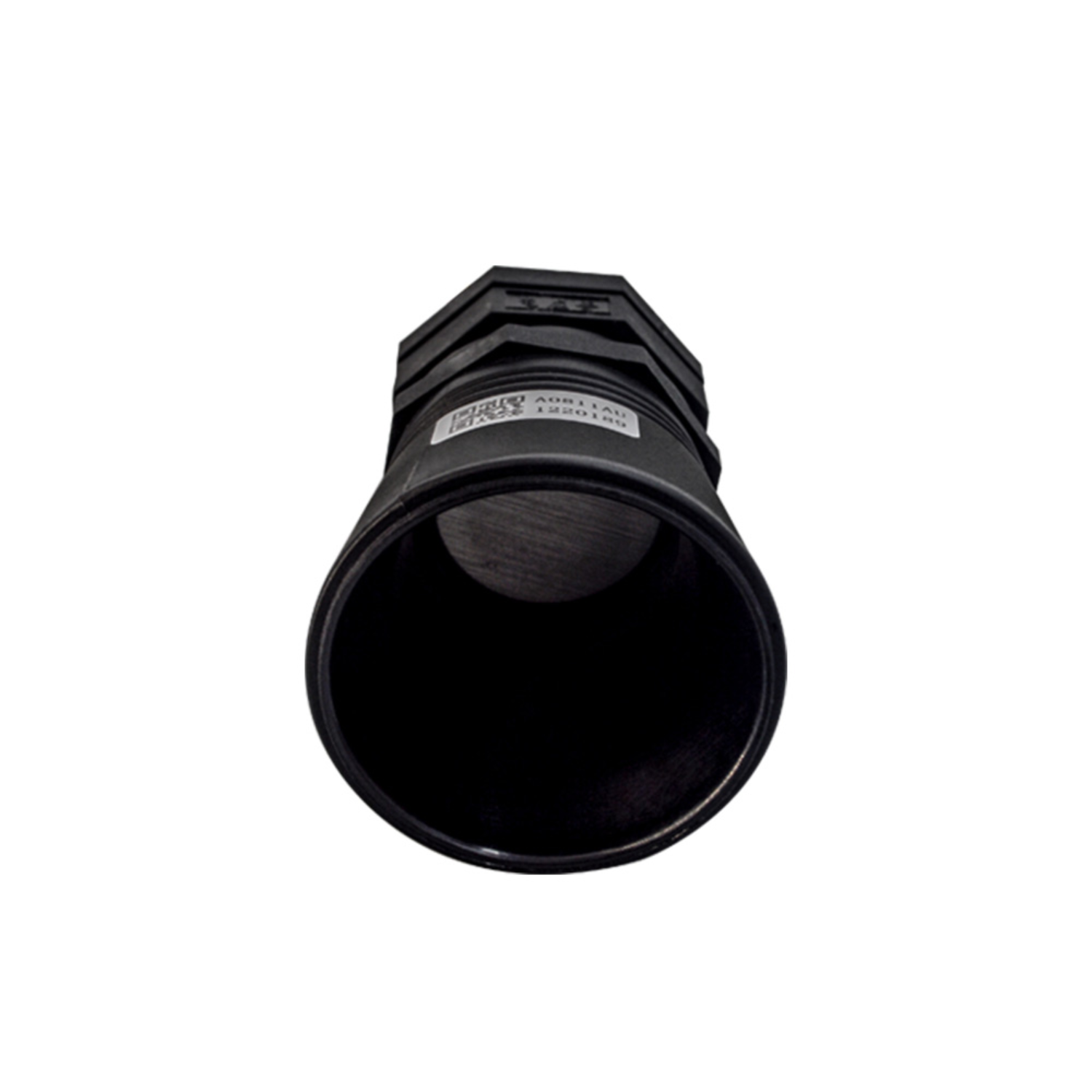

DYP-A08BNYTB-V1.0 Waterproof Ultrasonic Sensor Module 25–500cm Distance & Level Measurement Module

DYP-A08BNYTB-V1.0 Waterproof Ultrasonic Sensor Module 25–500cm Distance & Level Measurement Module

In stock

Rs. 4,320.00
Rs. 4,320.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DYP-A08 Ultrasonic Precision Distance Sensor is a high-performance ultrasonic precision distance measuring sensor designed for accurate and stable non-contact distance and liquid level detection. Engineered for industrial and environmental monitoring applications, it delivers reliable performance in a wide range of scenarios, including river water level monitoring, sewer and drainage systems, tank level measurement, and automated control systems.

Specifications:

  • Measurement Range: 25 to 500cm
  • Model Series: DYP A08
  • Model No: A08BNYTBV
  • Operating Voltage: 3.3 to 5V
  • Static Current: <5 uA
  • Operating Current: <15mA
  • Distance Measure: 25~500cm
  • Accuracy: ±(1+S×0.3%)

Features:

  • High-Precision Algorithm – Minimum measurement error less than 10 mm.
  • Adjustable Detection Angle—High sensitivity with strong anti-interference capability.
  • True Target Recognition—Built-in algorithm for accurate object identification.
  • Intelligent Transducer Matching—Automatically optimizes the ultrasonic transducer for consistent performance.
  • Selectable Measurement Modes—Supports detection for the human body, flat surfaces, and waste bin level monitoring.
  • Multiple Output Options—PWM, UART, and SWITCH interfaces available.
  • Temperature Compensation – Stable output from -15°C to +60°C.
  • Low Power Design – Operating current <15 mA, static current <5 µA

Package Included:

1 x DYP-A08BNYTB-V1.0 UART-controlled Waterproof Ultrasonic Level Sensor
