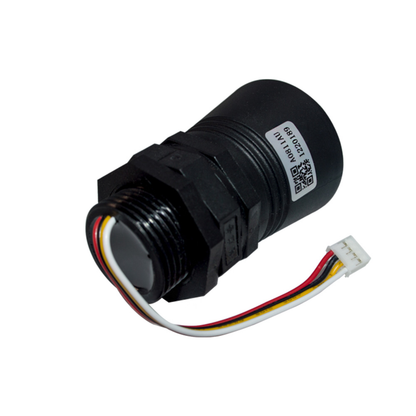

DYP-A08ANYWB-V1.0 Waterproof Ultrasonic Sensor 25-800cm Range With PWM Output For Measurement

DYP-A08ANYWB-V1.0 Waterproof Ultrasonic Sensor 25-800cm Range With PWM Output For Measurement

In stock

Rs. 3,574.00
Rs. 3,574.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DYP-A08ANYWB-V1.0 PWM Waterproof Ultrasonic Sensor offers accurate distance measurements (25-800cm range) with low power consumption. Built with a high-performance processor and durable, waterproof transducer, it ensures stable, long-lasting performance in various environments. Perfect for precise level sensing in industrial, robotics, and automation applications.

Specifications:

  • Measurement Range: 25 to 800cm
  • Model Series: DYP A08
  • Model No: A08ANYWBV
  • Static Current: <5 µA
  • Accuracy:  ±(1+S×0.3%)
  • Distance Measure: ~25–800 cm
  • Operating Current: < 15 mA
  • Operating Voltage: 3.3 to 5  (V)

Features:

  • High Precision: <10mm error with intelligent signal processing.
  • Extended Range: 25-800cm with a small blind zone and adjustable measuring angle.
  • Low Power Consumption: Operating current is less than 15 mA, and static current is less than 5 µA.
  • Versatile Measurement Modes: Suitable for the human body, flat objects, and waste bin levels.
  • Multiple Output Interfaces: PWM, UART, and SWITCH for flexible integration.
  • Anti-Static Design: Compliant with IEC61000-4-2 for enhanced stability.
  • Wide Temperature Range: Operates from -15°C to +60°C.
  • High Target Recognition: Ensures reliable measurements in varied environments.

Package Included:

1 x DYP-A08ANYWB-V1.0 Waterproof Ultrasonic Sensor 25-800cm Range
