DYP-A05LY4-V1.1 RS485 Ultrasonic Distance Sensor 25–450cm Range Industrial Ultrasonic Rangefinder

DYP-A05LY4-V1.1 RS485 Ultrasonic Distance Sensor 25–450cm Range Industrial Ultrasonic Rangefinder

In stock

Rs. 2,500.00
Rs. 2,500.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

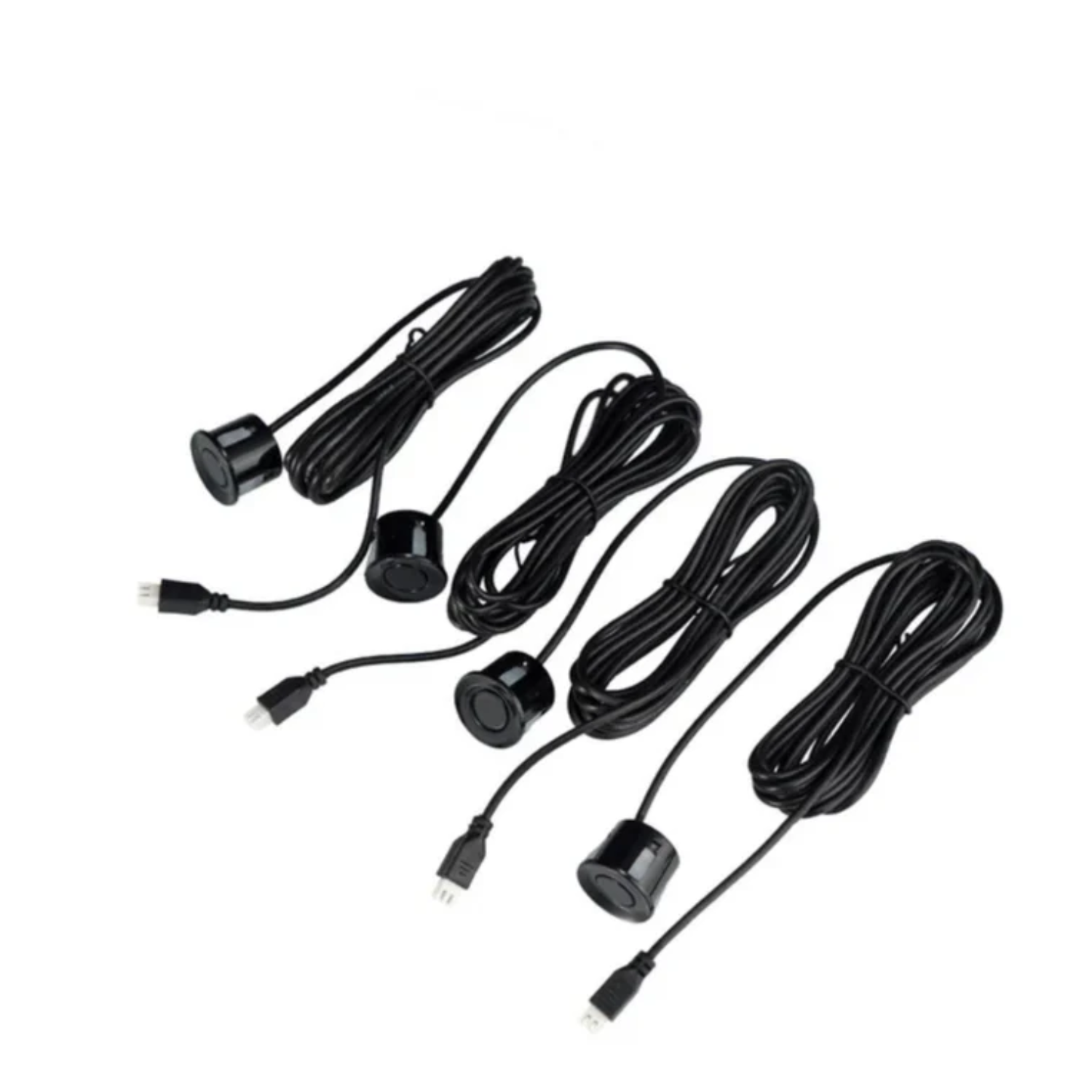

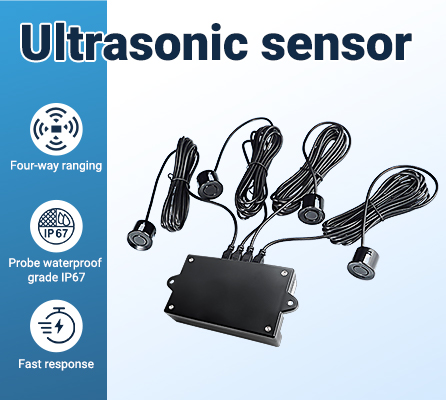

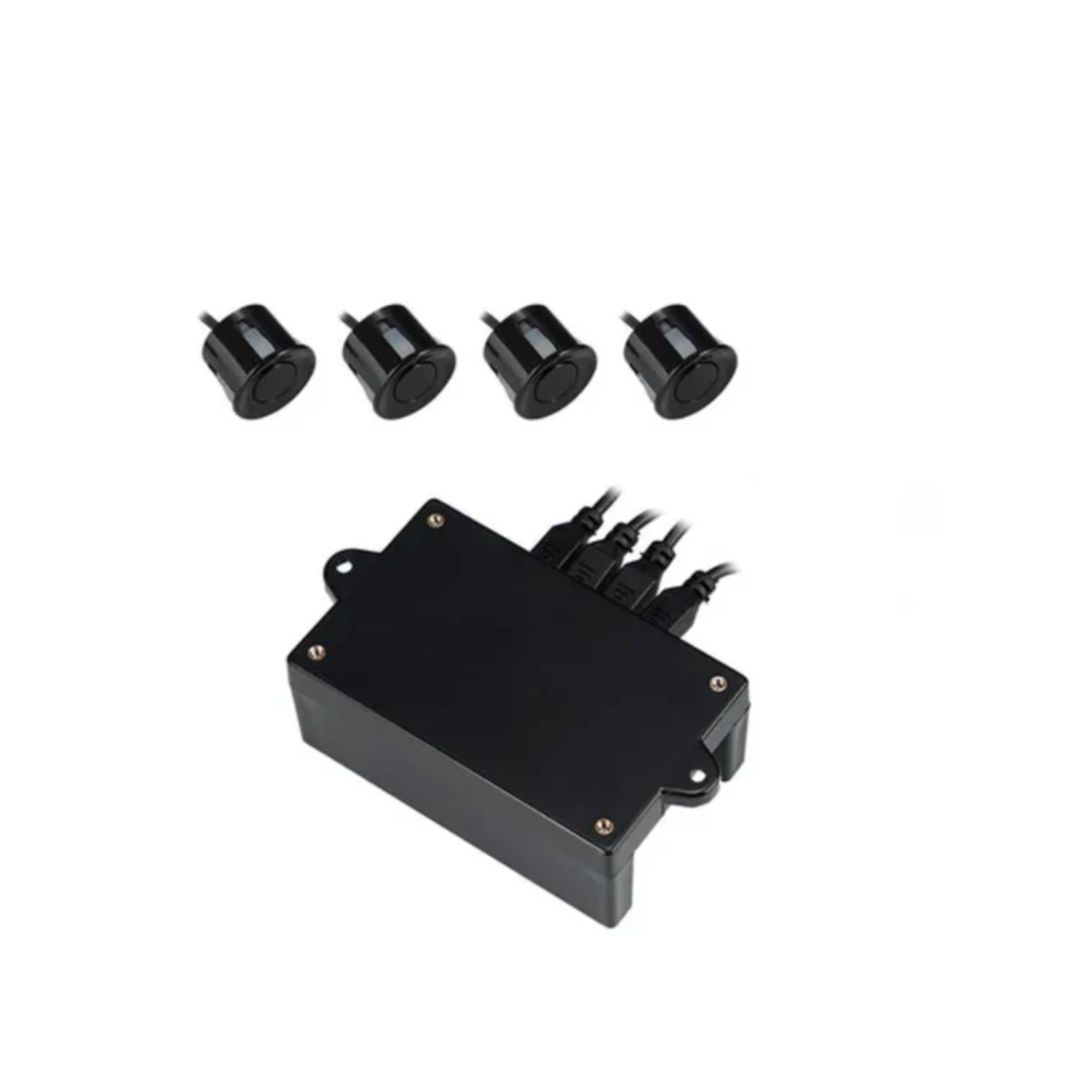

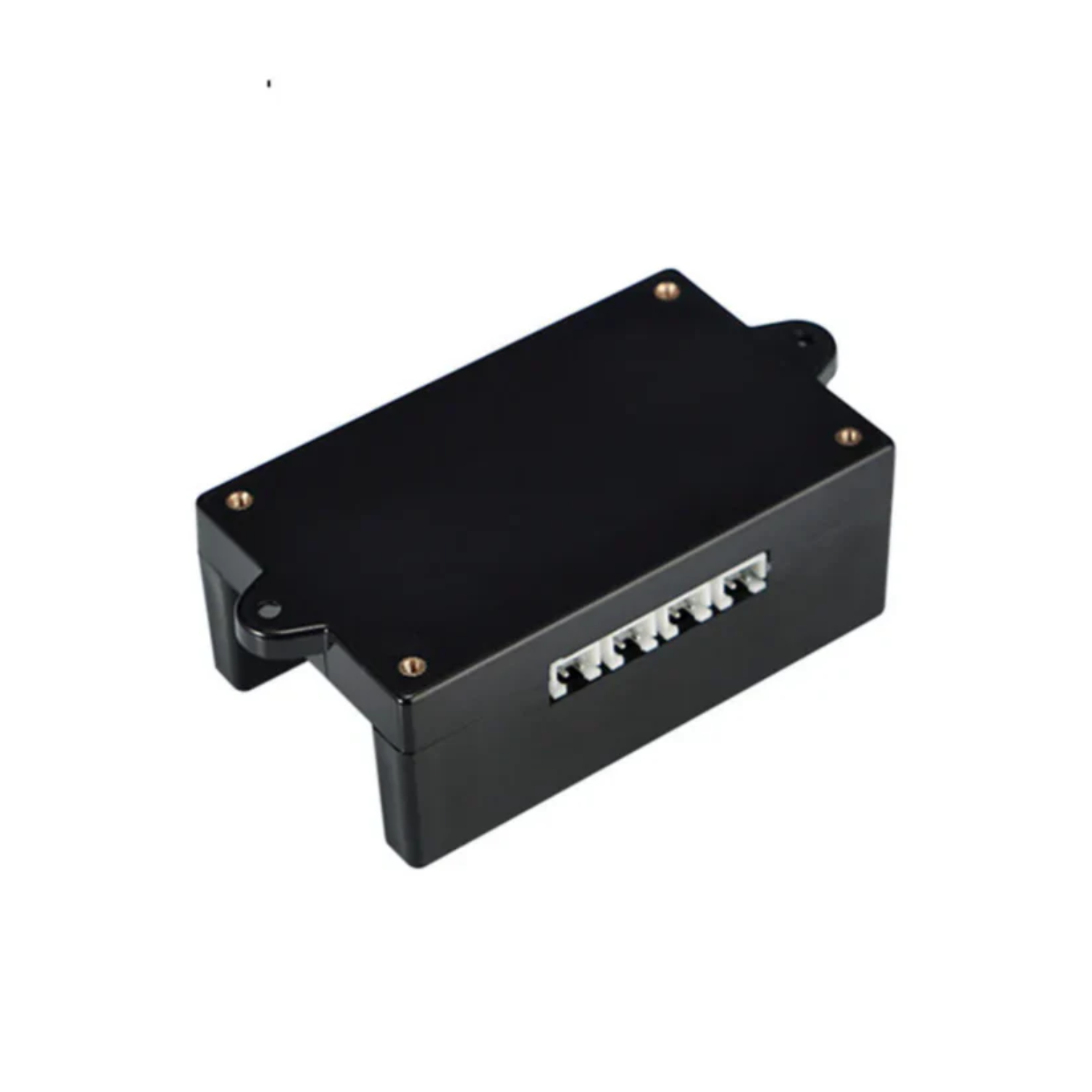

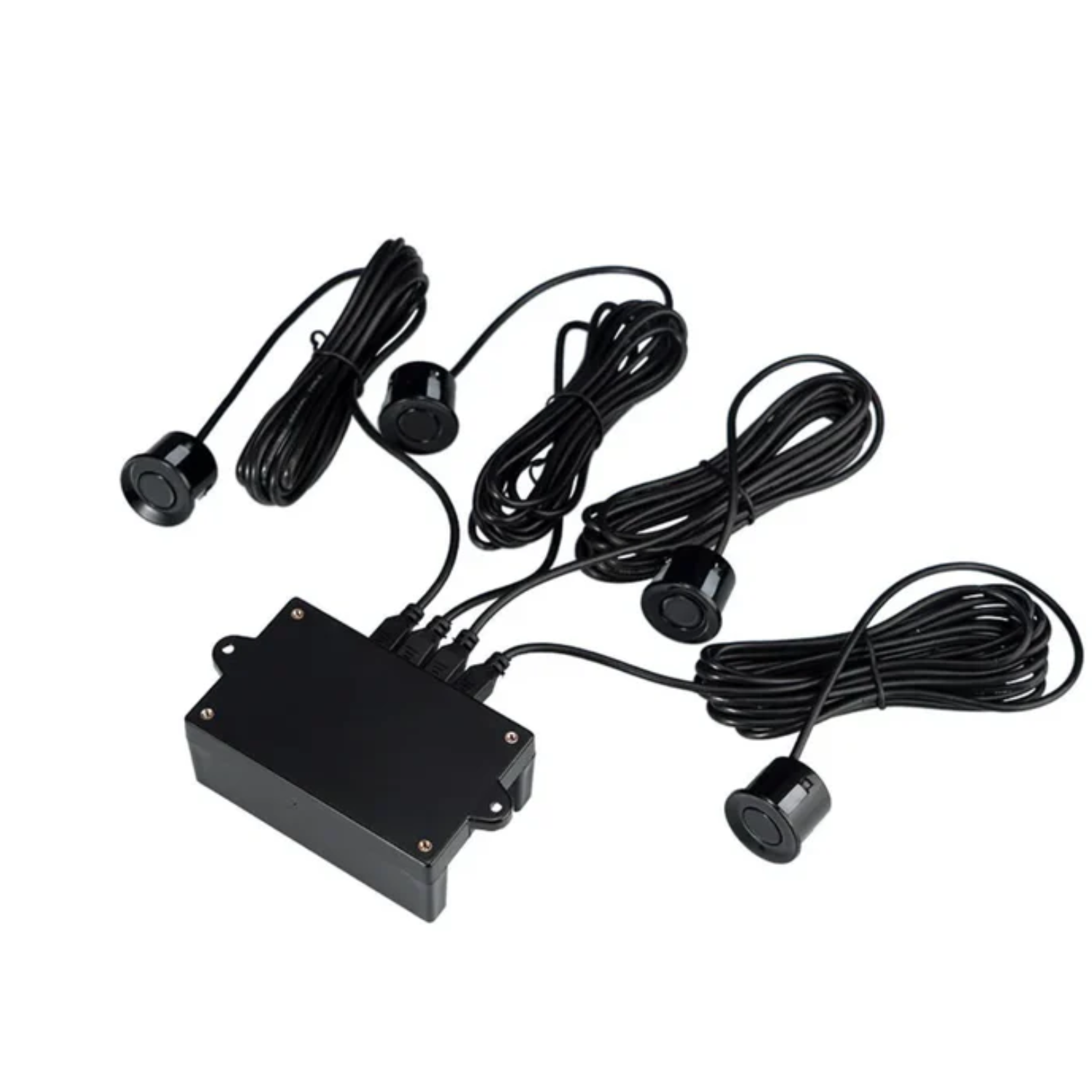

The A05 module series is a high-performance ranging module designed with four enclosed integrated waterproof probes. It can measure distances from objects in four different directions.

Specification:

  • Model No: DYP-A05LY4-V1.1 (RS485)
  • Operating Voltage (V): 5.0 to 12.4
  • Measurement Range: 25 to 45 cm
  • Operating Temperature (°C): 3.3 to 75
  • Output Type: RS485
  • Multiple output interfaces optional: UART, RS485, and relay.
  • Deadband: 25cm
  • Max range: 450cm
  • Working voltage is 9.0-36.0V.
  • Measurement accuracy of plane objects: ±(1+S*0.3%) cm, where S represent the measurement distance

Features:

  • Integrated Closed Waterproof Probes—Ensures long-lasting durability in wet environments.
  • Anti-Static Design—Compliant with IEC61000-4-2 standards for superior protection against static electricity.
  • Wide Storage Temperature Range – Operates effectively from -25°C to 80°C.
  • Optional UART Output—Provides flexible connectivity for easy integration.
  • Four-Directional Distance Measurement—Capable of measuring in four different directions for enhanced versatility.
  • High-Performance Rangefinder – Delivers accurate distance measurements for commercial applications.
  • Dust and Water Resistance – Suitable for use in harsh, demanding environments.
  • Easy Operation—Simple to set up and use, offering a user-friendly experience.

Useful Link:

Datasheet

Package Includes:

1 x Ultrasonic Sensor DYP-A05LY4-V1.1 (RS485)
