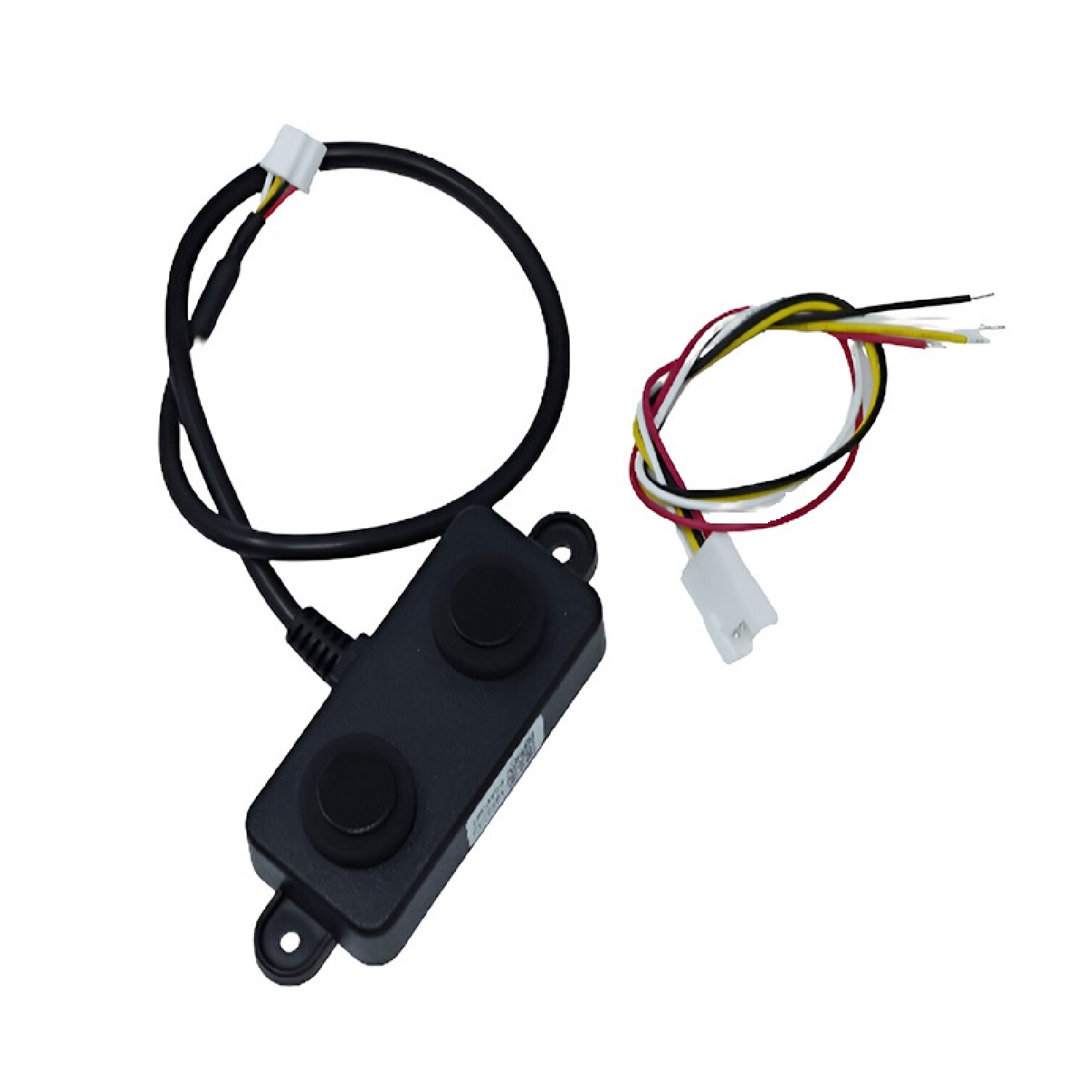

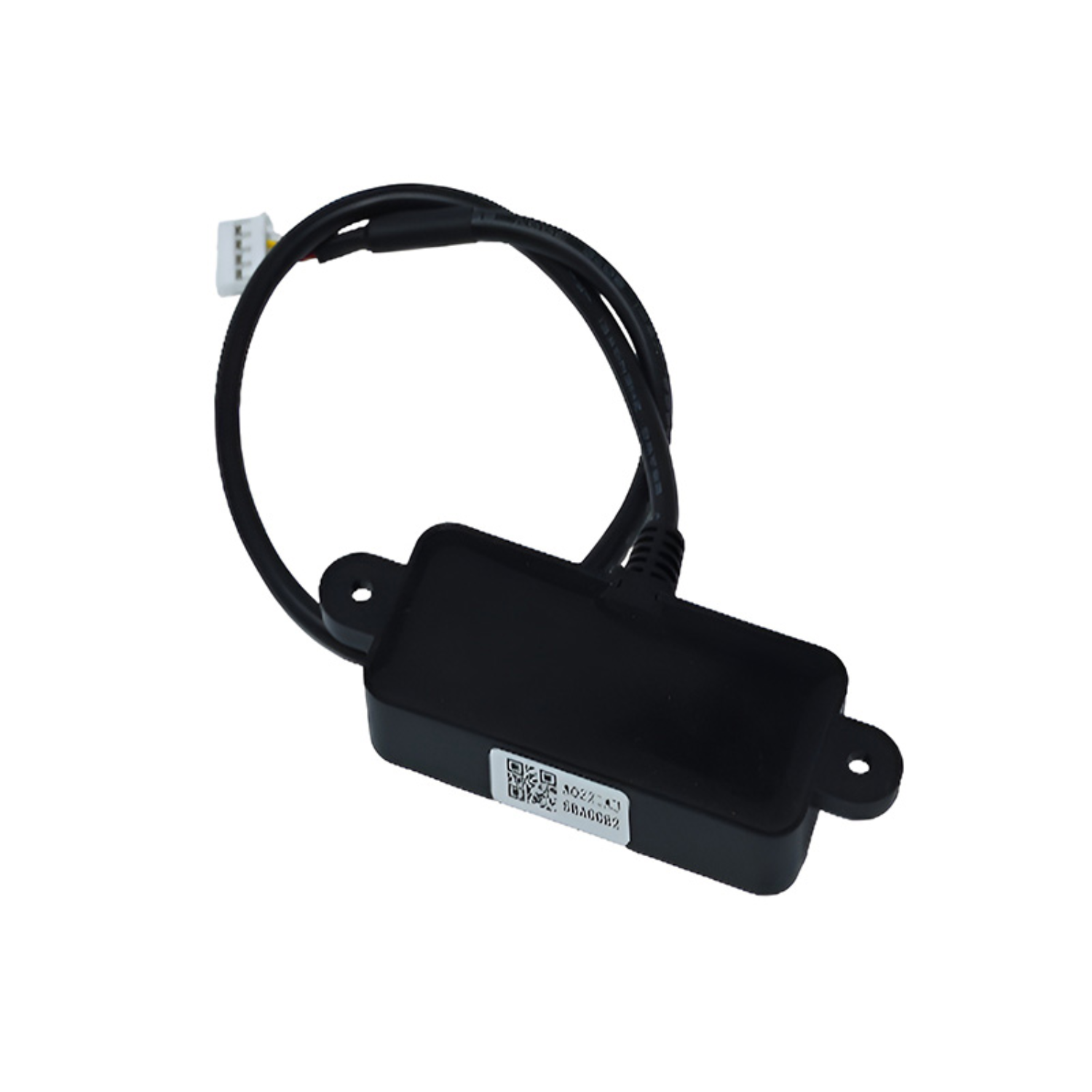

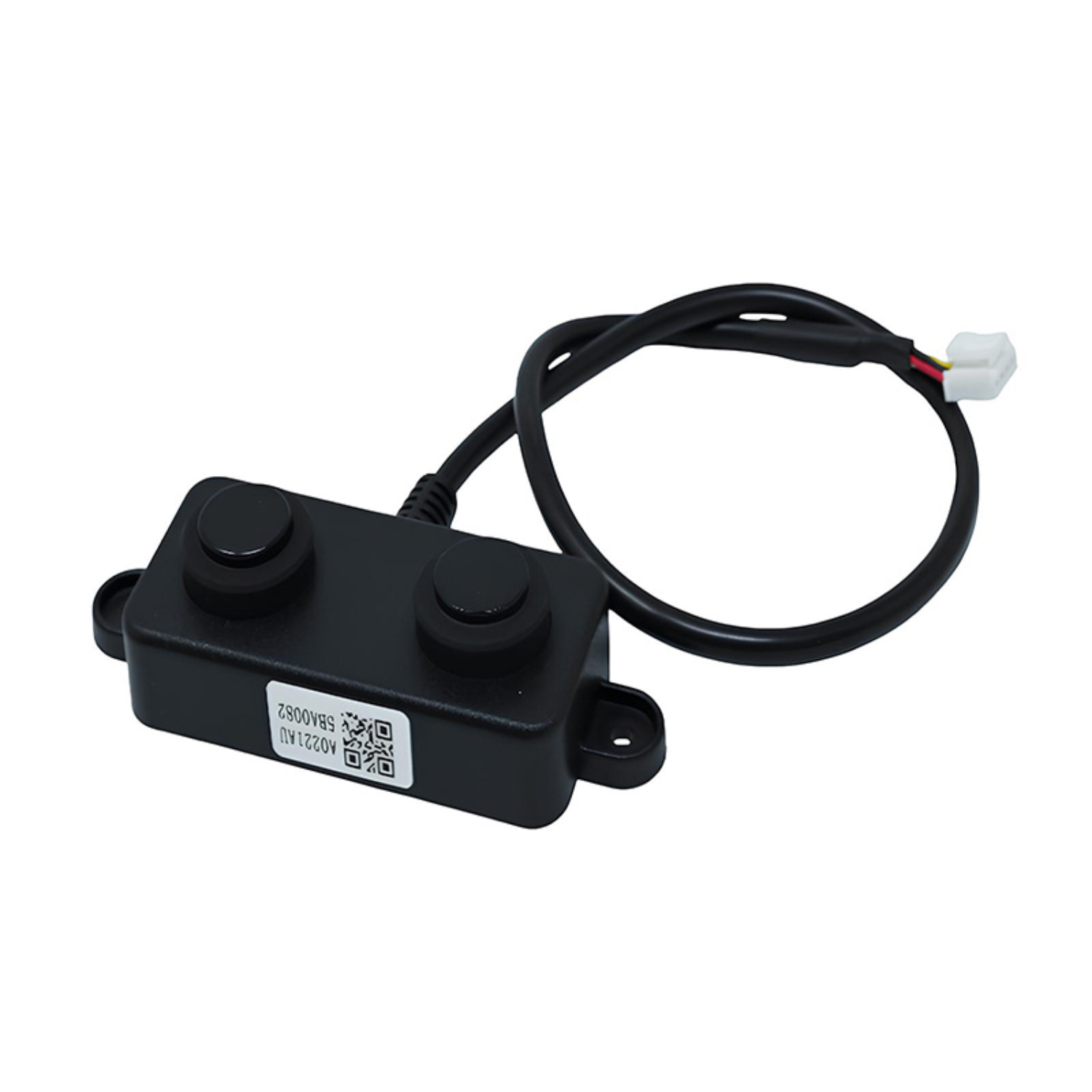

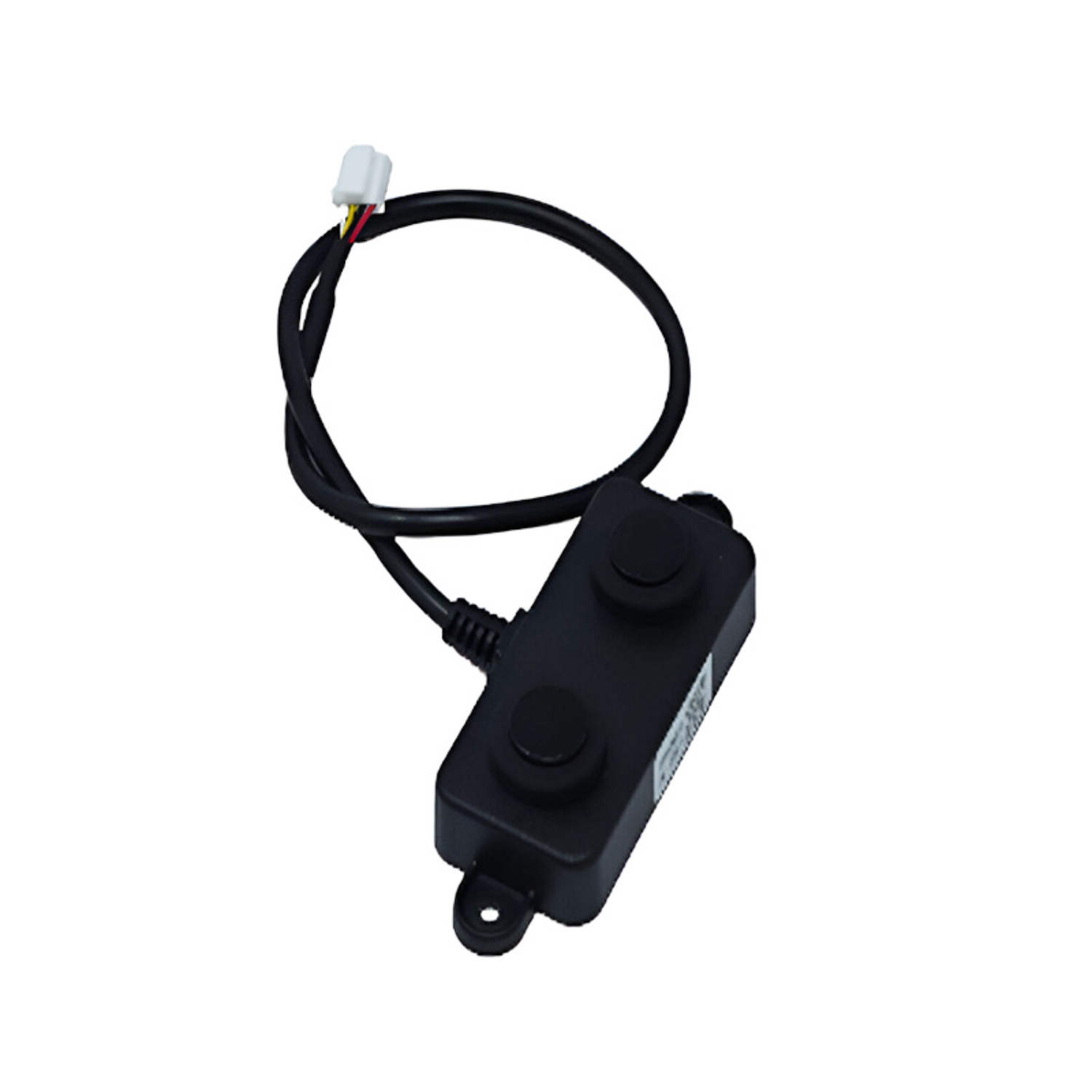

DYP-A02YYUW Waterproof Ultrasonic Sensor with UART Interface, IP67 Waterproof & Dustproof, Long Range 3–450 cm
DYP-A02YYUW Waterproof Ultrasonic Sensor with UART Interface, IP67 Waterproof & Dustproof, Long Range 3–450 cm
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The DYP-A02YYUW is a high-performance waterproof ultrasonic distance sensor that measures distances from 3 cm to 450 cm using ultrasonic pulses. By calculating the time interval between transmitted and reflected signals, it provides accurate and reliable distance readings for a wide range of applications.
This commercial-grade sensor features a smaller blind zone, wider sensing angle, and better penetration through dust and light smog compared to standard ultrasonic sensors. Its fully sealed and waterproof design (IP67) ensures excellent performance in harsh, humid, or outdoor environments.
Specifications:
- Range: 3–450 cm
- Interface: UART, 9600 bps
- Accuracy: ±1 cm
- Resolution: 1 cm
- Beam Angle: ~45°
- Blind Zone: ≥3 cm
- Voltage: 5 V DC
- Current: ≤30 mA
- Temperature: –20 °C to +70 °C
- Protection: IP67 waterproof & dustproof
Features:
- High Accuracy & Reliability—Consistently precise distance measurements for demanding applications.
- Minimal Blind Zone—Detects objects as close as 3 cm for better coverage.
- Wide Sensing Angle – Captures a broader detection area for flexible use.
- Waterproof & Dustproof (IP67)—Ideal for harsh, wet, or outdoor environments.
- Easy UART Communication—Simple serial interface for quick integration with microcontrollers.
Package Included:
1 x DYP-A02YYUW Waterproof Ultrasonic Sensor
