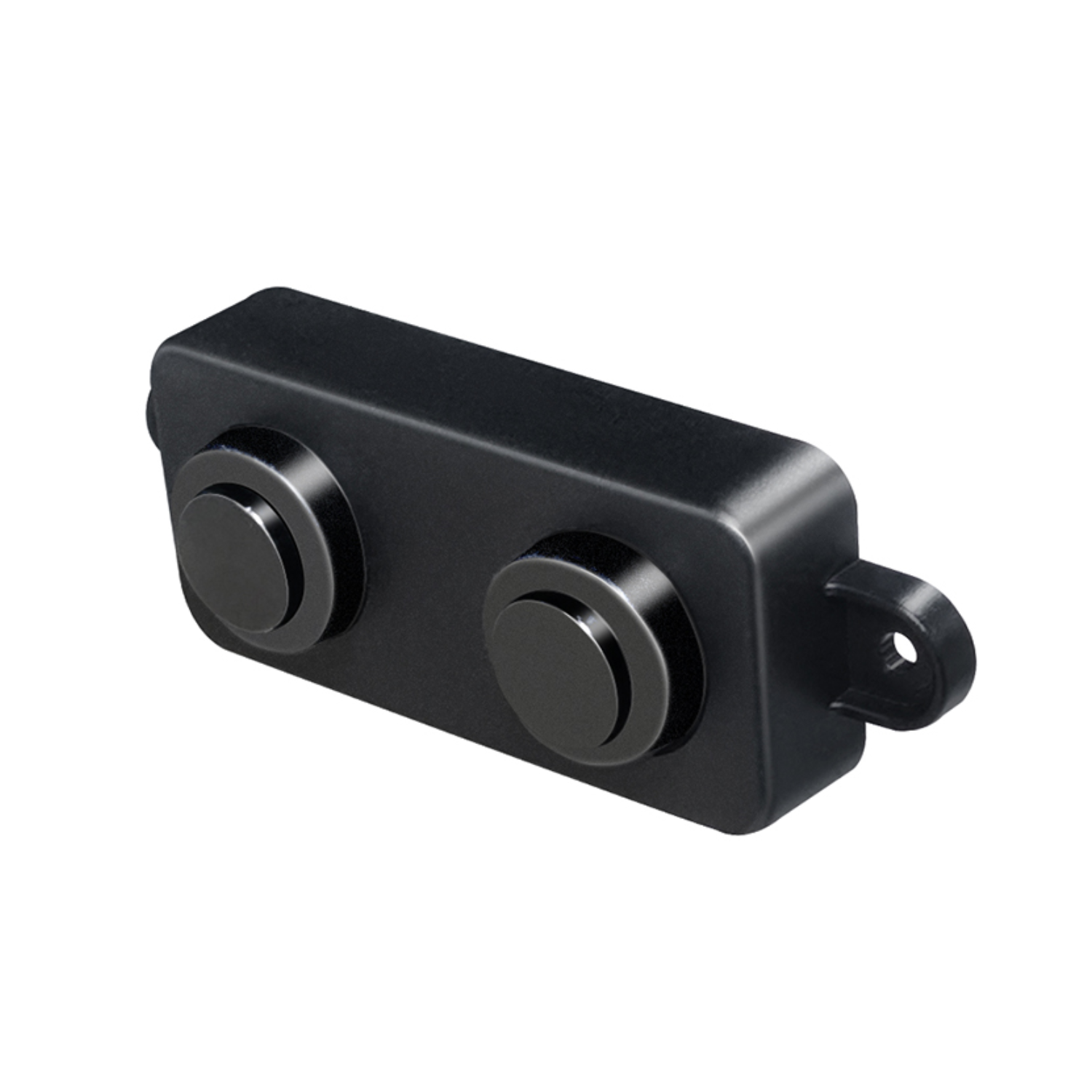

DYP-A02YYMW-V2.0 PWM Ultrasonic Distance Sensor 3–450cm Measuring Range Waterproof Distance Sensor for Applications

DYP-A02YYMW-V2.0 PWM Ultrasonic Distance Sensor 3–450cm Measuring Range Waterproof Distance Sensor for Applications

In stock

Rs. 1,510.00
Rs. 1,510.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The A02-module is based on the use of a closed split waterproof probe. IP67 is suitable for harsh environments. The 3cm small blind area is suitable for different detection conditions. It is a simple operation, high-performance, high-reliability, commercial-grade functional module.

Specifications:

  • Model: DYP-A02YYMW-V2.0
  • Item Type: Ultrasonic Sensor Module
  • Working Current: ≤8 mA, ≤15 mA
  • Operating Temperature (°C): -15°C to +60°C
  • Power Rating: 3.3-5.0V

Features:

  • Resolution: Millimeter-level accuracy for precise measurements.
  • Measurement Range: 3 cm to 450 cm (max), with a 3 cm dead band.
  • Output Types: PWM, UART (automatic/control), Switch, and RS485 for versatile connectivity.
  • Power Supply: 3.3V to 5.0V (standard); 5.0V to 24.0V (RS485), with a current consumption of ≤8 mA (≤15 mA for RS485).
  • Temperature Range: Operating temperature from -15°C to +60°C for reliable performance in diverse environments.
  • Waterproof Rating: IP67, ensuring durability in harsh and wet conditions.
  • Low Power Consumption: Standby current of ≤ 5 uA for energy-efficient operation.

Useful Link:

A02 Datasheet

Package Included:

1 x DYP-A02YYMW-V2.0 (Output-PWM) Ultrasonic Sensor Measuring Range (3-450 cm)
