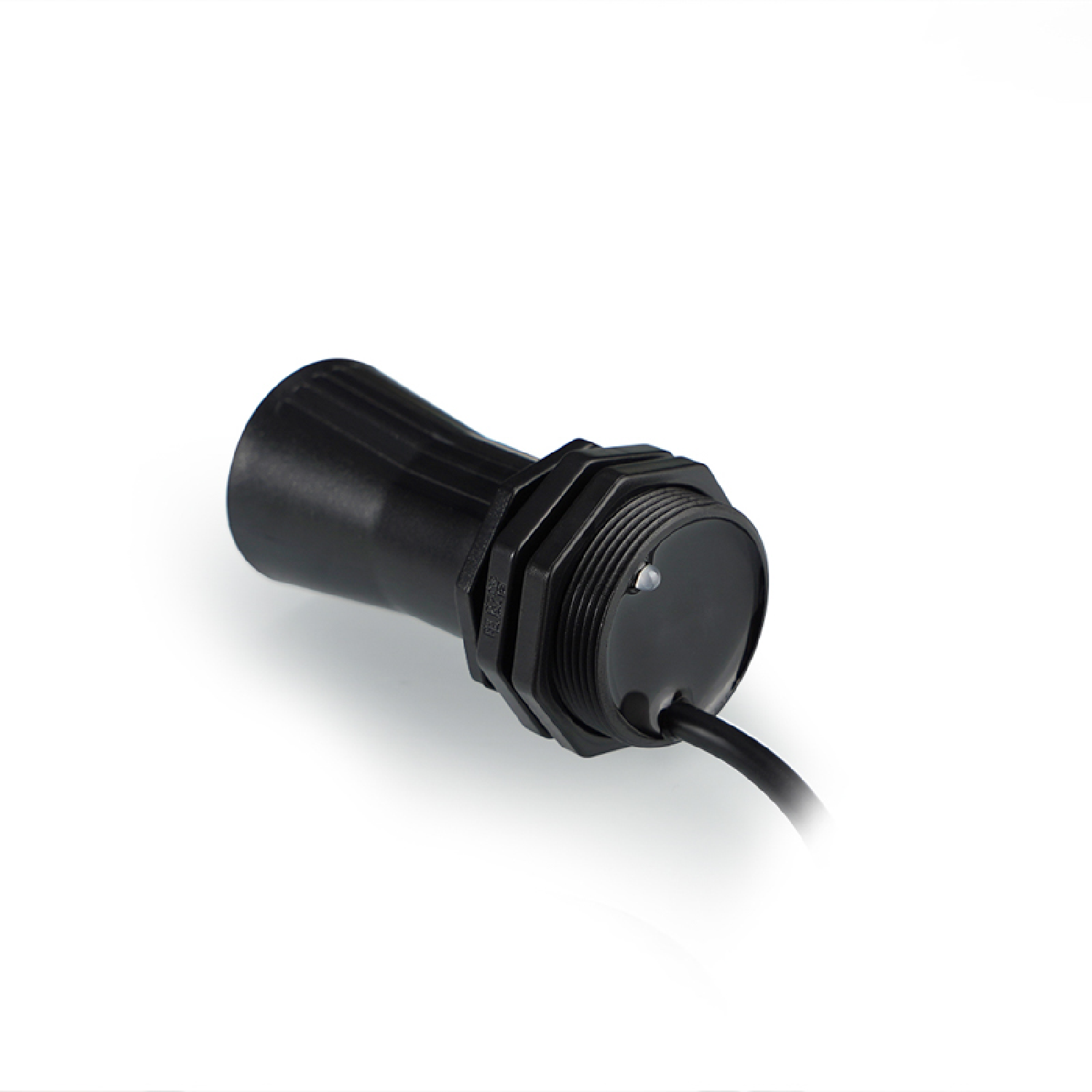

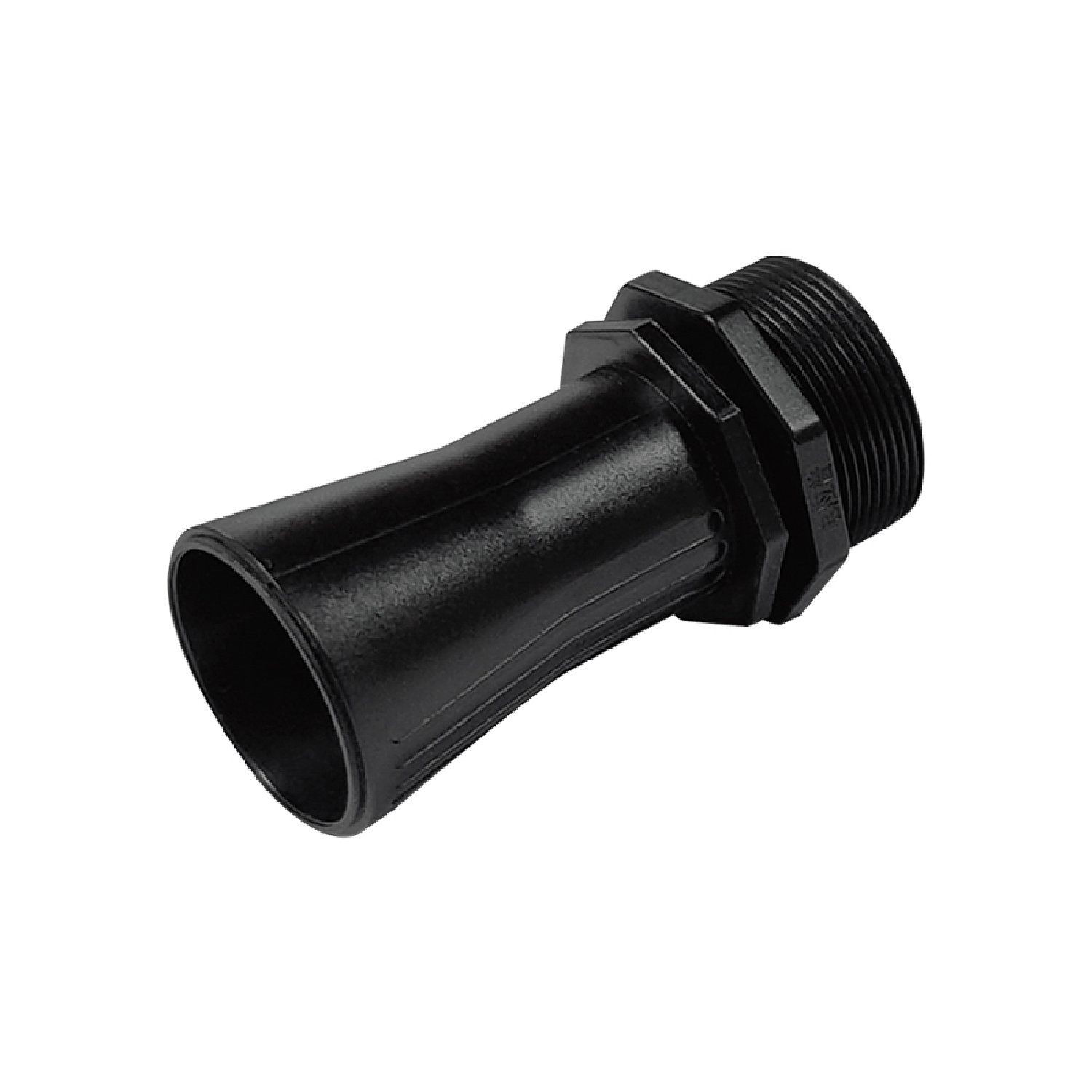

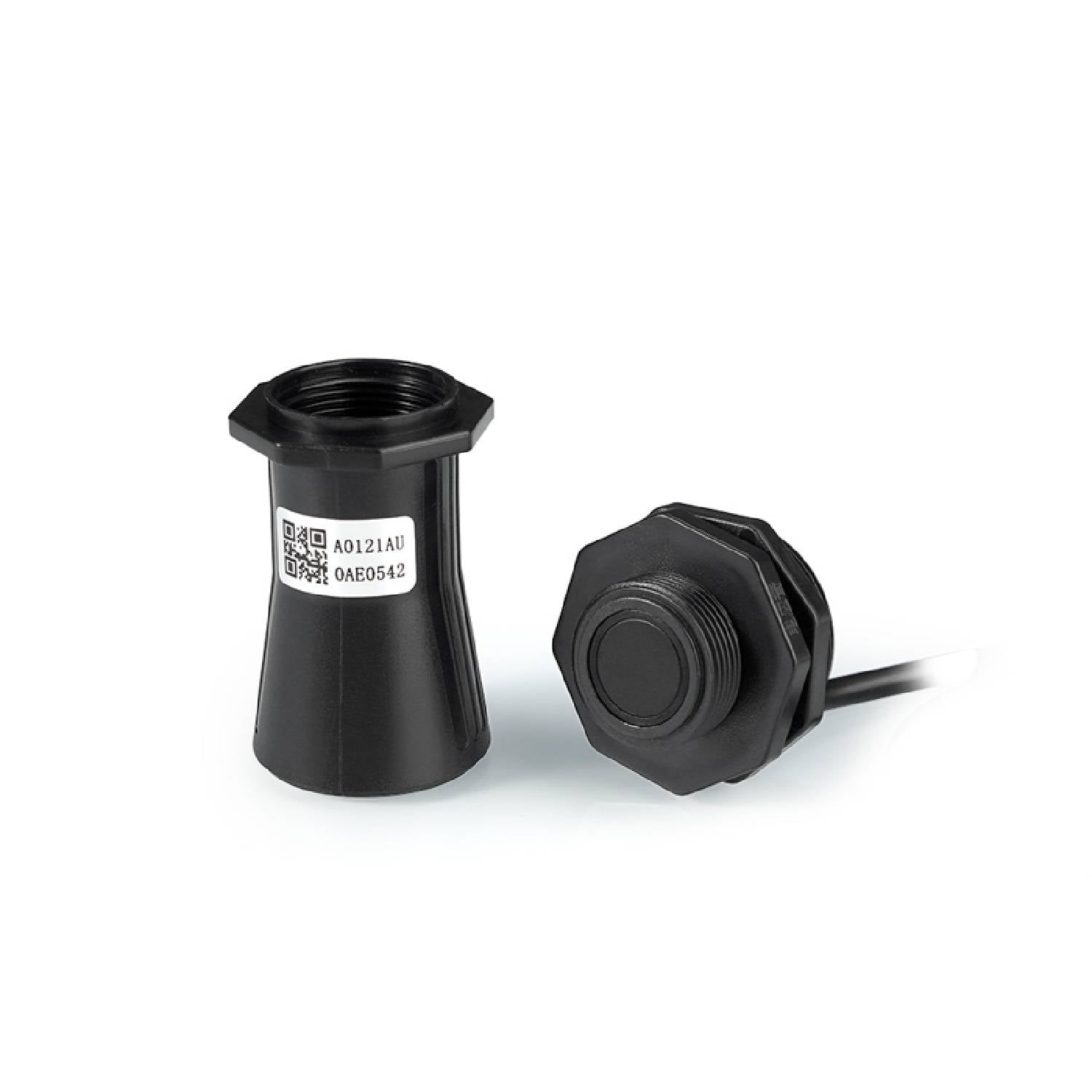

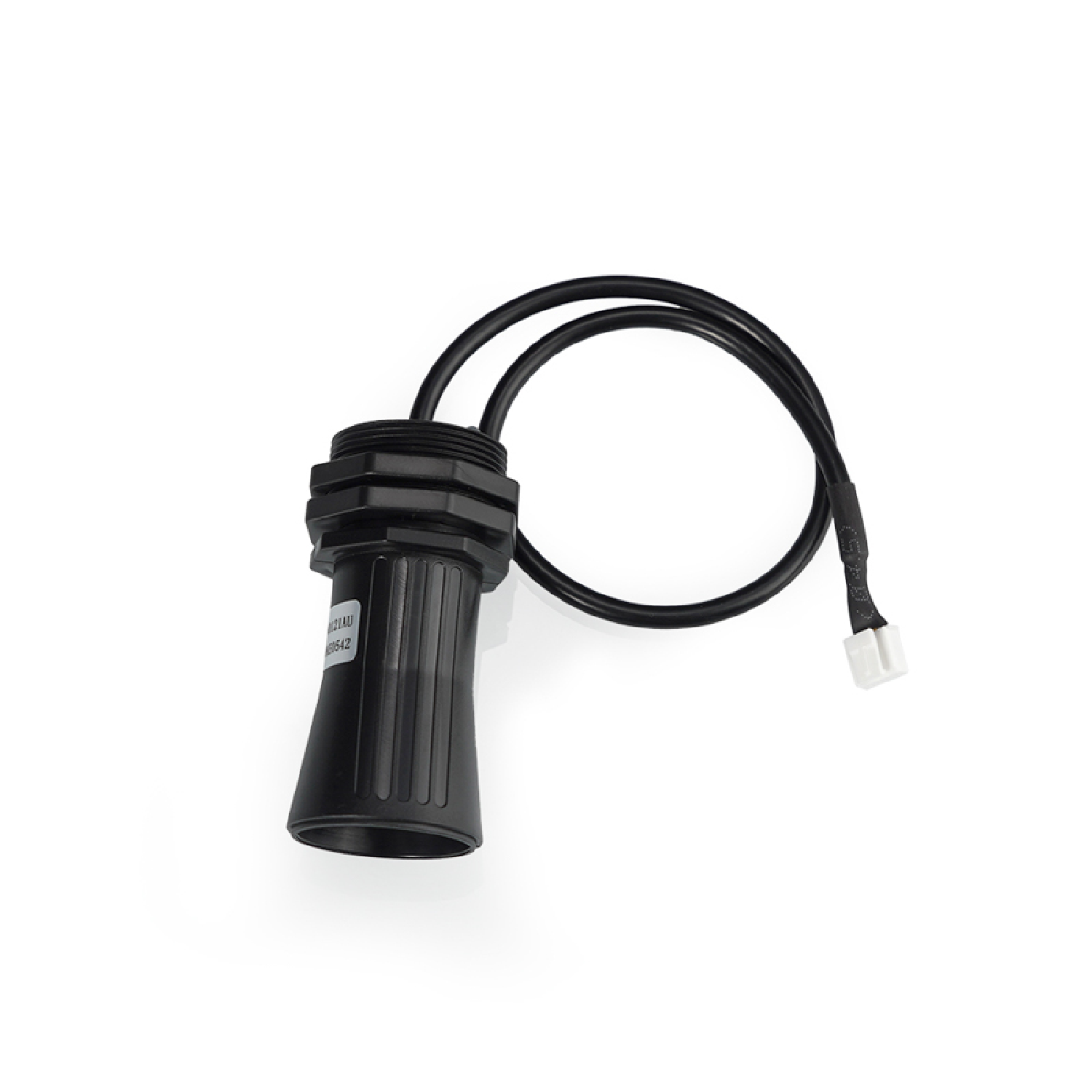

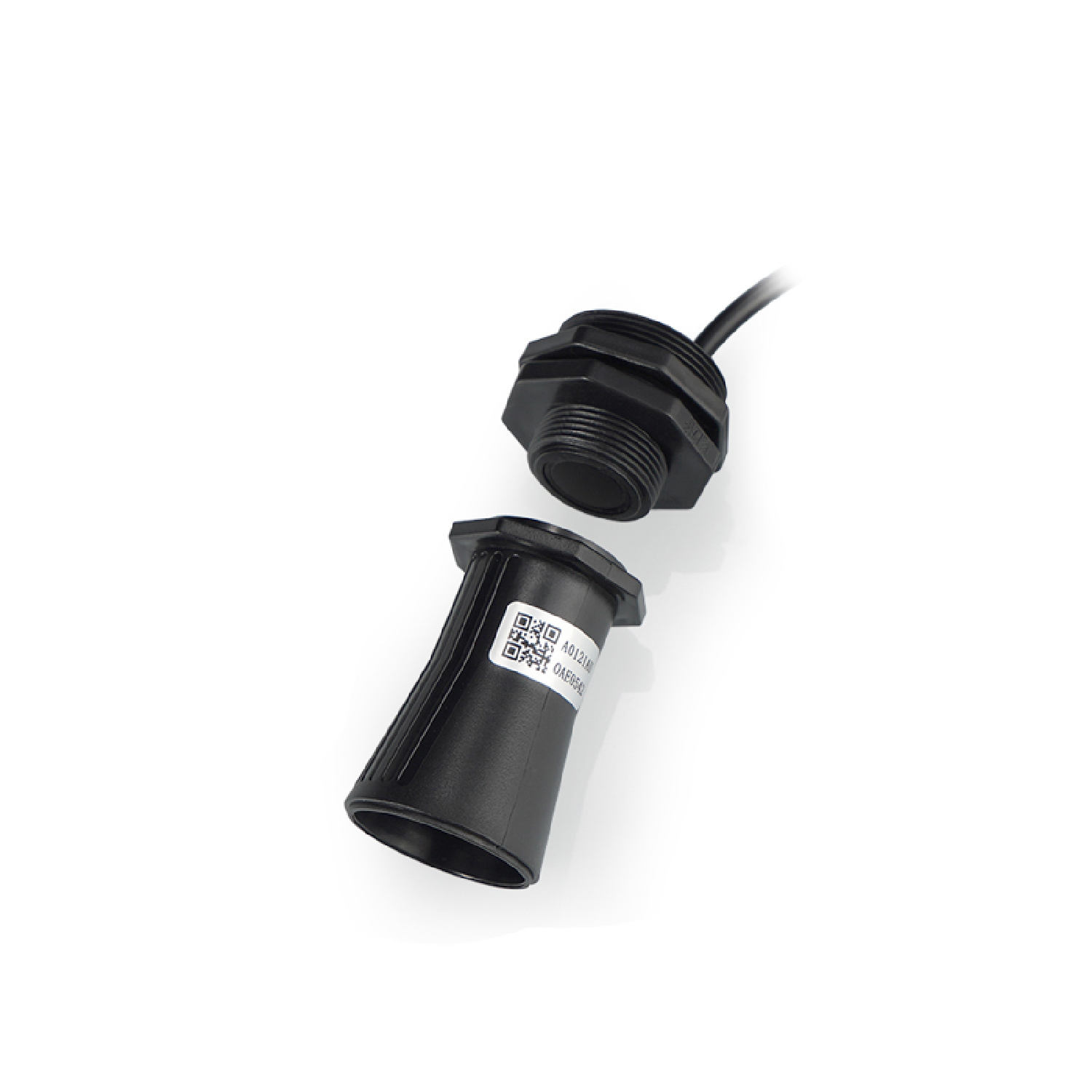

DYP-A01CNYUB-2.1 UART Waterproof Ultrasonic Sensor 28–250mm High Precision Distance Sensor

DYP-A01CNYUB-2.1 UART Waterproof Ultrasonic Sensor 28–250mm High Precision Distance Sensor

RS10028

In stock

Rs. 1,170.00
Rs. 1,170.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

Cash on Delivery is currently unavailable for new orders

Existing COD Orders Only

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

The A01A Series sensor module is designed for flat object distance measurement with high accuracy and long distance. Main features included mm-level resolution, short-to-long distance detecting, a 280mm to 7500mm measuring range, and support for UART auto, UART controlled, PWM auto, PWM controlled, Switch, and RS485 output interfaces.

The A01B Series sensor module is designed for human body detection, stable and sensitive. Compact version with stable measurement of upper body within 2000mm range, Full horn version within 3500mm range. UART auto, UART controlled, PWM auto, PWM controlled, Switch and RS485 output interfaces optional.

The A01C Series sensor module is designed for waste bin level applications, using a dedicated algorithm to filter the borders of waste bins and interfering objects to accurately measure the overflow status. UART auto, UART controlled, and RS485 output interfaces are optional.

Specifications:

  • Model: DYP-A01CNYUB-2.1
  • Measurement Range: 28 mm – 250 mm
  • Resolution: Millimeter-level accuracy
  • Output Type: UART (Auto)
  • Operating Voltage: DC 5V
  • Power Consumption:
  • Operating Current: ≤20 mA
  • Standby Current: ≤10 µA (low power consumption)
  • Frequency: 40 kHz (Ultrasonic)

Features:

  • Ultra-Low Standby Current: Less than 10µA for energy-efficient operation.
  • Integrated Waterproof Probe: Fully enclosed and resistant to water ingress.
  • Internal Temperature Compensation: Ensures consistent performance across varying temperatures.
  • Operating Temperature Range: -15°C to +60°C for reliable use in diverse environments.
  • Storage Temperature Range: -25°C to +80°C for safe storage in extreme conditions.

Applications:

  • Horizontal Distance Measurement: Precise detection for a wide range of distances.
  • Smart Car Parking Management: Efficient space allocation and occupancy detection.
  • Intelligent Waste Bin Monitoring: Optimize waste collection and management processes.
  • Water Level Detection: For monitoring sewer, well, and reservoir water levels.
  • Fluid Level Sensing: Accurate fluid measurement in various containers and systems.
  • Proximity and Presence Detection: Enhancing awareness for safety and automation systems.
  • Robotic Obstacle Avoidance & Control: Enabling autonomous navigation and decision-making in

Useful Link:

Datasheet

Package Included:

1 x DYP-A01CNYUB-2.1 Waterproof Ultrasonic Sensor
