Description:
DWIN PGT05 JTAG 7-Pin Burner/Adapter Board is a versatile and powerful tool for programming and debugging microcontrollers. With its JTAG interface and USB connectivity, this burner offers fast and efficient programming for a variety of microcontrollers. It also has a compact and user-friendly design, making it suitable for both beginners and professionals.
Equipped with advanced programming algorithms, the DWIN PGT05 JTAG Burner offers reliable and accurate programming for various microcontroller brands and models. It also has built-in protection features to prevent damage to the microcontroller during programming. With its affordable price and practical functionality, this burner is a top choice for microcontroller enthusiasts and developers. Upgrade to the DWIN PGT05 JTAG Burner and streamline your microcontroller programming process.
Specifications:
Model number
|
PGT05 |
Application
|
T5/T5L display
|
Function
|
Adjust the black screen, no blue screen card reading phenomenon
|
Permission
|
08*02
|
Features:
- Versatile and powerful JTAG burner tool
- JTAG interface and USB connectivity
- Fast and efficient programming
- Compact and user-friendly design
- Advanced programming algorithms
- Reliable and accurate programming for various microcontrollers
- Built-in protection features
- Affordable price
- Suitable for beginners and professionals
- Streamlines the microcontroller programming process.
Pin Description:
- VCC: Power input
- TMS: Mode selection
- TCK: Clock
- TDI: input
- TDO: Output
- GND: GND
- GND: GND
- Burn start button- PRG -/Burn success indicator- CODE – /Burning status light – RWR – /Power indicator
Useful Link:

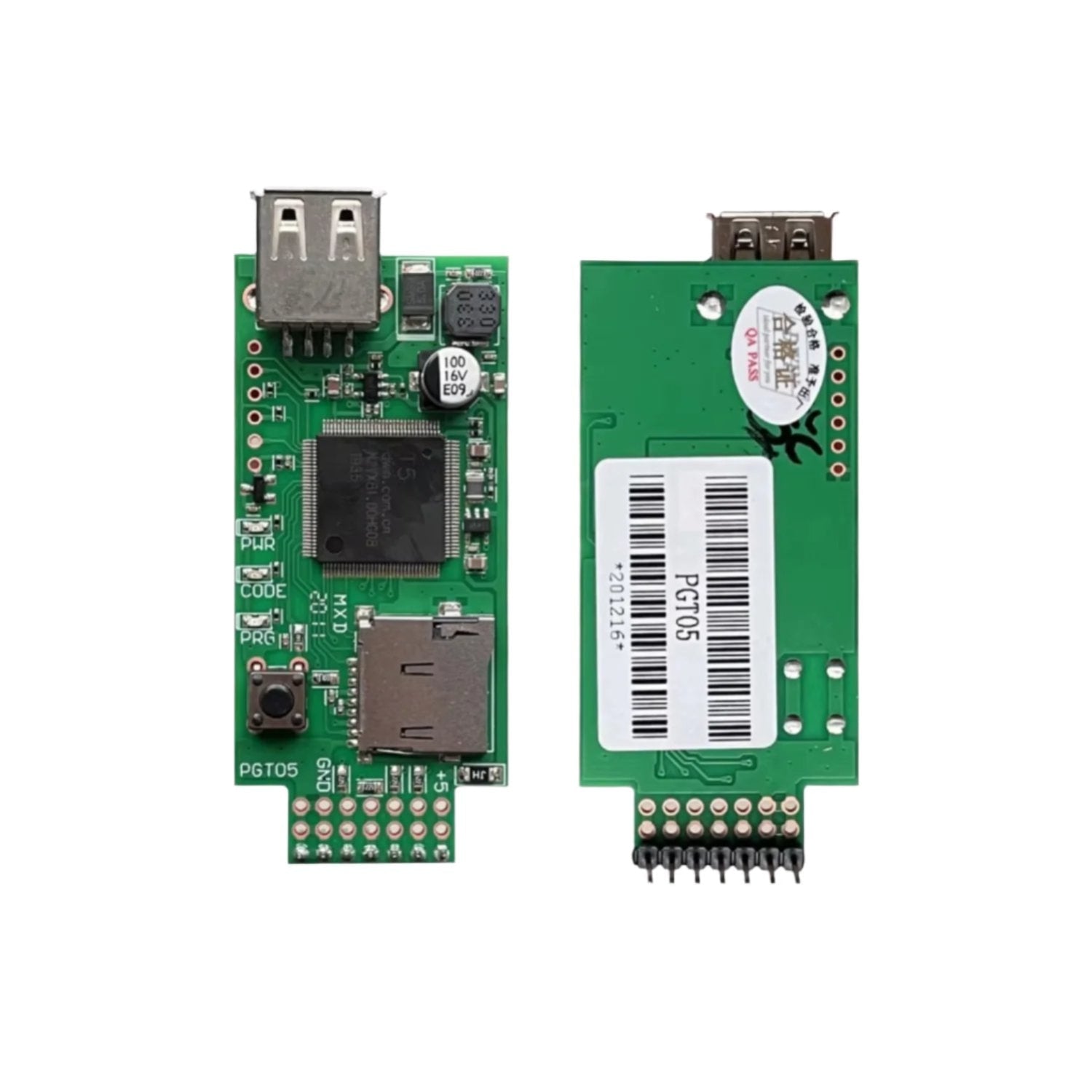

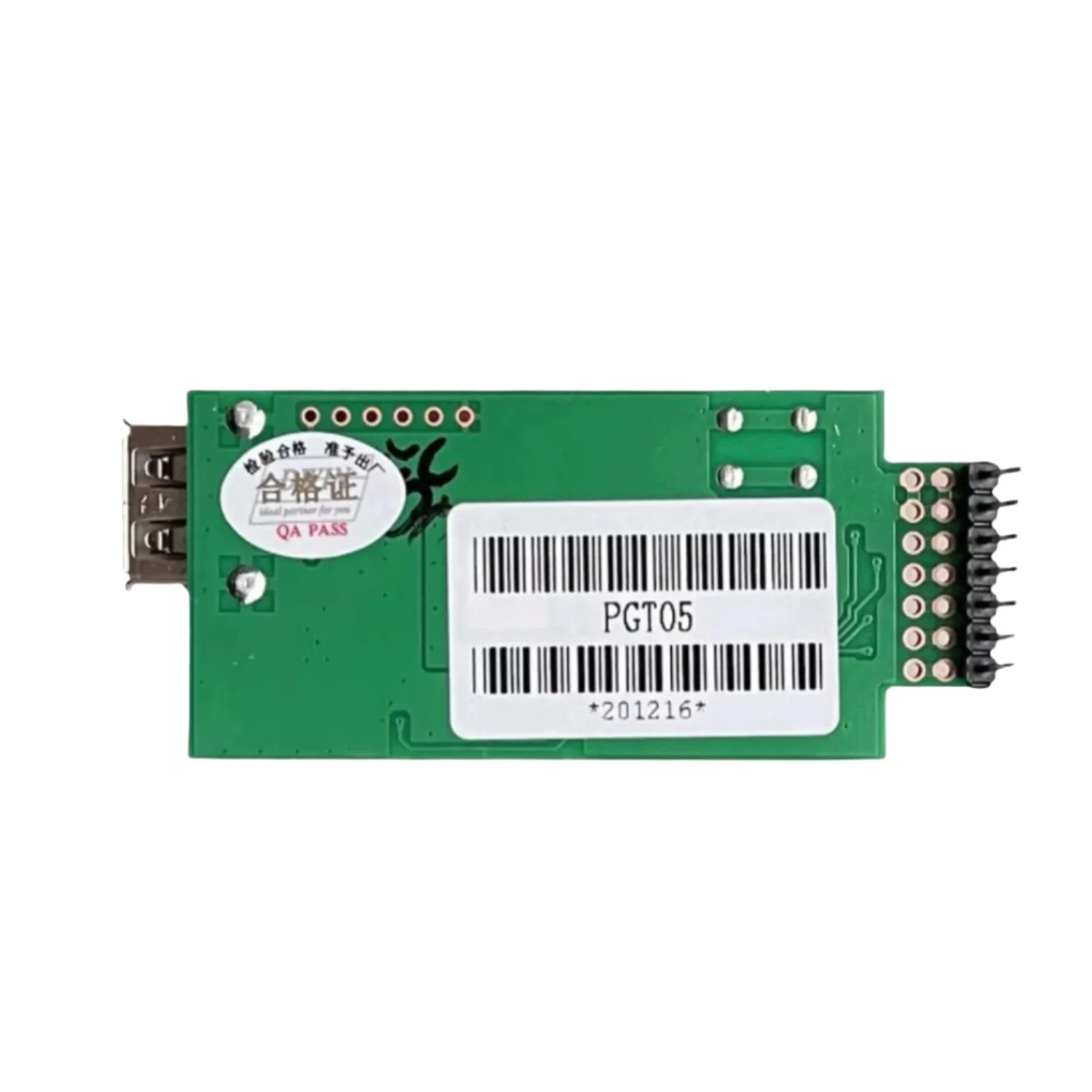

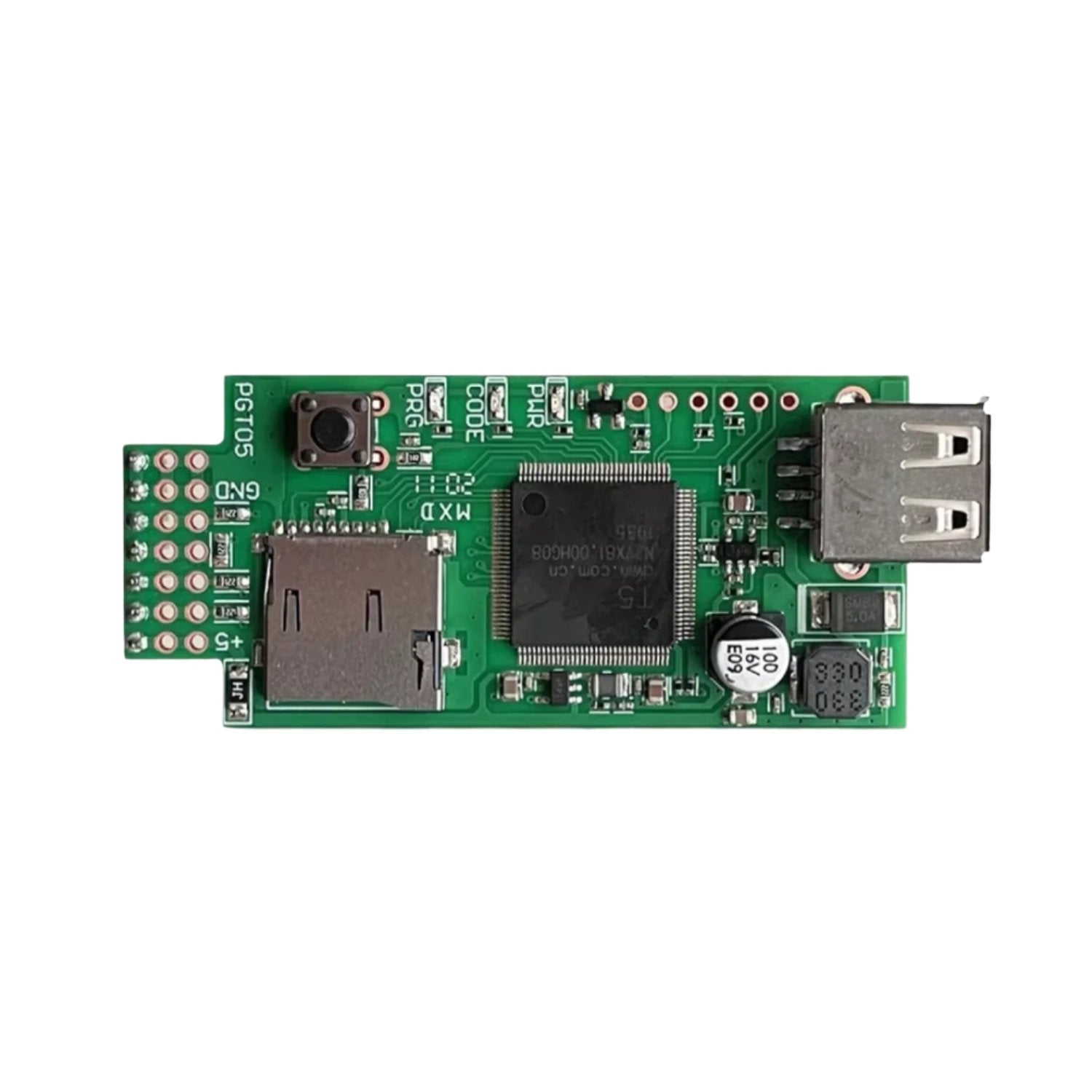

DWIN PGT05 JTAG 7-Pin Burner/Adapter Board
Package Included:
1 x DWIN PGT05 JTAG 7-Pin Burner/Adapter Board
