Description:

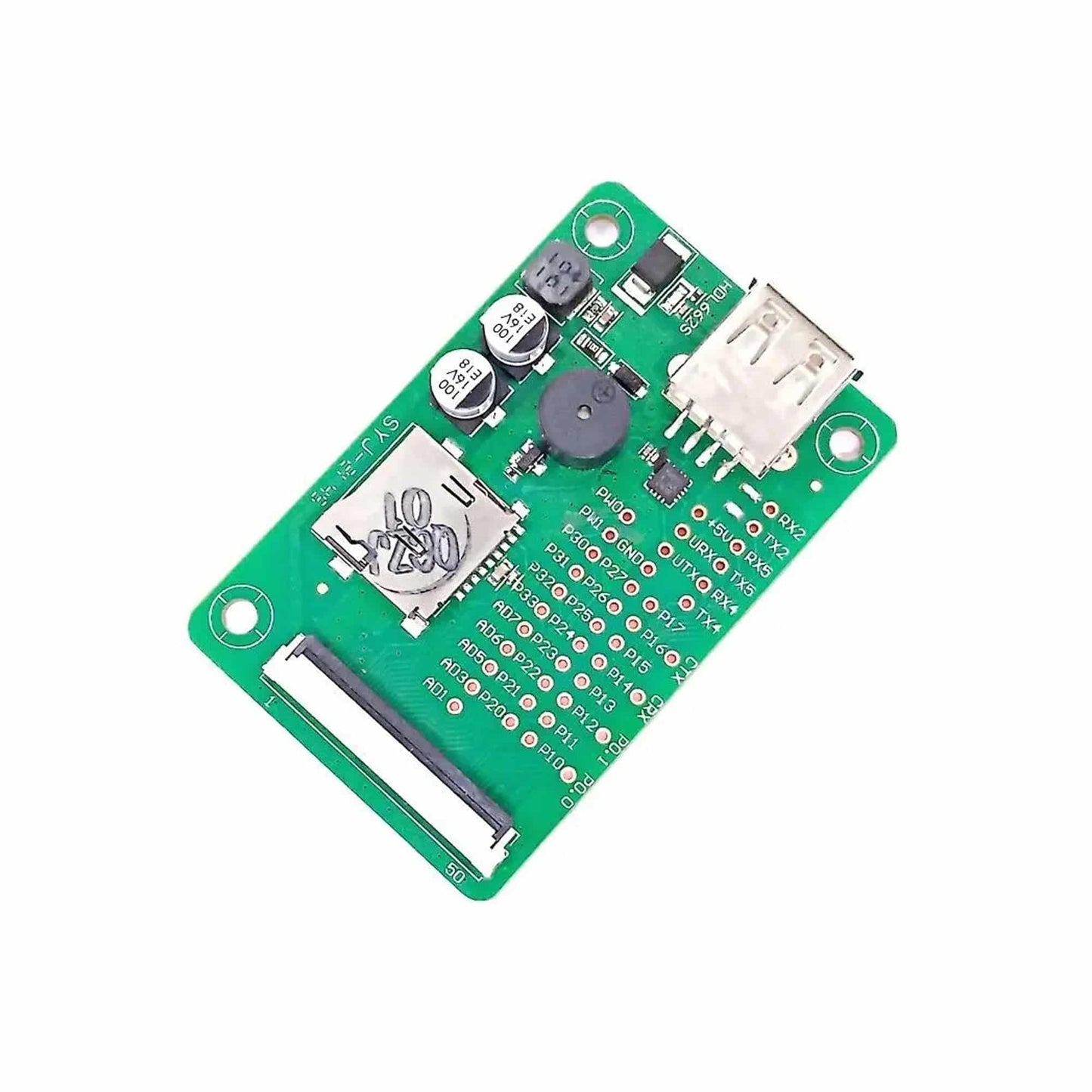

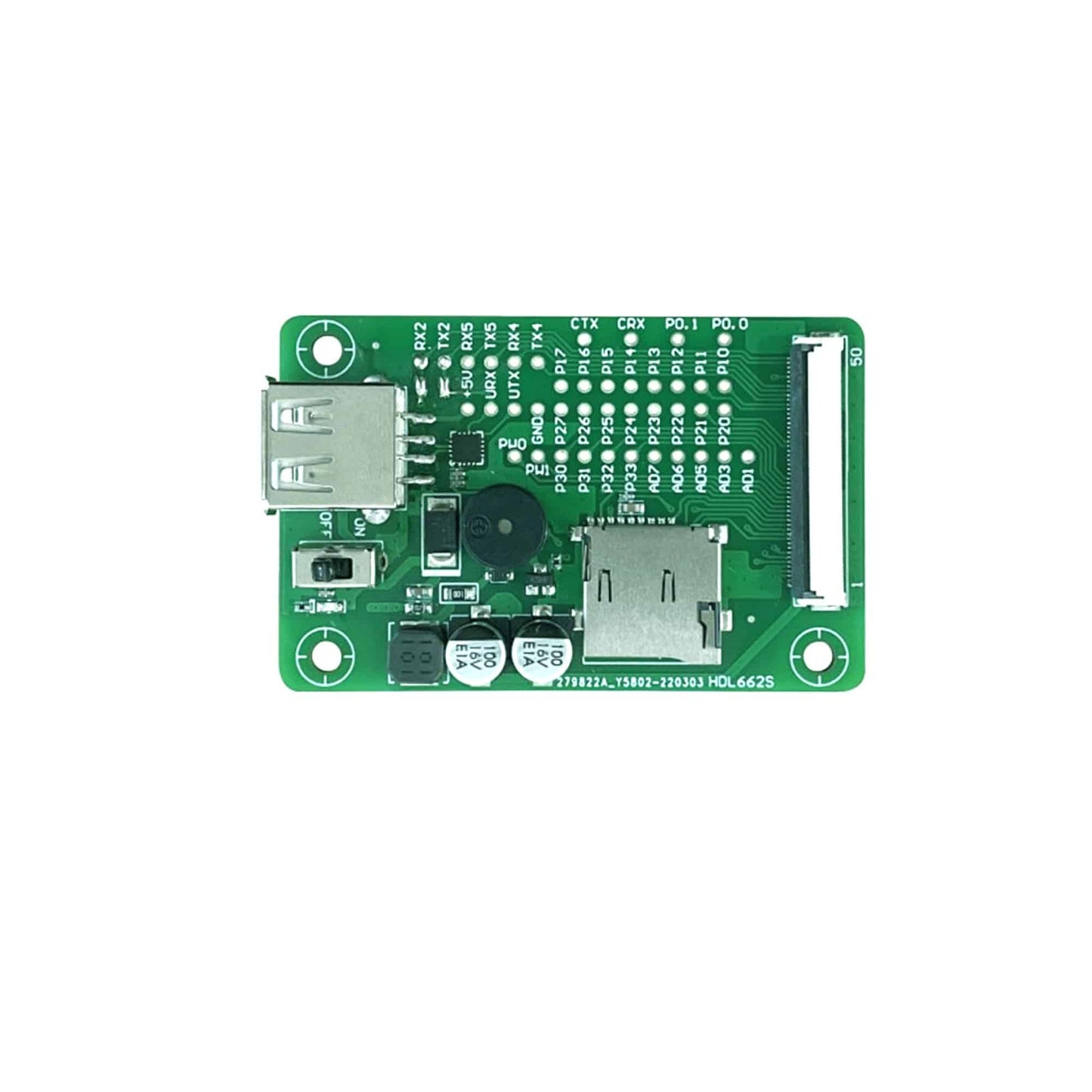

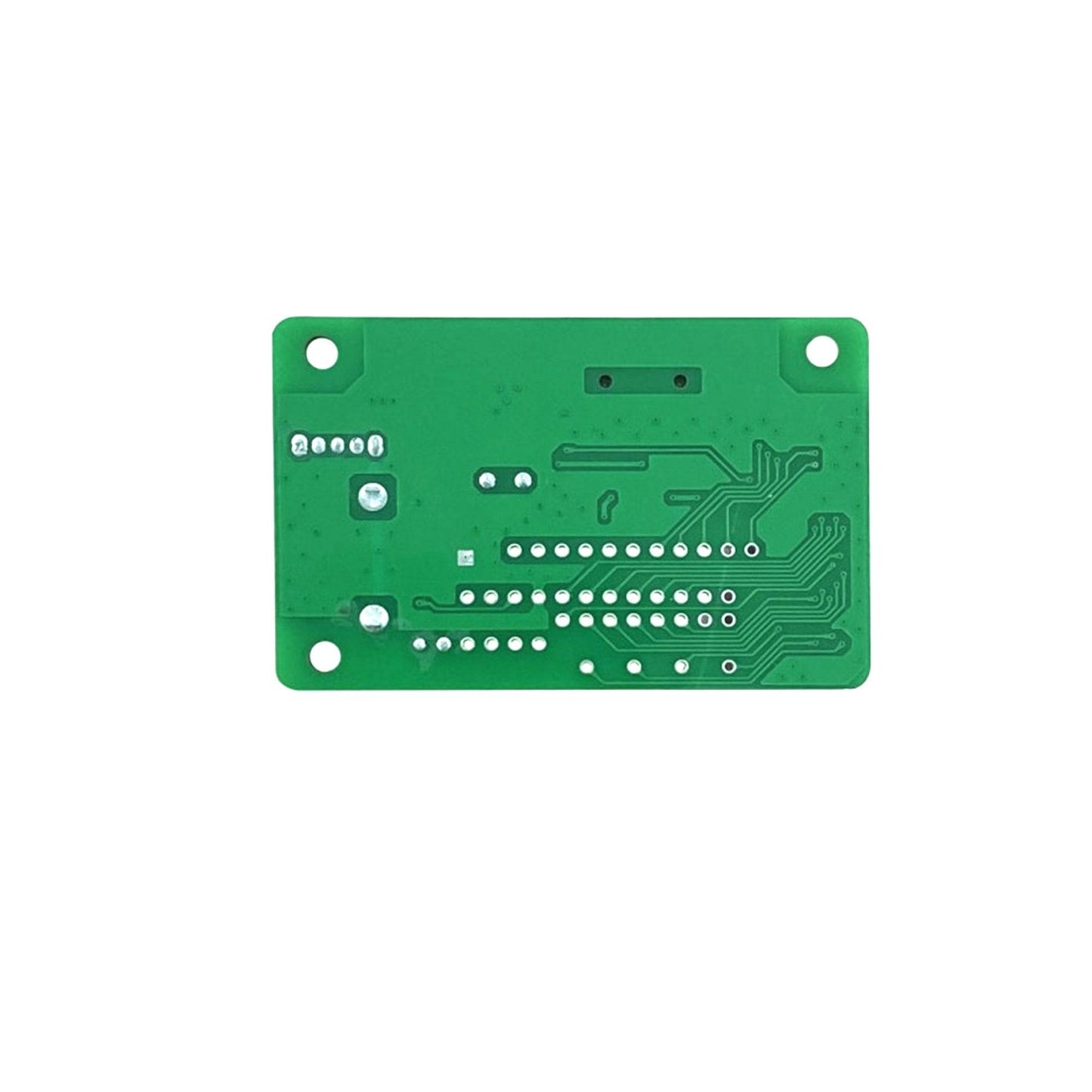

The HDL662S Debugging Board is designed to debug the F series COF screens LCM LCD Module. It can lead to 22IOs, 3 UARTs, 1 CAN, 5 ADs, and 2 PWMs from T5L and supports USB power supply and communication. HDL662S Debugging Board USB defaults to serial port 2 communication and supports serial port 4 and serial port5 communication. You can download and update all configuration files by SD card. The HDL662S Board provides the interface between the PC’s USB port and the HDL662S in-system debug/programming circuitry. The power supply is provided to the adaptor from the USB port of the PC.
Features:
- SD Card Read Slot available
- 2.54mm pitch on board SPI
- HDL662S Debugging Board has On-Board Buzzer
- HDL662S Debugging Board has Onboard Voltage Regulator
- 22 IOs, 3 UARTs, 1 CAN, 5 ADs, 2 PWM
- HDL662S Debugging Adapter Board has Onboard debugging and Project Uploading
- USB Male Port for System and Board Connectivity
Package Included:
1 x DWIN HDL662S Debugging Adapter Board for CoF LCD
