Description:

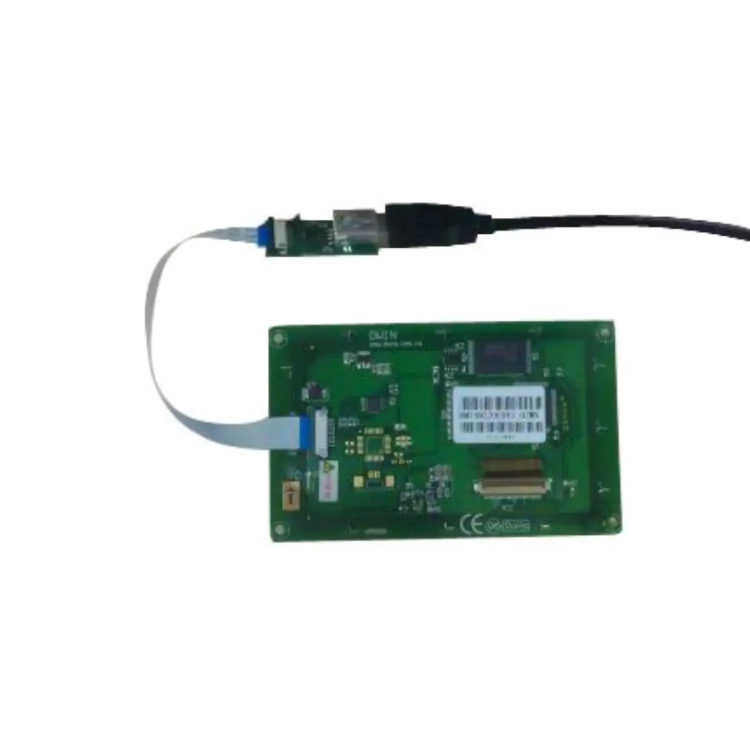

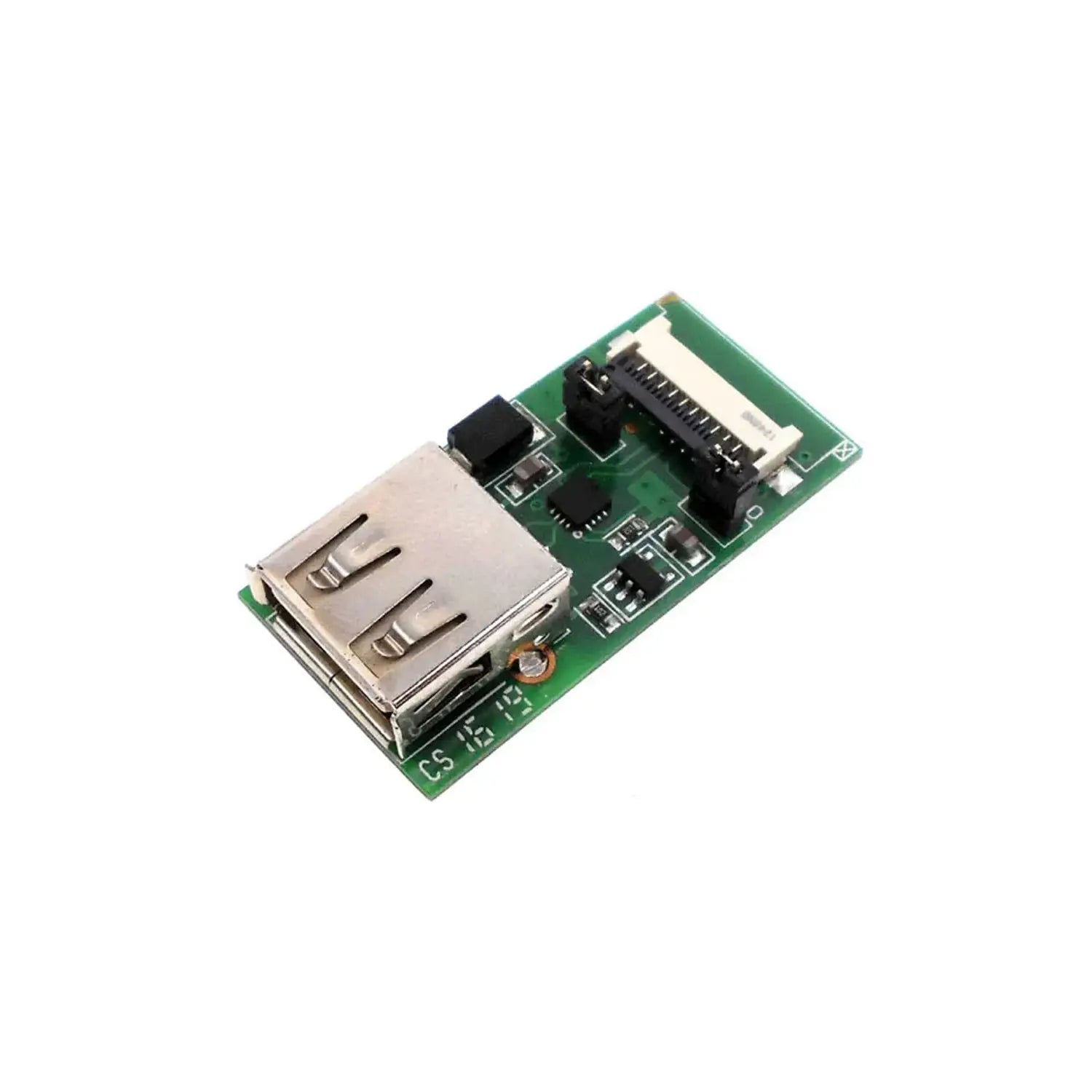

The DWIN HDL662B Adapter Board is designed to simplify debugging and testing of LCM LCD modules and displays. Featuring a USB connector on one side and a 10-pin 1mm pitch FFC connector on the other, it allows users to connect their LCD modules directly to a PC without requiring an additional power supply. For DWIN C-series products, a 10-pin FFC cable is required to link the adapter board with the PC, enabling smooth and efficient development and testing of LCD modules.
Specification:
- Model Name/Number: DWIN HDL662B
- Function: Debugging and programming interface for DWIN LCM LCD Modules, specifically the C-series. It allows for firmware updates and testing.
- Input Interface: USB Type-A (connects to a PC or other USB host device)
- Output Interface: 10-pin FFC (Flexible Flat Cable) connector with a 1.0mm pitch.
- Power Supply: USB-powered; it draws power directly from the connected PC, so no external power supply is needed.
- Required Accessories: A 10-pin FFC cable is required to connect the board to the DWIN display.
Features:
- Direct USB Connectivity: Connects directly to a PC without needing an external power supply.
- Dual Connectors: Equipped with a USB connector on one side and a 10-pin 1mm pitch FFC connector on the other.
- C-Series Compatibility: Specifically designed for DWIN C-series LCD modules.
Easy Debugging: Simplifies testing and development of LCM LCD modules and displays. - Compact Design: Lightweight and portable for convenient use in development setups.
- Flexible Connection: Requires a 10-pin FFC cable for linking the PC to the adapter when using C-series products.
Package Included:
1 x DWIN HDL662B USB to FFC 10-Pin 1.0mm Adapter
