Dwin DMG85480F050_01WN 5 Inch 480x854 COF LCD Display Non-Touch UART – Industrial Grade HMI Screen for Embedded Systems
Dwin DMG85480F050_01WN 5 Inch 480x854 COF LCD Display Non-Touch UART – Industrial Grade HMI Screen for Embedded Systems
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

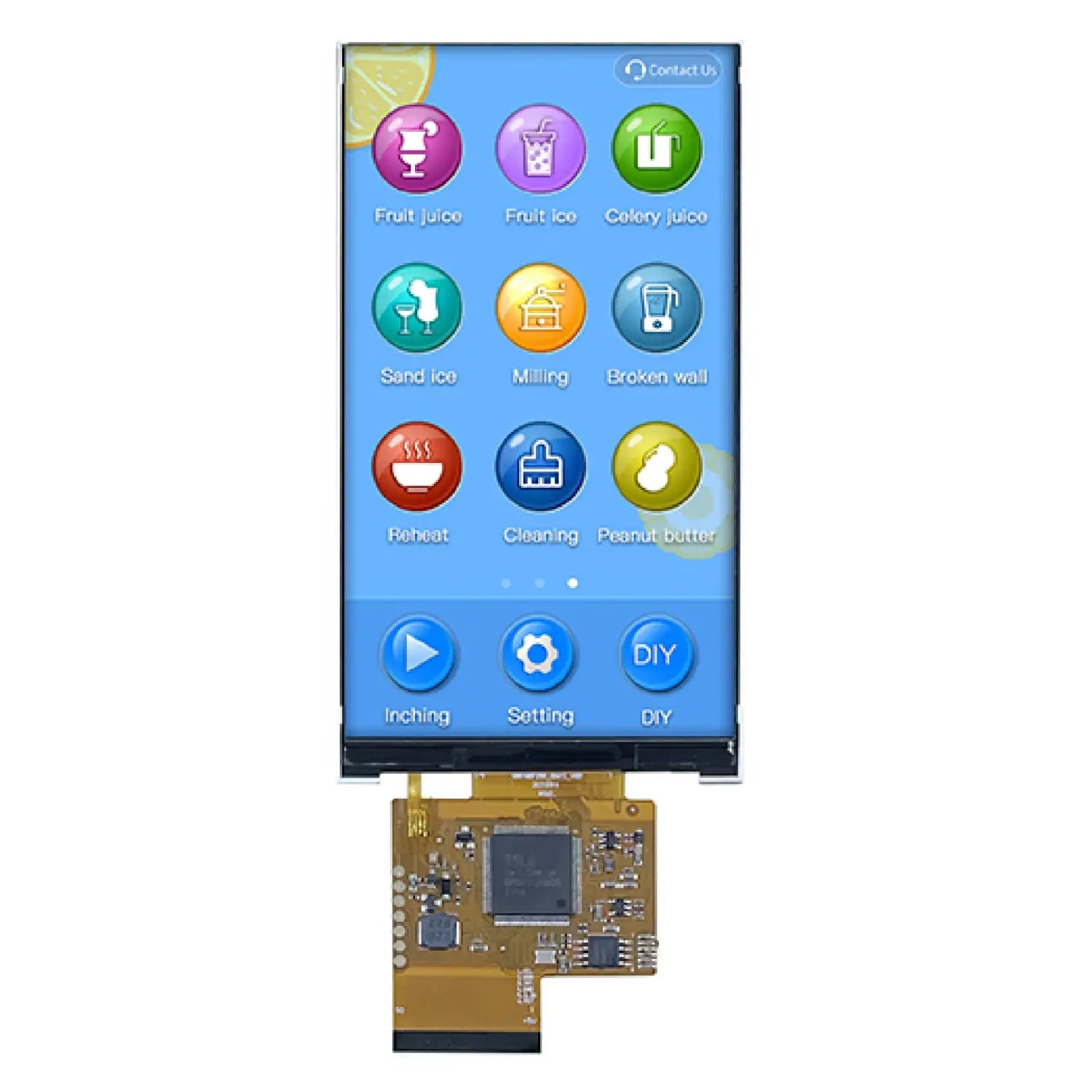

The Dwin DMG85480F050_01W 5-Inch Smart Display features a high-quality COF LCD with a resolution of 480×RGB×854, delivering vibrant visuals and sharp clarity. Powered by the T5L0 processor and running the DGUS II system, it offers smooth performance and responsive operation. The IPS-TFT-LCD provides a wide viewing angle and 262K colors, ensuring excellent display quality from any perspective.
This display supports optional touch panel (TP) designs in black, white, or integrated variants without TP. Its COF structure enables a lightweight, slim design while keeping production costs low. Equipped with 50 pins, including IO, UART, CAN, AD, and PWM, it allows for easy secondary development directly from the user CPU core, making it ideal for industrial, embedded, and smart device applications.
Specification:
- Display Size: 5.0 inch
- Resolution: 480x854
- Display Panel: IPS, TFT LCD
- Touch Type: Non-Touch
- View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Deg (L/R/U/D)
- Color: 262K colors
- Power Supply: 3.6~5.5V
- Brightness: 400nit
- Interface: TTL
- Working temperature: -10~60 °C
Features:
- Based on T5L0, running the DGUS II system.
- 5 inch, 480x854 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
- LCD and TP frame lamination process, with high structural reliability.
- Optional TP appearance of black, white, and integrated black/without TP.
- COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featuring a light and thin structure, low cost, and easy production.
- 50 pins, including IO, UART, CAN, AD, and PWM from the user CPU core for easy secondary development.
Useful Link:
Dwin DMG85480F050_01WN 5 Inch 480x854 COF LCD Display Non-Touch
Package Included:
1 x Dwin DMG85480F050_01WN 5 Inch 480x854 COF LCD Display Non-Touch
