Description:

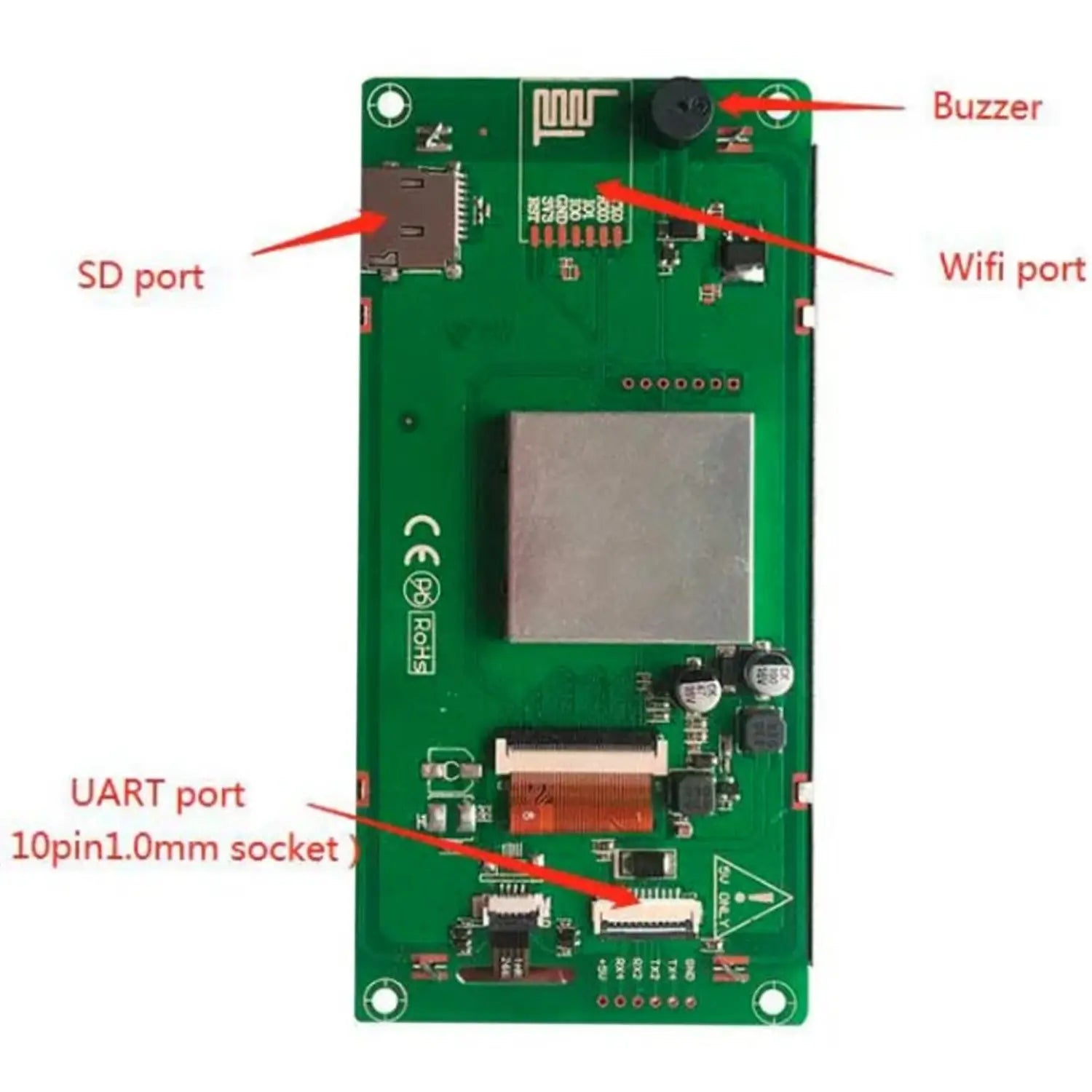

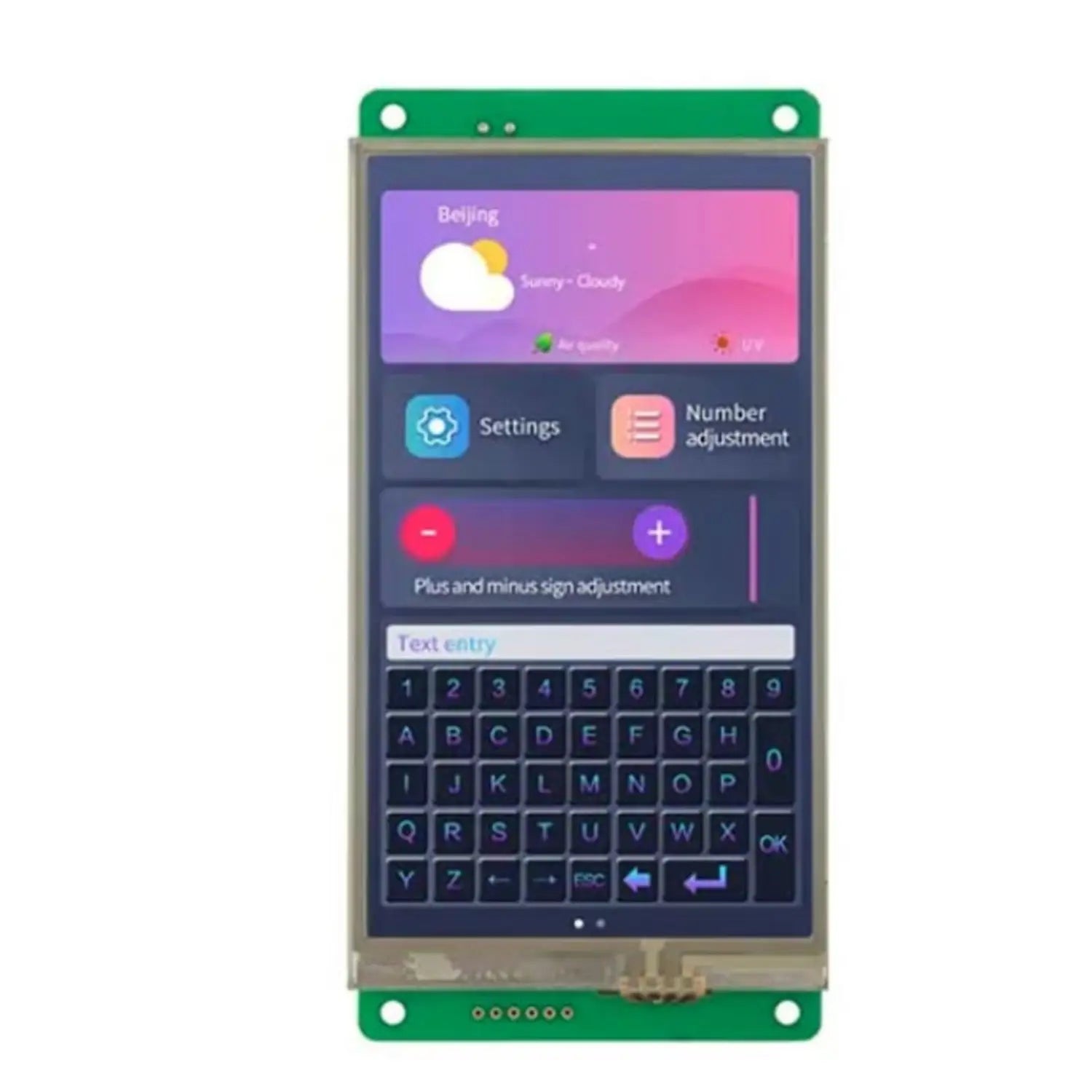

The Dwin DMG85480C050_03WTR is a 5.0-inch 480x854 TTL IPS HMI LCD Display featuring a resistive touch panel, 16MB NOR Flash memory, built-in buzzer, and SD card interface. Designed for AIoT and industrial applications, this display integrates DWIN’s DGUS II system, a powerful Graphical User Interface (GUI) development software, allowing you to create customized interfaces with buttons, text displays, graphs, sliders, and more.

Equipped with T5L1 development software, the module leverages a low-power, cost-efficient dual-core 8051 T5L chip, specifically designed by DWIN for human-machine interaction. The onboard NOR Flash memory provides ample space to store user databases and project data, making it ideal for embedded systems, HMI applications, and interactive devices.

Specification:

  • Display Size: 5.0 inch
  • Resolution: 480x854
  • Display Panel: IPS
  • Touch Type: Resistive
  • View Angle: Wide viewing angle, 85/85/85/85 deg (L/R/U/D)
  • Color: 24-bit 8R8G8B
  • Display Area: 61.6mm (W)x109.7mm (H)
  • Power Supply: 5V 1A DC
  • LCM interface: FPC60_0.5mm, RGB interface
  • Memory: 16MB
  • Buzzer: 3V passive buzzer
  • SD Interface: FAT32
  • Brightness: 250nit
  • Interface: TTL

Features:

  • T5L1n Chip, running DGUS II system, connects with any MCU, even 8-bit
  • 5.0-inch, 480x854 Pixels resolution, 16.7M Colors, IPS-TFT-LCD, Wide viewing angle
  • Resistive touch screen
  • TTL/CMOS interface; 10Pin_1.0mm connection wire
  • Download via SD card or online serial port, USB, or Wifi is optional
  • Friendly-to-use DWIN DGUS V7.6 GUIs Development tool, no coding skills required
  • Double Development System: DGUSⅡ/TA (Instruction set)
  • Wide viewing angle, 85/85/85/85 deg(L/R/U/D)
  • With a GUI OS, two kernels, the GUI kernel with rich touch and display controls, the
  • DWIN OS kernel is open to the user for development, via the DWIN OS language or KELI C51

Package Included:

1 x Dwin DMG85480C050_03WTR 5.0 Inch TTL IPS HMI LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
