Description:

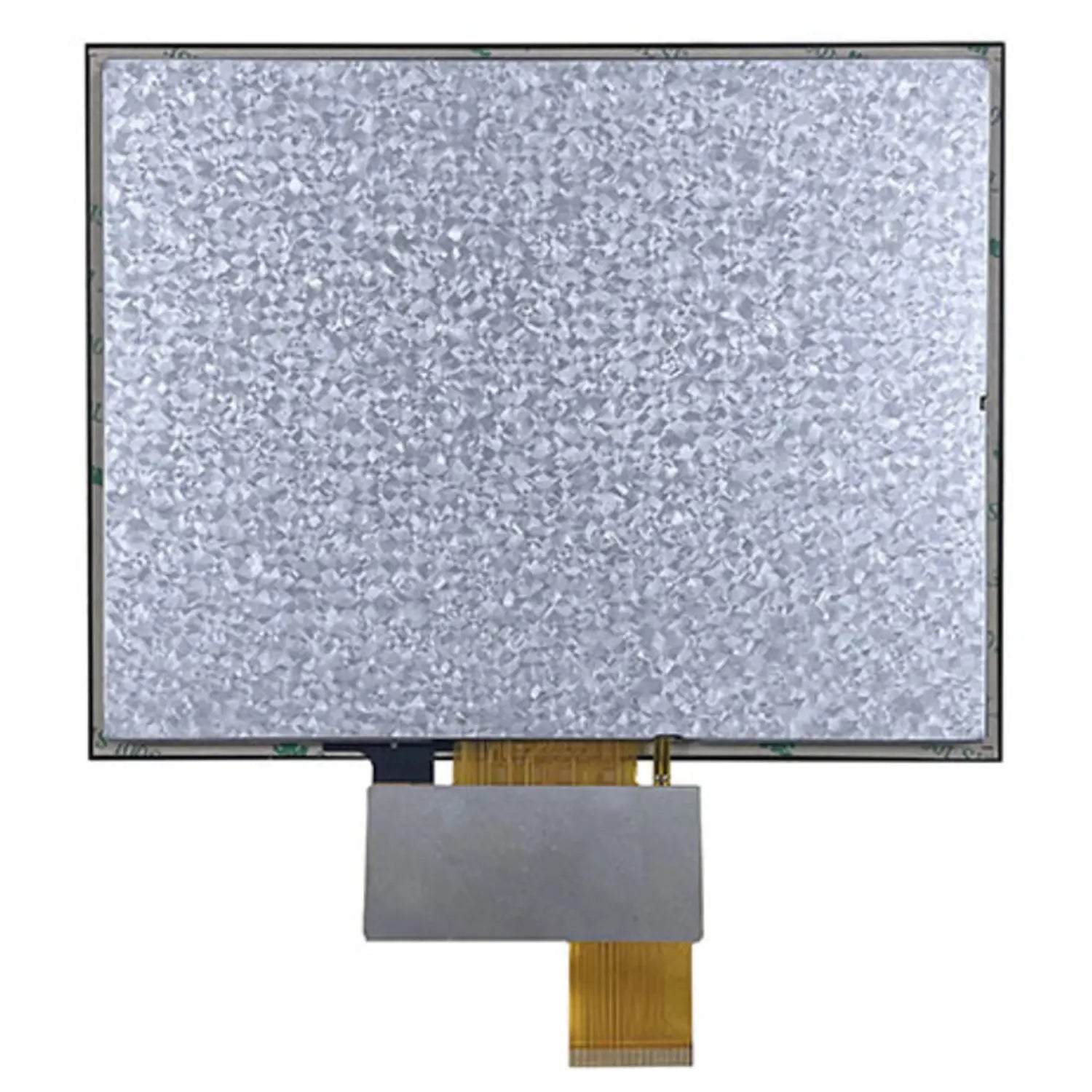

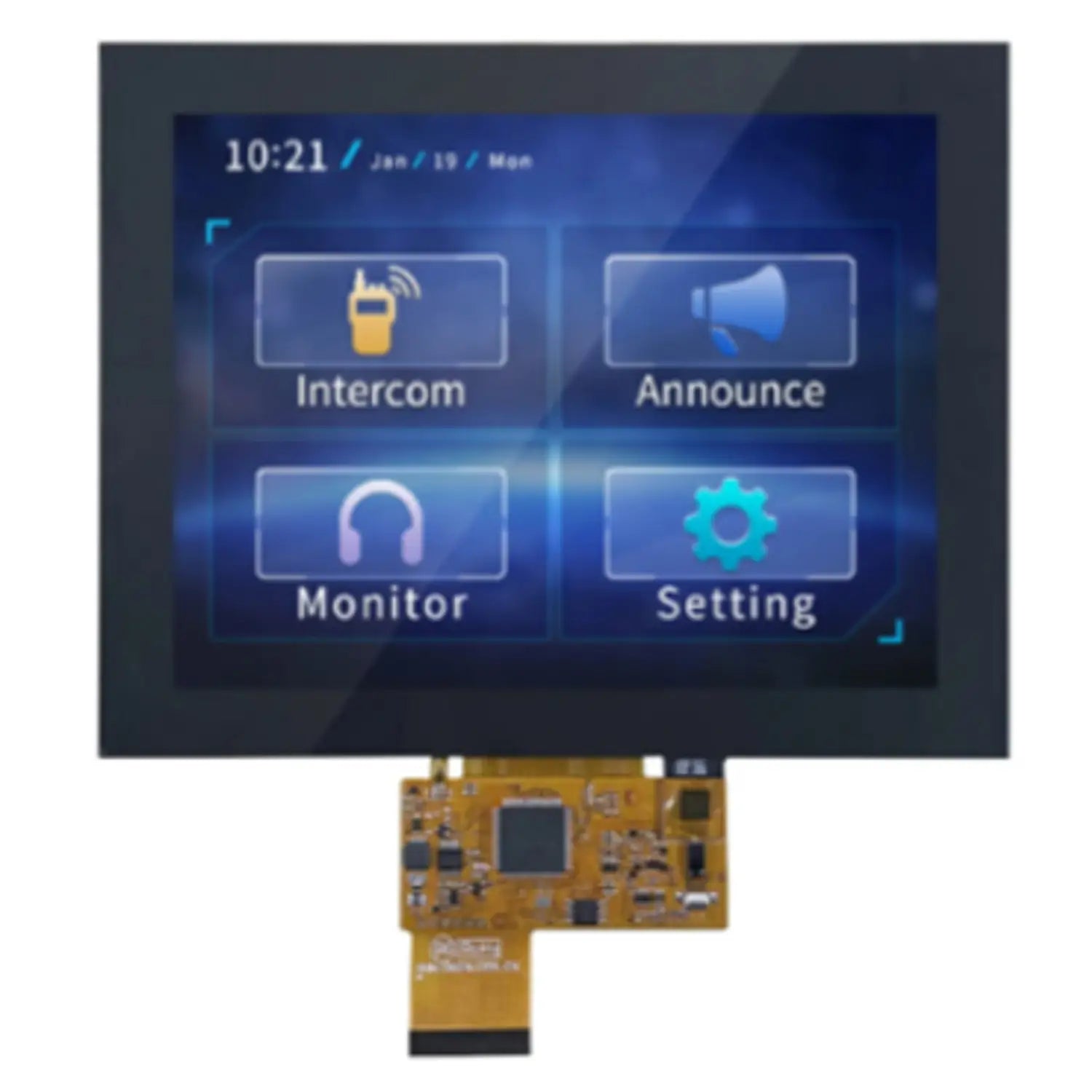

The DWIN DMG80600F080_01WTC 8-Inch COF LCD Display is a high-performance smart screen from the COF Series, built on the T5L1 chipset and powered by the DGUS II system. Featuring an 8-inch TN TFT display with a crisp 800×600 resolution and support for 16.7 million colors, it delivers sharp visuals and vibrant image quality.
Designed with a laminated LCD and capacitive touch panel (TP) frame, this display ensures durability and responsiveness. Its COF (Chip-On-Flex) structure integrates the core circuit directly onto the LCM’s FPC, resulting in a lightweight, ultra-thin (7.38mm) design, reduced production costs, and simplified manufacturing.
The module comes with a 50-pin interface supporting IO, UART, CAN, AD, and PWM functions from the user CPU core, making it ideal for secondary development and customization. With its robust performance, slim profile, and versatile connectivity, this display is perfectly suited for industrial, commercial, and embedded HMI applications.
Specifications:
- Display Size: 8.0 inch
- Resolution: 800x600
- Display Panel: TN, TFT LCD
- Touch Type: Capacitive
- View Angle: TV viewing angle, typical value of
- 70Deg/70Deg/40Deg/30Deg(L/R/U/D)
- Color: 16.7M colors
- Display Area: 162.0mm (W)x 121.5mm (H)
- Power Supply: 4.5~5.5V
- Brightness: 250nit
- User Interface: TTL
- Working temperature: -10C~60C
- Thickness: 7.38mm
Features:
- Display Size: 8 inches
- Resolution: 800x600 pixels
- Colors: 16.7 million
- Display Type: TN TFT
- COF structure for a light and thin design
- LCD and TP frame lamination process
- Smart screen based on T5L1, running DGUS II system
- 50 pins, including IO, UART, CAN, AD, and PWM for easy secondary development
Package Included:
1 x DWIN DMG80600F080_01WTC 8 Inch 800x600 COF LCD Display
