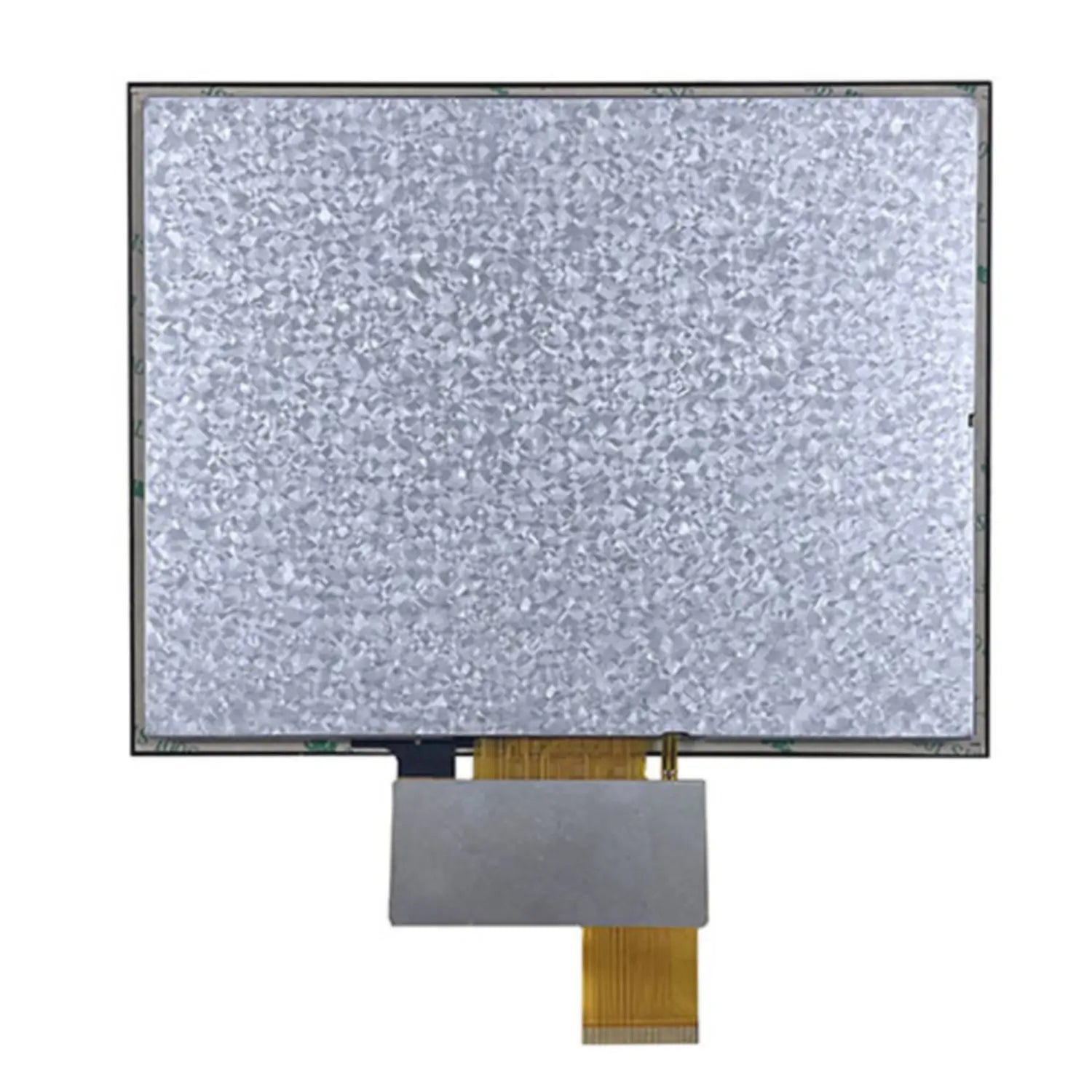

DWIN DMG80600F080_01WN 8-Inch 800x600 COF LCD Display – Reliable Non-Touch UART HMI For Industrial & Commercial Applications

DWIN DMG80600F080_01WN 8-Inch 800x600 COF LCD Display – Reliable Non-Touch UART HMI For Industrial & Commercial Applications

In stock

Rs. 1,915.00
Rs. 1,915.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DWIN DMG80600F080_01WN 8-Inch COF Smart Screen (COF Series) is a high-performance HMI display built on the T5L1 processor and running the advanced DGUS II system. Featuring an 8-inch TN TFT display with 800x600 resolution and 16.7 million colors, this screen delivers clear, vibrant visuals.

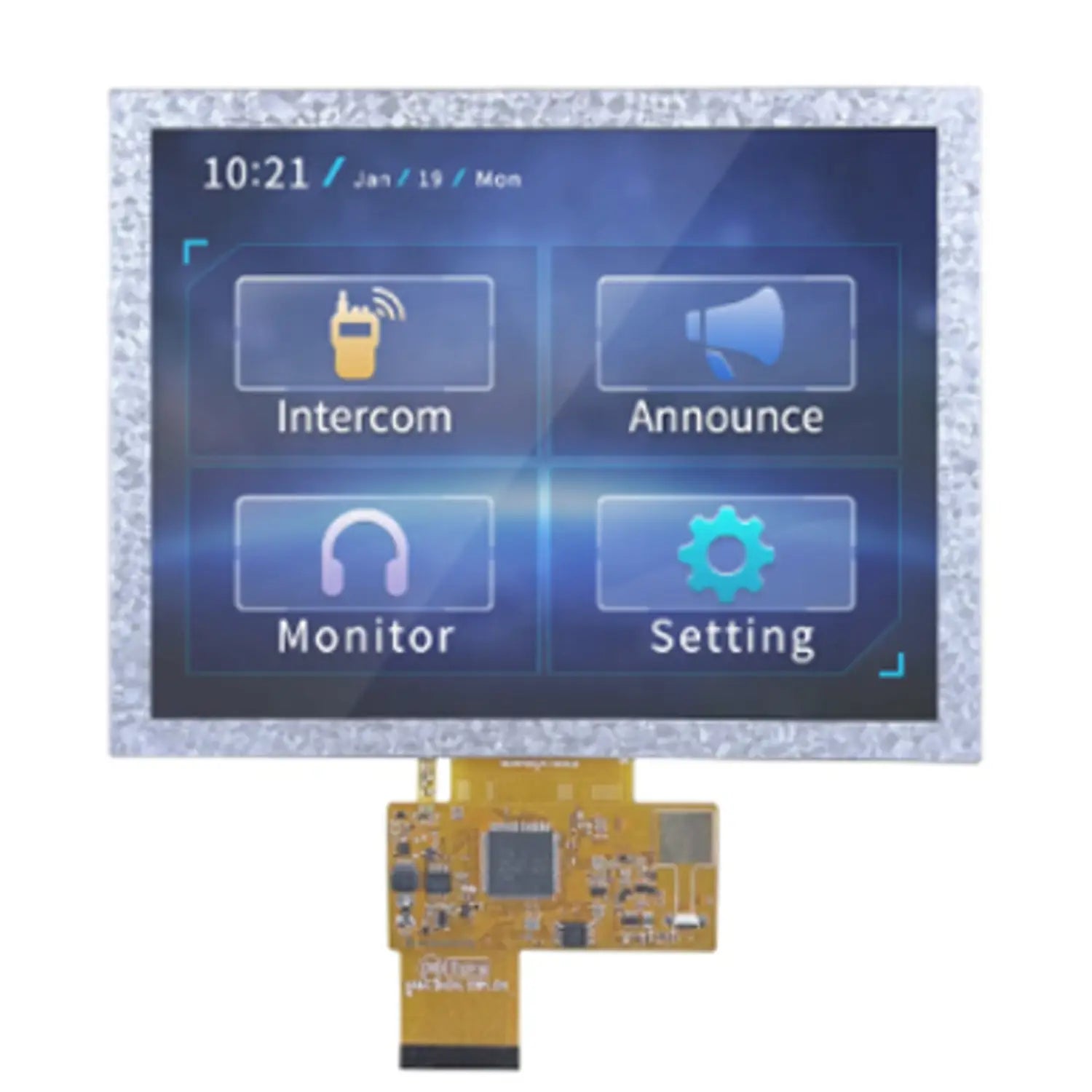

Its laminated LCD and touch panel frame, combined with the COF (Chip-on-Film) structure, allows the core circuit to be mounted directly on the FPC of the LCM, creating a thin, lightweight design that reduces production costs and simplifies manufacturing.

The screen includes 50 pins, offering IO, UART, CAN, AD, and PWM interfaces from the user CPU core, enabling easy secondary development for industrial or commercial applications. With an overall thickness of just 5.6mm, it’s compact, versatile, and ideal for a wide range of HMI projects.

Specifications:

  • Display Size: 8.0 inch
  • Resolution: 800x600
  • Display Panel: TN, TFT LCD
  • Touch Type: Non-Touch
  • View Angle: TV viewing angle, typical value of
  • 70Deg/70Deg/40Deg/30Deg(L/R/U/D)
  • Color: 16.7M colors
  • Display Area: 162.0mm (W)x 121.5mm (H)
  • Power Supply: 4.5~5.5V
  • Brightness: 300nit
  • Interface: TTL
  • Working temperature: -10C~60C
  • Thickness: 5.60mm

Features:

  • Display Size: 8 inches
  • Resolution: 800x600 pixels
  • Colors: 16.7 million
  • Display Type: TN TFT
  • COF structure for a light and thin design
  • LCD and TP frame lamination process
  • Smart screen based on T5L1, running DGUS II system
  • 50 pins, including IO, UART, CAN, AD, and PWM for easy secondary development

Package Included:

1 x DWIN DMG80600F080_01WN 8-Inch 800x600 COF LCD Display
