DWIN DMG80600C121_03WTR 12.1-Inch HMI LCD Display, 800x600 Resolution, Resistive Touch, UART Interface, Commercial Grade
DWIN DMG80600C121_03WTR 12.1-Inch HMI LCD Display, 800x600 Resolution, Resistive Touch, UART Interface, Commercial Grade
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

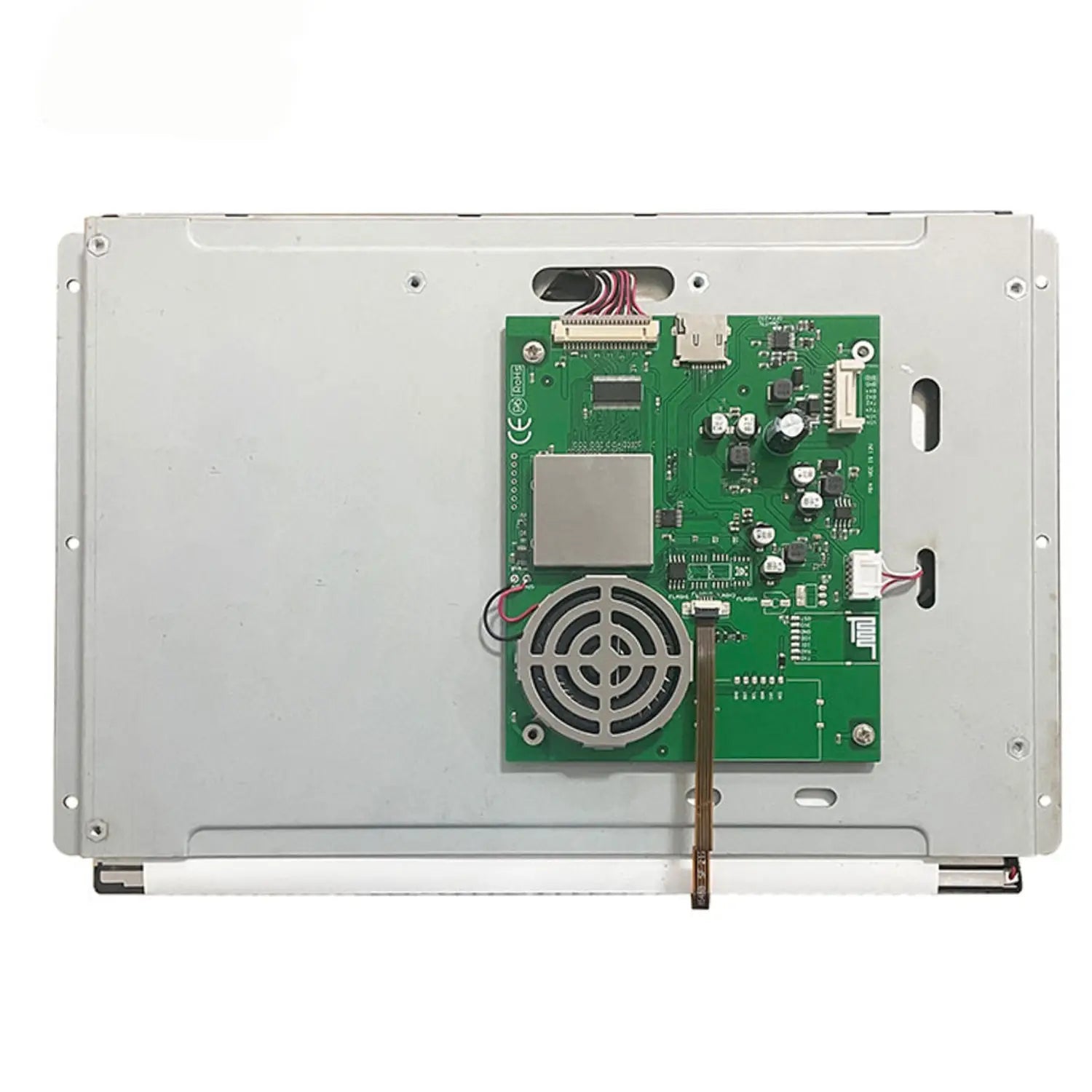

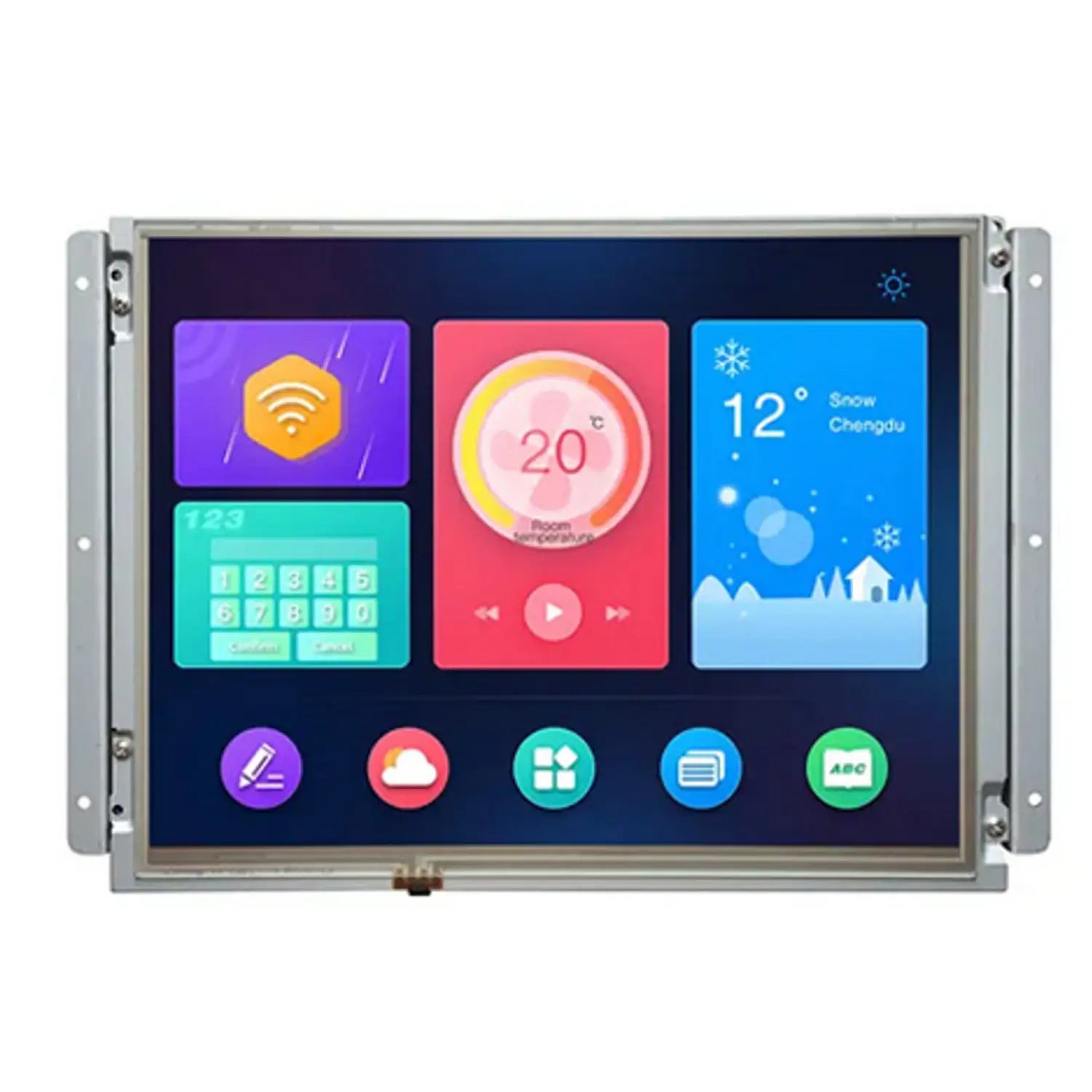

The DWIN DMG80600C121_03W 12.1-inch HMI Display Module is a premium commercial-grade solution designed for professional applications. Powered by DWIN’s self-developed T5L1 ASIC, it delivers 16.7 million colors with 24-bit depth, ensuring lifelike visuals and vibrant image quality. Its TFT LCD panel with 800×600 resolution provides sharp, clear, and detailed output suitable for industrial and commercial environments.
A standout feature of this module is its integrated onboard speakers, which allow seamless audio output without requiring external hardware. Engineered for efficiency, the display operates with a low power consumption of less than 2W, making it both reliable and energy-saving.
This combination of high performance, crisp display quality, and built-in audio makes the DMG80600C121_03W an ideal choice for interactive HMI applications, control systems, and other professional-grade display solutions.
Specification:
- Display Size: 12.1 inch
- Resolution: 800x600
- Display Panel: IPS, TFT LCD
- Touch Type: Non-Touch
- View Angle: Wide viewing angle, 85Deg/85Deg/85Deg/85Deg (U/R/U/D)
- Color: 16.7M colors
- Display Area: 246.00mm (W) x 184.50mm (H)
- Power Supply: 12-36V
- Brightness: 300nit
- Interface: FAT32
Features:
- ASIC: Self-designed T5L1
- Color: 16.7M
- LCD: 800*600 pixels TFT
- Touch Screen: No touch screen (Optional: Resistive touch screen, Capacitive touch screen)
- Speakers: Onboard, 2W power requirement
- Interfaces: TTL, 232
- Connection Wire: 8-pin 2.0mm FCC
- Project Download: SD card, UART port
- Development Tool: DWIN DGUS V7.6 GUI Development Tool
- View Angle: IPS, 85/85/85/85 (URUD)
- Interface Reservations: Wi-Fi, USB
- Wi-Fi Module: Cloud platform connectivity for remote updates
- USB Module: File downloads via USB flash disk
- GUI: Dual-core GUI with functional controls
- Second Development: DWIN OS language, KEIL C51
Package Included:
1 x DWIN DMG80600C121_03WTR 12.1-Inch HMI LCD Display
