Description:

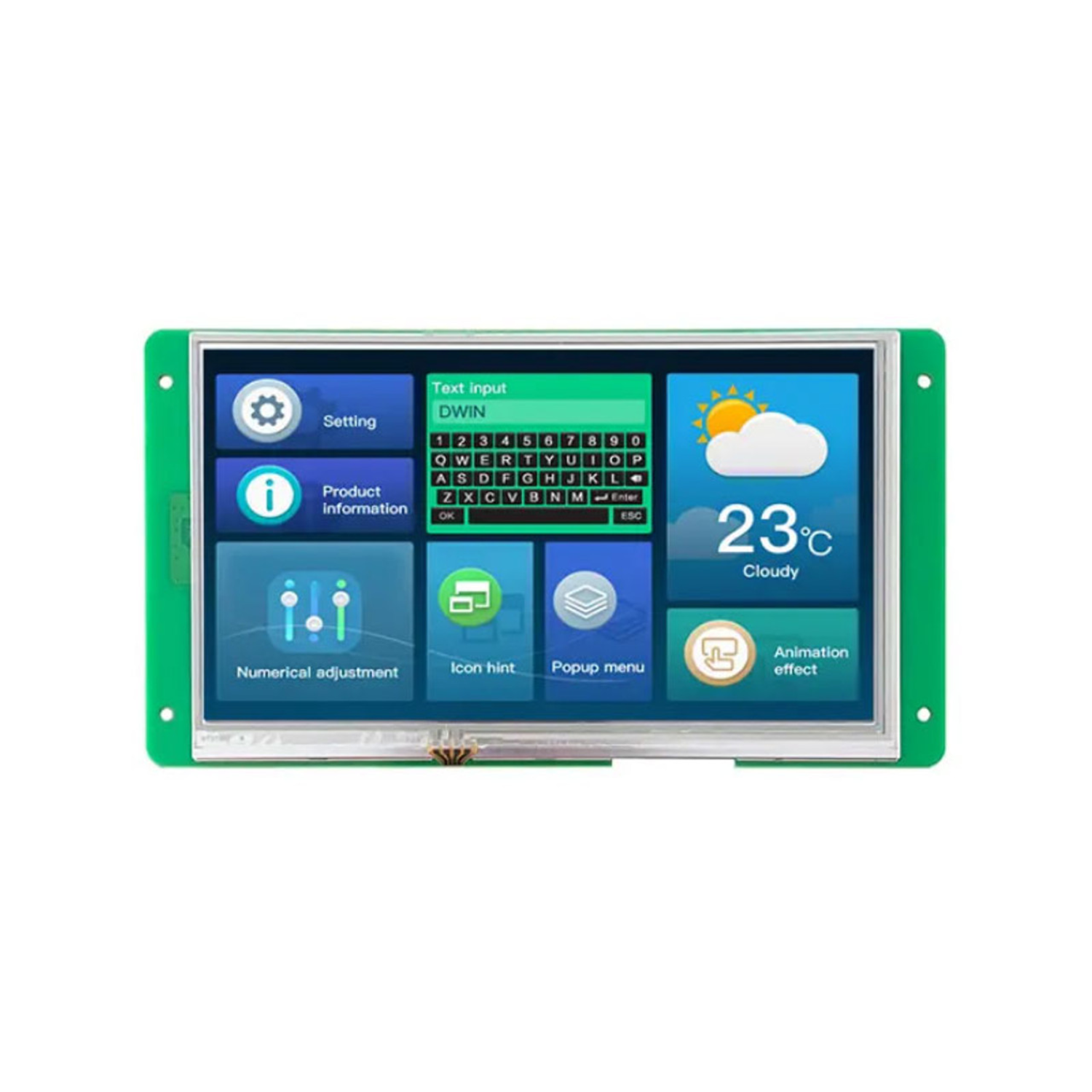

The DWIN DMG80480T070_09WTR is a powerful 7.0-inch 800×480 IPS UART LCD Display with resistive touch, designed for sophisticated Human-Machine Interface (HMI) applications. This versatile module is equipped with 16MB NOR Flash memory for user data storage, a buzzer, RTC (Real-Time Clock), and an SD card interface.
It integrates the advanced DGUS II system and GUI (Graphical User Interface) development software, allowing you to effortlessly create custom UI designs with features like buttons, text displays, graphs, and sliders. Powered by DWIN's T5L1 ASIC, a low-power, cost-effective dual-core 8051 processor, this display offers robust performance and flexibility with both UART TTL and dual RS232 interfaces for seamless integration into your AIoT and embedded systems.
Specifications:
- Display Size: 7 inch
- Resolution: 800×480
- Model no: DMG80480T070_09W
- Display Panel: IPS
- Touch Type: Resistive
- Color: 18-bit 6R6G6B
- View angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
- Display Area: 154.08mm (W)x 85.92mm (H)
- Memory: 16MB
- Power Supply: 12V 1A DC
- Brightness:720 nit
- Buzzer: 3V passive buzzer
Features:
- Enjoy crisp visuals on an 800x480 screen with 262K colors and a bright 750-nit TN panel.
- Features anti-UV protection, conformal coating for durability, and a robust resistive touchscreen.
- Connect easily via TTL/RS232 (8-pin cable included).
- Develop GUIs without coding using DWIN DGUS V7.624. Supports SD card or UART downloads, with optional USB/Wi-Fi.
- A fast dual-core 8051 processor handles both GUI and OS tasks for smooth performance.
- Clear visibility from 70/70/50/70 (L/R/U/D).

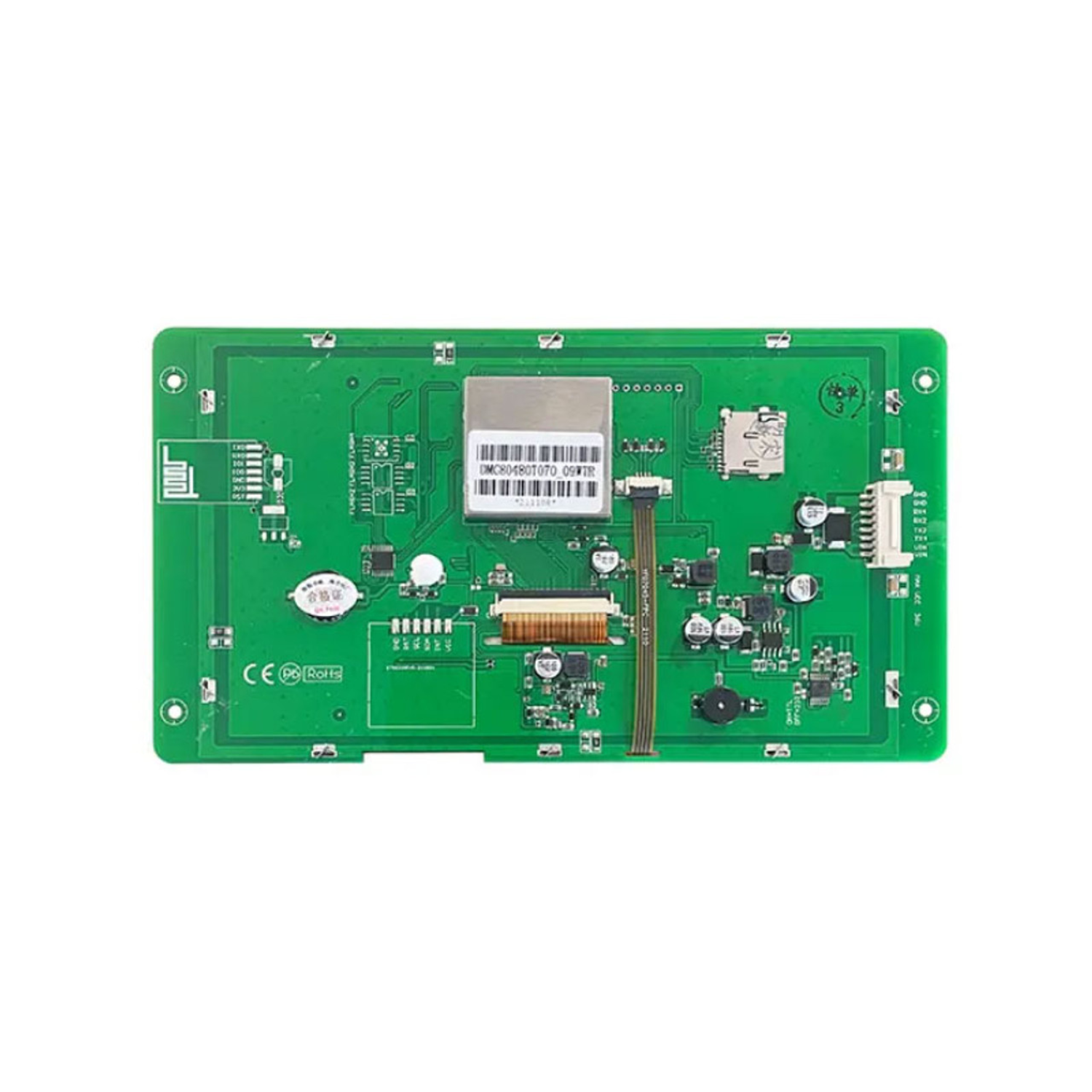

Product Interface:
Package Included:
1 x DWIN DMG80480T070_09WTR HMI LCD Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
