Dwin DMG80480T050_09WTC 5.0” 800x480 Industrial IPS LCD Display – Capacitive Touch, UART/RS232, 16MB Flash, Buzzer & SD Interface

Name: Dwin DMG80480T050_09WTC 5.0” 800x480 Industrial IPS LCD Display – Capacitive Touch, UART/RS232, 16MB Flash, Buzzer & SD Interface
Brand: DWIN
Price: 4685.00 INR
Availability: InStock

Dwin DMG80480T050_09WTC 5.0” 800x480 Industrial IPS LCD Display – Capacitive Touch, UART/RS232, 16MB Flash, Buzzer & SD Interface

SKU:

In stock

Rs. 4,685.00

Sale Sold out

Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

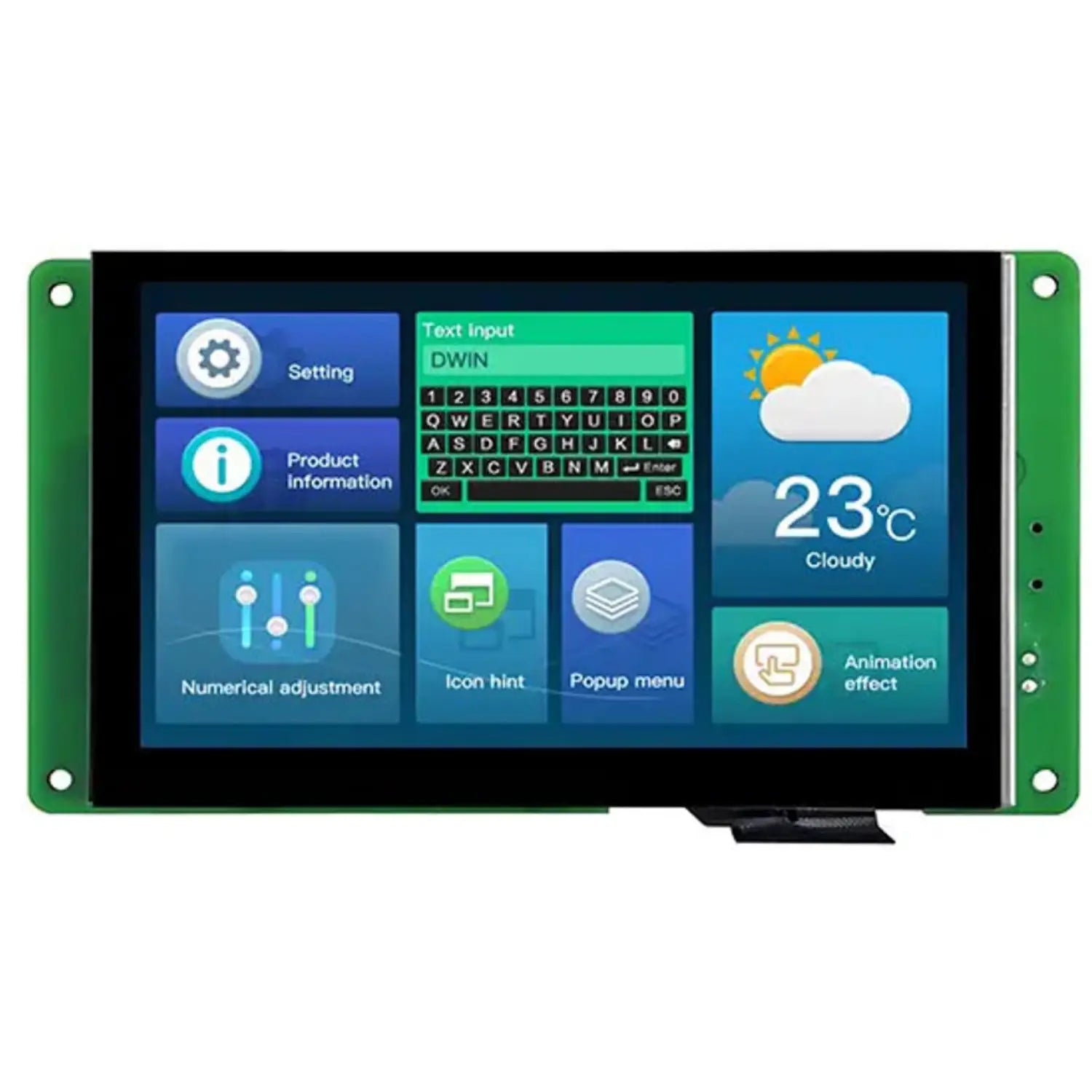

The DWIN DMG80480T050_09WTC is a 5.0-inch Industrial IPS LCD Display with 800x480 resolution and a capacitive touch interface, designed for reliable industrial and AIoT applications. Equipped with 16MB NOR Flash memory, it allows users to store databases and application data directly on the display.

This display comes integrated with the DGUS II operating system, providing a commercial-grade human-machine interface (HMI) experience. Powered by the T5L1 low-power dual-core 8051 processor, the module delivers smooth performance, cost-effective operation, and full support for AIoT applications. Additional features include UART/TTL RS232 communication, buzzer feedback, and SD card interface, making it a versatile solution for industrial and embedded projects.

Specification:

Touch Type: Capacitive
User Interface: 8Pin_2.0mm socket for power supply and serial communication
Interface: TTL/RS232
View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
Color: 24-bit 6R6G6B
Display Area: 108.0mm (W)x64.8mm (H)
Power Supply: 12 V
LCM interface: FPC40_0.5mm, RGB interface
Memory: 16MB
Buzzer: 3V passive buzzer
SD Interface: FAT32
PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
Brightness: 750nit
Reserved WiFi Interface: connect to the cloud platform to update remotely
Reserved USB Interface: download files by USB flash disk

Features:

Capacitive Touch LCD Screen
TTL/RS232 interface; 8Pin 2.0mm connection wire
Based on T5L0, running DGUS II system, industrial grade
Highlight 750nit
Anti-UV, with conformal coating.
Download files via SD card or on-line serial port
Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
Dual Development System: DGUSⅡ/TA (Instruction set)
IPS View Angle: 85/85/85/85(L/R/U/D)
With GUI OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KELI C51.
