Dwin DMG80480T050_09WN 5.0-inch 800x480 Industrial IPS LCD Display Without Touch UART TTL/RS232, 16MB Flash, Buzzer & SD Interface

Name: Dwin DMG80480T050_09WN 5.0-inch 800x480 Industrial IPS LCD Display Without Touch UART TTL/RS232, 16MB Flash, Buzzer & SD Interface
Brand: DWIN
Price: 3995.00 INR
Availability: InStock

Dwin DMG80480T050_09WN 5.0-inch 800x480 Industrial IPS LCD Display Without Touch UART TTL/RS232, 16MB Flash, Buzzer & SD Interface

SKU:

In stock

Rs. 3,995.00

Sale Sold out

Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

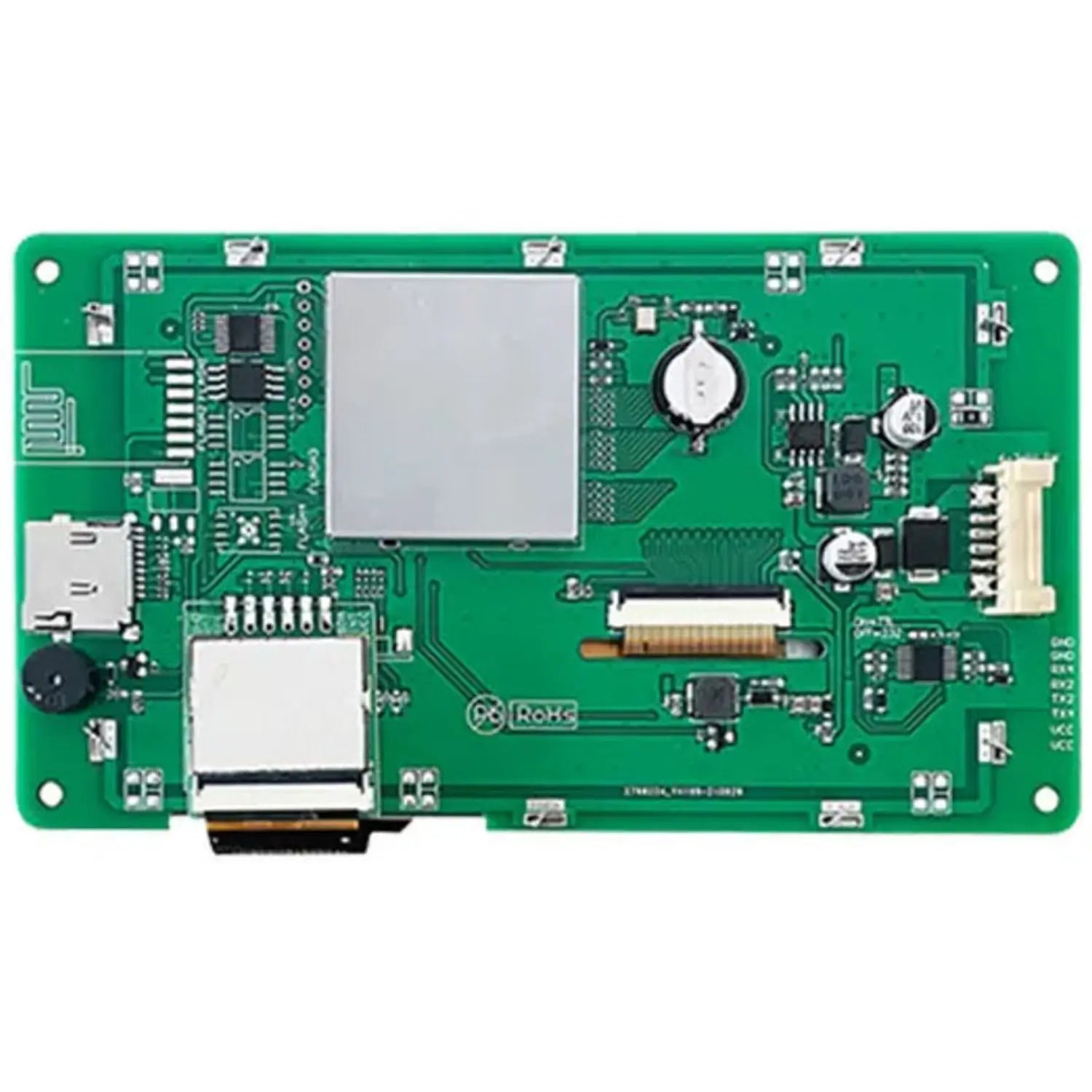

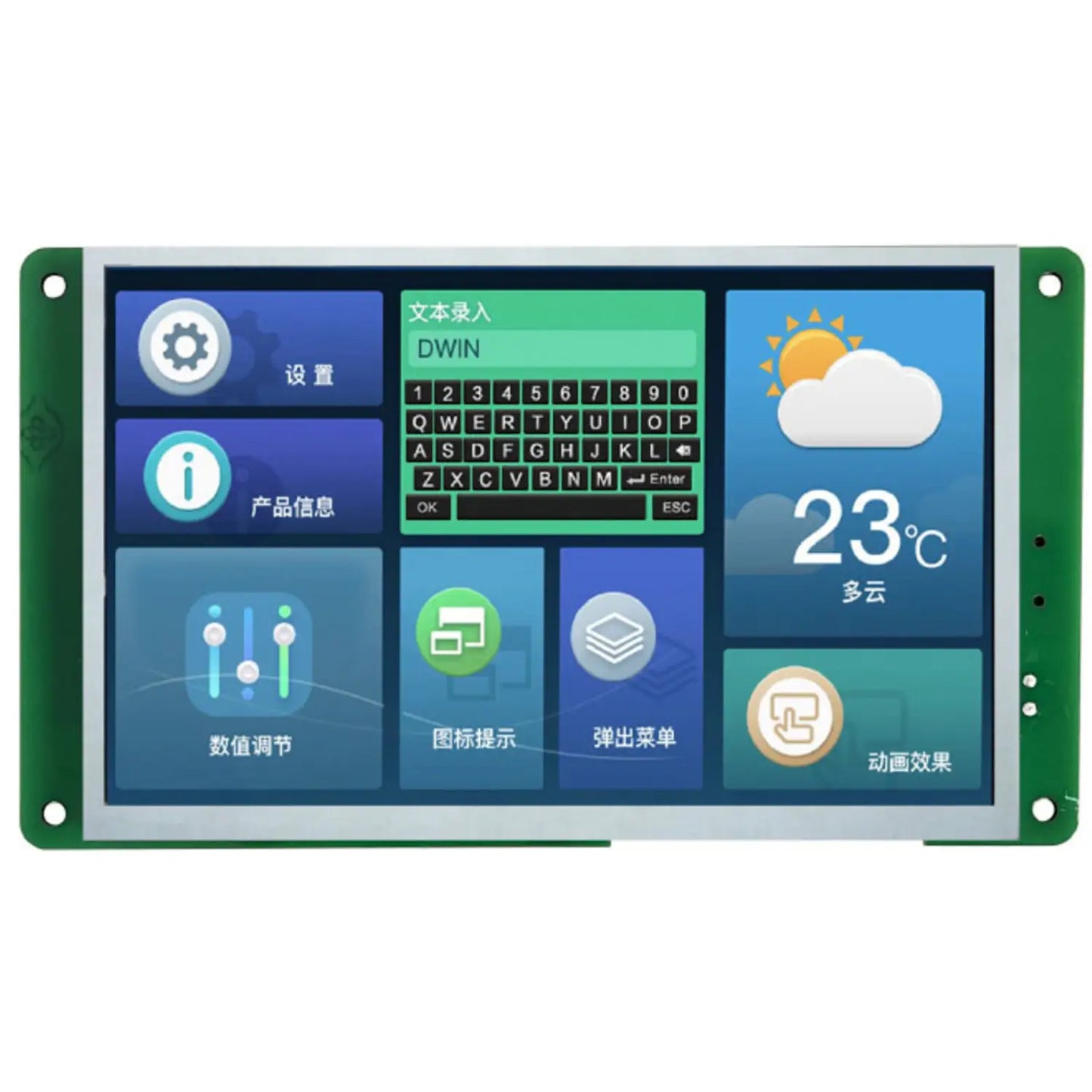

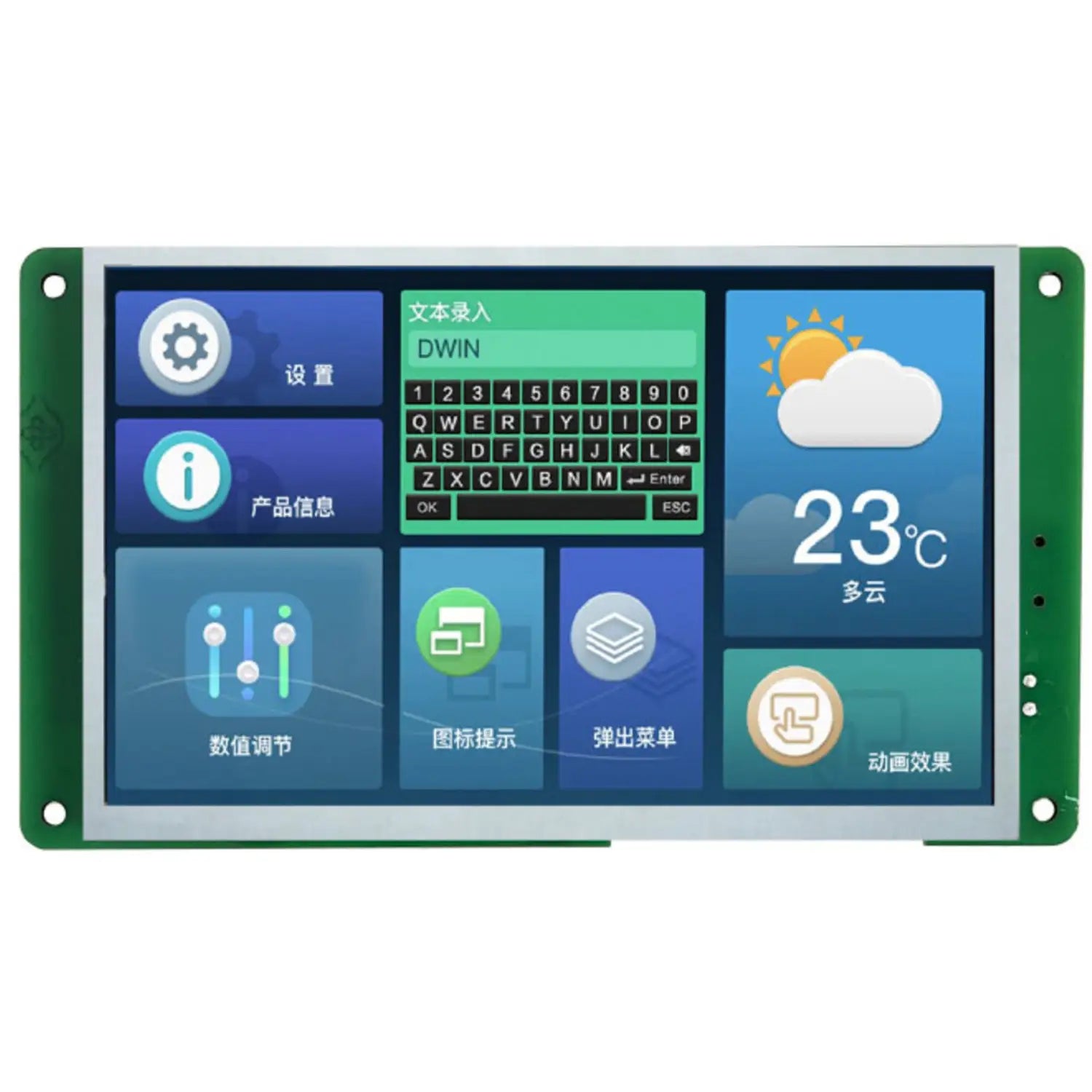

The Dwin DMG80480T050_09WN is a 5.0-inch 800x480 Industrial IPS LCD Display without touch, designed for professional AIoT applications. Featuring 16MB NOR Flash memory, it allows you to store user databases and essential data directly on the display. Integrated with the DGUS II system, this commercial-grade display provides a reliable and responsive human-machine interface (HMI) experience.

Powered by the T5L1 dual-core 8051 processor, the DMG80480T050_09WN is a low-power, cost-effective solution engineered by DWIN Technology for industrial and AIoT projects. Its versatile connectivity includes UART TTL/RS232, along with built-in support for buzzer alerts and SD interface, making it ideal for smart industrial devices, control panels, and IoT-enabled applications.

Specification:

Display Size: 5.0 inch
Interface: TTL/RS232
User Interface: 8Pin_2.0mm socket for power supply and serial communication
Resolution: 800x480
Display Panel: IPS
Touch Type: Non-Touch
View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
Color: 24-bit 6R6G6B
Display Area: 108.0mm (W)x 64.8mm (H)
Power Supply: 12 V
LCM interface: FPC40_0.5mm, RGB interface
Memory: 16MB
Buzzer: 3V passive buzzer
SD Interface: FAT32
Brightness: 900nit

Features:

Without Touch LCD Screen
TTL/RS232 interface; 8Pin 2.0mm connection wire
Download files via SD card or online serial port
Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
Dual Development System: DGUSⅡ/TA (Instruction set)
IPS View Angle:85/85/85/85(L/R/U/D)
With GUI OS, a GUI with rich controls, the DWIN OS kernel is open to the user for development, via the DWIN OS language or KELI C51.
