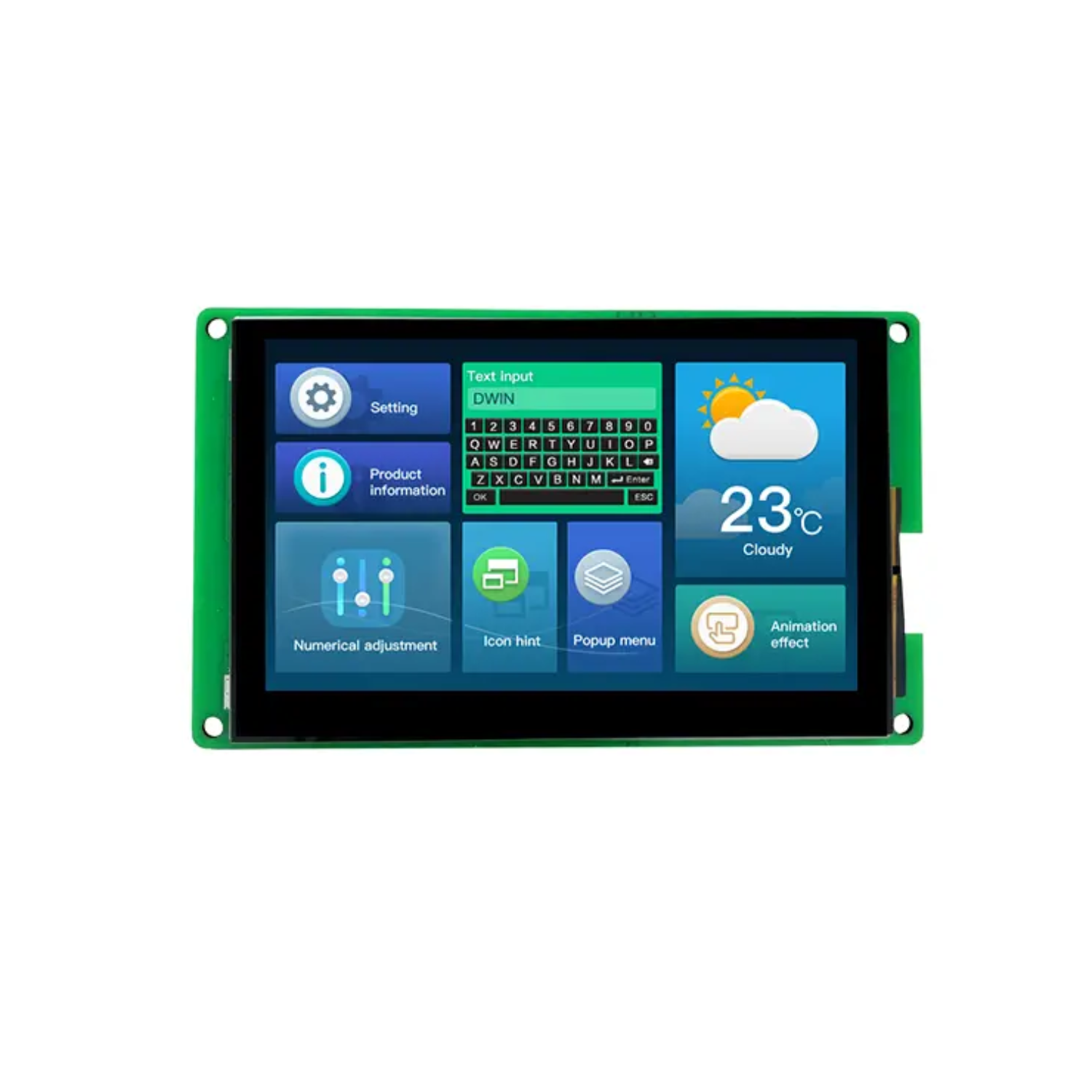

• DWIN DMG80480T043_09WTC LCD Display
  • 4.3 Inch WVGA Capacitive Touch HMI LCD Display
1 3

DWIN

DWIN DMG80480T043_09WTC LCD Display 4.3 Inch WVGA Capacitive Touch HMI LCD Display For Embedded Systems

DWIN DMG80480T043_09WTC LCD Display 4.3 Inch WVGA Capacitive Touch HMI LCD Display For Embedded Systems

In stock

Rs. 4,589.00
Rs. 4,589.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This high-performance 4.3-inch IPS TFT LCD features a T5L0 processor, displaying 262K colors at an 800x480 resolution with impressive brightness (up to 900nit) and a full 85° all-around viewing angle.

It supports TTL and RS232 communication through an 8-pin 2.0 mm interface. GUI development is streamlined with the DWIN DGUS V7.6 no-code platform, supporting SD card and serial port data downloads. The dual-core architecture integrates a comprehensive GUI and an open DWIN OS kernel, enabling secondary development in DWIN OS language and KEIL C51 environments.

Specifications:

  • Display Size: 4.3"
  • Touch Type: Capacitive
  • Display Resolution: 480 × 800
  • Backlight mode: LED
  • Color: 18-bit 6R6G6B
  • Active Area: 93.60mm (W) × 56.16mm (H)
  • Lense Viewing Angle: 85°/85°/85°/85° (L/R/U/D), Wide viewing angle
  • LCD Screen: IPS, TFT LCD
  • Operating Voltage: 6~36V
  • Power Rating: <5W
  • Max. Operating Current: 200mA: VCC=12V, max backlight, 65mA: VCC=12V, backlight off

Features:

  • Based on self-designed T5L0, 262K Color 18-bit, 800*480 Pixel IPS TFT LCD
  • High Brightness no touch/Capacitive/Resistance: 900nit/810nit/720nit
  • TTL and RS232 Interface with 8 Pin 2.0 mm connection wire
  • Download through SD card or online serial port available
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no need for code
  • Two kinds of system for development: DGUSⅡ/TA (Instruction set)
  • Wide View Angle 85/85/85/85 (L/R/U/D)
  • With GUI & OS dual-core, GUI with many controls. DWIN OS kernel is open to the user for second-development, via DWIN OS language or KEIL C51

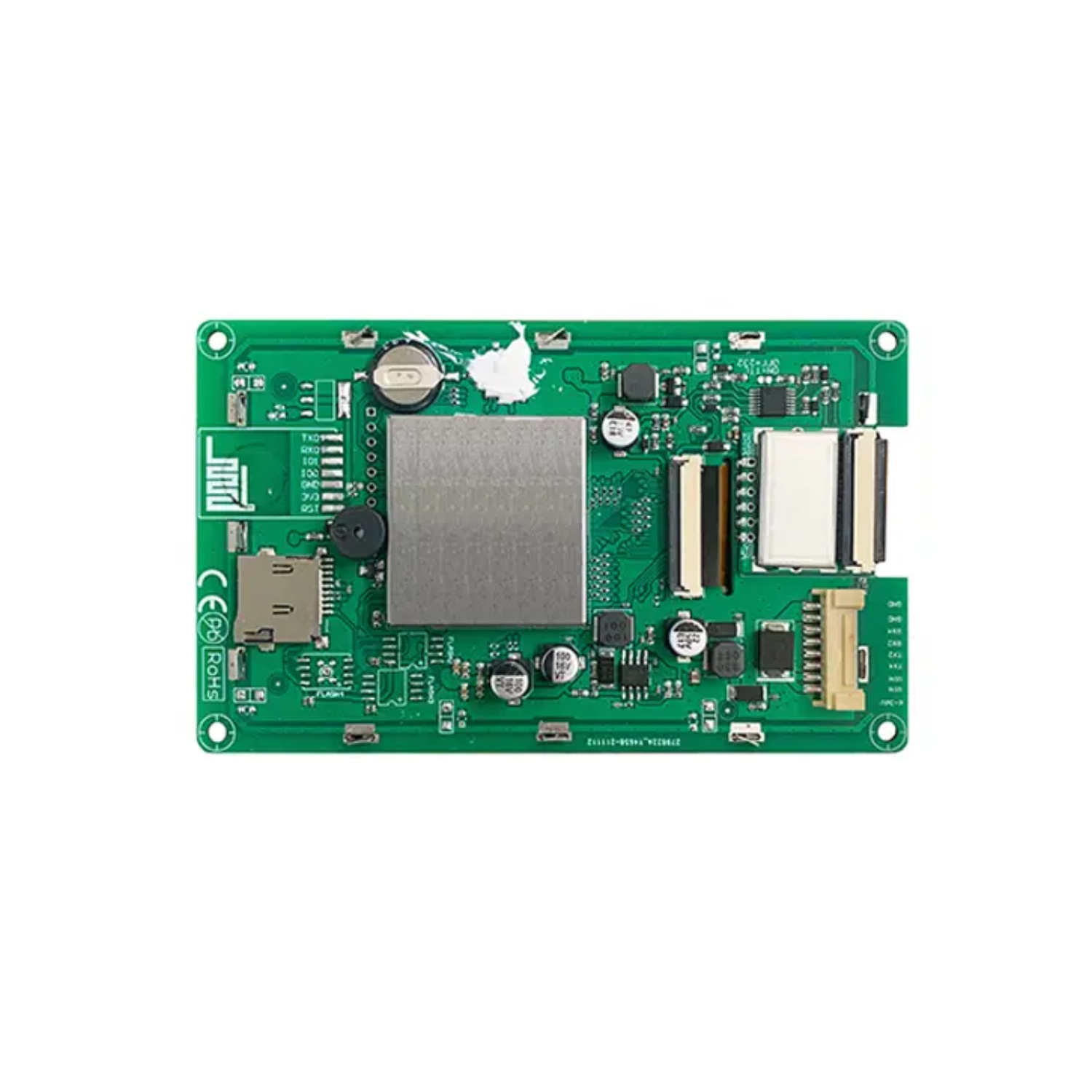

Product Interface:

Useful Link:

DWIN DMG80480T043_09WTC LCD Display

Package Included:

1 x DWIN DMG80480T043_09WTC LCD Display

DWIN Smart LCD Display Accessories (Need to purchase separately)
