Description:

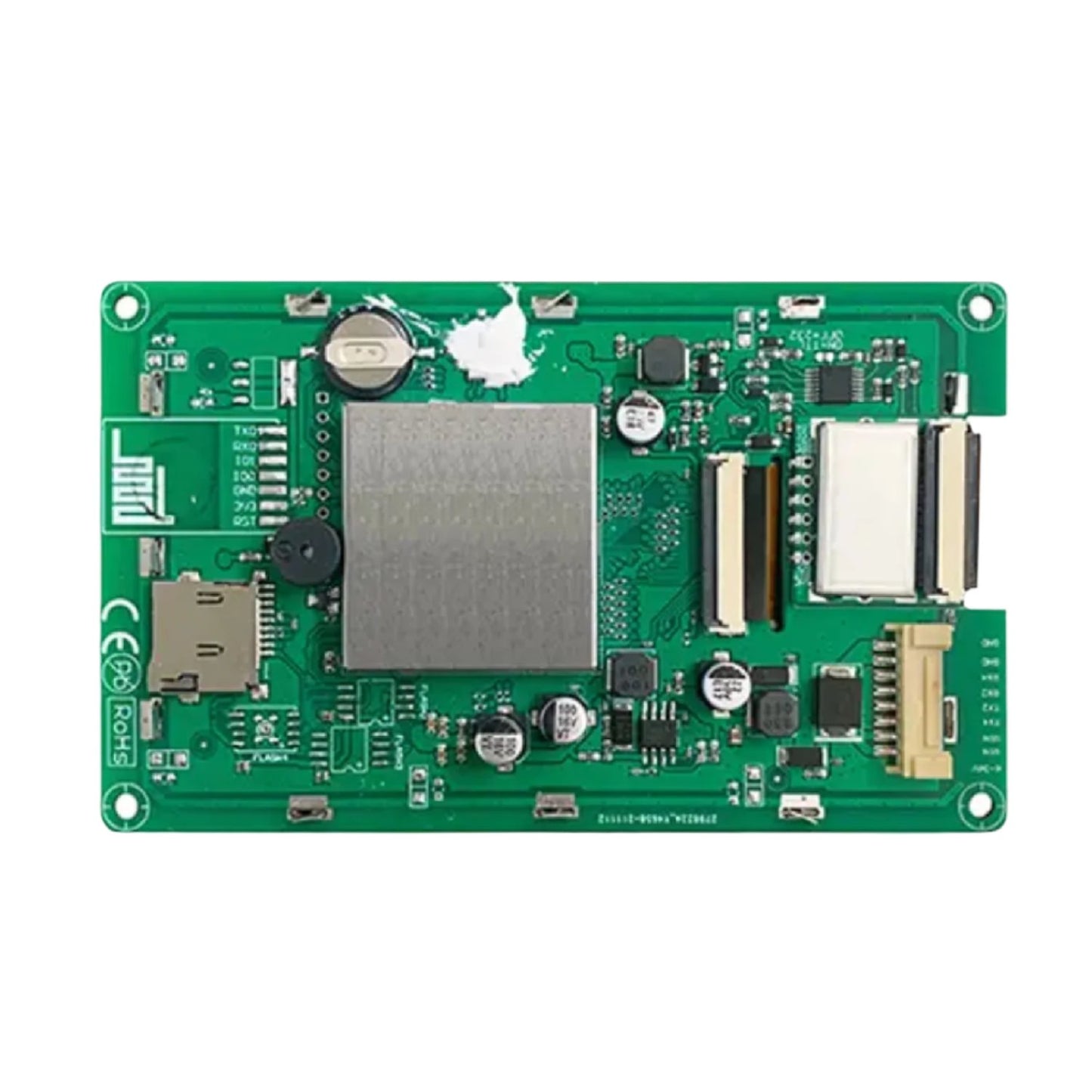

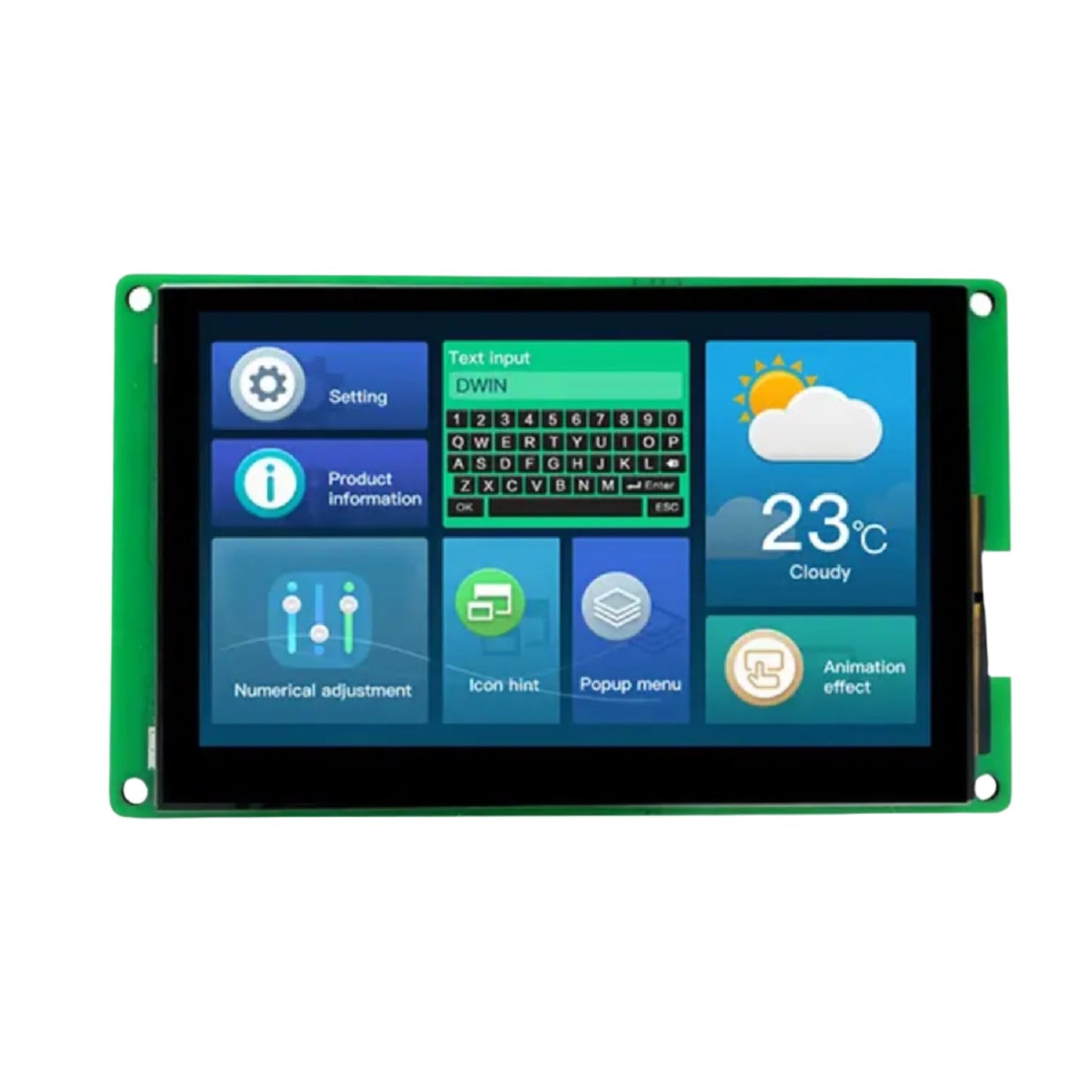

DWIN DMG80480T043_09WN 4.3" HMI LCD Display is a 4.3-inch Human-Machine Interface (HMI) LCD display with a resolution of 480x800 pixels. It features a UART interface for communication and control. This display is suitable for a wide range of embedded applications where a user-friendly interface is required.
The DWIN DMG80480T043_09WN is a 4.3-inch Human-Machine Interface (HMI) LCD display designed for seamless integration into embedded systems. With a high resolution of 480x800 pixels, this display offers a clear and vibrant visual experience. Its UART interface enables easy communication with various microcontrollers and processors, simplifying system integration.
Specifications:
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85°(L/R/U/D) |
| Resolution | 480×800 pixels (support 0°/90°/180°/270°) |
| Color | 18-bit 6R6G6B |
| Active Area (A.A.) | 93.60mm (W)×56.16mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
Working Principle:
Features:
- Based on self-designed T5L0, 262K Color 18-bit,800*480 Pixel IPS TFT LCD;
- High Brightness no touch /Capacitive/Resistance:900nit/810nit/720nit;
- TTL and RS232 Interface with 8 Pin 2.0 mm connection wire;
- Download through SD card or online serial port available;
- Easy-to-use DWIN DGUS V7.6 GUIs Development, no need for code;
- Two kinds of systems for development: DGUSⅡ/TA (Instruction set);
- Wide View Angle 85/85/85/85 (L/R/U/D);
- With GUI & OS dual-core, GUI with many controls. DWIN OS kernel is open to the user for the second development, via DWIN OS language or KEIL C51.
Pin Description:
Package Included:
1 x DWIN DMG80480T043_09WN 4.3" HMI LCD Display 480x800 Resolution
