Description:

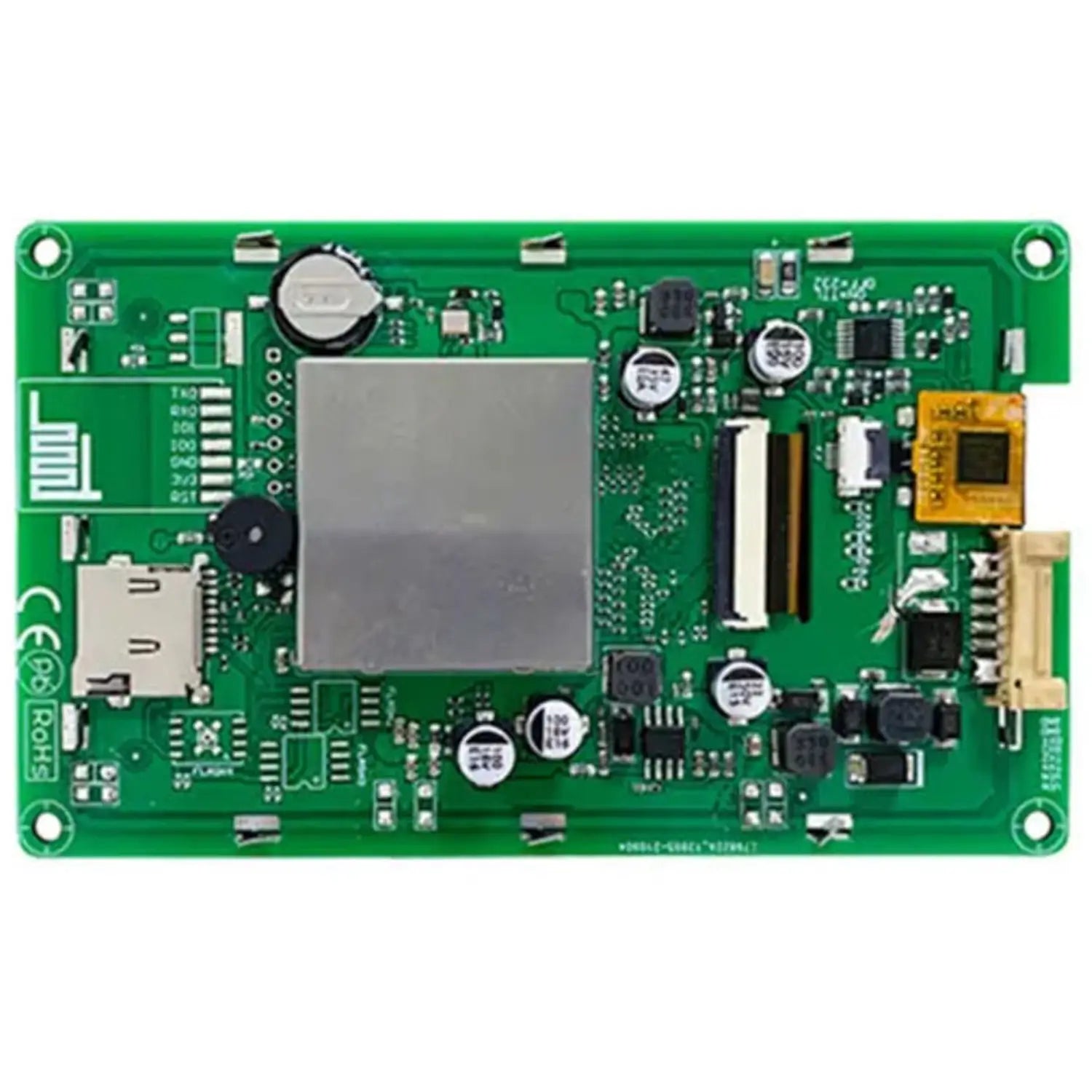

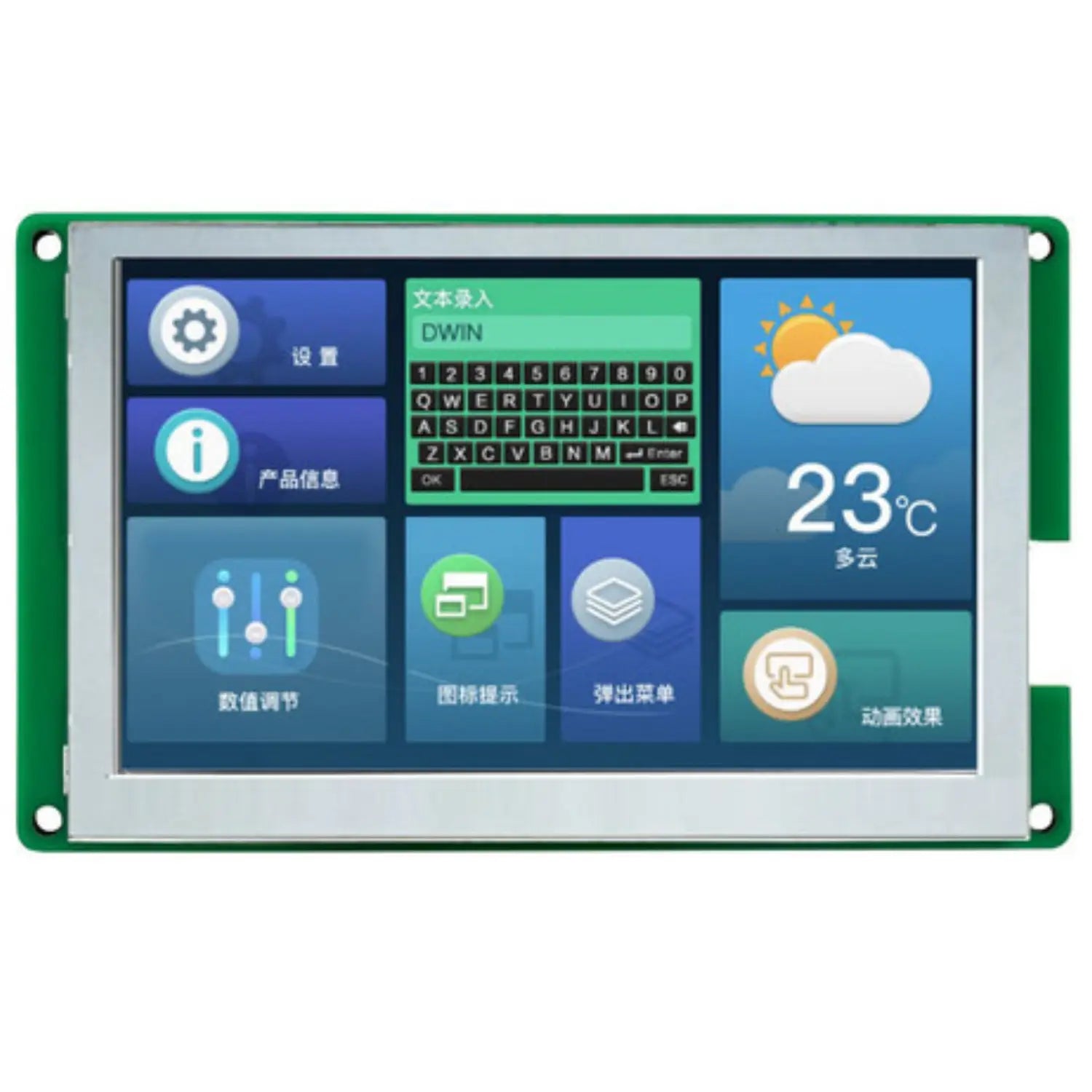

The DWIN DMG80480T043_09WN is a 4.3-inch 800x480 IPS Industrial HMI LCD Display featuring a UART TTL/RS232 interface, 16MB NOR Flash memory, buzzer, and SD card slot, designed for robust and efficient human-machine interaction. Developed by DWIN Technology, this display module provides a bright, wide-viewing IPS screen and reliable performance for industrial and embedded applications.
Preloaded with DGUS II, DWIN’s advanced GUI development platform, it enables users to easily create custom user interfaces with interactive components such as buttons, text displays, graphs, and sliders — all without extensive coding. The display operates on the T5L1 DWIN ASIC, a powerful dual-core 8051 processor optimized for AIoT and industrial automation applications, ensuring smooth operation and flexible design integration.
Its onboard NOR Flash memory allows local data storage and retrieval, making it ideal for data logging and user configuration. The DMG80480T043_09WN offers a professional, scalable solution for HMI-based control panels, instrumentation, and smart device interfaces.
Specification:
- Display Size: 4.3 inch
- Resolution: 800x480
- Display Panel: IPS
- Touch Type: Non-Touch
- View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
- Color: 24-bit 6R6G6B
- Display Area: 93.6mm (H)x 56.16mm (W)
- Power Supply: 12V 1A DC
- LCM interface: FPC40_0.5mm, RGB interface
- Memory: 16MB
- Buzzer: 3V passive buzzer
- SD Interface: FAT32
- PGT05 Interface: When the product crashes by accident, you can use PGT05 to update the DGUS kernel and make the product return to normal
- Brightness: 900nit
- Reserved WiFi Interface: connect to the cloud platform to update remotely
- Reserved USB Interface: download files from a USB flash disk
- RTC: Super-capacitor for power supply. Accuracy: 1s/24h. It can work normally for 30 days after a power failure
- User Interface: 8Pin_2.0mm socket for power supply and serial communication
- Interface: TTL/RS232
Features:
- Based on self-designed T5L0, 262K Color 18-bit,800*480 Pixel IPS TFT LCD
- High Brightness no touch: 900nit
- TTL and RS232 Interface with 8 Pin 2.0 mm connection wire
- Download through SD card or online serial port available
- Easy-to-use DWIN DGUS V7.6 GUIs Development, no need for code
- Two kinds of systems for development: DGUSⅡ/TA (Instruction set)
Wide View Angle 85/85/85/85 (L/R/U/D)
- With a GUI OS, a GUI with many controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51
Package Included:
1 x DWIN DMG80480T043_09WN 4.3" 800x480 IPS Industrial HMI Display
